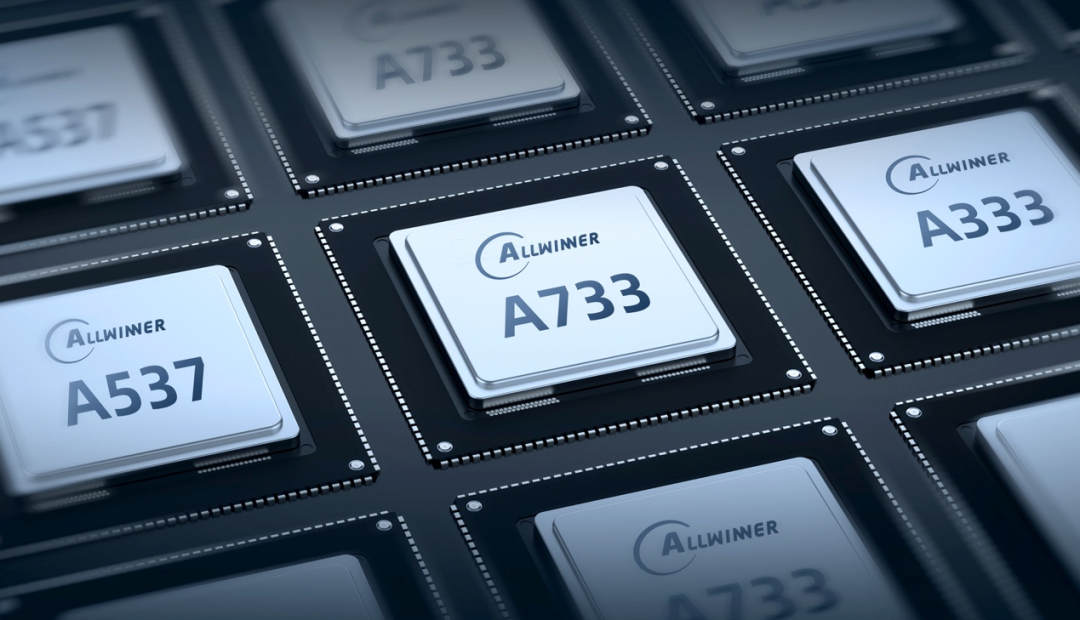

In 2025, Allwinner launched three new intelligent processors aimed at general tablet applications:A733, A537, and A333. These three “core” members are positioned as high-end, mid-range and entry-level processors, precisely covering the diverse needs of various levels of Android tablet products, applicable to: tablets, educational products, buddy machines, commercial display devices, e-books, cash registers, and other general tablet products, providing just the right performance support for different usage scenarios.
Hardcore Standard Configuration
▋ Powerful Core
All three processors integrate high-performance big-core CPUs.
▋ Worry-free Certification
All can pass Google GMS certification, meeting the practical usage needs of mainstream applications.
▋ Development Friendly
Allwinner provides a complete development kit, including SDKs, development and debugging tools, mass production tools, reference designs, and development documentation, significantly lowering the development threshold.
▋ Flexible Design
The hardware reference designs of the three chips have certain compatibility, allowing customers to differentiate performance levels and peripheral component stocking for the same series of terminal products; among them, A537 and A333 achieve complete Pin to Pin compatibility, making design switching smoother.
Three “Cores” Debut, Each Showcasing Their Strengths
▋ A733:Strong Performance, AI Empowered
A733 is a high-performance platform processor series designed for mid-to-high-end tablets and interactive display applications..
▋ Core Configuration
Dual-core Arm® Cortex® – A76 + Six-core Arm Cortex- A55 CPU + Imagination PowerVR BXM-4-64 GPU + 3 TOPS NPU.
▋ Video Capabilities
Supports dual-screen independent display output or synchronized display output, supports up to 8K@24fps H.265/VP9/AVS2 video format decoding, supports up to 4K@30fps H.265/H.264 video format encoding.
▋ Rich Interfaces
PCIe 3.0, USB 3.1 Gen2 DRD, GMAC and other high-speed interfaces; RGB, LVDS, MIPI-DSI, E-ink (electronic ink screen) and eDP 1.4b/DP 1.4 video output interfaces.
▋ Memory Support
LPDDR4, LPDDR4x, LPDDR5 DRAM and UFS/eMMC.
A733 Chip Brief Block Diagram
▋ A537:High Energy Efficiency, Balanced Performance
A537 is an octa-core big.LITTLE tablet processor series aimed at mid-range tablets and interactive display applications.
▋ Core Configuration
Dual-core Arm Cortex – A73 + Six-core Arm Cortex – A53 CPU + Arm Mali™ –G57 MC1 GPU.
▋ Video Capabilities
H.265/H.264/VP9 hardware decoding capabilities and H.264 hardware encoding capabilities.
▋ Rich Interfaces
PCle2.1, USB3.1 GEN1 DRD, GMAC and other high-speed interfaces, as well as RGB, Dual LVDS, MIPI DSI, eDP1.3 and E-ink display output interfaces.
▋ Memory Support
Supports DDR3, DDR3L, LPDDR3, DDR4, LPDDR4, LPDDR4x with a maximum capacity of 16GB.

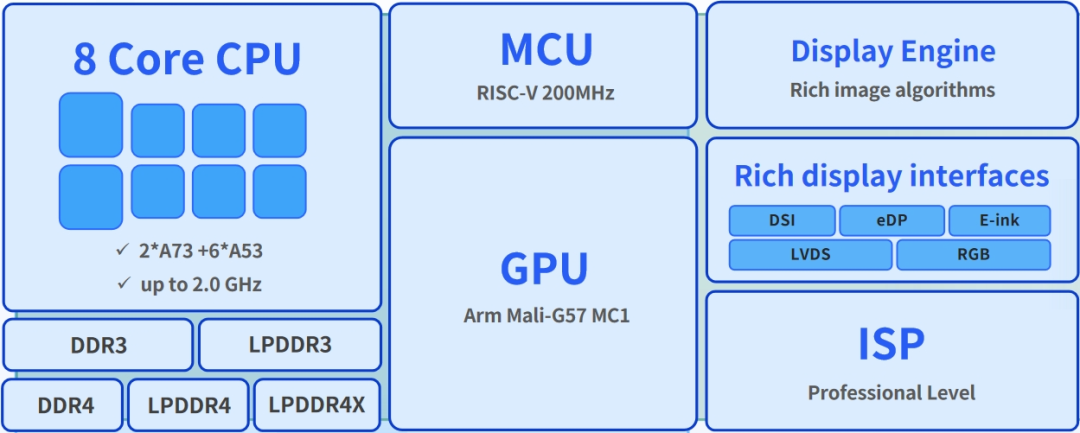

A537 Chip Brief Block Diagram
▋ A333:Entry-level Tool, Efficient Energy-saving
A333 is a five-core big.LITTLE tablet processor series aimed at entry-level tablets and interactive display applications.
▋ Core Configuration
Single-core Arm Cortex – A73 + Four-core Arm Cortex – A53 CPU + Arm Mali –G57 MC1 GPU.
▋ Video Capabilities
Supports H.265/H.264/VP9 hardware decoding and H.264 hardware encoding.
▋ Rich Interfaces
Includes PCle2.1, USB3.1 GEN1 DRD, GMAC and other high-speed interfaces, as well as RGB, Dual LVDS, MIPI DSI, eDP1.3 and E-ink display output interfaces.
▋ Memory Support
Supports DDR3, DDR3L, LPDDR3, DDR4, LPDDR4, LPDDR4x with a maximum capacity of 8GB.

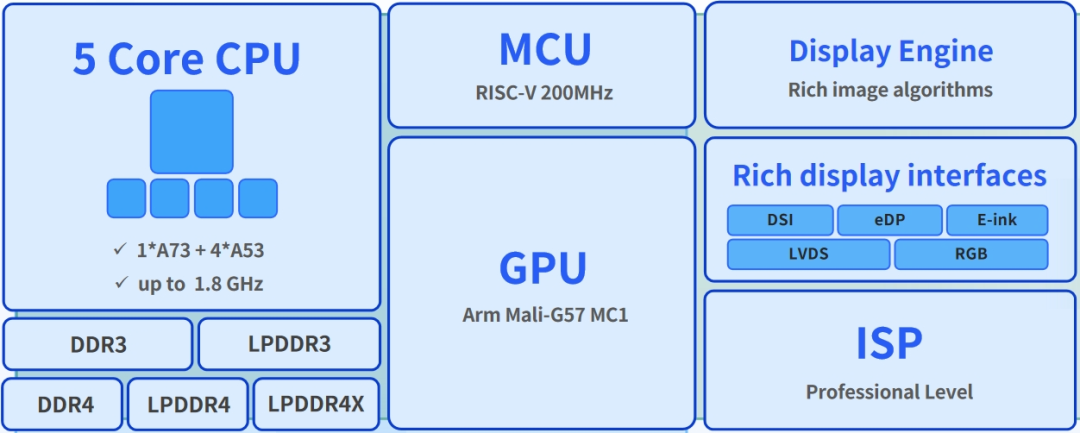

A333 Chip Brief Block Diagram
PPA Dynamic Balance, Avoiding Specification Redundancy
Allwinner A733, A537,A333 three processors adopt a similar series design language, fully demonstrating Allwinner’s deep technical accumulation and stable platform capabilities in the Android tablet processor field. More importantly, Allwinner, based on a profound insight into the general Android tablet market, does not simply stack performance when defining different level chip specifications, but precisely anchors the SoC’s “impossible triangle” PPA (Performance, Power, Area), achieving a clever balance between specifications and needs, performance and cost. This not only reflects Allwinner’s strong technical strength but also demonstrates Allwinner’s precise understanding of the general tablet market demands.
*Source: Allwinner Technology
