With the rapid development of artificial intelligence (AI), efficient communication between AI assistants and applications has become particularly important. The Model Context Protocol (MCP, abbreviated as MCP) has emerged to provide a standardized interface for large language models (LLMs) to interact with external data sources and tools. Among the many features of MCP, the Streamable HTTP transmission mechanism is gradually replacing the traditional Server-Sent Events (SSE) transmission method, becoming the new standard for AI communication.

Goodbye SSE, Embrace Streamable HTTP — image-20250513181409075

Overview of the MCP Protocol

MCP is an open standard promoted by Anthropic aimed at addressing the dependency of LLMs on external information when performing tasks. By defining a set of universal communication rules and data formats, MCP enables LLMs to dynamically acquire the necessary contextual information, thereby enhancing their capabilities and scope of use.MCP consists of the following core components:

MCP Client: Implementation on the LLM or its service infrastructure side, responsible for constructing requests and sending them to the MCP server.
MCP Server: Implementation on the external system side, receiving requests from the MCP client, interacting with actual data sources or tools, and returning the acquired data formatted according to the MCP protocol specifications to the client.
Context Information Exchange: Facilitates bidirectional exchange of contextual information between LLMs and external systems.

With MCP, developers can more easily integrate AI assistants with various applications and data sources, achieving more efficient AI communication.

Limitations of Traditional SSE

Server-Sent Events (SSE) is a unidirectional communication protocol based on HTTP that allows servers to push real-time updates to clients. However, SSE has limitations in the following areas:

Limited Communication Direction: SSE only supports unidirectional communication from server to client, failing to meet the needs for bidirectional interaction.
Lack of Session Management: SSE lacks a built-in session management mechanism, making it difficult to maintain complex states.
Poor Connection Recovery Capability: After a network interruption, SSE has limited connection recovery capabilities, which may lead to data loss.
Limited Data Format Support: SSE primarily supports UTF-8 text and cannot handle multiple data formats.

These limitations make SSE increasingly inadequate for modern AI applications.

Innovations of Streamable HTTP

Streamable HTTP is the recommended transmission mechanism within the MCP framework, designed to achieve efficient, bidirectional data stream communication through standard HTTP. Its main features include:

Single Endpoint Communication: Uses a single HTTP endpoint to handle all MCP communications, simplifying network architecture.
Multiple Response Modes: Supports batch (JSON) and streaming (SSE) responses to meet different communication needs.
Built-in Session Management: Simplifies state maintenance through the Mcp-Session-Id header for session management.
Connection Recoverability: Supports recovery of SSE connections after network interruptions, improving communication stability.
Flexible Authentication: Supports various authentication methods, enhancing security.
Cross-Origin Resource Sharing (CORS) Configuration: Provides flexible CORS configuration for easy integration with web applications.

These features give Streamable HTTP significant advantages in modern AI communication.

Technical Comparison: SSE vs. Streamable HTTP

Feature	Traditional`<span>SSE</span>` Transmission	`<span>Streamable HTTP</span>` Protocol (`<span>MCP</span>`)
Communication Direction	Unidirectional (Server → Client)	Bidirectional (Client ↔ Server)
Session Management	No built-in mechanism	Based on `<span>Mcp-Session-Id</span>` header
Data Format Support	Only supports UTF-8 text	Supports multiple data formats
Automatic Reconnect	Supported	Supported
Compatibility with Existing Infrastructure	High	High

From the above comparison, it is evident that Streamable HTTP outperforms traditional SSE transmission methods in terms of communication flexibility, session management, and data format support.

Implementation and Demonstration

MCP Server Based on Streamable HTTP

In previous articles, we wrote a weather query MCP Server based on the sse protocol and successfully deployed it online.

Project address: https://gitee.com/ming_log/mcp-server

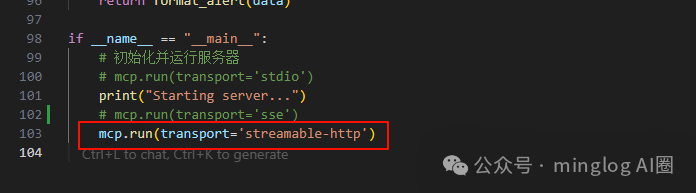

To modify the MCP Server from the sse protocol to the Streamable HTTP protocol, the method is very simple; just change the execution method of the MCP Server to streamable-http.

“

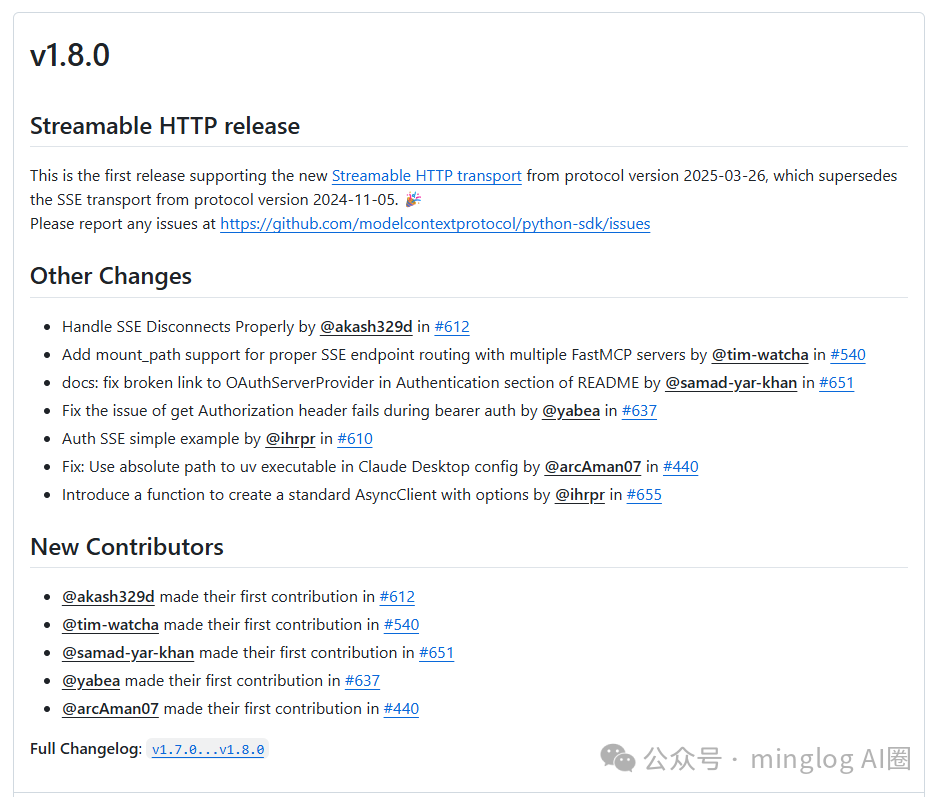

Note: You need to first update the version of mcp[cli] to 1.8.0.

The complete code is as follows:

from typing import Any
import httpx
from mcp.server.fastmcp import FastMCP

# Initialize FastMCP server
mcp = FastMCP(
    name="weather",
    host="0.0.0.0",
    port=8002,
    description="Get weather information by city name (pinyin) or latitude and longitude",
    sse_path="/mcp"
)

# Constants
NWS_API_BASE = "https://api.openweathermap.org/data/2.5/weather"
USER_AGENT = "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36"

# Temperature unit conversion, converting Kelvin to Celsius
def kelvin_to_celsius(kelvin: float) -> float:
    return kelvin - 273.15

async def get_weather_from_cityname(cityname: str) -> dict[str, Any] | None:
    """Send a request to openweathermap and handle errors appropriately."""
    headers = {
        "User-Agent": USER_AGENT,
        "Accept": "application/geo+json"
    }
    params = {
        "q": cityname,
        "appid": "24ecadbe4bb3d55cb1f06ea48a41ac51"
    }
    async with httpx.AsyncClient() as client:
        try:
            response = await client.get(NWS_API_BASE, headers=headers, params=params)
            response.raise_for_status()
            return response.json()
        except Exception:
            return None

async def get_weather_from_latitude_longitude(latitude: float, longitude: float) -> dict[str, Any] | None:
    """Send a request to openweathermap and handle errors appropriately."""
    headers = {
        "User-Agent": USER_AGENT,
        "Accept": "application/geo+json"
    }
    params = {
        "lat": latitude,
        "lon": longitude,
        "appid": "24ecadbe4bb3d55cb1f06ea48a41ac51"
    }
    async with httpx.AsyncClient() as client:
        try:
            response = await client.get(NWS_API_BASE, headers=headers, params=params)
            response.raise_for_status()
            return response.json()
        except Exception:
            return None


def format_alert(feature: dict) -> str:
    """Format the weather information returned by the interface for text output"""
    if feature["cod"] == 404:
        return "Parameter error, please confirm whether the city name is correct."
    elif feature["cod"] == 401:
        return "API key error, please confirm whether the API key is correct."
    elif feature["cod"] == 200:
        return f"""
        City: {feature.get('name', 'Unknown')}
        Weather: {feature.get('weather', [{}])[0].get('description', 'Unknown')}
        Temperature: {kelvin_to_celsius(feature.get('main', {}).get('temp', 0)):.2f}°C
        Humidity: {feature.get('main', {}).get('humidity', 0)}%
        Wind Speed: {feature.get('wind', {}).get('speed', 0):.2f} m/s
        """
    else:
        return "Unknown error, please try again later."

@mcp.tool()
async def get_weather_from_cityname_tool(city: str) -> str:
    """Get weather information for a city.

    Args:
        city: City name (e.g., "wuhan"). For Chinese cities, please use pinyin
    """
    data = await get_weather_from_cityname(city)
    return format_alert(data)

@mcp.tool()
async def get_weather_from_latitude_longitude_tool(latitude: float, longitude: float) -> str:
    """Get weather information for a location.

    Args:
        latitude: Latitude of the location
        longitude: Longitude of the location
    """
    data = await get_weather_from_latitude_longitude(latitude, longitude)
    return format_alert(data)

if __name__ == "__main__":
    # Initialize and run the server
    # mcp.run(transport='stdio')
    print("Starting server...")
    mcp.run(transport='streamable-http')

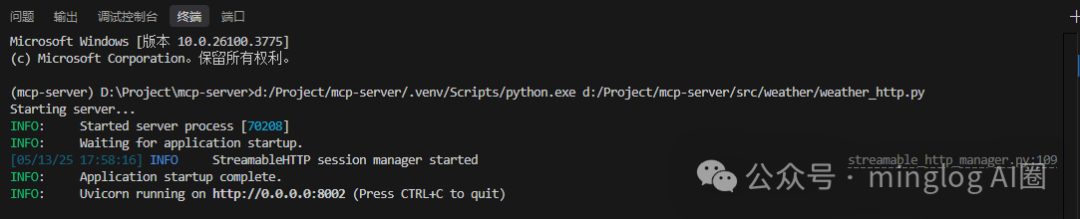

Start the service

Next, test whether the service can be used normally.

Since Cursor currently does not support the Streamable HTTP protocol, we will use Cherry Studio for testing, which you can download yourself. Official website: https://www.cherry-ai.com/

After downloading and logging in, click on the settings in the lower left corner.

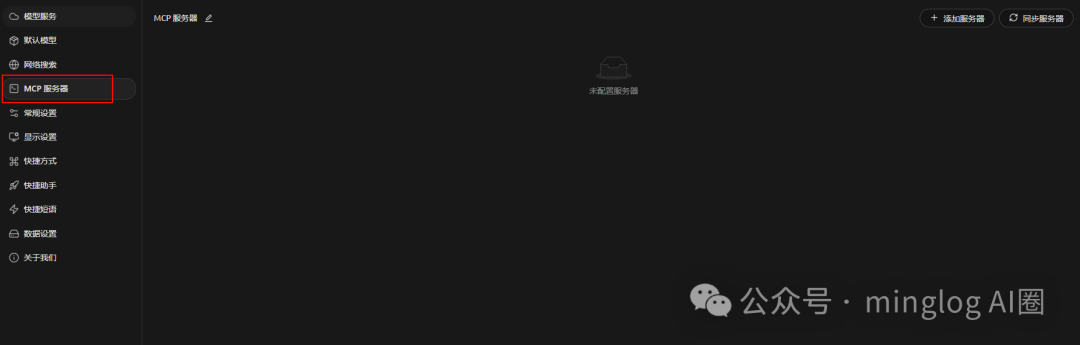

Then click on MCP Server

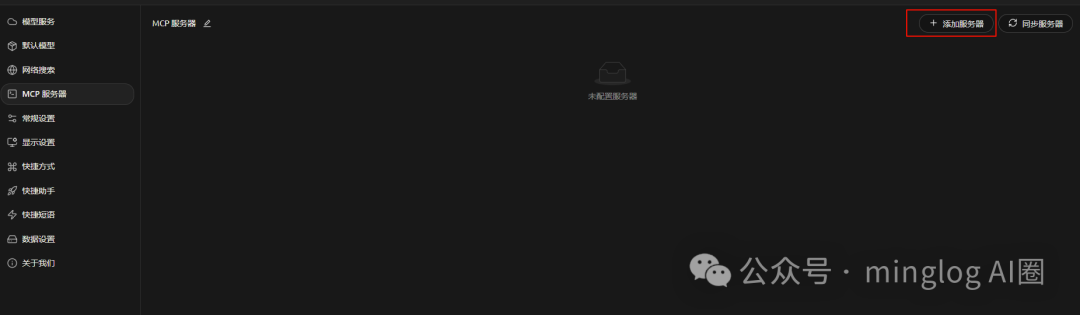

Next, click to add a server and configure the MCP Server we just started.

Fill in the content as shown in the figure below.

Then click save in the upper right corner.

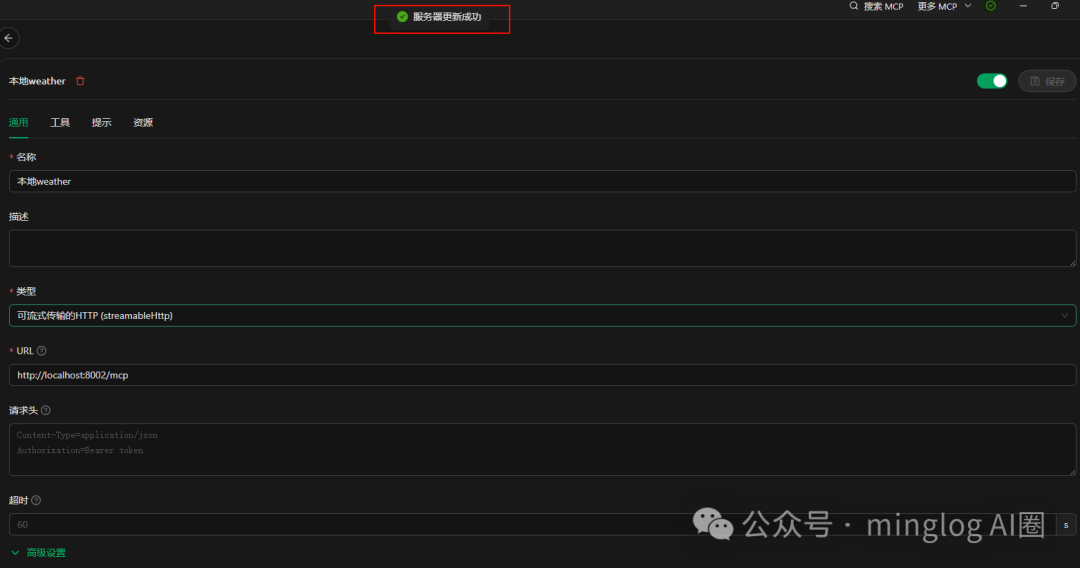

If there are no issues, you should see the server update successfully as shown in the figure. If there are issues, an error will appear.

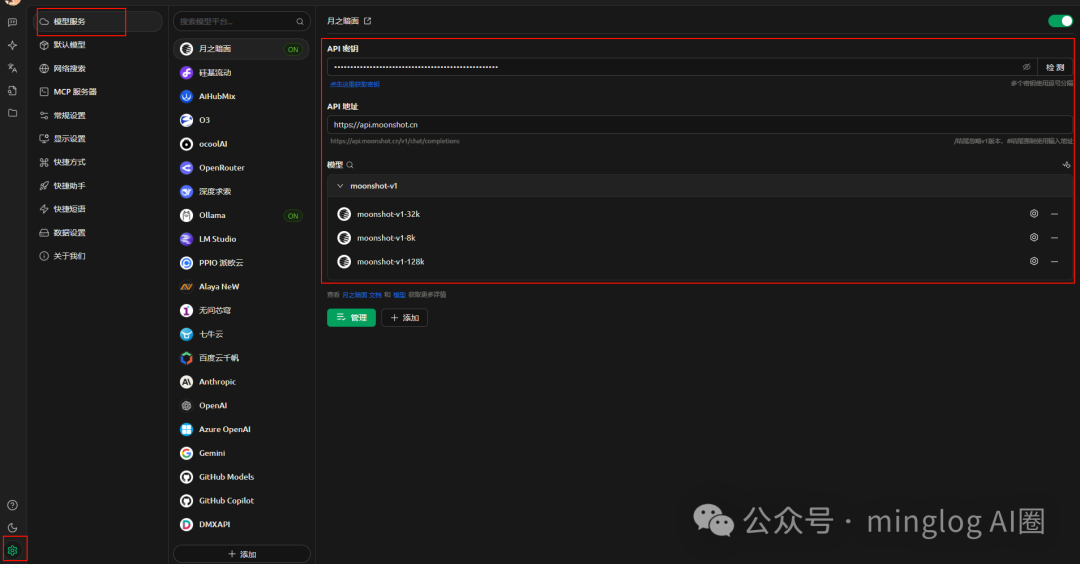

To test the MCP Server service, you also need to prepare an LLM, and you can configure it according to your situation in the settings. I choose Moonshot.

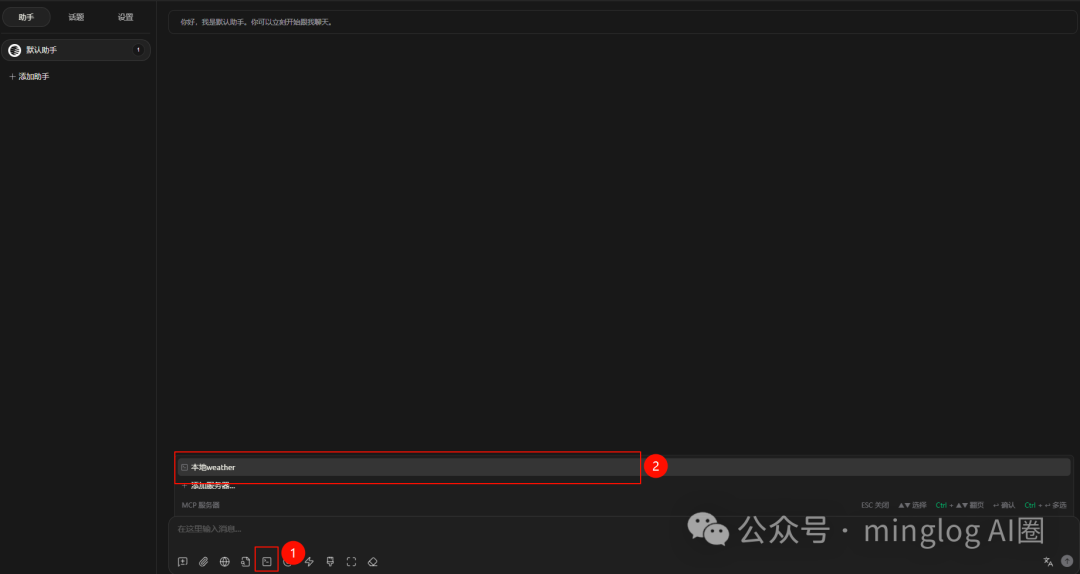

Next, return to the chat assistant page and create a chat assistant. Select the MCP Server you want to use below the chat input box.

At this point, our preparation and configuration work is complete, and we can now ask the chat assistant about the weather to test the MCP Server.

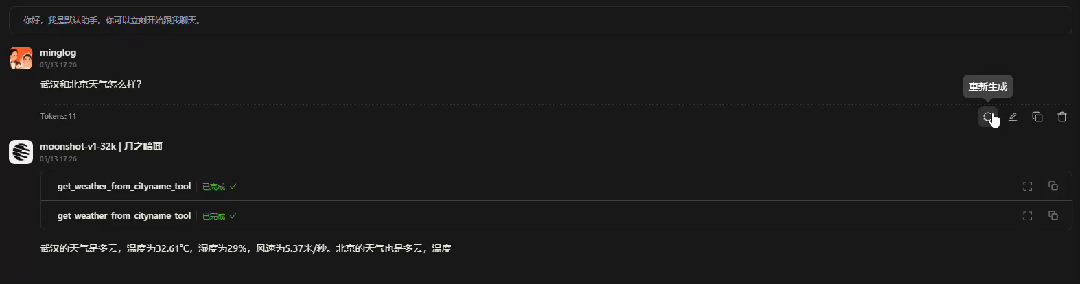

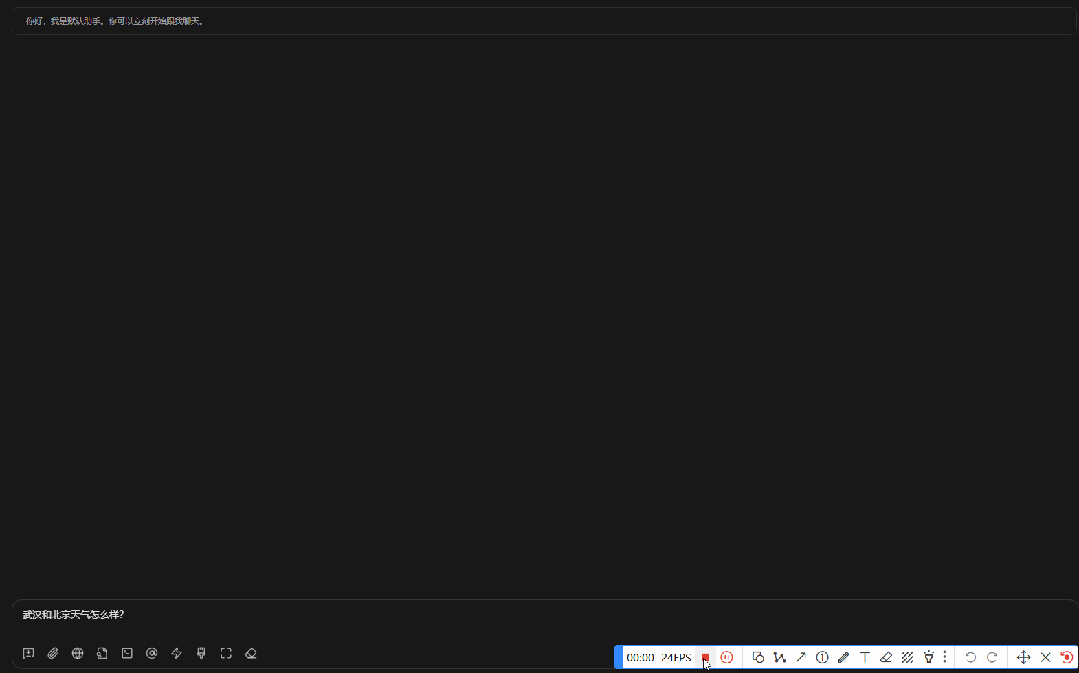

For example: I ask, “How is the weather in Wuhan and Beijing?”

Streamable HTTP protocol is concurrent when accessing the MCP Server, as can be seen from the following animation, the weather in Beijing is requested successfully first.

MCP Client Based on Streamable HTTP

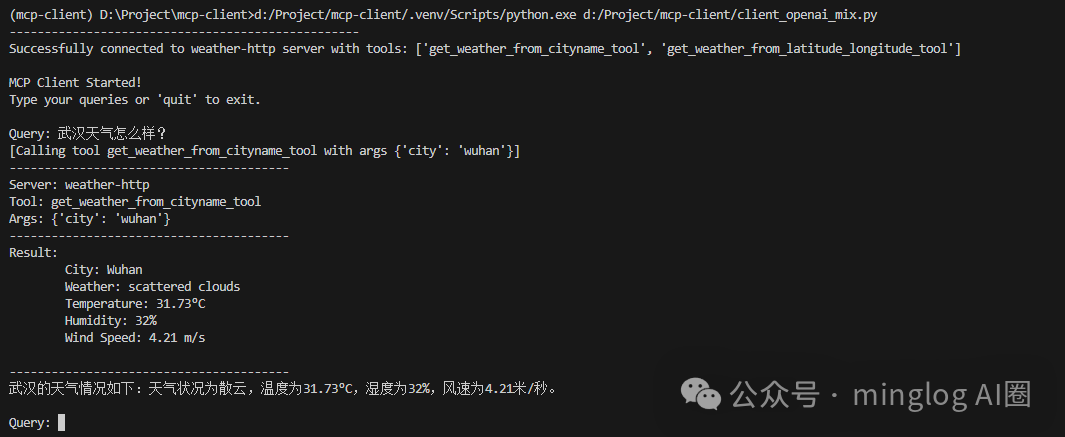

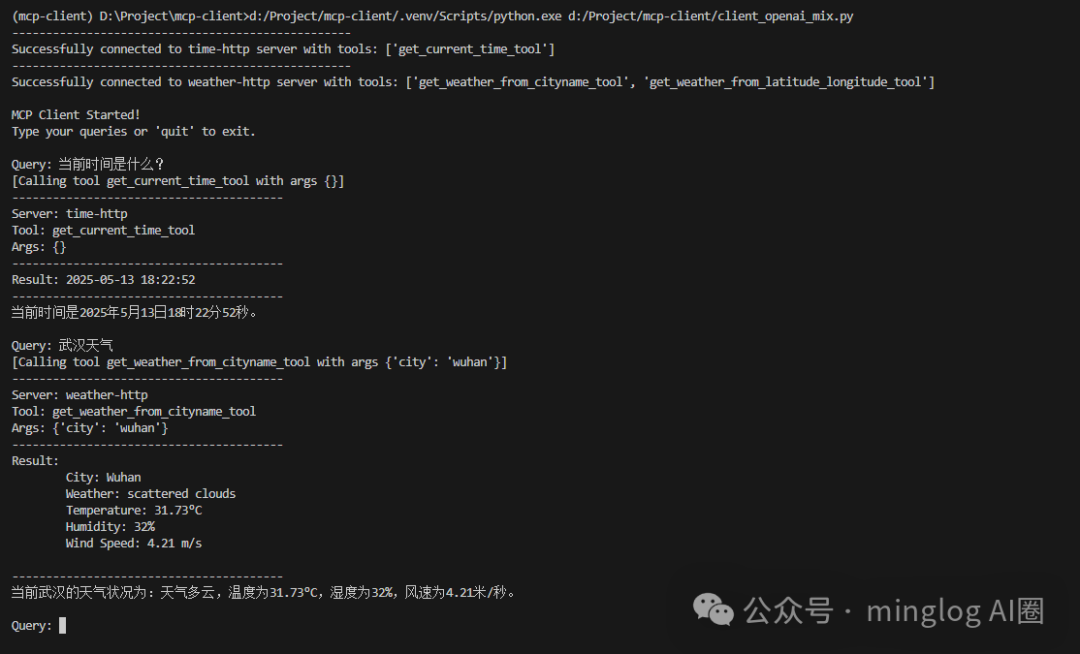

In previous articles, we manually wrote the MCP Client code, and it can also load the corresponding MCP Server service according to the mcp.json configuration file. At that time, it only adapted to stdio and sse protocols, and now we add the Streamable HTTP protocol.

Project address: https://gitee.com/ming_log/mcp_client

The specific code is as follows:

import asyncio
from typing import Optional
from contextlib import AsyncExitStack
import json

from mcp import ClientSession, StdioServerParameters
from mcp.client.stdio import stdio_client
from mcp.client.sse import sse_client
from mcp.client.streamable_http import streamablehttp_client

from dotenv import load_dotenv
import os, re
from openai import OpenAI
from lxml import etree

load_dotenv()  # load environment variables from .env

class MCPClient:
    def __init__(self):
        # Initialize session and client objects
        self.session: Optional[ClientSession] = None
        self.exit_stack = AsyncExitStack()
        # Environment variables need to be set in the .env file
        self.API_KEY = os.getenv("API_KEY")
        self.BASE_URL = os.getenv("BASE_URL")
        self.MODEL = os.getenv("MODEL")
        self.client = OpenAI(api_key=self.API_KEY, base_url=self.BASE_URL)
        self.sessions = {}
        self.messages = []
        with open("./MCP_Prompt.txt", "r", encoding="utf-8") as file:
            self.system_prompt = file.read()

    async def mcp_json_config(self, mcp_json_file):
        try:
            with open(mcp_json_file, 'r') as f:
                mcp_config: dict = json.load(f)
        except json.JSONDecodeError:
            raise ValueError("Invalid MCP config")
        servers_config: dict = mcp_config.get('mcpServers', {})
        for k, v in servers_config.items():
            try:
                if v.get('isActive', False) == False:
                    continue
                print('-'*50)
                mcp_name = v.get('name', k)
                mcp_type: str = v.get('type', 'stdio')
                if mcp_type.lower() == 'stdio':
                    command = v.get('command', None)
                    args = v.get('args', [])
                    env = v.get('env', {})
                    if command is None:
                        raise ValueError(f'{mcp_name} command is empty.')
                    if args == []:
                        raise ValueError(f'{mcp_name} args is empty.')
                    await self.connect_to_stdio_server(mcp_name, command, args, env)
                elif mcp_type.lower() == 'sse':
                    server_url = v.get('url', None)
                    if server_url is None:
                        raise ValueError(f'{mcp_name} server_url is empty.')
                    await self.connect_to_sse_server(mcp_name, server_url)
                elif mcp_type.lower() == 'streamable_http':
                    server_url = v.get('url', None)
                    if server_url is None:
                        raise ValueError(f'{mcp_name} server_url is empty.')
                    await self.connect_to_streamable_http_server(mcp_name, server_url)
                else:
                    raise ValueError(f'{mcp_name} mcp type must be in [stdio, sse, streamable_http].')
            except Exception as e:
                print(f"Error connecting to {mcp_name}: {e}")

    async def connect_to_stdio_server(self, mcp_name, command: str, args: list[str], env: dict[str, str]={}):
        server_params = StdioServerParameters(
            command=command,
            args=args,
            env=env
        )

        stdio_transport = await self.exit_stack.enter_async_context(stdio_client(server_params))
        self.stdio, self.write = stdio_transport
        self.session = await self.exit_stack.enter_async_context(ClientSession(self.stdio, self.write))
        self.sessions[mcp_name] = self.session

        await self.session.initialize()
        # Add MCP information to system_prompt
        response = await self.session.list_tools()
        available_tools = ['##' + mcp_name + '\n### Available Tools\n- ' + tool.name + "\n" + tool.description + "\n" + json.dumps(tool.inputSchema) for tool in response.tools]
        self.system_prompt = self.system_prompt.replace("&lt;$MCP_INFO$&gt;", "\n".join(available_tools)+"\n&lt;$MCP_INFO$&gt;")
        tools = response.tools
        print(f"Successfully connected to {mcp_name} server with tools:", [tool.name for tool in tools])

    async def connect_to_sse_server(self, mcp_name, server_url: str):
        """Connect to an MCP server

        Args:
            server_script_path: Path to the server script (.py or .js)
        """
        stdio_transport = await self.exit_stack.enter_async_context(sse_client(server_url))
        self.sse, self.write = stdio_transport
        self.session = await self.exit_stack.enter_async_context(ClientSession(self.sse, self.write))
        self.sessions[mcp_name] = self.session

        await self.session.initialize()
        # List available tools
        response = await self.session.list_tools()
        available_tools = ['##' + mcp_name + '\n### Available Tools\n- ' + tool.name + "\n" + tool.description + "\n" + json.dumps(tool.inputSchema) for tool in response.tools]
        self.system_prompt = self.system_prompt.replace("&lt;$MCP_INFO$&gt;", "\n".join(available_tools)+"\n&lt;$MCP_INFO$&gt;\n")
        tools = response.tools
        print(f"Successfully connected to {mcp_name} server with tools:", [tool.name for tool in tools])

    async def connect_to_streamable_http_server(self, mcp_name, server_url: str):
        """Connect to an MCP server

        Args:
            server_script_path: Path to the server script (.py or .js)
        """
        stdio_transport = await self.exit_stack.enter_async_context(streamablehttp_client(server_url))
        self.streamable_http, self.write, _ = stdio_transport
        self.session = await self.exit_stack.enter_async_context(ClientSession(self.streamable_http, self.write))
        self.sessions[mcp_name] = self.session

        await self.session.initialize()
        # List available tools
        response = await self.session.list_tools()
        available_tools = ['##' + mcp_name + '\n### Available Tools\n- ' + tool.name + "\n" + tool.description + "\n" + json.dumps(tool.inputSchema) for tool in response.tools]
        self.system_prompt = self.system_prompt.replace("&lt;$MCP_INFO$&gt;", "\n".join(available_tools)+"\n&lt;$MCP_INFO$&gt;\n")
        tools = response.tools
        print(f"Successfully connected to {mcp_name} server with tools:", [tool.name for tool in tools])

    async def process_query(self, query: str) -> str:
        """Process a query using Claude and available tools"""
        self.messages.append(
            {
                "role": "system",
                "content": self.system_prompt
            }
        )
        self.messages.append(
            {
                "role": "user",
                "content": query
            }
        )

        # Initial Claude API call
        response = self.client.chat.completions.create(
            model=self.MODEL,
            max_tokens=1024,
            messages=self.messages
        )

        # Process response and handle tool calls
        final_text = []
        content = response.choices[0].message.content
        if '&lt;use_mcp_tool&gt;' not in content:
            final_text.append(content)
        else:
            # Parse tool_string
            server_name, tool_name, tool_args = self.parse_tool_string(content)

            # Execute tool call
            result = await self.sessions[server_name].call_tool(tool_name, tool_args)
            print(f"[Calling tool {tool_name} with args {tool_args}]")
            print("-"*40)
            print("Server:", server_name)
            print("Tool:", tool_name)
            print("Args:", tool_args)
            print("-"*40)
            print("Result:", result.content[0].text)
            print("-"*40)
            self.messages.append({
                "role": "assistant",
                "content": content
            })
            self.messages.append({
                "role": "user",
                "content": f"[Tool {tool_name} \n returned: {result}]"
            })

            response = self.client.chat.completions.create(
                model=self.MODEL,
                max_tokens=1024,
                messages=self.messages
            )
            final_text.append(response.choices[0].message.content)
        return "\n".join(final_text)

    def parse_tool_string(self, tool_string: str) -> tuple[str, str, dict]:
        tool_string = re.findall("(&lt;use_mcp_tool&gt;.*?&lt;/use_mcp_tool&gt;)", tool_string, re.S)[0]
        root = etree.fromstring(tool_string)
        server_name = root.find('server_name').text
        tool_name = root.find('tool_name').text
        try:
            tool_args = json.loads(root.find('arguments').text)
        except json.JSONDecodeError:
            raise ValueError("Invalid tool arguments")
        return server_name, tool_name, tool_args

    async def chat_loop(self):
        """Run an interactive chat loop"""
        print("\nMCP Client Started!")
        print("Type your queries or 'quit' to exit.")
        self.messages = []
        while True:
            try:
                query = input("\nQuery: ").strip()

                if query.lower() == 'quit':
                    break
                if query.strip() == '':
                    print("Please enter a query.")
                    continue
                response = await self.process_query(query)
                print(response)

            except Exception as e:
                print(f"\nError: {str(e)}")

    async def cleanup(self):
        """Clean up resources"""
        await self.exit_stack.aclose()

async def main():
    client = MCPClient()
    try:
        # await client.connect_to_sse_server('amap', 'https://mcp.amap.com/sse?key=d769f05385fe314e9b3ae548ba7d86b1')
        mcp_config_file = './mcp.json'
        await client.mcp_json_config(mcp_config_file)
        await client.chat_loop()
    finally:
        await client.cleanup()

if __name__ == "__main__":
    asyncio.run(main())

Next, we use our own written MCP Client to connect to the previous MCP Server.

Modify the mcp.json file content as follows:

{
    "mcpServers": {
      "weather-http": {
        "isActive": true,
        "type": "streamable_http",
        "url": "http://127.0.0.1:8002/mcp",
        "name": "weather-http"
      }
    }
}

It can also successfully call the MCP Server service.

Multiple MCP Server tests, modify the mcp.json file content as follows:

{
    "mcpServers": {
      "time-http": {
        "isActive": true,
        "type": "streamable_http",
        "url": "https://time.mcp.minglog.cn/mcp",
        "name": "time-http"
      },
      "weather-http": {
        "isActive": true,
        "type": "streamable_http",
        "url": "http://127.0.0.1:8002/mcp",
        "name": "weather-http"
      }
    }
}

Here I used an MCP Server from my server, which is also the streamable_http protocol.

All tools can be successfully called.

Conclusion

Streamable HTTP as the recommended transmission mechanism in the MCP protocol combines the wide compatibility of HTTP with the real-time data push capabilities of SSE, providing an efficient and flexible communication method. In the context of the growing demand for communication between AI assistants and applications, Streamable HTTP is expected to become the new standard for AI communication.

If you wish to learn more about the MCP protocol and the implementation details of Streamable HTTP, you can visit the following resources:

MCP Official Documentation: https://modelcontextprotocol.io/
MCP Framework Documentation: https://mcp-framework.com/docs/Transports/http-stream-transport/
MCP GitHub Repository: https://github.com/modelcontextprotocol/python-sdk

Through these resources, you can gain a deeper understanding of the design philosophy and implementation of the MCP protocol and explore its potential in practical applications.
