GigaDevice (stock code 603986) announced the official launch of the GD32G5 series high-performance microcontrollers based on the Arm® Cortex®-M33 core.
GD32G5 Series Cortex®-M33 Core High-Performance MCU
The GD32G5 series MCUs, with outstanding processing performance, a rich variety of digital and analog interface resources, and enhanced security features, can be widely applied in digital power, charging piles, energy storage inverters, frequency converters, servo motors, and optical communication among other diverse scenarios. This new product lineup offers 14 models in 7 package types including LQFP, QFN, and WLCSP, with sample chips and development boards now available for application, and mass production set to begin in December.
Powerful Performance Empowering the Industrial Market
The GD32G5 series MCUs utilize the Arm® Cortex®-M33 high-performance core, with a maximum frequency of 216MHz. They feature a built-in advanced DSP hardware accelerator and a single-precision floating-point unit (FPU); they also integrate a hardware trigonometric function accelerator (TMU) that supports 10 types of function calculations; and include various hardware acceleration units such as filtering algorithms (FAC) and Fast Fourier Transform (FFT), significantly enhancing processing efficiency. The GD32G5 series MCUs can achieve a performance of 316 DMIPS at the highest frequency, with an impressive CoreMark® score of 694.
The GD32G5 series MCUs are equipped with 256KB to 512KB of embedded Flash, supporting dual Bank Flash functionality; and 128KB of SRAM, which includes 32KB of tightly coupled memory (TCMRAM) for zero-wait execution of critical instructions and data; they also feature high-speed cache space, with up to 2KB I-Cache and 512B D-Cache, further enhancing core processing performance.
Rich Peripherals Enabling Development Innovation
The GD32G5 series MCUs integrate a wide range of peripheral resources. They support 4 12-bit ADCs with a sampling rate of up to 5.3MSPS, with up to 42 channels; they also support 4 12-bit DACs, with 2 achieving a sampling rate of up to 15MSPS; as well as 8 fast comparators (COMP) and other high-precision analog peripherals to support various motor power control scenarios. The GD32G5 series MCUs are equipped with 16 high-precision timers (HRTimer) with an accuracy of up to 145ps; as well as 3 advanced timers with 8 channels, 2 32-bit general-purpose timers, 5 16-bit general-purpose timers, 2 16-bit basic timers, and 1 low-power timer.
The GD32G5 series microcontrollers provide 5 U(S)ARTs, 4 I2Cs, 3 SPIs, and 1 QSPI, supporting DDR/SDR interfaces up to 200MHz; they are equipped with 3 CAN-FD modules suitable for high-speed communication applications; they also integrate 1 high-performance digital filter (HPDF) supporting 8 Channels/4 Filters, external Σ-Δ modulators; and 4 configurable logic modules (CLA); providing a Trigsel module to support flexible configuration of trigger sources. The entire GD32G5 series supports a wide temperature operating range of -40 to 105℃, meeting the high-temperature requirements of differentiated scenarios such as optical modules, industrial power supplies, and high-speed motor control.
Safety and Reliability Building a Quality Fortress
The GD32G5 series MCUs are equipped with multiple safety features, providing a multi-layered security protection mechanism for the communication process, including support for secure OTA, secure boot, secure debugging, and secure upgrades. They offer 2KB of OTP storage space to ensure that code data cannot be altered, thereby protecting the security and integrity of the device. The Flash/SRAM of this series of MCUs supports ECC verification across the entire area. They include a built-in hardware encryption and decryption module that supports DES, Triple DES, or AES algorithms, ensuring data security during communication. Additionally, the products support a true random number generator (TRNG).
The GD32G5 product series supports system-level IEC 61508 SIL2 functional safety standards, providing a complete Safety Package, including Safety Manual, FMEDA, and self-test libraries, among other functional safety materials. This helps users accurately identify potential safety hazards, providing a solid guarantee for the stability and reliability of industrial applications.

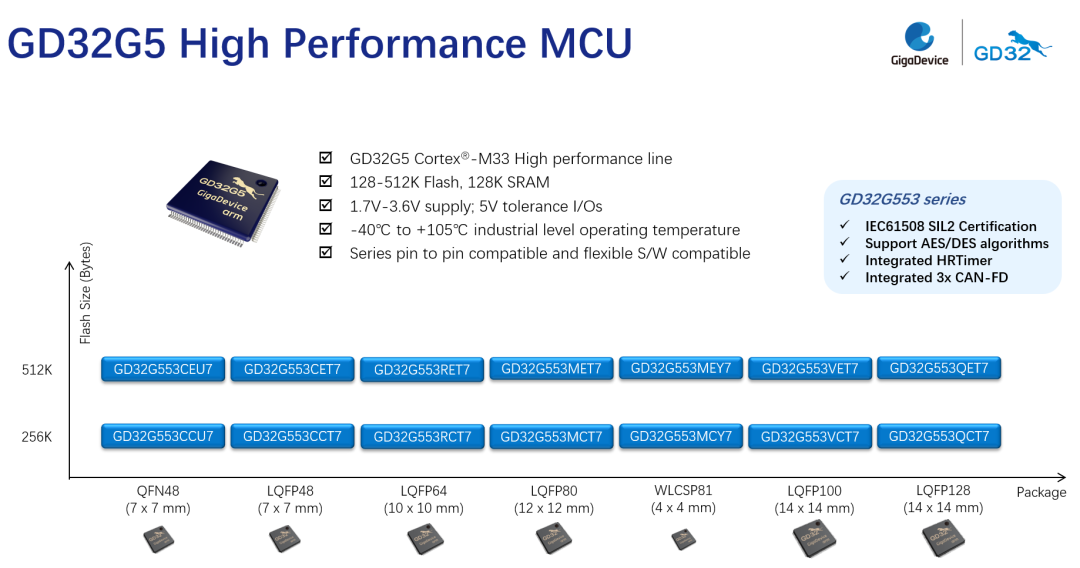

GD32G5 Series MCU Product Lineup
The GD32 development ecosystem is growing rapidly, and GigaDevice provides a free development environment GD32 Embedded Builder IDE, debugging download tool GD-LINK, and all-in-one programming tool GD32 All-In-One Programmer for the new GD32G5 series high-performance microcontrollers. Additionally, industry-leading embedded tool vendors such as Arm® KEIL, IAR, and SEGGER will provide comprehensive support for the GD32G5 new products, including development compilation and trace debugging tools. The manuals, software libraries, ecosystem documentation, and tools for this series of MCUs have been uploaded to the website, providing customers with comprehensive development references.
The GD32G5 product lineup offers 14 product models in 7 package types including LQFP128/100/80/64/48, WLCSP81, and QFN48. Corresponding development boards have also been launched, including the GD32G553Q-EVAL and GD32G553R-EVAL full-featured evaluation boards, as well as the GD32G553V-START, GD32G553M-START, and GD32G553C-START entry-level learning kits, corresponding to different packages and pins, facilitating user development and debugging. Authorized distributor channels and the GD32 Tmall flagship store (GD32.tmall.com) will also list these products for sale.
