We previously learned how to compile and run kernel modules, but in reality, many driver modules are quite complex. Most driver modules consist of multiple files, and there are dependencies between modules.

For example, in the previous section, we mentioned amdgpu, which has several pages of module parameters. It is unrealistic to implement all functionalities in a single module and a single file, and it does not align with the concept of modularity and software layering.

When multiple modules have dependencies, issues may arise during compilation and loading due to the use of function symbols from other modules, as shown below:

Essential Kernel Course for BSP Engineers: 2.5. Inter-Module Dependency Issues and the Principle of EXPORT_SYMBOL

In our previous study of compiling out-of-tree kernel modules, our Makefile had to specify the path to the kernel source code and emphasized that the kernel must be compiled before compiling the kernel module. What is the reason for this? In this issue, we can explain this based on the knowledge we have acquired so far.

In this section, we will introduce how to handle dependencies between multiple modules when writing kernel modules, as well as how to compile kernel modules that consist of multiple files.

1. Inter-Module Dependencies

The C language is a modular language, and we all know the concept of function encapsulation. In app development, we can use header files to reference functions implemented in other files.

So, can a kernel module provide interfaces for other kernel modules? The answer is certainly yes, but not in the form of header files; instead, we need to use EXPORT_SYMBOL. We will explain in detail why we need to use EXPORT_SYMBOL.

Moreover, when there are dependencies between modules, the loading order must also be considered to ensure that the dependent modules are loaded first to provide the necessary interfaces for other modules. But how can we ensure this loading order? We will explain this step by step.

Below is a simple example of multiple modules with dependencies: there are three files that will produce three modules, namely sub.ko , add.ko, and math.ko. The implementation is quite simple: sub provides the implementation for subtraction, add implements addition, and math uses the interfaces provided by sub and add to create dependencies between these two modules.

1.1 EXPORT_SYMBOL

When a kernel module wants to expose an interface for use by other modules, it needs to use the method EXPORT_SYMBOL(function_name).

Below is the simplest kernel module file, with the code for header files, module_init, and other content omitted, only showing the key parts.

int sub(int a, int b)
{
    printk(KERN_INFO "add function called!\n");
    return a - b;
}
EXPORT_SYMBOL(sub);

int add(int a, int b)
{
    return a + b;
}
EXPORT_SYMBOL(add);

#include <linux/init.h>
#include <linux/module.h>

// Declare external interfaces
extern int add(int a, int b);
extern int sub(int a, int b);

MODULE_LICENSE("GPL");
MODULE_AUTHOR("YourName");
MODULE_DESCRIPTION("math module - uses add and sub");

static int __init math_init(void)
{
    int a = 12, b = 8;
    int s, d;

    printk(KERN_INFO "math module loaded!\n");

    s = add(a, b);
    d = sub(a, b);

    printk(KERN_INFO "math: %d + %d = %d\n", a, b, s);
    printk(KERN_INFO "math: %d - %d = %d\n", a, b, d);

    return 0;
}

static void __exit math_exit(void)
{
    printk(KERN_INFO "math module exited!\n");
}

module_init(math_init);
module_exit(math_exit);

1.2 Writing Makefile for Module Dependencies

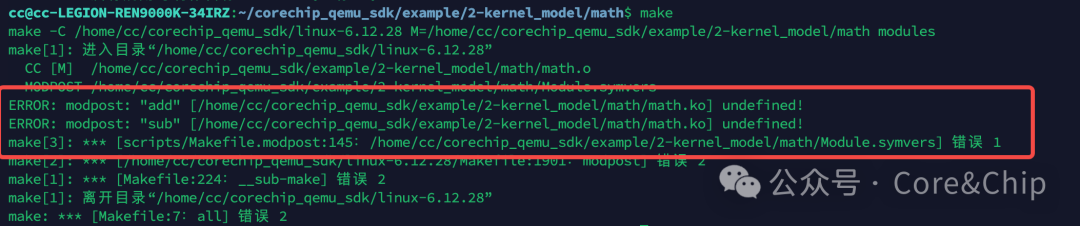

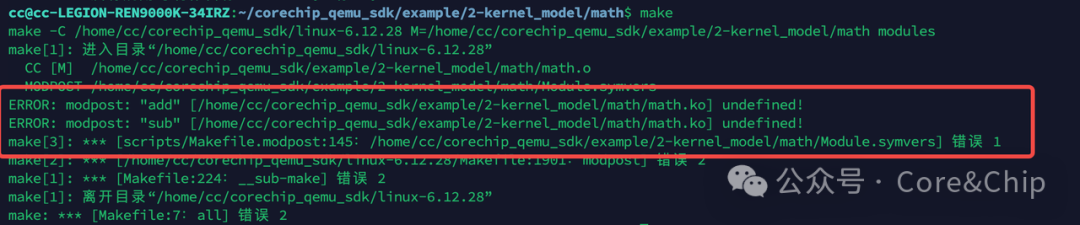

When there are dependencies between modules, if we compile math.c separately, the following error will occur:

The reason is simple: it cannot find the functions add and sub. There are two solutions:

When we use EXPORT_SYMBOL, if we try to compile the module, we will find that the Module.symvers file contains records of the exported symbols.

So the first method is to compile the add and sub modules first, and then in the Makefile of the math module, reference the other two modules’ Module.symvers using KBUILD_EXTRA_SYMBOLS, so that when compiling math, it can find the symbols and compile successfully.

KBUILD_EXTRA_SYMBOLS += /path/to/another/Module.symvers
KDIR := /path/to/kernel_source
PWD := $(shell pwd)

all:
        $(MAKE) -C $(KDIR) M=$(PWD) modules

clean:
        $(MAKE) -C $(KDIR) M=$(PWD) clean

The second method, which is simpler, is to place the related modules in the same directory. The Makefile is as follows, and the compilation order of the modules does not matter.

obj-m += math.o
obj-m += sub.o
obj-m += add.o

KDIR := /path/to/kernel_source
PWD := $(shell pwd)

all:
        $(MAKE) -C $(KDIR) M=$(PWD) modules

clean:
        $(MAKE) -C $(KDIR) M=$(PWD) clean

It is important to emphasize that what we discussed above is the out-of-tree compilation method. If it is in-source compilation, according to our previous article: Essential Kernel Course for BSP Engineers: 2.2. A Caregiver’s Guide to In-Source Compilation and Running Kernel Modules, by configuring the kconfig dependency relationships, the kbuild system will automatically compile the related modules.

1.3 Module Dependency Loading Methods

1.3.1 insmod

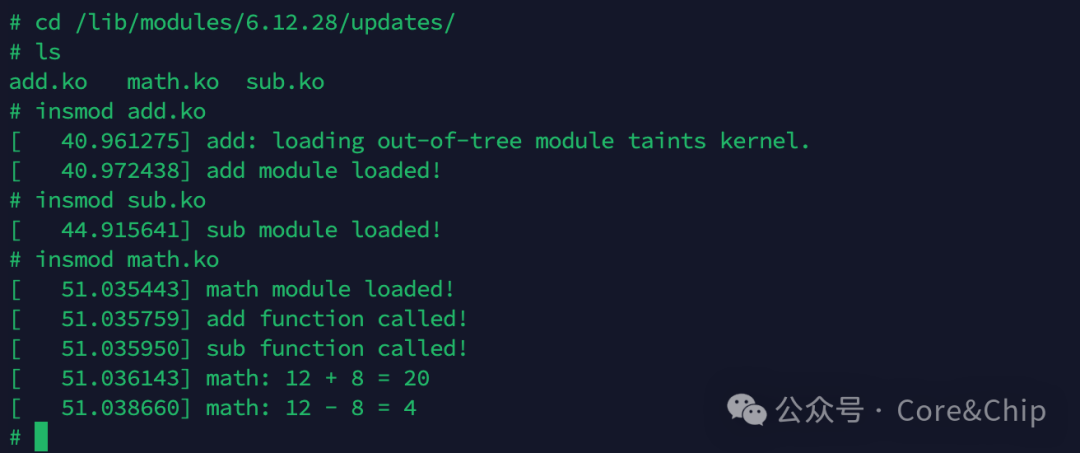

Loading modules is similar to compilation; due to the dependencies, the order must be noted when using insmod. As shown in the figure below, the dependent modules sub and add should be loaded first, followed by loading math to run successfully and call the corresponding functions of the modules that are EXPORTed.

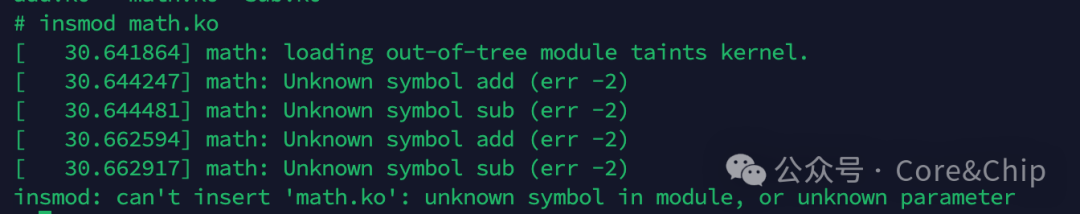

If the dependent module is not loaded, the loading will fail due to unresolved symbols.

1.3.2 depmod and modprobe (Recommended)

However, when the modules are complex, it is not easy to understand the relationships between them. What should we do in this case?

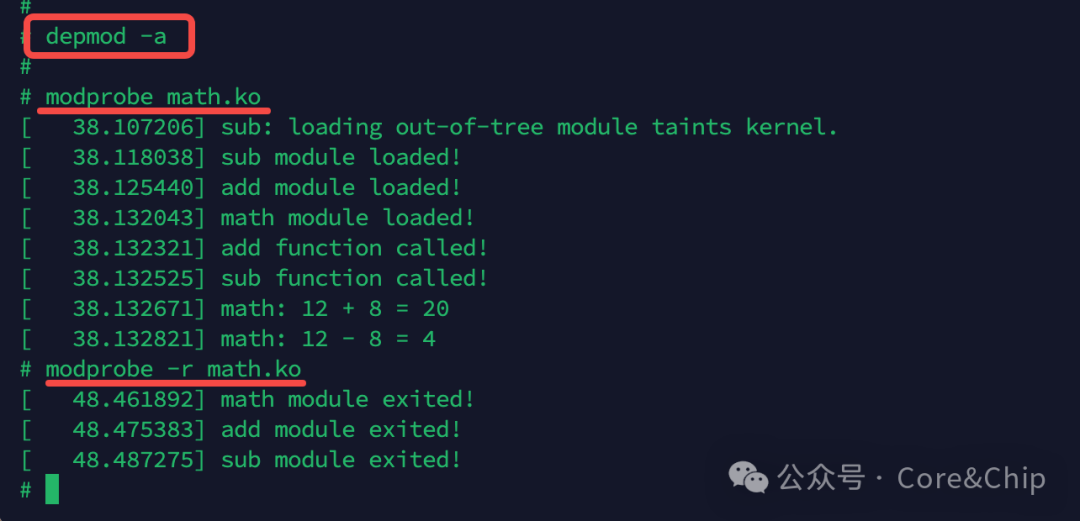

At this point, we can use the depmod -a command to generate a dependency report file, and then directly use modprobe math.ko, and we will find that the other two modules that math.ko depends on are automatically loaded.

modprobe -r math.ko will also check if there are other modules depending on add and sub. If not, these two modules will also be unloaded in order.

This way, we no longer need to pay attention to the dependencies and loading order of the modules!

Does it seem smart and magical? The principle is quite simple:

depmod tool scans all .ko  files in the /lib/modules/$(uname -r)/<code> directory, and the metadata of the <code>.ko files will have these unresolved symbols and the names of the dependent modules.

depmod collects “who uses other people’s symbols” and “which symbols are provided by whom (EXPORT)”, thus generating the dependency relationship and creating the modules.dep file.

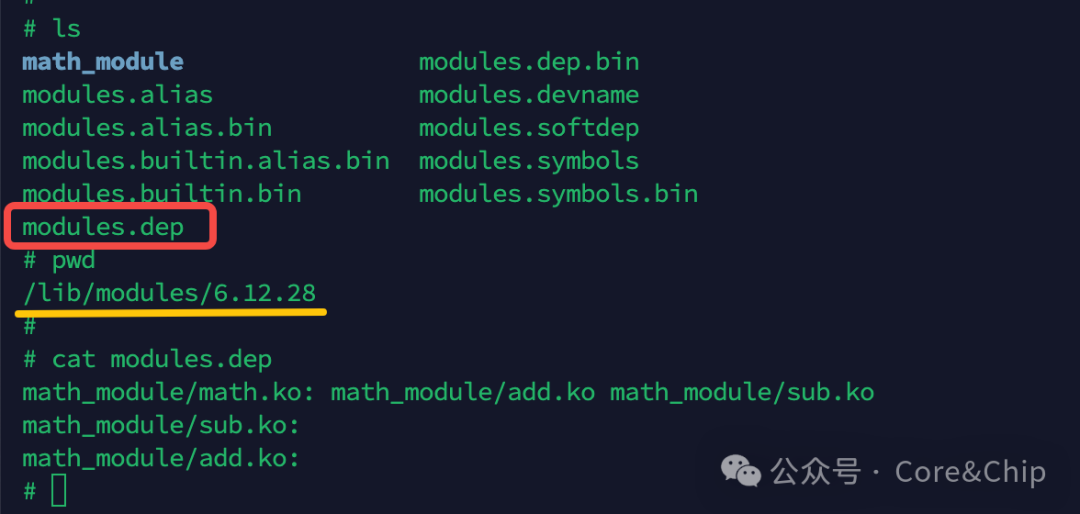

As shown in the figure below, the modules.dep file shows that math.ko depends on add.ko and sub.ko, and these two ko files have no other dependencies.modprobe will read the modules.dep file when loading, and recursively load the dependent modules.

2. Compiling Multi-File Modules

Having discussed how to handle inter-module dependencies, we find that for a module consisting of a single .c and .h file, it often cannot meet our needs. So how do we compile multiple files into a single module?

To compile into a single ko, the various .c files do not need to use EXPORT_SYMBOL, and only one module_init/exit should be retained as the main entry point, which we will not demonstrate here.

The Makefile is as follows:

obj-m := math_module.o
math_module-objs := math.o add.o sub.o
KDIR := /home/cc/corechip_qemu_sdk/linux-6.12.28
PWD := $(shell pwd)

all:
    $(MAKE) -C $(KDIR) M=$(PWD) modules

clean:
    $(MAKE) -C $(KDIR) M=$(PWD) clean

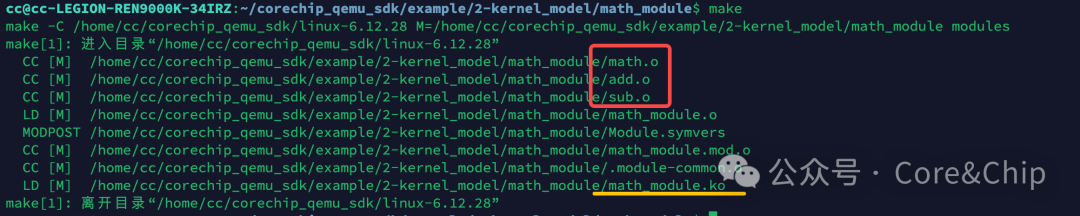

As you can see, the various .o files are compiled in order and linked into math_module.ko

3. Brief Analysis of the Principle of EXPORT_SYMBOL

We have discussed the existence of inter-module symbol and function interface calls, dependencies, and how multiple files can be compiled into a single ko file. It can be observed that when multiple files are compiled into a module, we only need to provide header files as usual to call functions from other files.

Why is it necessary to use EXPORT_SYMBOL to call interfaces from other kernel modules? The principle of EXPORT_SYMBOL involves a lot of compilation-related knowledge, which can be overly complex and fragmented. Here, we will only discuss the core idea, and if there is interest, we can elaborate on it later.

In our previous article discussing the differences between monolithic kernels and microkernels, we mentioned that the Linux kernel is a monolithic kernel, where all symbols in the kernel reside in the same address space, allowing direct function calls.It is like all employees being in the same room; you can just call out to find anyone..

Therefore, if there were no module mechanism, all symbols would be statically linked to the kernel at compile time, and there would be no need to use EXPORT_SYMBOL.

However, since the kernel supports runtime dynamic loading of modules, and modules are compiled independently of the kernel, the kernel does not know about the existence of these symbols when it is compiled.

When we compile kernel modules separately, do you remember that we specified the source path in the Makefile? Why is this necessary? Because when a kernel module references symbols in the kernel, it generates “unresolved references” during compilation. This reference will look for the corresponding address of EXPORT_SYMBOL during dynamic loading to complete the loading.

This is why the kernel must be compiled before compiling kernel modules, as kernel modules need to rely on the symbol list generated by the kernel compilation as references.

Moreover, if you compile a kernel module on one kernel version and try to load it on another version, issues may arise. This is because the kernel module pointing to different kernels can lead to differences in the arrangement of symbol segment addresses, causing crashes when the kernel module attempts to load symbols at the same address that are inconsistent.

The implementation of EXPORT_SYMBOL is somewhat similar to the module parameters we discussed in the previous section, as it saves parameters in a specific section (ksymtab),

// In include/linux/export.h
#define EXPORT_SYMBOL(sym) \
    __EXPORT_SYMBOL(sym, "")

#define EXPORT_SYMBOL_GPL(sym) \
    __EXPORT_SYMBOL(sym, "_gpl")

#define __EXPORT_SYMBOL(sym, sec) \
    extern typeof(sym) sym; \
    __CRC_SYMBOL(sym, sec) \
    static const char __kstrtab_##sym[] \
    __attribute__((section("__ksymtab_strings"), used, aligned(1))) \
    = #sym; \
    __KSYMTAB_ENTRY(sym, sec)

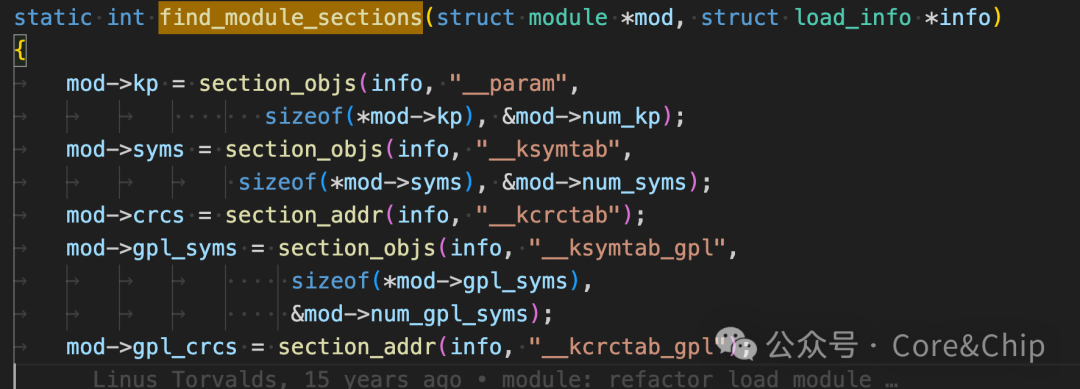

Then, during module initialization, it looks up the required symbols in the section and records the references in the mod pointer. When calling functions provided by other modules, it can complete the call through the pointer.

4. Summary

In this section, we introduced:

The situation of inter-module dependencies, how to compile kernel modules, and how to load kernel modules
Learned the usage of depmod and modprobe, which can automatically generate dependency relationships and load in order, which is highly recommended
How to compile multiple files into a single kernel module file
A brief introduction to the principle of EXPORT_SYMBOL

We all know that kernel modules must declare their entry and exit functions using module_init and module_exit. In the next section, we will introduce the loading process of kernel modules to gain a deeper understanding of the operating principles of kernel modules.
