01
Overview

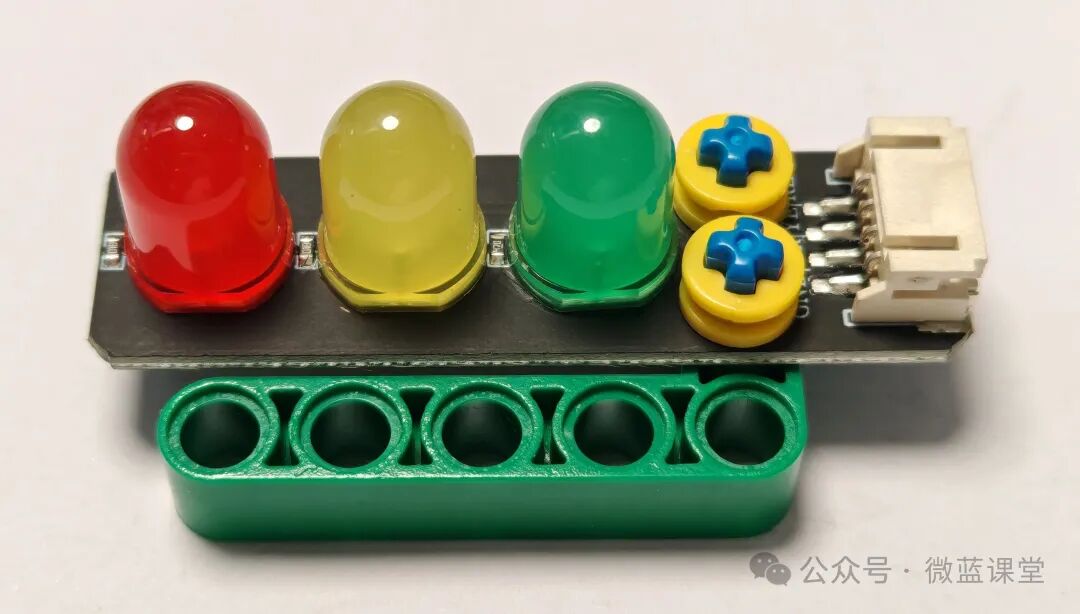

The traffic light module is equipped with red, yellow, and green LED lights, controlled by the R, Y, and G pins to turn the corresponding lights on and off.
02

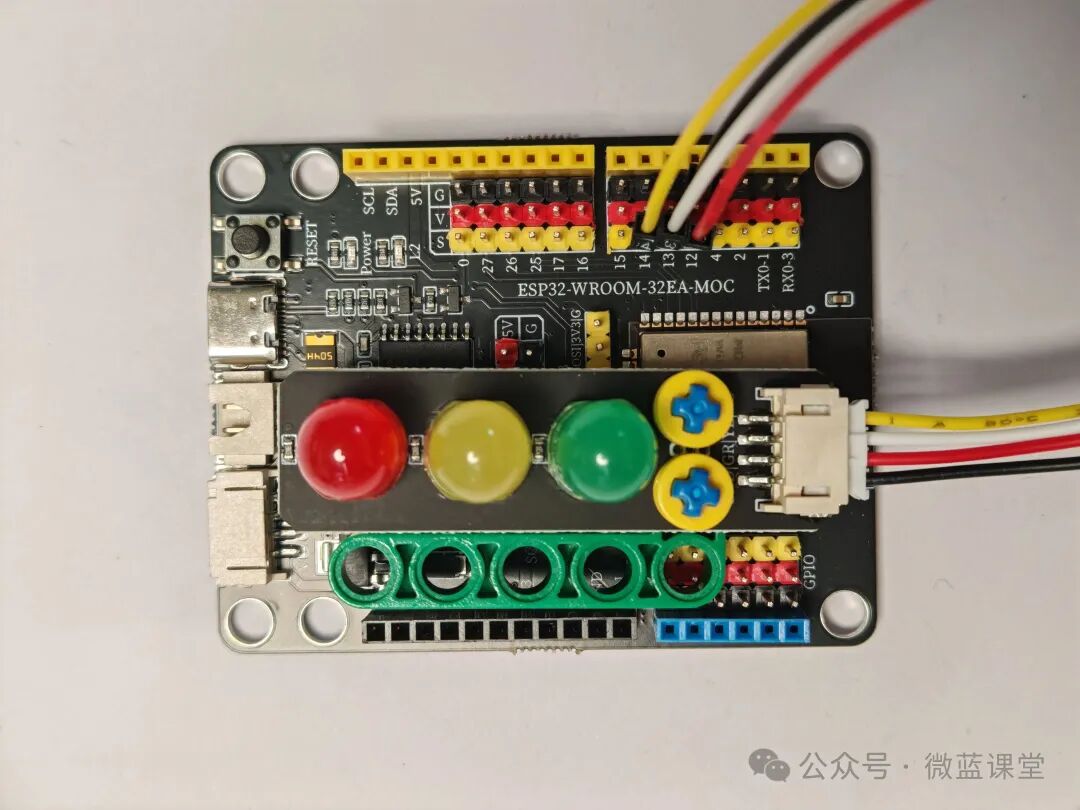

Wiring
- Supply Voltage: 3.3V / 5V
- GND: GND, negative terminal
- GR: Control green light
- YE: Control yellow light
- RE: Control red light
03
Programming

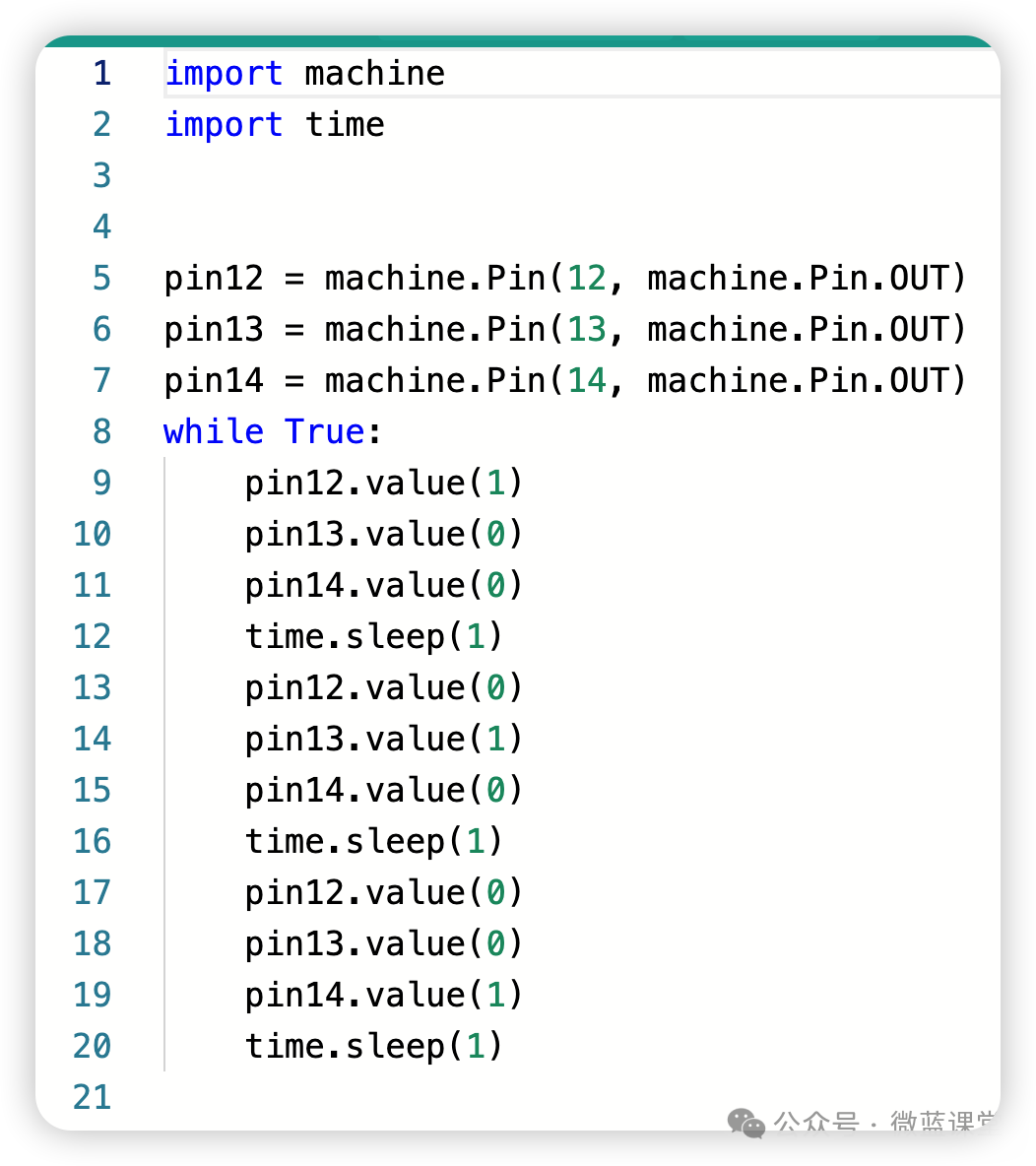

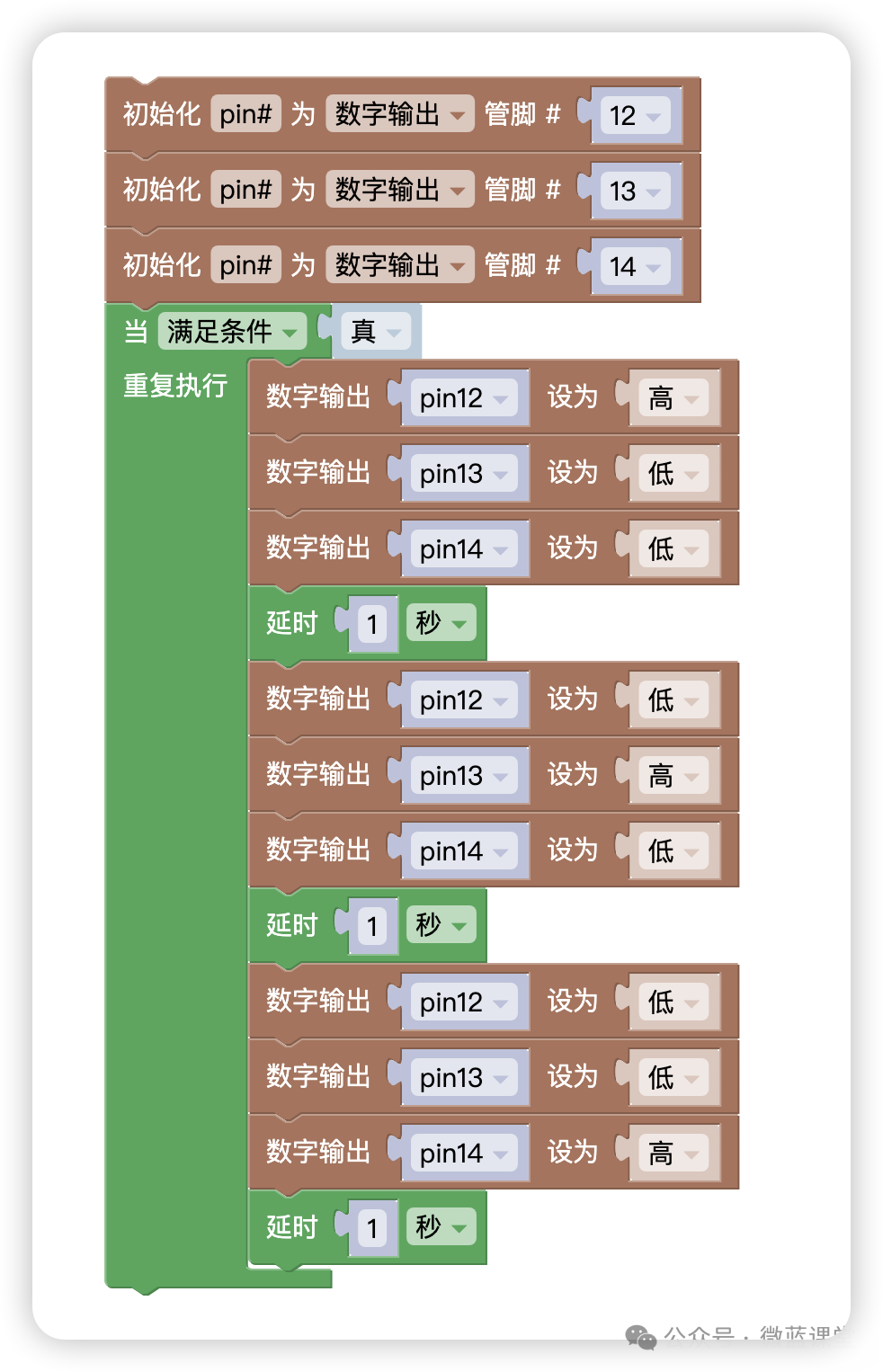

Program Explanation:
First, initialize the three pins corresponding to the red, yellow, and green lights, setting them as digital outputs; then loop to set the levels of the three pins to high, lighting each lamp for one second.
