Detailed Process of PCBA Contract Manufacturing and Material Supply for Small and Medium Batches 1. Requirement Communication and Plan Confirmation - Customers submit schematics and functional requirements, the technical team conducts feasibility assessments, and develops a preliminary project schedule. - At the same time, key nodes (such as DFM design specifications and functional test point layout) are communicated in advance to ensure seamless transition from prototyping to mass production. 2. PCB Design and DFM Review - Optimize PCB routing, via sizes, and pad spacing according to industry standards such as IPC-2221 and J-STD-001 to avoid yield loss due to design issues. - Provide DFM (Design for Manufacturability) suggestions based on customer product characteristics to enhance production feasibility and cost-effectiveness. 3. BOM Optimization and Component Procurement - Establish a BOM list, substitute and optimize components based on cost and delivery time; - Utilize mature supply chain management experience to ensure timely arrival of diverse small-batch materials, avoiding inventory backlog and capital occupation. 4. SMT Assembly and DIP Insertion - Employ multiple SMT production lines supporting various package types from 0201 to BGA, with placement accuracy up to ±0.05mm. - For through-hole components, combine manual insertion and wave soldering processes to achieve an organic integration of reflow and wave soldering, meeting the soldering needs of different components. 5. Online Inspection and Functional Testing - Comprehensive inspection of placement defects through online optical inspection (AOI) and X-ray inspection (AXI); - Establish ICT (In-Circuit Testing) and FCT (Functional Testing) tooling to cover electrical performance and functional stability verification. 6. Final Packaging and Delivery - Package finished products according to customer-specified anti-static, moisture-proof, and shock-proof requirements; - Flexibly choose various delivery methods such as express and land transport to ensure products are safely and timely delivered to customers. Analysis of Technical Advantages of PCBA Contract Manufacturing and Material Supply for Small and Medium Batches 1. Highly Flexible Production Capability - Small and medium batch, multi-variety switching, production lines can complete line change adjustments in a short time, quickly responding to market changes. 2. Fast Delivery, Seizing Market Opportunities - Streamlined processes and parallel operation management reduce the cycle from prototype to mass production to 5-10 working days; - Suitable for new product validation, urgent reorders, etc., helping customers meet downstream delivery needs in a timely manner. 3. Controllable Costs, Reducing Capital Occupation - Small batch production avoids large-scale inventory backlog; - BOM optimization and supply chain collaboration balance cost and quality, achieving higher cost-effectiveness. 4. Stringent Quality Assurance System - Strictly implement IPC-A-610 electronic assembly acceptance standards, establishing multiple quality thresholds; - Full traceability and data recording of quality to ensure each batch of products meets customer and industry requirements. 5. Professional DFM and Process Support - Involve from the design stage, providing PCB optimization, test point layout, and soldering process suggestions; - Avoid repeated modifications between design, production, and testing, improving trial production success rates and mass production yields. 6. Comprehensive Supply Chain Management - Maintain long-term cooperation with multiple component agents and PCB manufacturers to ensure material quality and stable supply; - Provide one-stop material supply services, reducing customer procurement pressure and shortening delivery times. Caring Services to Meet the Needs of Small and Medium Enterprises - No threshold for small batch trial production: flexible minimum order quantity, supporting 1-1000 pieces/batch; - Technical support available around the clock: online engineers respond, providing process consultation and progress feedback;
- Personalized solutions: customize exclusive testing and packaging methods based on industry attributes (consumer electronics, industrial control, smart home, etc.).
Jiangxi Intelli Electronics Technology Co., Ltd.

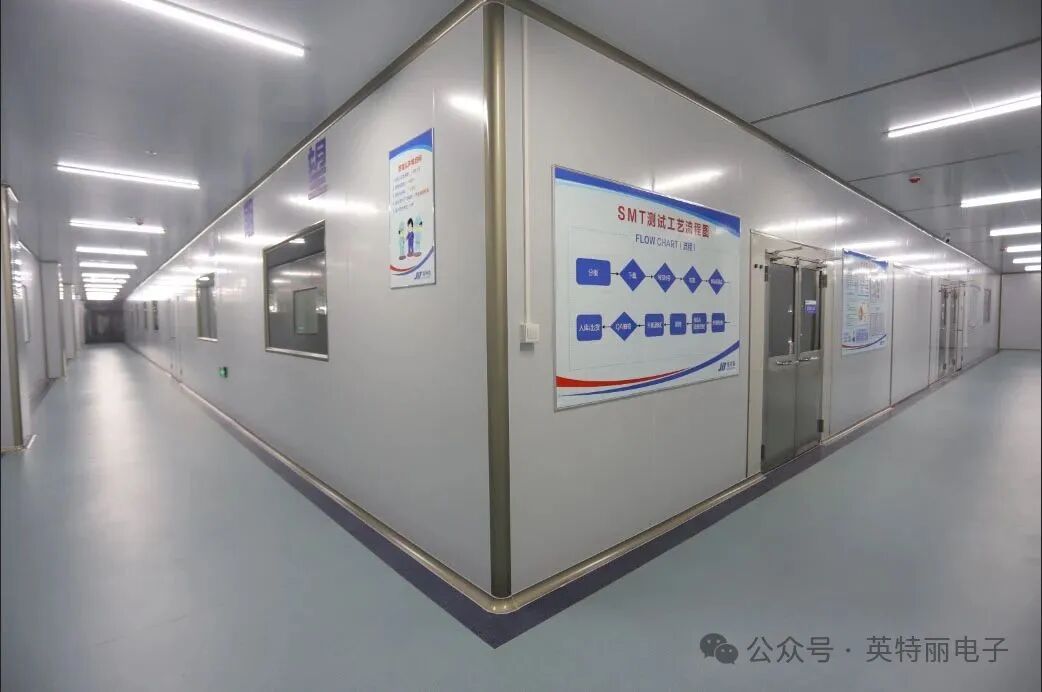

Jiangxi Intelli Electronics Technology Co., Ltd. was established in May 2016, located in the talented and beautiful Jiangxi Province, Fuzhou City, Linchuan District. Jiangxi Intelli Electronics Technology Co., Ltd. currently has a factory area of 30,000 square meters, 24 SMT production lines, 8 insertion lines, 4 wave soldering lines, 8 assembly lines, and 4 packaging lines, with a total investment of 1 billion yuan, equipped with an advanced and complete digital management system, dedicated to building an Industry 4.0 smart factory.
