Detailed Explanation of Matlab Fitting

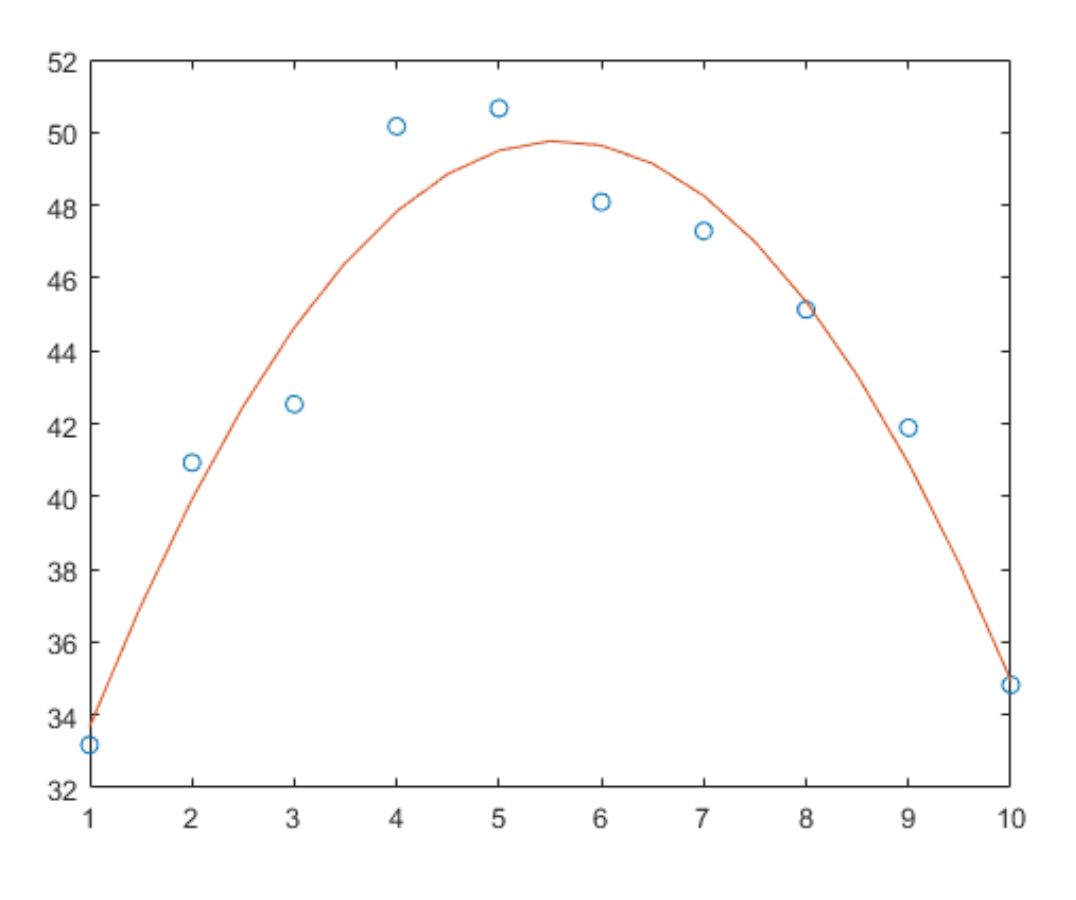

Polynomial Fitting

p = 1×3      -0.7630    8.5343   25.9050

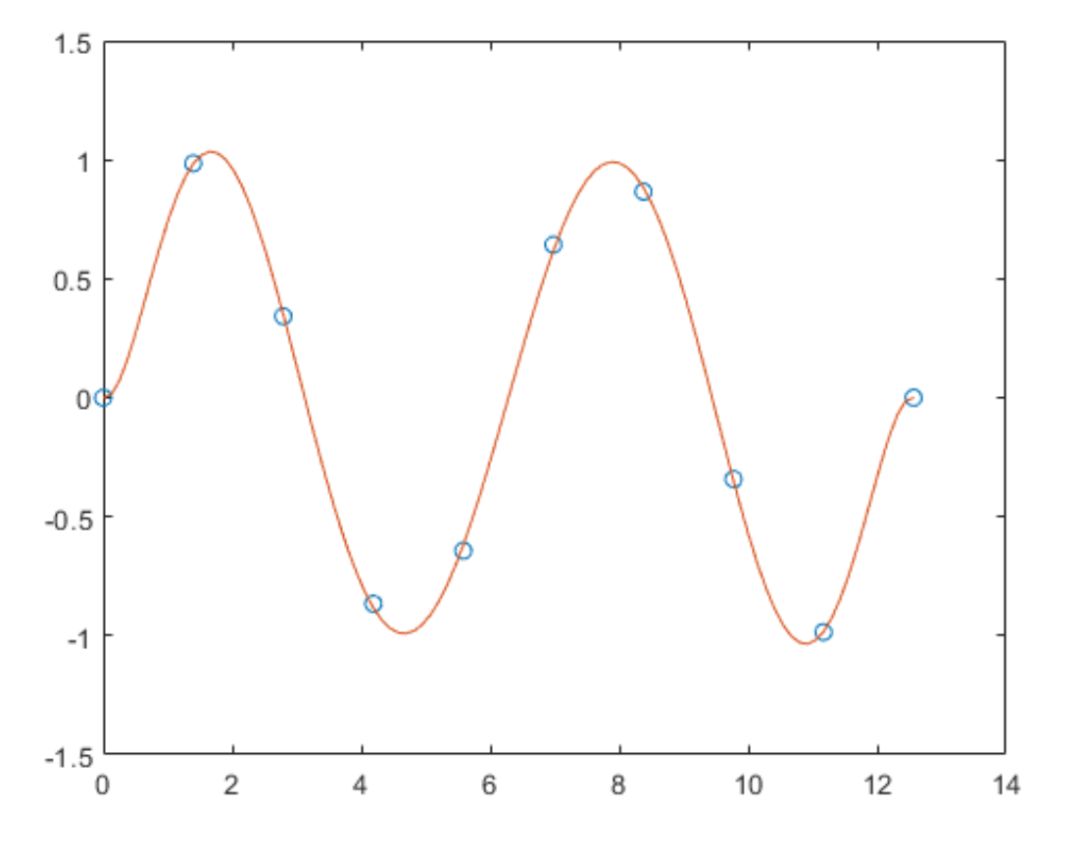

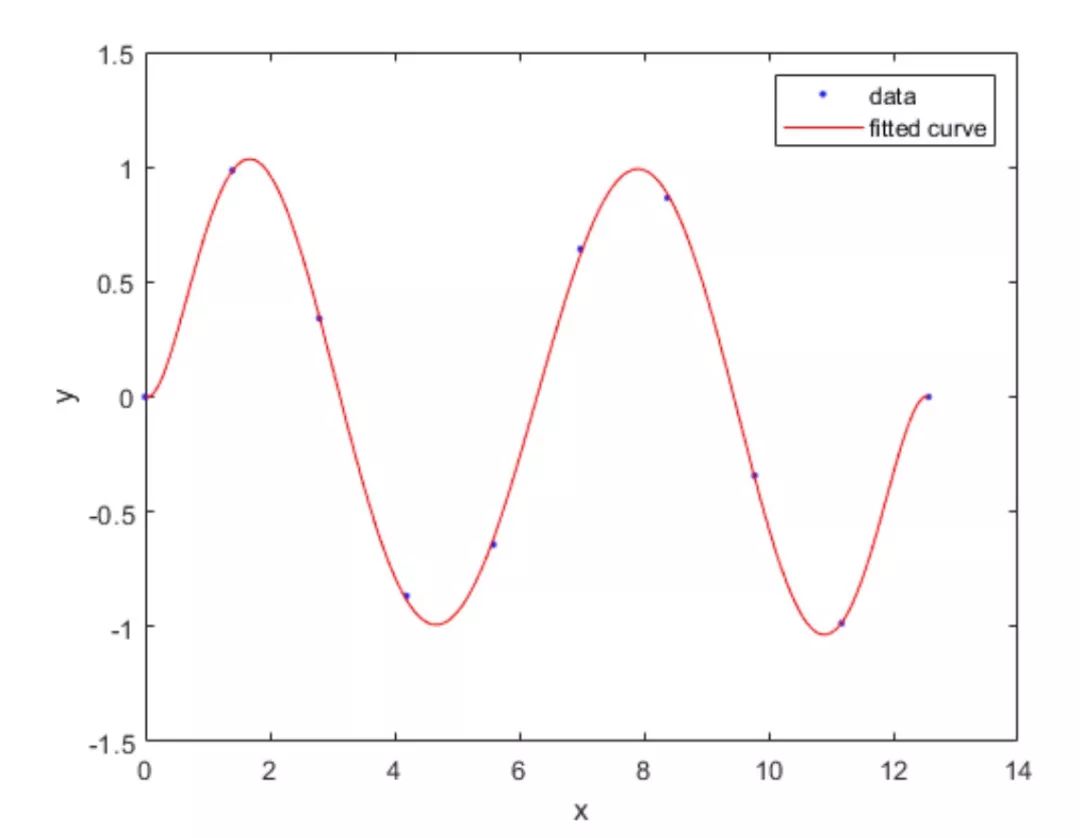

clear
x = linspace(0,4*pi,10)';
y = sin(x);
p = polyfit(x,y,7);
x1 = linspace(0,4*pi);
y1 = polyval(p,x1);
figure

plot(x,y,'o')
hold onplot(x1,y1)
hold off

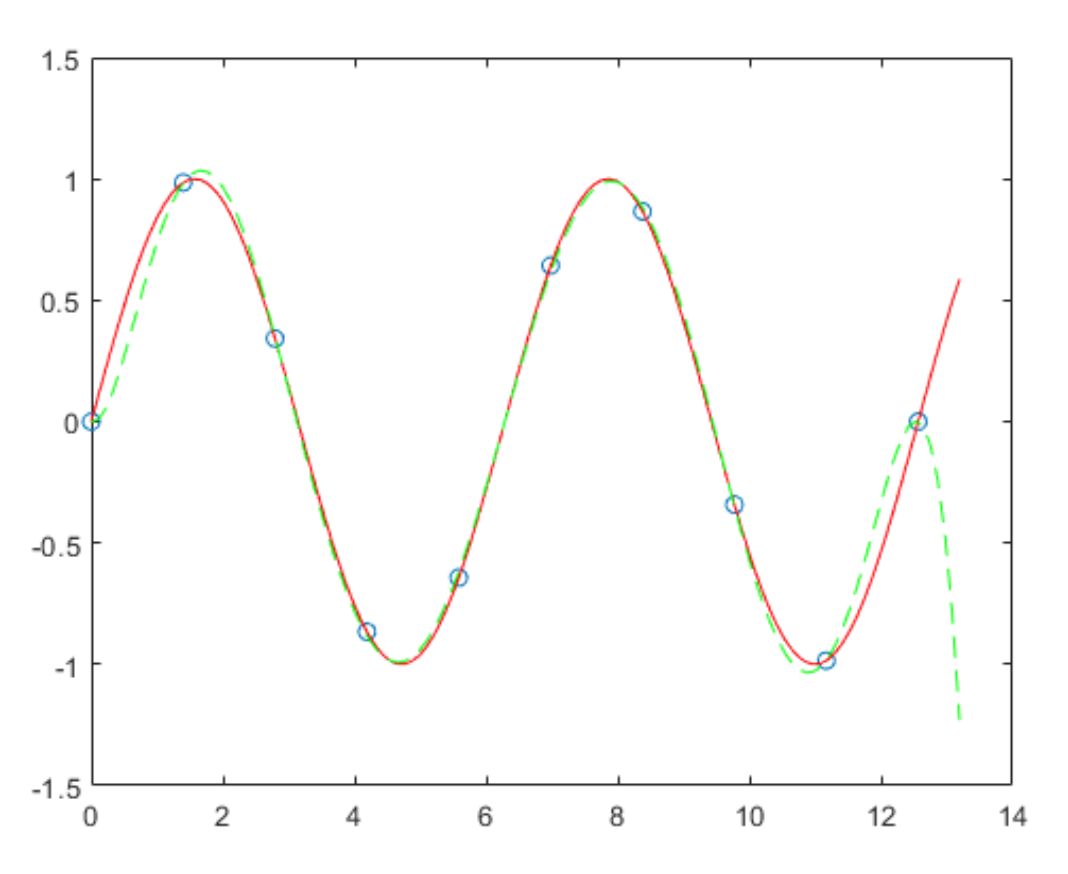

If you want to make predictions, look at the trend of some points afterwards

x2=linspace(0,4.2*pi,120);

y2=sin(x2);
x3=x2;
y3=polyval(p,x3);
figure
plot(x,y,'o')
hold onplot(x2,y2,'r')
plot(x3,y3,'--g')
hold off

More powerfulfit function

One-dimensional polynomial fitting (curve)

figure

plot(f,x,y)

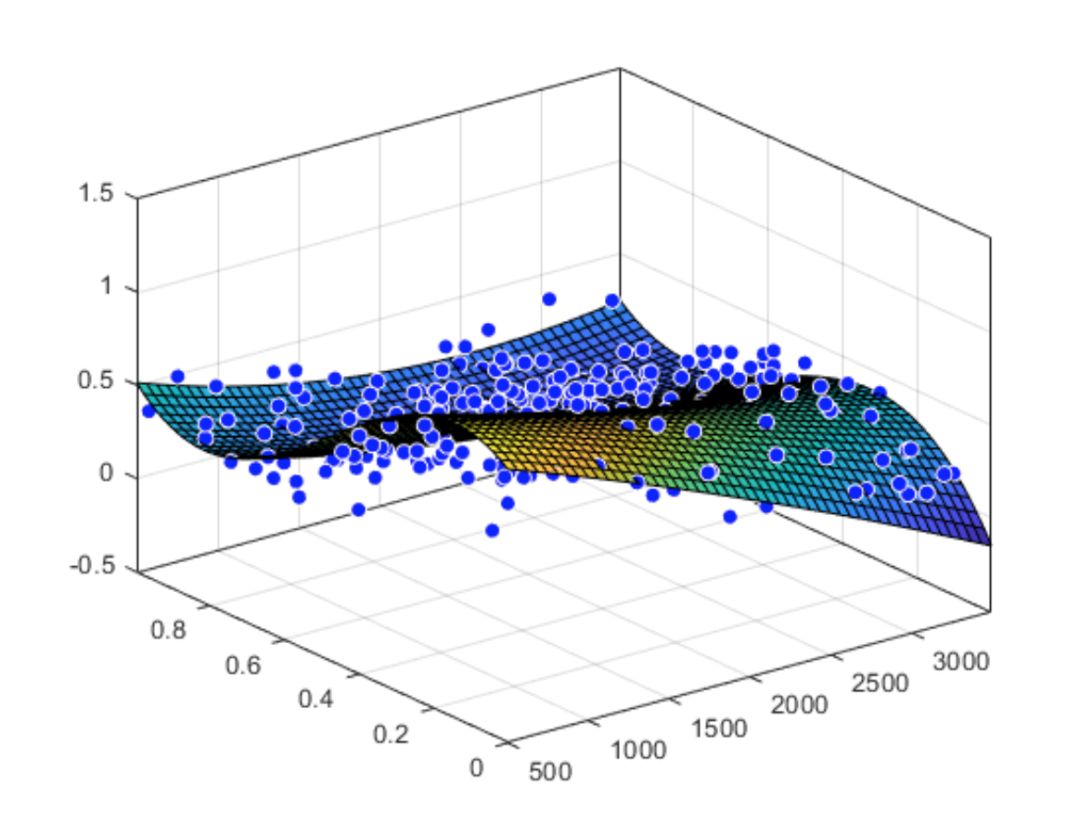

Two-dimensional polynomial fitting (surface)

plot(sf,[x,y],z)

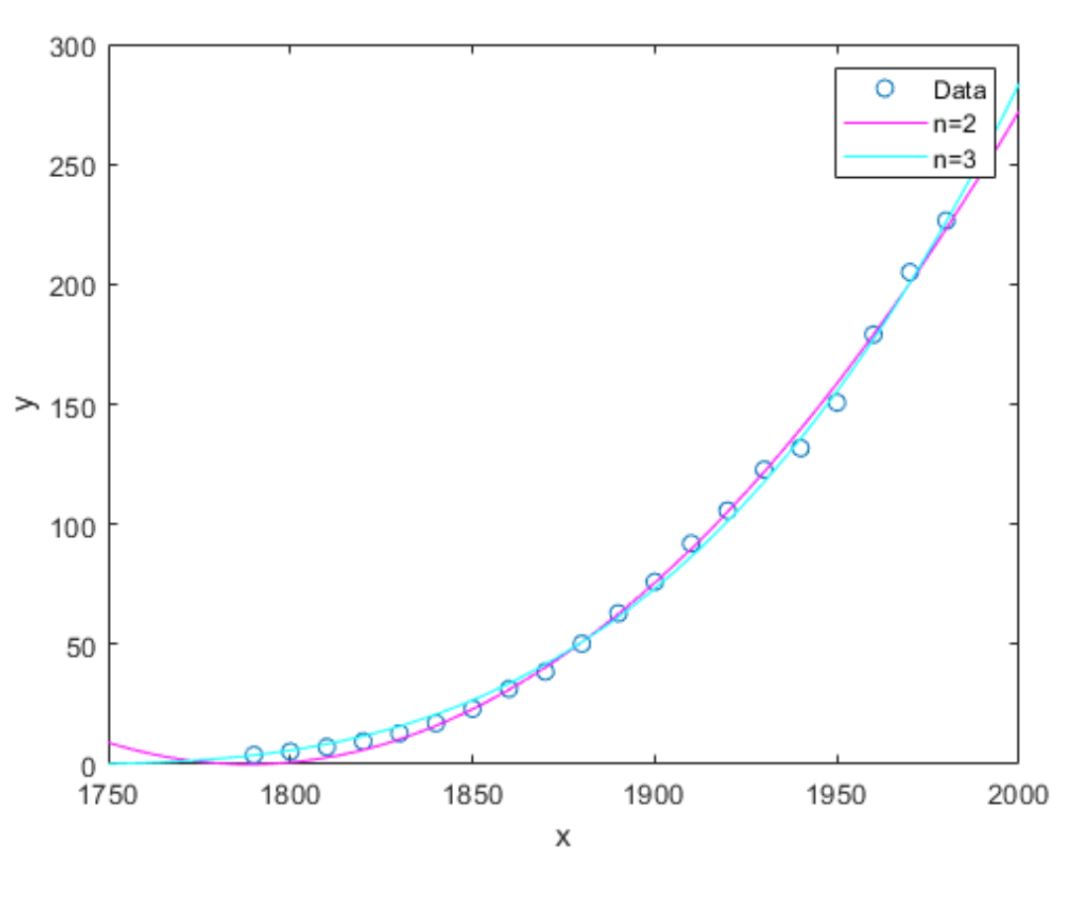

Specify fitting parameters and types

clear
load censusplot(cdate,pop,'o')
fo = fitoptions('Method','NonlinearLeastSquares',...

    'Lower',[0,0],...    'Upper',[Inf,max(cdate)],...    'StartPoint',[1 1]);

ft = fittype('a*(x-b)^n','problem','n','options',fo);
[curve2,gof2] = fit(cdate,pop,ft,'problem',2)

[curve3,gof3] = fit(cdate,pop,ft,‘problem’,3)

hold onplot(curve2,'m')
plot(curve3,'c')
legend('Data','n=2','n=3')
hold off

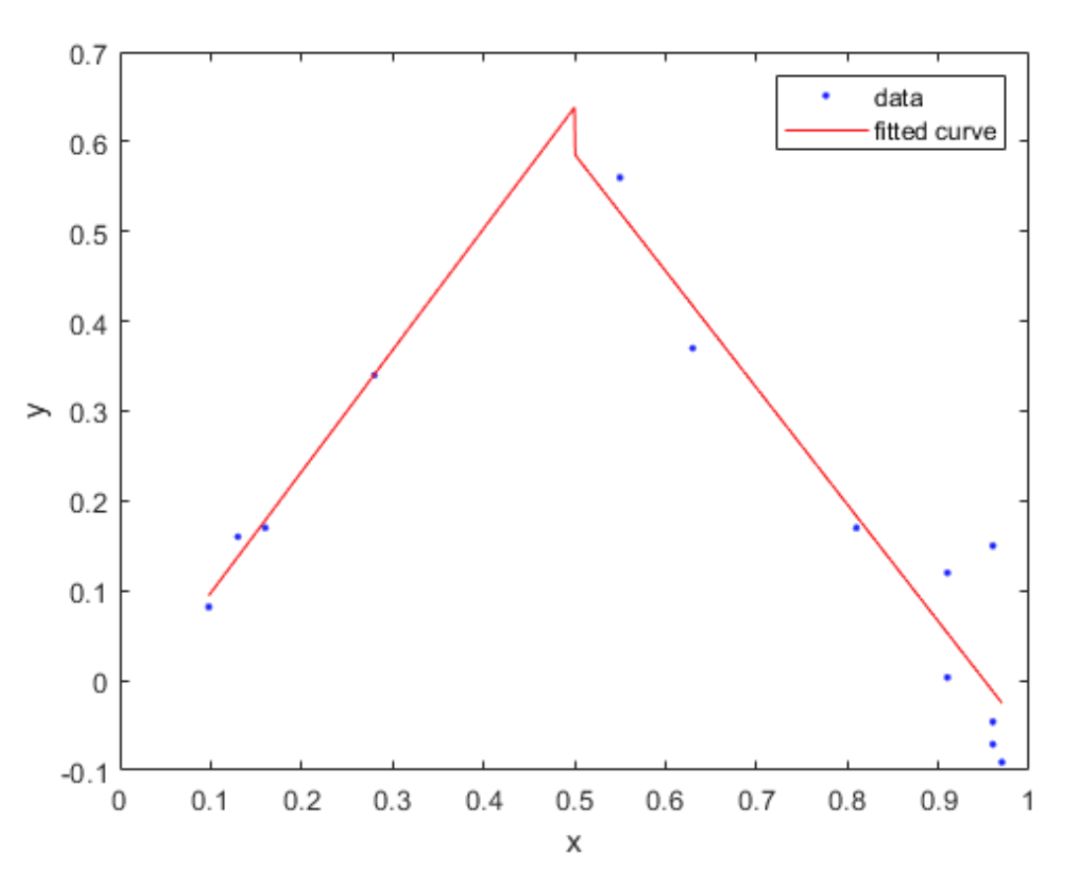

Define a function to fit based on the specified function file

x = [0.81;0.91;0.13;0.91;0.63;0.098;0.28;0.55;...

    0.96;0.96;0.16;0.97;0.96];
y = [0.17;0.12;0.16;0.0035;0.37;0.082;0.34;0.56;...

    0.15;-0.046;0.17;-0.091;-0.071];
ft = fittype( 'piecewiseLine( x, a, b, c, d, k )' )

f = fit( x, y, ft, ‘StartPoint’, [1, 0, 1, 0, 0.5] )

plot( f, x, y )

Fit after excluding individual points

clear
[x, y] = titanium;
gaussEqn = 'a*exp(-((x-b)/c)^2)+d'

startPoints = [1.5 900 10 0.6]

f1 = fit(x’,y’,gaussEqn,‘Start’, startPoints, ‘Exclude’, [1 10 25])

f2 = fit(x’,y’,gaussEqn,‘Start’, startPoints, ‘Exclude’, x < 800)

plot(f1,x,y)

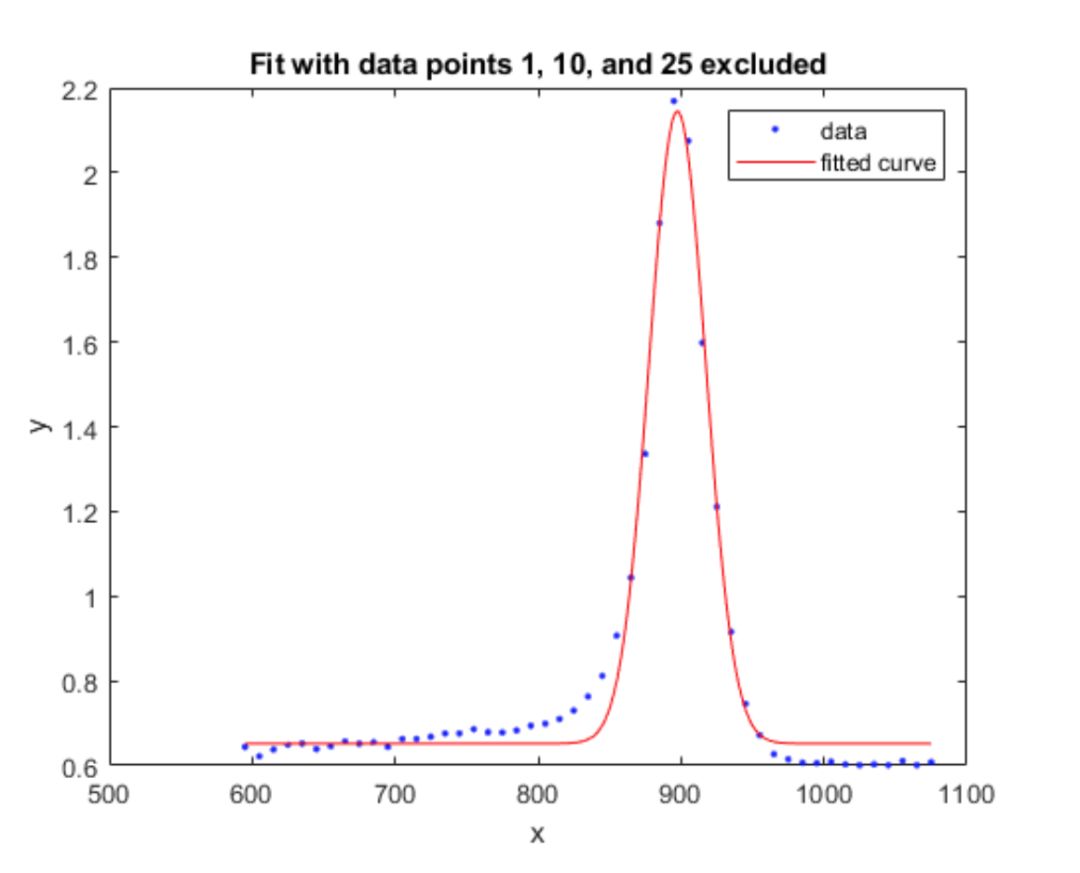

title('Fit with data points 1, 10, and 25 excluded')

figure
plot(f2,x,y)
title('Fit with data points excluded such that x < 800')

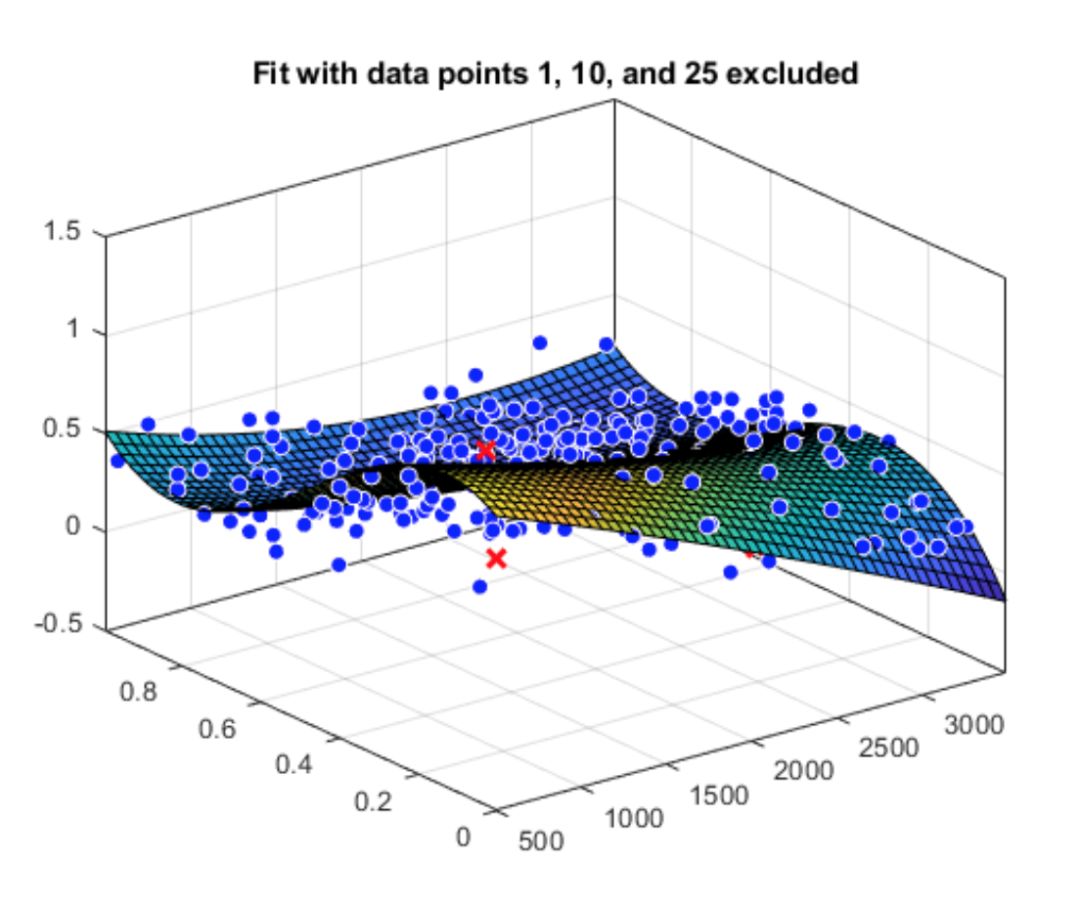

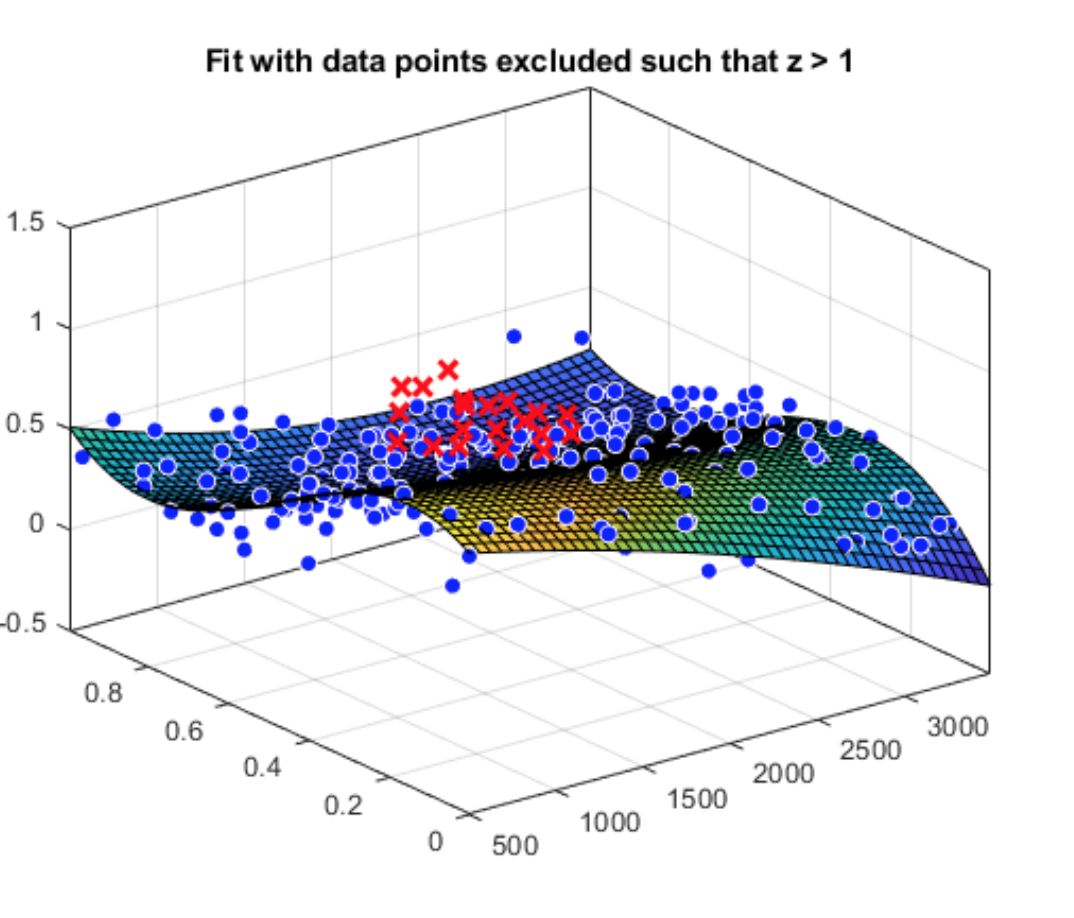

Exclude some points in surface fitting and mark them in the graph

clear
load frankef1 = fit([x y],z,'poly23', 'Exclude', [1 10 25]);
f2 = fit([x y],z,'poly23', 'Exclude', z > 1);

figure
plot(f1, [x y], z, 'Exclude', [1 10 25]);
title('Fit with data points 1, 10, and 25 excluded')

figure
plot(f2, [x y], z, 'Exclude', z > 1);
title('Fit with data points excluded such that z > 1')

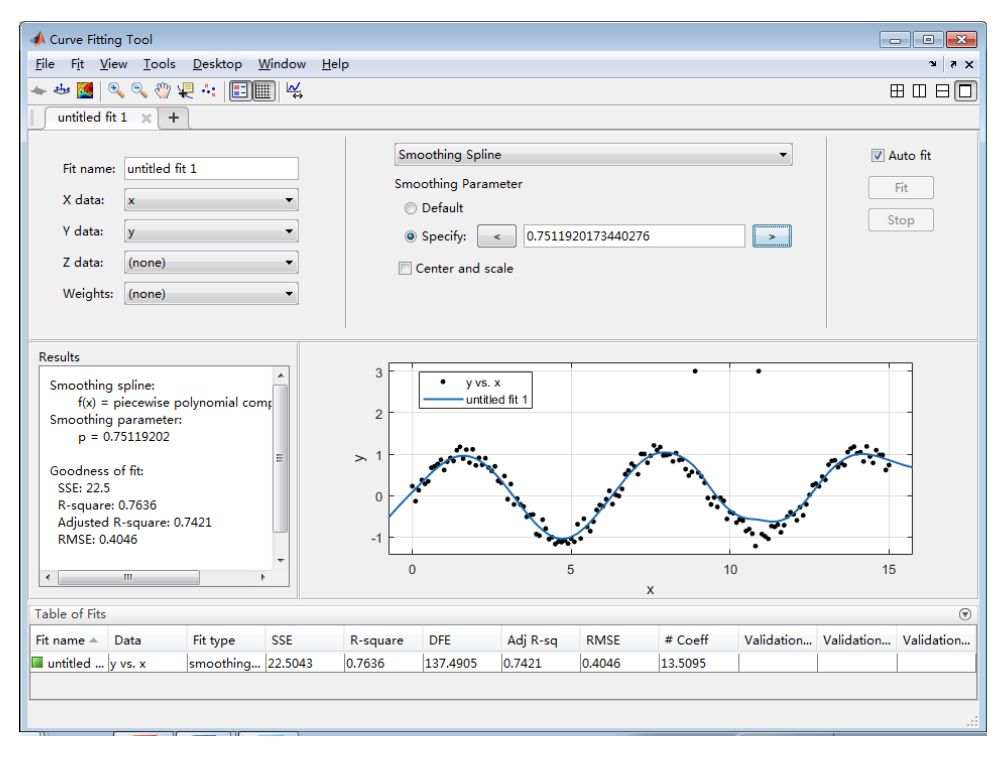

Curve Fitting app

Curve Fitting 3 Order and5Order Polynomial Fitting

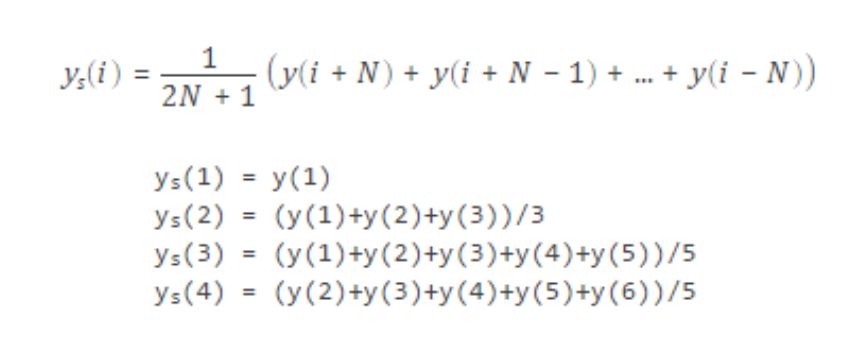

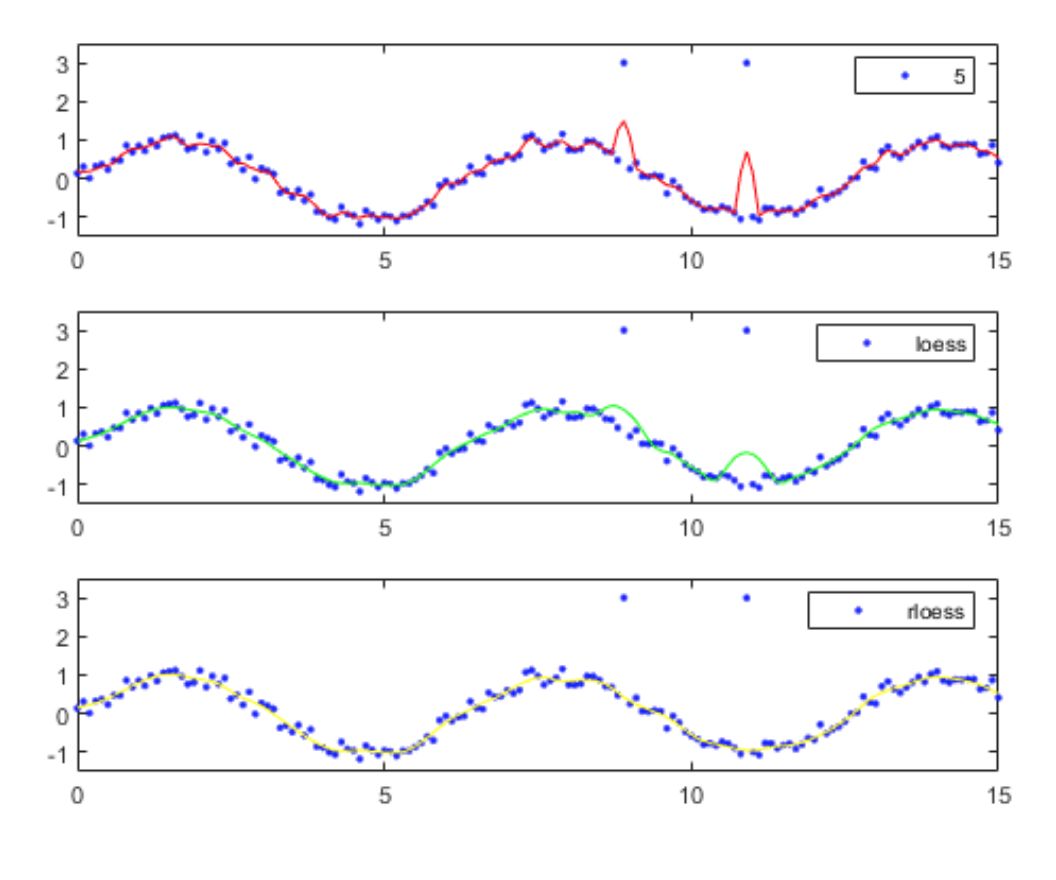

Moving Average

clear
x = (0:0.1:15)';
y = sin(x) + 0.5*(rand(size(x))-0.5);
y([90,110]) = 3;
yy0 = smooth(x,y,5);
yy1 = smooth(x,y,0.1,'loess');
yy2 = smooth(x,y,0.1,'rloess');
subplot(3,1,1)
plot(x,y,'b.',x,yy0,'r-')
set(gca,'YLim',[-1.5 3.5])
legend('5')
subplot(3,1,2)
plot(x,y,'b.',x,yy1,'g-')
set(gca,'YLim',[-1.5 3.5])
legend('loess')  % Local regression
subplot(3,1,3)
plot(x,y,'b.',x,yy2,'y-')
set(gca,'YLim',[-1.5 3.5])

Smoothing Spline

p=0 Least Squares Linear Fitting

p=1 Cubic Spline Interpolation

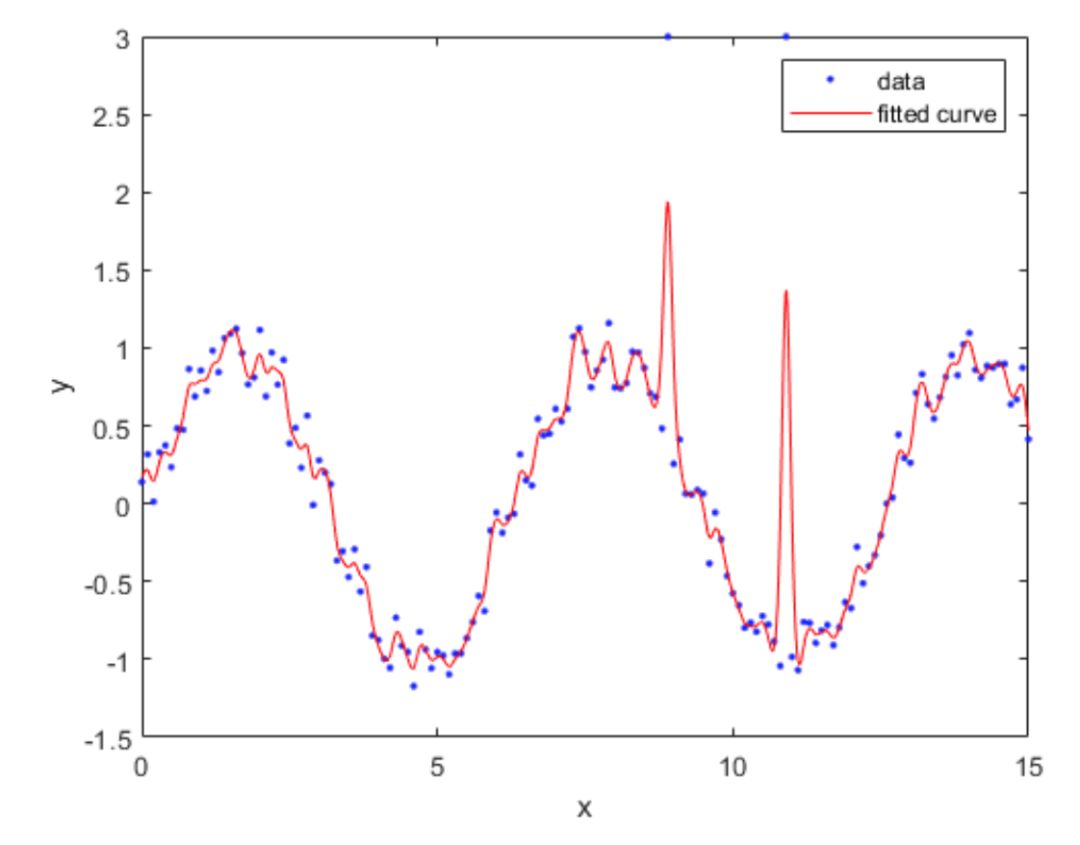

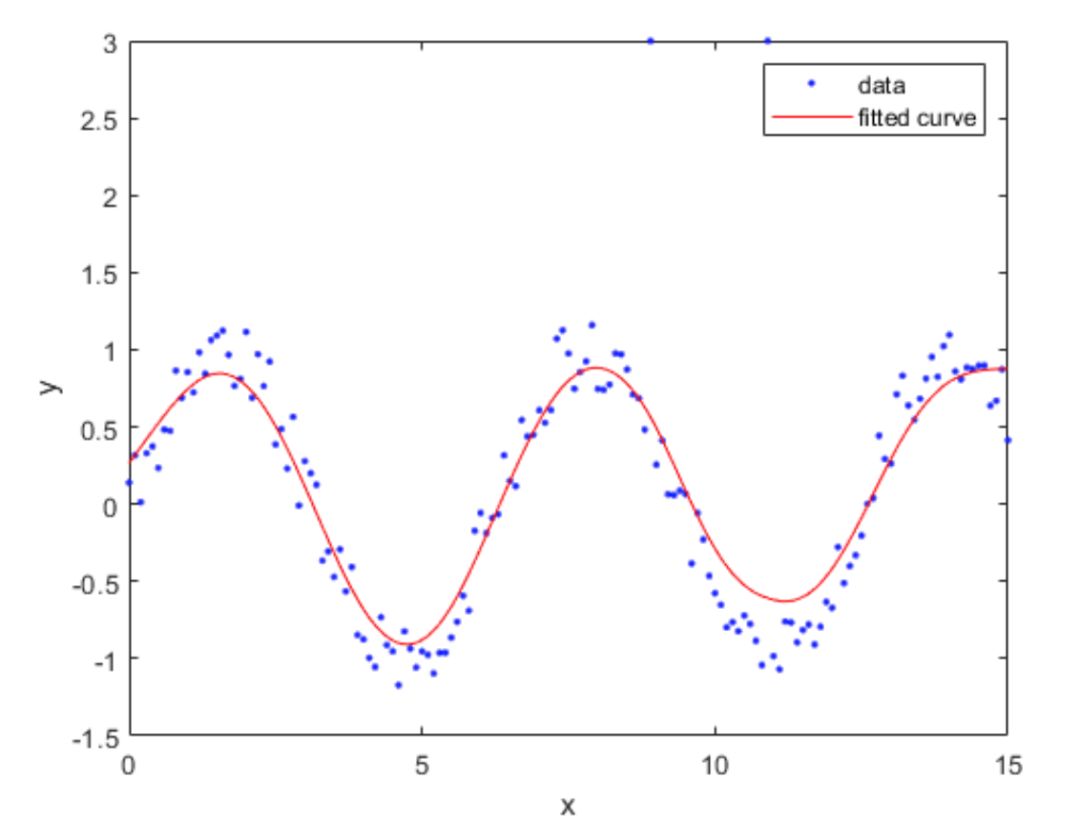

Usingfit function for smoothing

f = fit(x,y,'smoothingspline');

figure
plot(f,x,y)

f = fit(x,y,'smoothingspline','SmoothingParam',0.4);

figure
plot(f,x,y)

[f,gof,out]= fit(x,y,‘smoothingspline’,‘SmoothingParam’,0.4)

options = fitoptions('Method','Smooth','SmoothingParam',0.3);
[f,gof,out] = fit(x,y,'smooth',options)

Interpolation

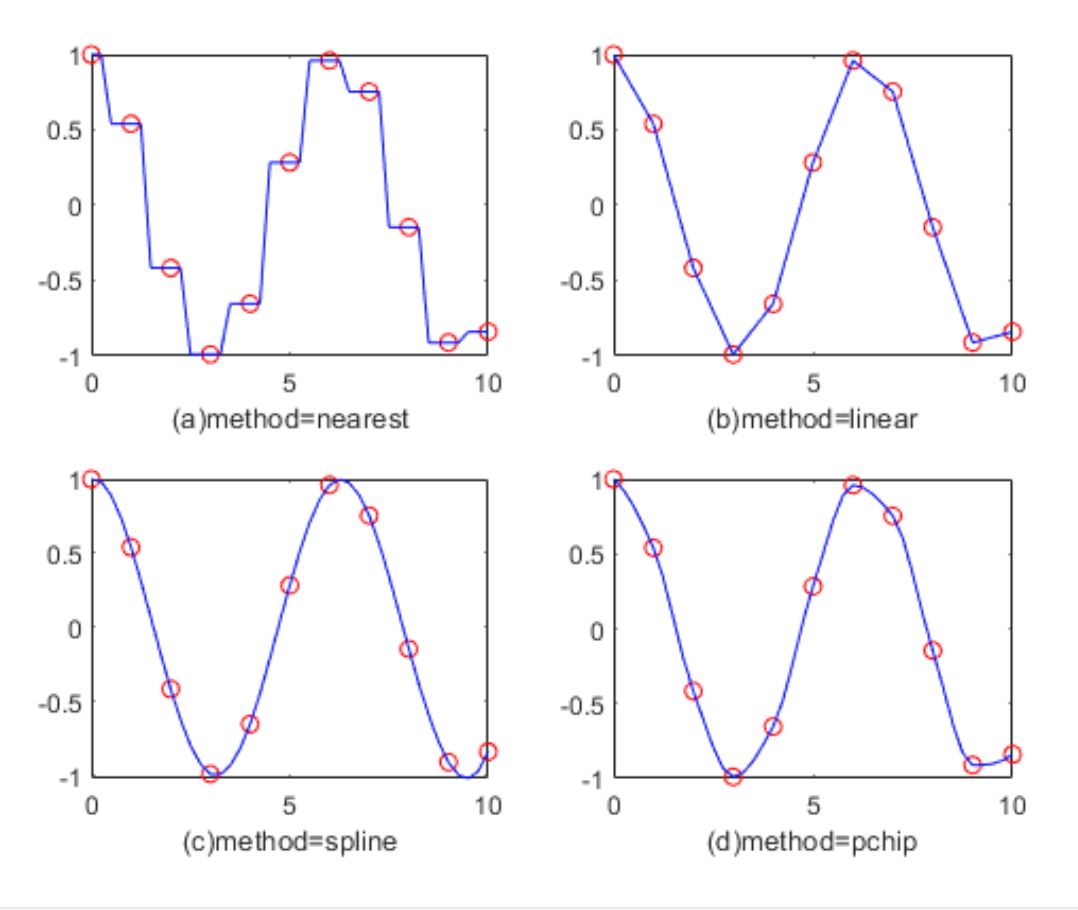

One-dimensional data interpolation

strlb={'(a)method=nearest','(b)method=linear',...

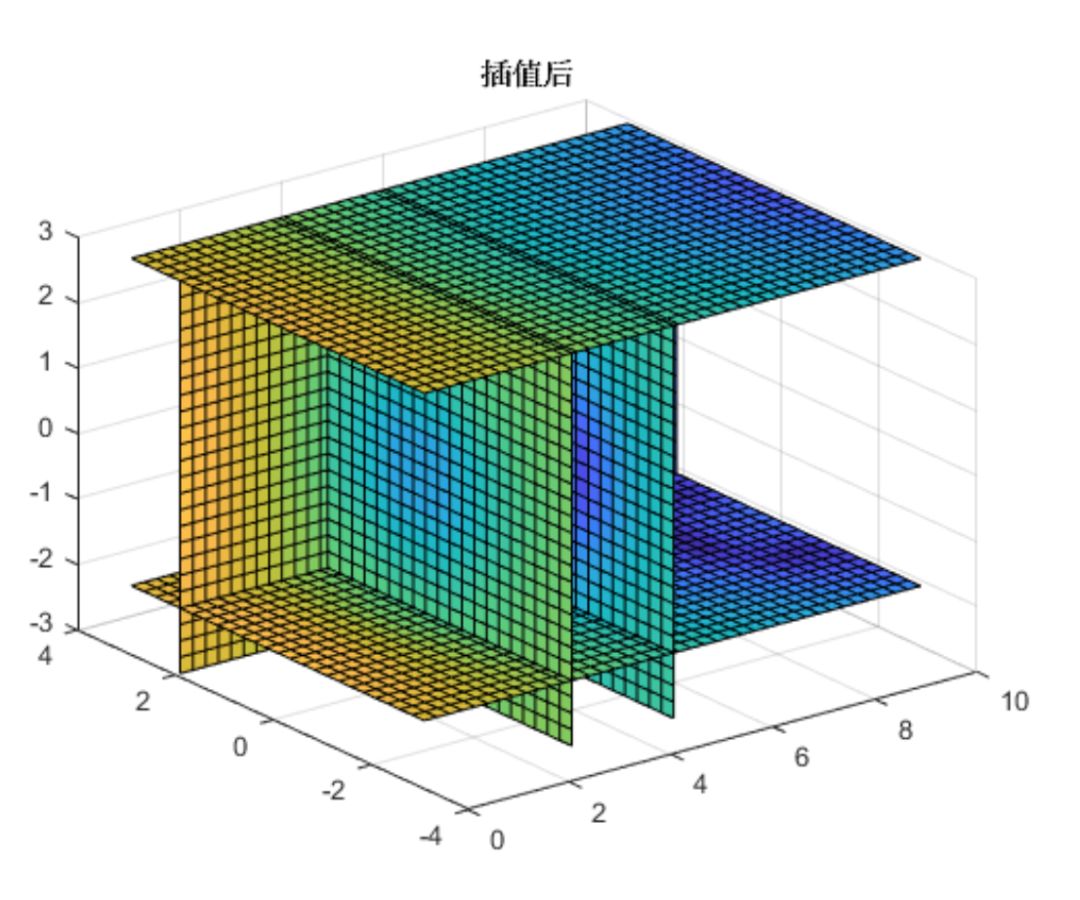

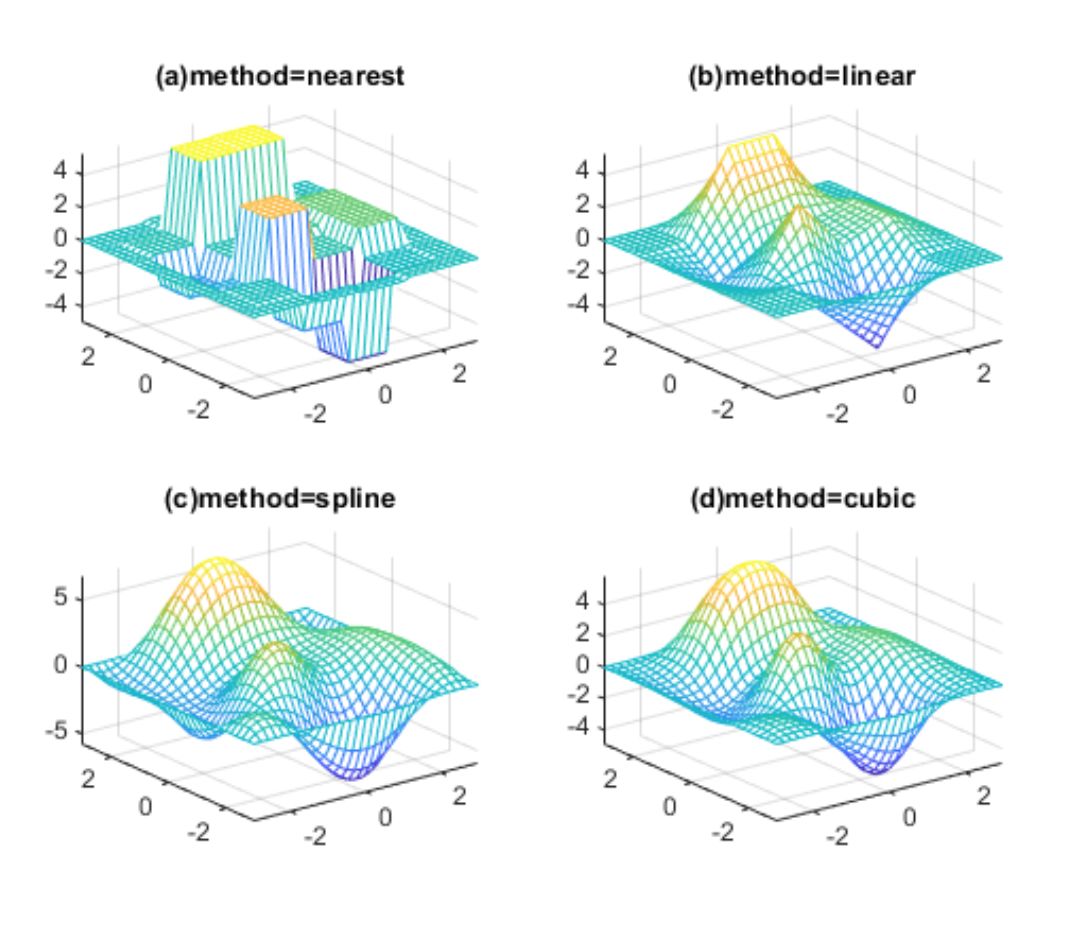

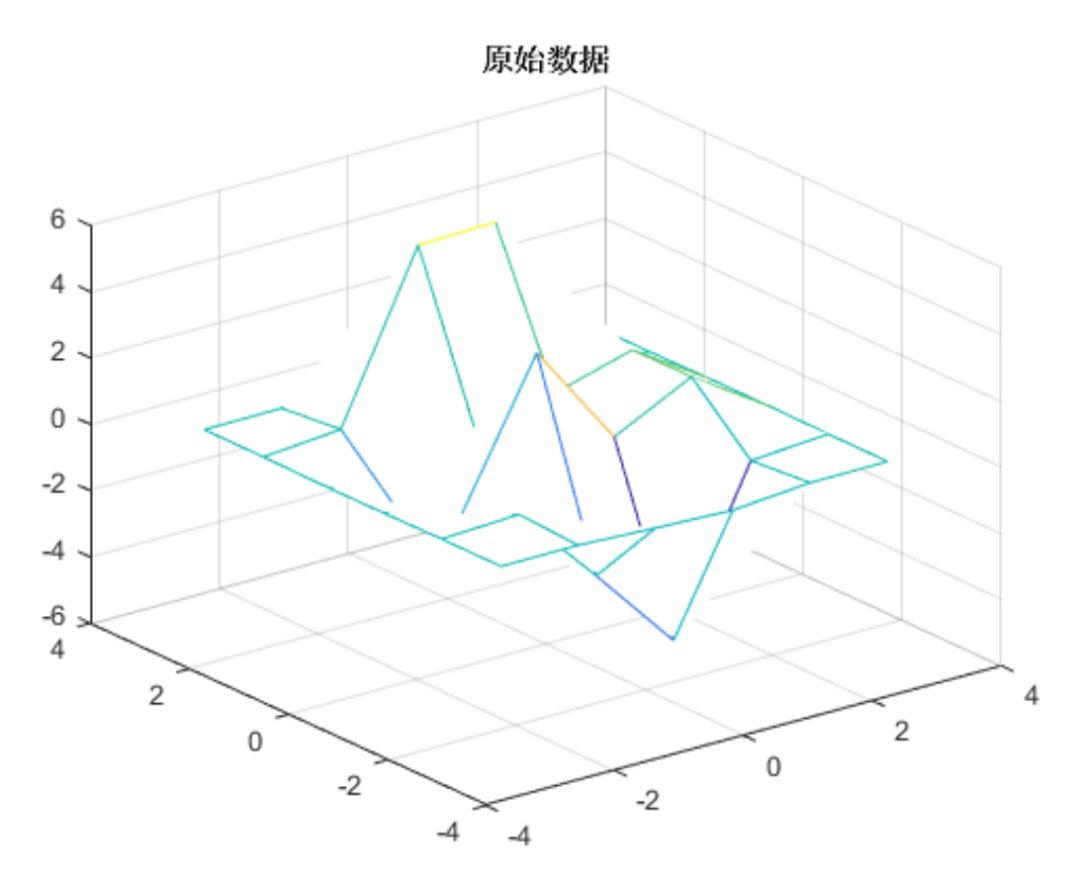

Two-dimensional data interpolation

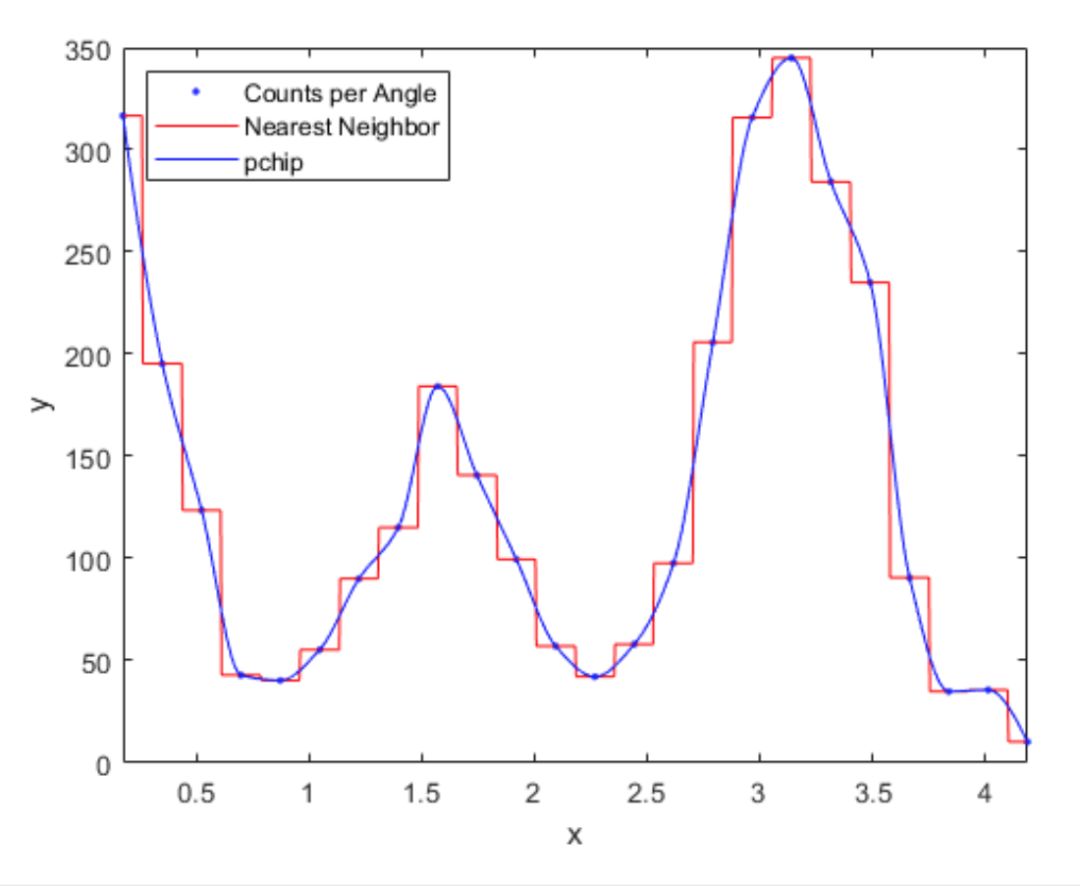

Usingfit function for interpolation

figure
clear
load carbon12alphaf1 = fit(angle,counts,'nearestinterp');
f2 = fit(angle,counts,'pchip');

p1 = plot(f1,angle,counts);
xlim([min(angle),max(angle)])
hold on

p2 = plot(f2,'b');
hold offlegend([p1;p2],'Counts per Angle','Nearest Neighbor','pchip',...

    'Location','northwest')

The above content is just a small part of the Matlab course, each class is very rich in content, and the teacher’s experience and skills benefit students greatly. If you want to learn more, please add customer service for consultation.

Matlab is essential software for mathematical modeling and a must-have software for students and graduates in science and engineering. Watching tutorials alone is boring, and you can’t find a learning method. There are no experts to answer questions, and no peers to study with… Now, the online education platform under Jiyuan Mathematical Modeling – Extreme Value Academy, in collaboration with the author of “MATLAB from Beginner to Proficiency”, a senior engineer of a listed company, Teacher Dong Chenhui has launched the course “MATLAB from Beginner to Algorithm Practice Summer Fast Track”, where the instructor interacts in real-time to answer questions, ensuring that learners comprehensively master MATLAB.

Instructor Introduction

Dong Chenhui

Dong Chenhui, author of the bestselling MATLAB book “MATLAB from Beginner to Proficiency”, a senior algorithm engineer of a listed company. Since 2003, he has participated multiple times in national college students, American college students, and national graduate mathematical modeling competitions, achieving excellent results. He has been using MATLAB for over 15 years, proficient in various algorithms and MATLAB algorithm toolboxes, and has published tutorials such as “MATLAB from Beginner to Proficiency”, “MATLAB 2008 Complete Guide”, and “MATLAB/Simulink Communication System Modeling and Simulation Examples”.

Course Directory

Public Course

Introduction to MATLAB Application Scenarios

Introduction to MATLAB Functions, Features, and Advantages

Introduction to the New Features of MATLAB 2018a

Introduction to MATLAB “Naming Artifact”

Chapter 1: Basic Skills of MATLAB

Section 1

Introduction to MATLAB

Data Types

Matrix and Array Skills

Section 2

Visualization and Control

New Version Plotting Features

How to Set Properties of Plot Controls

Section 3

Graphic Objects

Section 4

Control Flow

Types of Functions

String Calculation Functions

Real-time Editor Live Editor Introduction

Section 5

Function Variables

Error and Exception Handling

Improving MATLAB Calculation Efficiency

Debugging Mode, Setting Breakpoints, How to Find and Fix Bugs

MATLAB Programming Specifications

Chapter 2: Common Algorithms and Practices in MATLAB

Section 6

Data Fitting, Probability Statistics, Random Number Generation, Sensitivity Testing

Data File IO, Big Data Processing

Section 7

Introduction to Optimization Toolbox (the above courseware is part of this lesson)

Simulated Annealing Algorithm

Section 8

Genetic Algorithm Practice

Monte Carlo Algorithm

Section 9

Ant Colony Algorithm

TSP Problem Demonstration

Time Series

Section 10

Neural Networks

SVM Algorithm

Section 11

Graph Theory

Image Processing

Economics and Finance

Section 12

AppDesigner

Course Duration

1、Full recorded course, the teacher is always available to answer questions;

2、Videos can be replayed unlimited times within one year.

Limited Time Offer

Send a screenshot of the share to Extreme Value Academy personal WeChat (jizhi-xingchen) to not only get rich MATLAB materials but also receive a 100 yuan coupon for this course!

Extreme Value Academy personal WeChat (jizhi-xingchen)

Past Highlights

“MATLAB from Beginner to Algorithm Practice” series has been conducted five times. The course has received continuous praise from students, and Teacher Dong’s unique teaching style and considerate Q&A service have greatly benefited every student. The course quality is leading compared to similar courses on the market, and the after-class Q&A service is comprehensive, with all student questions being resolved, and most inquiries receiving teacher responses within 1 hour.

1、Part of the courseware preview:

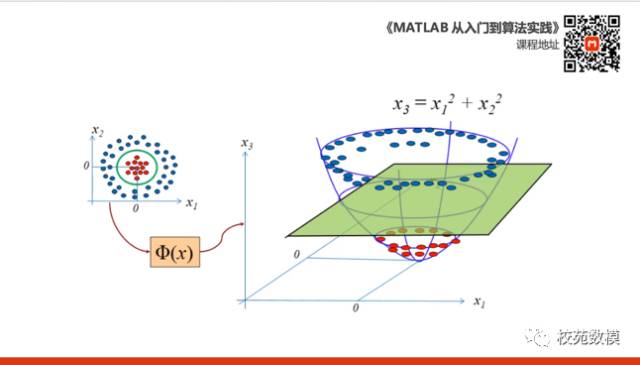

SVM Algorithm

Neural Network Algorithm

Ant Colony Algorithm

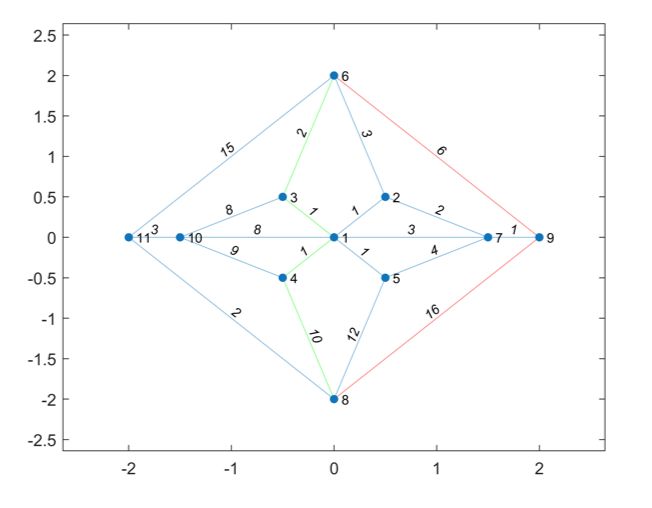

Shortest Path Problem

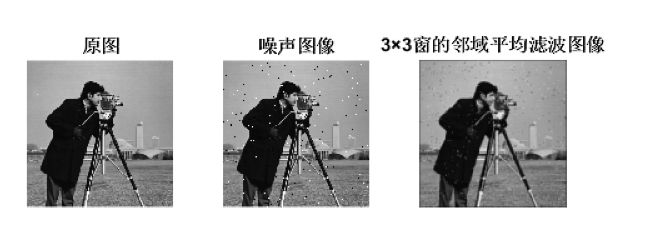

Image Processing

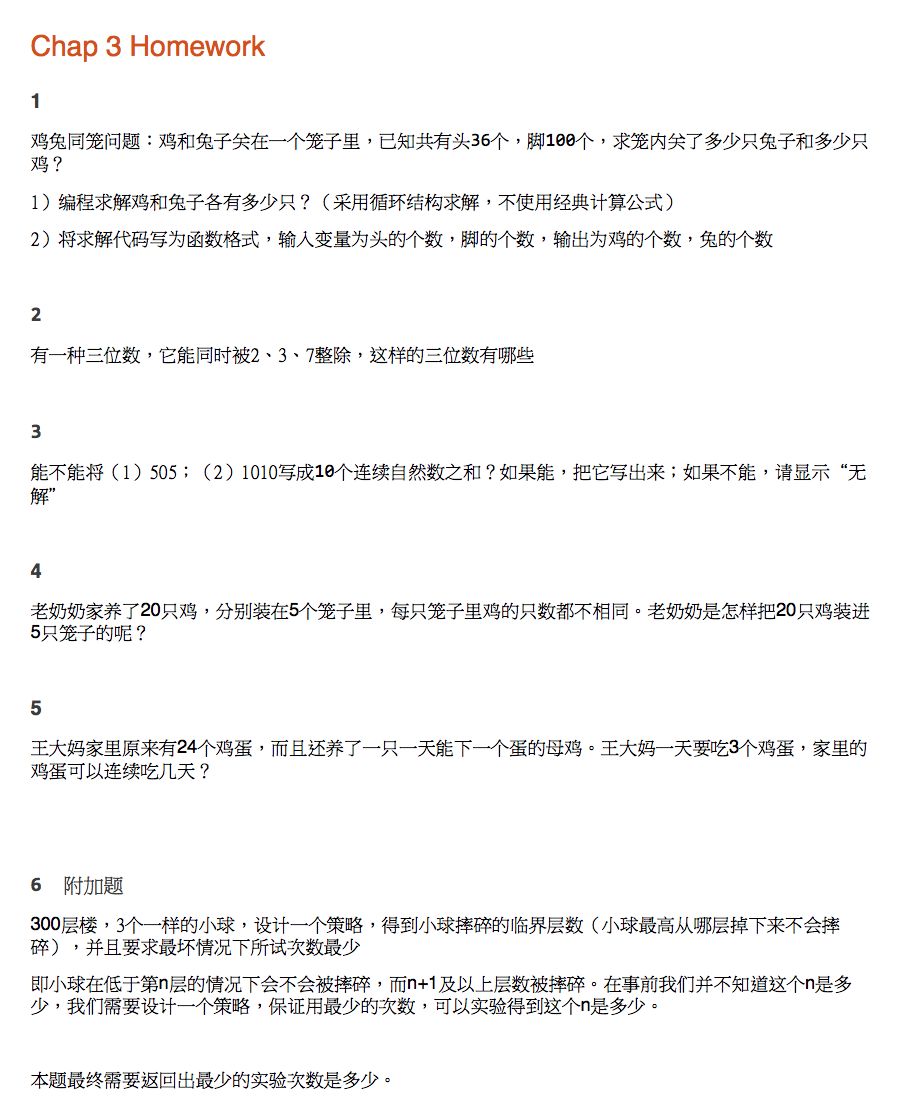

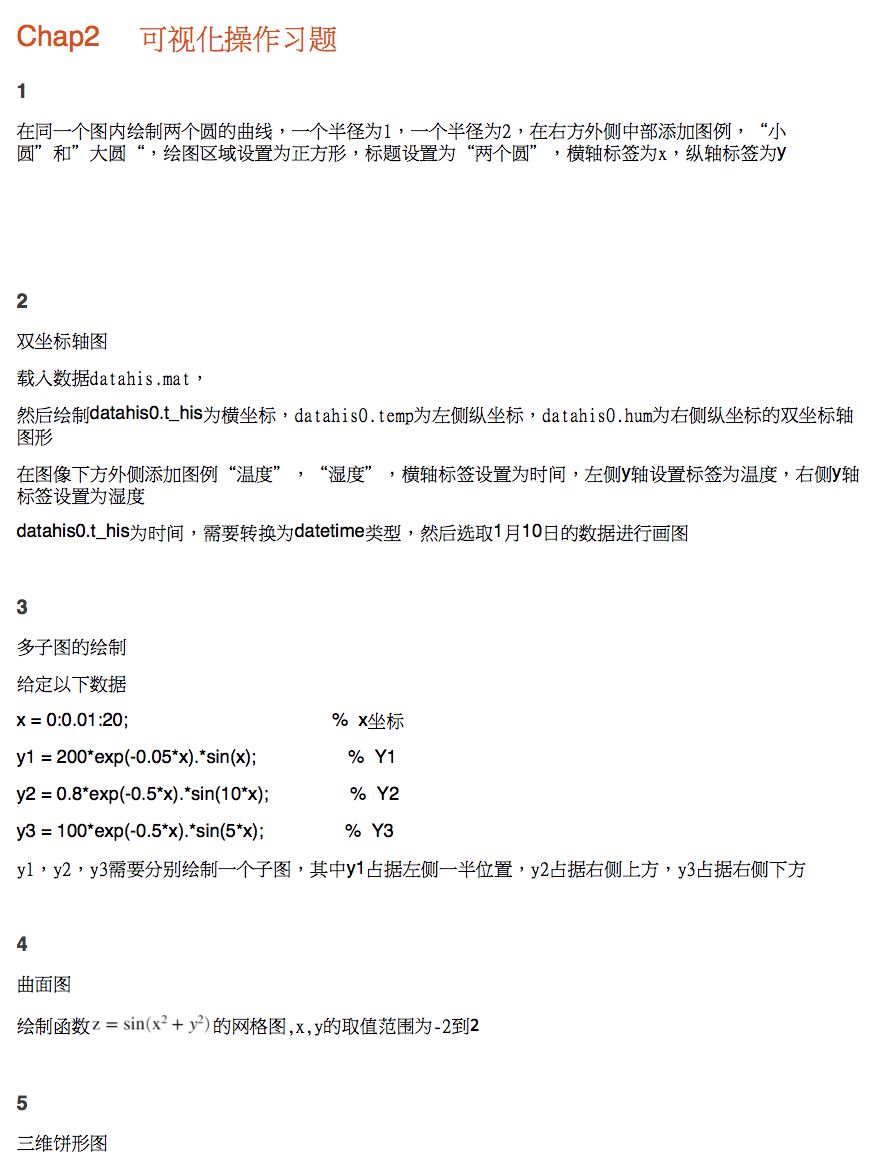

2、Course Assignment Preview:：

Assignments submitted through the system will also receive teacher feedback

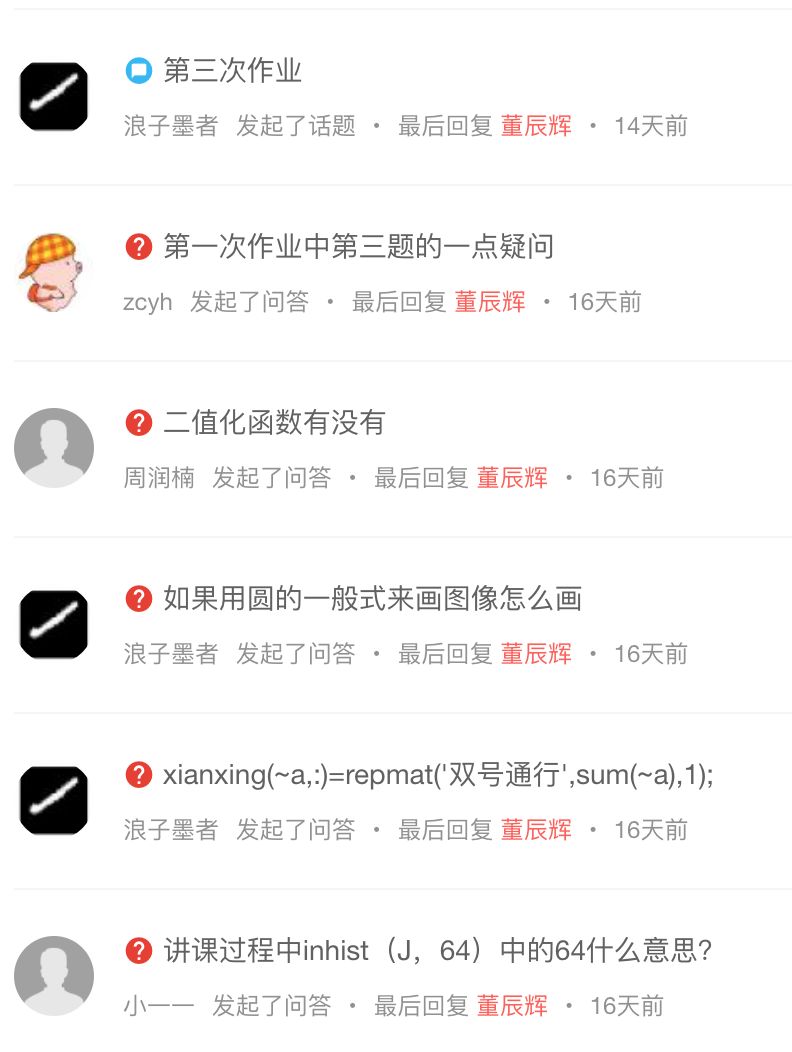

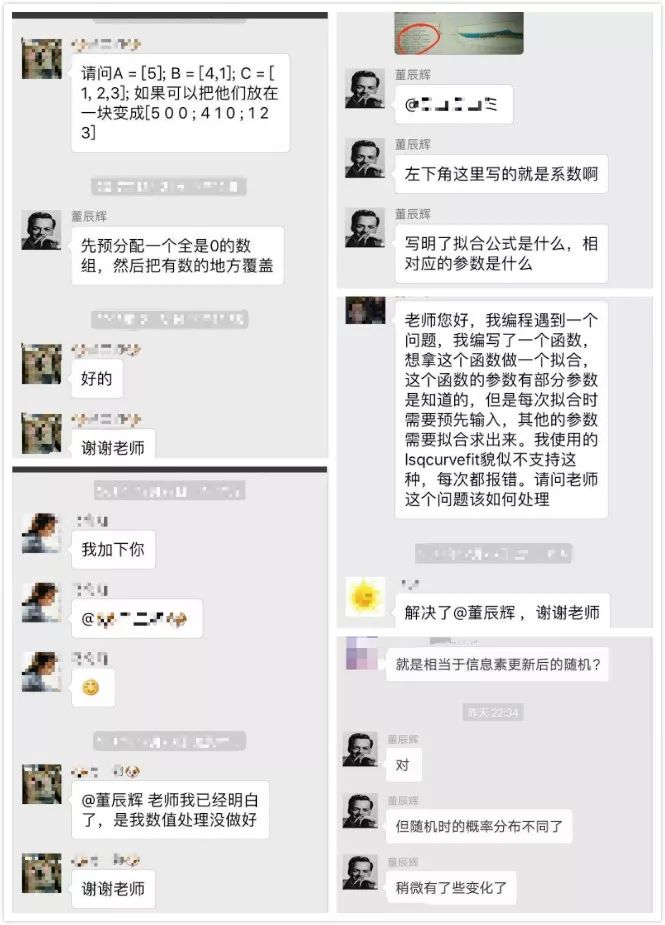

3、Course Discussion Group Q&A Screenshots:：
