Ferromagnetic materials, with their unique hysteresis characteristics, high magnetic permeability, and magnetic saturation phenomena, have become core foundational materials in fields such as electrical equipment, sensors, and precision instruments. From optimizing magnetic losses in transformer cores to controlling electromagnetic forces in maglev trains, and precisely regulating magnetic fields in MRI equipment, the performance of ferromagnetic materials directly determines the efficiency and reliability of related systems. However, the magnetic characteristics of ferromagnetic materials exhibit strong nonlinearity and hysteresis, with the magnetization process influenced by multiple factors such as temperature, stress, and frequency, making traditional empirical designs inadequate for high-precision control requirements.The emergence of ferromagnetic material control simulation technology, through the construction of mathematical models and numerical simulations, has achieved precise prediction and dynamic control of the magnetic behavior of ferromagnetic materials, becoming a key tool to break through engineering application bottlenecks.
1. Magnetic Characteristics of Ferromagnetic Materials: The “Driving Force” of Simulation
The magnetic behavior of ferromagnetic materials (such as silicon steel sheets, permalloy, and ferrites) is the core research object of control simulation, and the complexity of these characteristics directly drives the development of simulation technology.
(1) Nonlinear Magnetization Curve
The relationship between the magnetization intensity of ferromagnetic materials and the applied magnetic field strength is not linear, but presents an “S” shaped magnetization curve (B-H curve): in the initial stage, the magnetization intensity increases slowly with the magnetic field (reversible magnetization), then rises rapidly (domain wall movement), and finally approaches saturation (magnetic domains rotate to the direction of the magnetic field). This nonlinearity causes the voltage and current relationship of ferromagnetic components to no longer satisfy Ohm’s law, posing challenges for circuit simulation. For example, when a transformer core operates in the near-saturation region of the magnetization curve under rated voltage, if the voltage fluctuates, the excitation current will increase sharply, necessitating precise prediction through simulation.
(2) Hysteresis Loss and Eddy Current Loss
When the applied magnetic field alternates, ferromagnetic materials will produce two main types of losses:
- Hysteresis Loss: Arising from the friction and irreversible movement of magnetic domains during repeated magnetization processes, its magnitude is proportional to the area of the hysteresis loop and increases with frequency.
- Eddy Current Loss: Alternating magnetic fields induce eddy currents within the material, generating Joule heat, with losses proportional to the material’s conductivity, the square of its thickness, and the square of the frequency.
In devices such as motors and transformers, these two types of losses account for over 60% of total losses. By optimizing material selection (e.g., using thin silicon steel sheets to reduce eddy current loss) and magnetic field waveforms through simulation, energy efficiency can be significantly improved.
(3) Effects of Stress and Temperature
Mechanical stress can alter the magnetic domain structure of ferromagnetic materials, leading to a decrease in permeability and an increase in hysteresis loss (e.g., stress effects on motor rotors due to centrifugal force); elevated temperatures may cause materials to transition from ferromagnetic to paramagnetic (beyond the Curie point), completely losing their magnetic properties. These factors must be incorporated into the model during simulation to accurately reflect actual working conditions.

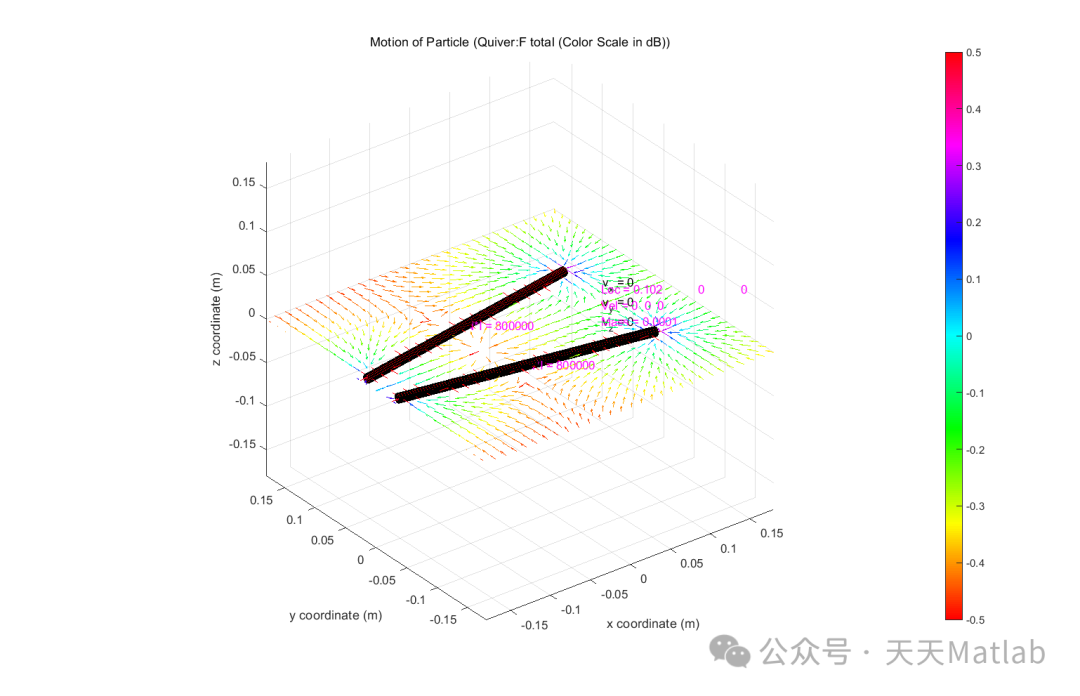

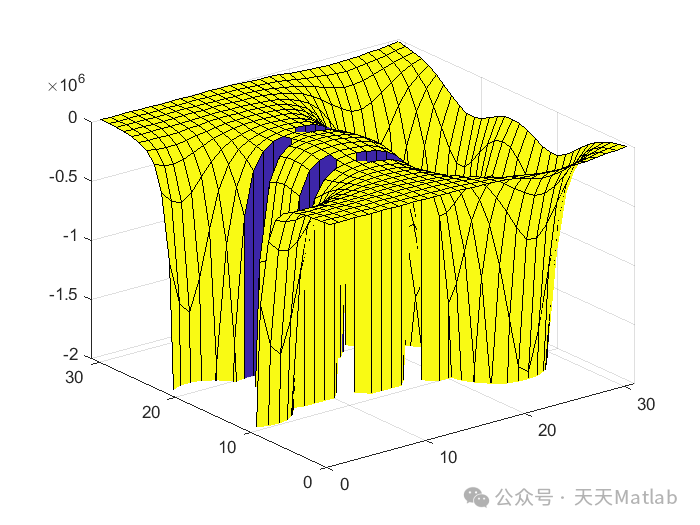

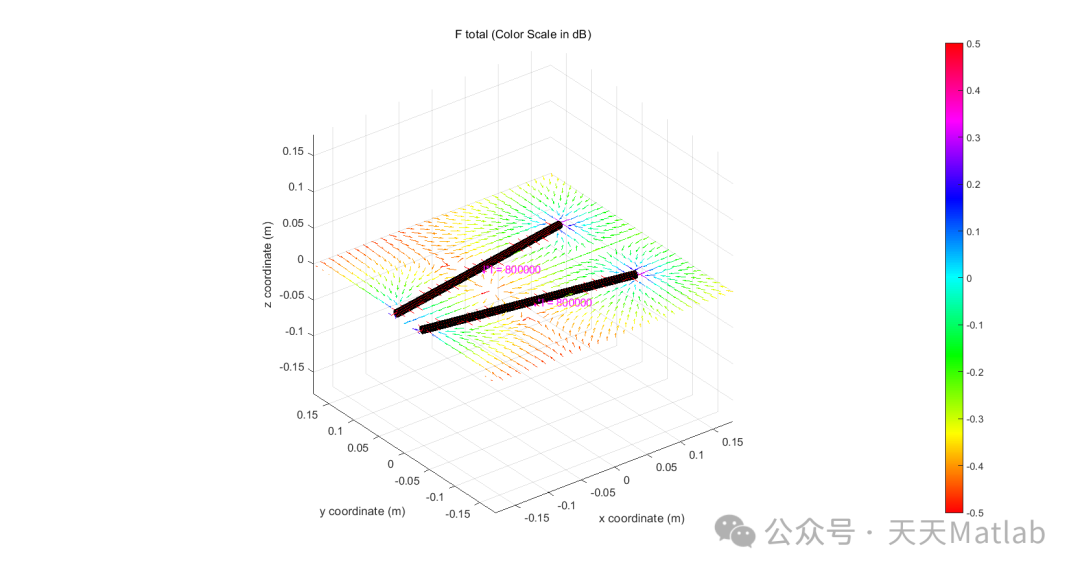

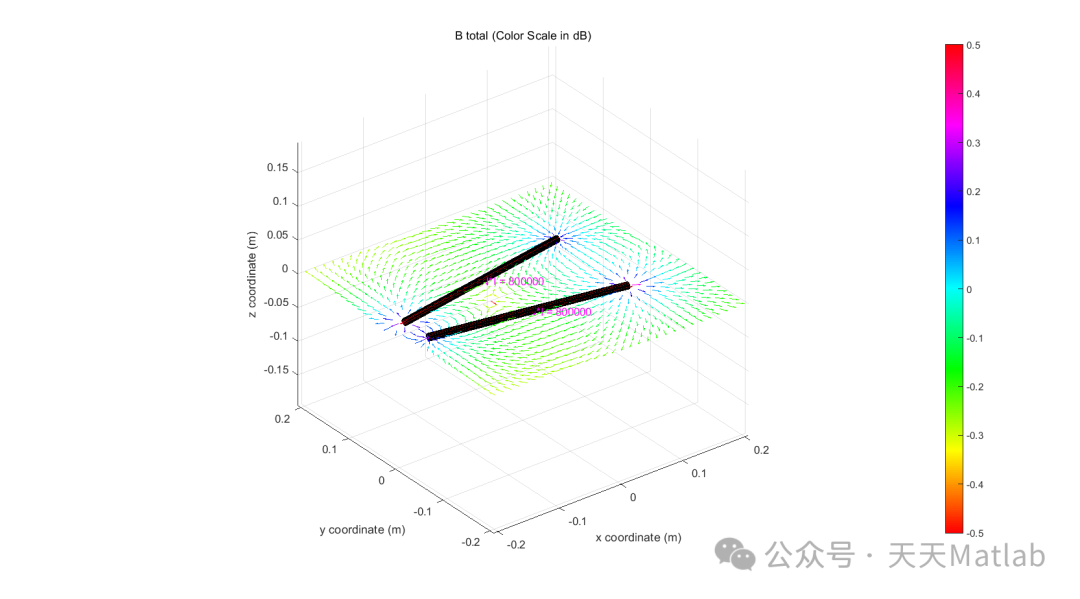

⛳️ Operating Results
📣 Sample Code
% By Yifei Shao 2018
classdef ElectroMagnet_Class
properties (Access = public)
Dipole_est
I
N
L
R
Location
Direction
B%the 4dimension one with i j k
end
properties (SetAccess = private, GetAccess = ? Field3D)
Br
Bn
Bmag
end
methods
%constructor
function obj = ElectroMagnet_Class(Dipole_est,I,N,L,R,Location,Direction)
obj.I = I;
