Common Software Engineering Methods in Embedded Development

Hello everyone, I am the Mixed Cuisine Master.

What are the common software engineering methods in embedded development? Below, I have summarized some methods that I hope will help you in your learning and work.

1. Object-Oriented Programming (OOP)

Although C is not an object-oriented programming language, with some programming techniques, we can achieve the core features of Object-Oriented Programming (OOP), such as encapsulation, inheritance, and polymorphism.

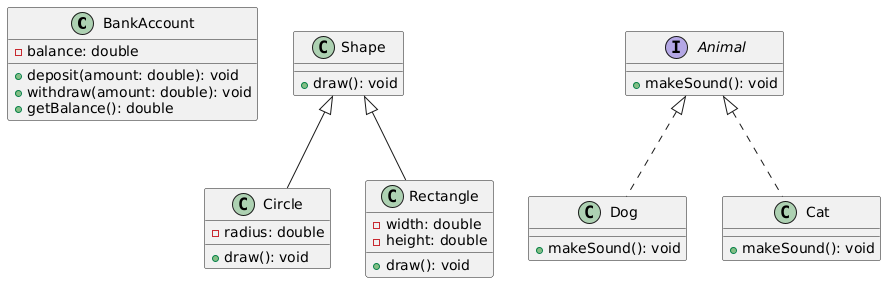

Common Software Engineering Methods in Embedded Development

1. Encapsulation

Encapsulation is the bundling of data and the functions that operate on that data, hiding the internal implementation details from the outside. In embedded C, encapsulation can be achieved through structures and function pointers.

#include <stdio.h>

// Define an LED structure
typedef struct {
    int pin;
    void (*turnOn)(struct LED*);
    void (*turnOff)(struct LED*);
} LED;

// Implement LED turn on function
void ledTurnOn(LED* led) {
    printf("LED on pin %d is turned on.\n", led->pin);
}

// Implement LED turn off function
void ledTurnOff(LED* led) {
    printf("LED on pin %d is turned off.\n", led->pin);
}

// Initialize LED
void ledInit(LED* led, int pin) {
    led->pin = pin;
    led->turnOn = ledTurnOn;
    led->turnOff = ledTurnOff;
}

int main(void) {
    LED myLed;
    ledInit(&myLed, 13);
    myLed.turnOn(&myLed);
    myLed.turnOff(&myLed);
    return 0;
}

LED structure encapsulates the pin data and the turnOn and turnOff function pointers. The ledInit function is used to initialize the LED structure, assigning specific functions to the function pointers. External code can only operate on the LED through these function pointers without needing to understand the internal implementation details.

2. Inheritance

Inheritance allows one object to directly use the properties and methods of another object. In embedded C, inheritance can be implemented through nested structures.

#include <stdio.h>

// Define a base class structure
typedef struct {
    int id;
    void (*printInfo)(struct Base*);
} Base;

// Implement base class print info function
void basePrintInfo(Base* base) {
    printf("Base ID: %d\n", base->id);
}

// Define a derived class structure
typedef struct {
    Base base; // Inherit Base structure
    char* name;
} Derived;

// Implement derived class print info function
void derivedPrintInfo(Derived* derived) {
    basePrintInfo(&derived->base);
    printf("Derived Name: %s\n", derived->name);
}

// Initialize base class
void baseInit(Base* base, int id) {
    base->id = id;
    base->printInfo = basePrintInfo;
}

// Initialize derived class
void derivedInit(Derived* derived, int id, char* name) {
    baseInit(&derived->base, id);
    derived->name = name;
    derived->base.printInfo = (void (*)(Base*))derivedPrintInfo;
}

int main(void) {
    Derived myDerived;
    derivedInit(&myDerived, 1, "Derived Object");
    myDerived.base.printInfo((Base*)&myDerived);
    return 0;
}

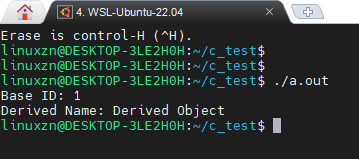

Derived structure nests the Base structure, thereby inheriting the properties and methods of the Base structure. The derivedInit function initializes the Derived structure by calling the baseInit function to initialize the base class part and sets the printInfo function pointer to the derivedPrintInfo function.

3. Polymorphism

Polymorphism refers to different objects responding differently to the same message. In embedded C, polymorphism can be achieved through function pointers.

#include <stdio.h>

// Define a base class structure
typedef struct {
    void (*operation)(struct Base*);
} Base;

// Define derived class 1 structure
typedef struct {
    Base base;
} Derived1;

// Define derived class 2 structure
typedef struct {
    Base base;
} Derived2;

// Derived class 1 operation function
void derived1Operation(Base* base) {
    printf("Derived1 operation.\n");
}

// Derived class 2 operation function
void derived2Operation(Base* base) {
    printf("Derived2 operation.\n");
}

// Initialize derived class 1
void derived1Init(Derived1* derived1) {
    derived1->base.operation = derived1Operation;
}

// Initialize derived class 2
void derived2Init(Derived2* derived2) {
    derived2->base.operation = derived2Operation;
}

// Perform operation
void performOperation(Base* base) {
    base->operation(base);
}

int main(void) {
    Derived1 myDerived1;
    Derived2 myDerived2;
    derived1Init(&myDerived1);
    derived2Init(&myDerived2);

    performOperation((Base*)&myDerived1);
    performOperation((Base*)&myDerived2);
    return 0;
}

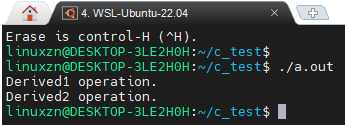

Base structure contains a function pointer operation. The Derived1 and Derived2 structures inherit from the Base structure and implement their own operation functions. The performOperation function receives a Base pointer and calls the corresponding operation function based on the specific object, thus achieving polymorphism.

2. Test-Driven Development (TDD)

Test-Driven Development (TDD) is a software development methodology that emphasizes writing test code before writing the actual functional code.

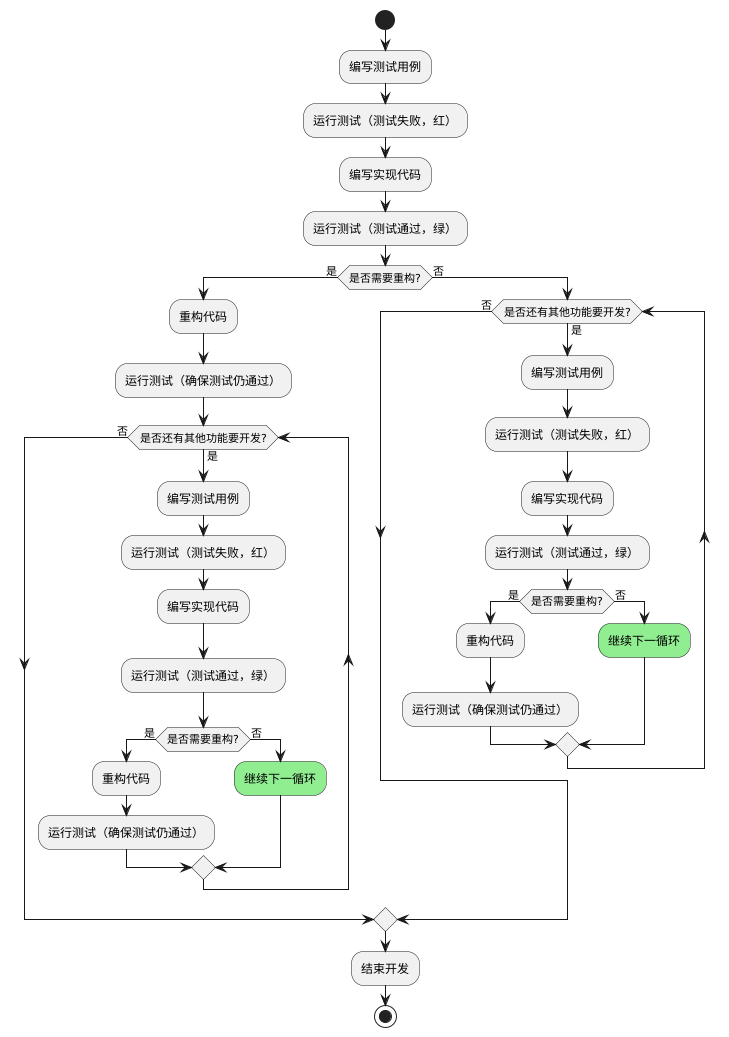

The core process of TDD follows the “Red – Green – Refactor” cycle, and I will detail its principles, processes, advantages, limitations, and examples below.

TDD is based on the idea of “testing first”; developers first clarify requirements and translate them into specific test cases.

Since implementation code has not yet been written, the test cases will inevitably fail (showing a “red” state).

Next, developers write the minimum code necessary to pass the test cases (achieving a “green” state).

Finally, the code is refactored to optimize its internal structure without changing its external behavior, improving code readability, maintainability, and extensibility.

Practice: Using the Unity Testing Framework.

Unity is a lightweight testing framework implemented in C, and the code itself is very small. Most of its code consists of macro definitions, so the actual compiled code will be even smaller, making it suitable for embedded testing applications.

I have previously shared a simple introduction to using Unity:

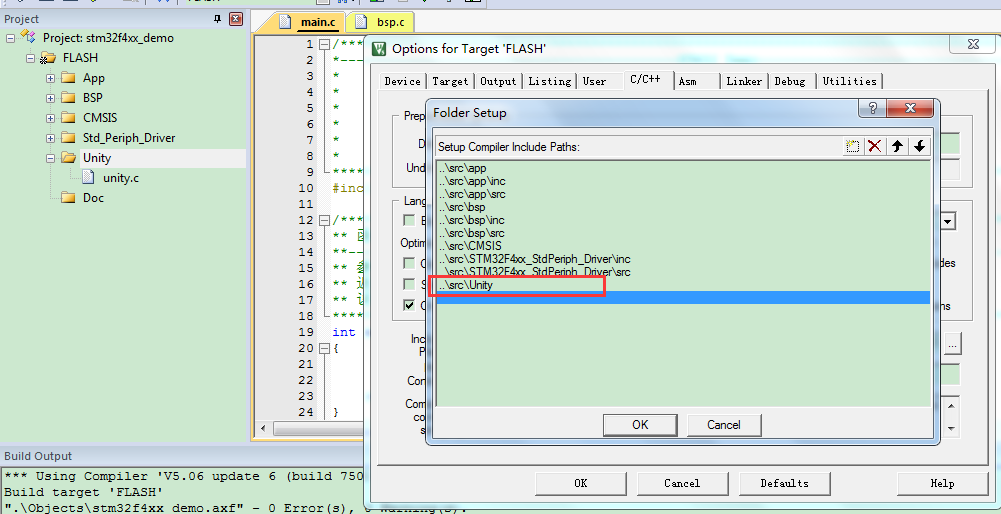

First, copy the three files unity.c, unity.h, unity_internals.h from the Unity source directory to our project directory, and add unity.c to our Keil project, then add the file path:

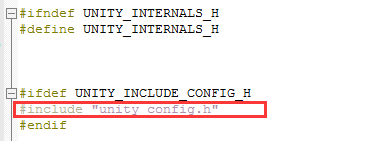

We open the unity_internals.h file and find that it includes a header file unity_config.h:

This file is a configuration file where we place platform-related features. However, this file is not provided in the Unity source code, so we need to create it ourselves. The content of the unity_config.h file I created is as follows:

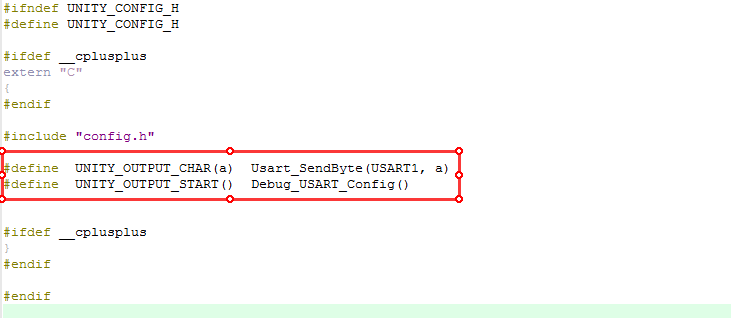

It mainly contains hardware-related header file inclusions and two necessary macro definitions. The first macro definition is used to redirect output to the serial port, and the second macro definition is for our serial port initialization.

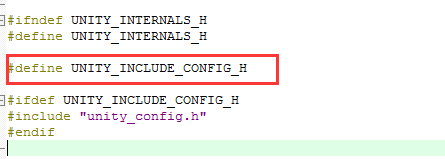

In the unity_internals.h file, we find that the unity_config.h file is conditionally compiled out, so we need to define a macro to enable it:

Finally, include the header file unity.h in our main.c to use the Unity testing framework. In the unity_internals.h file, there are many configurable options, such as the length of integers, which can vary across different platforms. Unity allows developers to set the length of integers. If not set, Unity’s default value is 32 bits. Our STM32 is 32 bits, so we do not need to modify it.

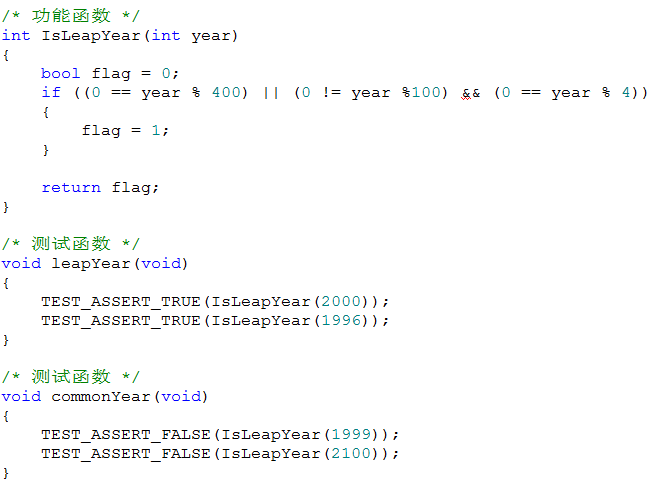

Next, we start writing test cases. In Unity, each test case is a function that has no parameters and no return value. Let’s test a leap year judgment function:

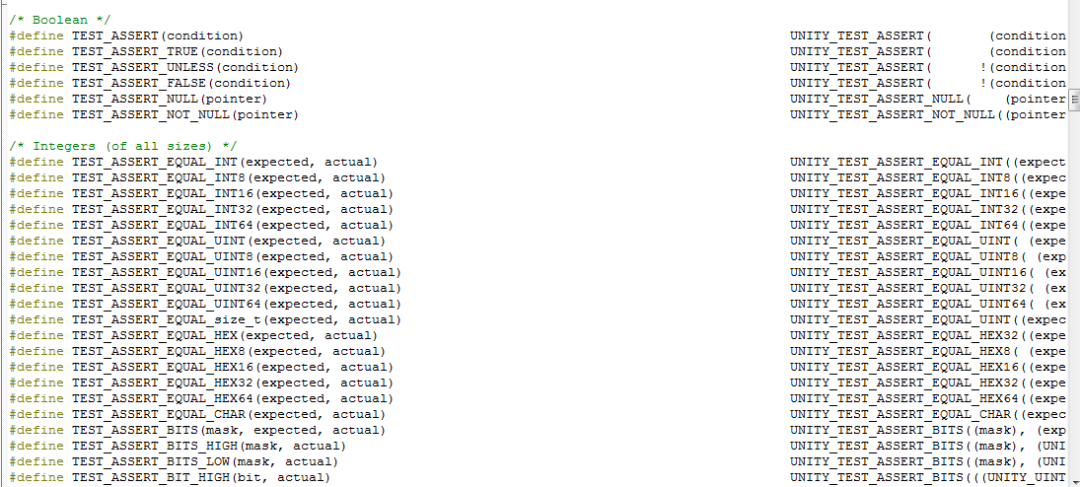

In the test function, we use TEST_ASSERT_TRUE and TEST_ASSERT_FALSE, which are two assertions implemented by Unity to determine whether a boolean expression is true or false. These testing frameworks generally use assertions for testing, including several frameworks shared above. In this example, only two assertions are used, but Unity has many assertions, as shown in the following examples:

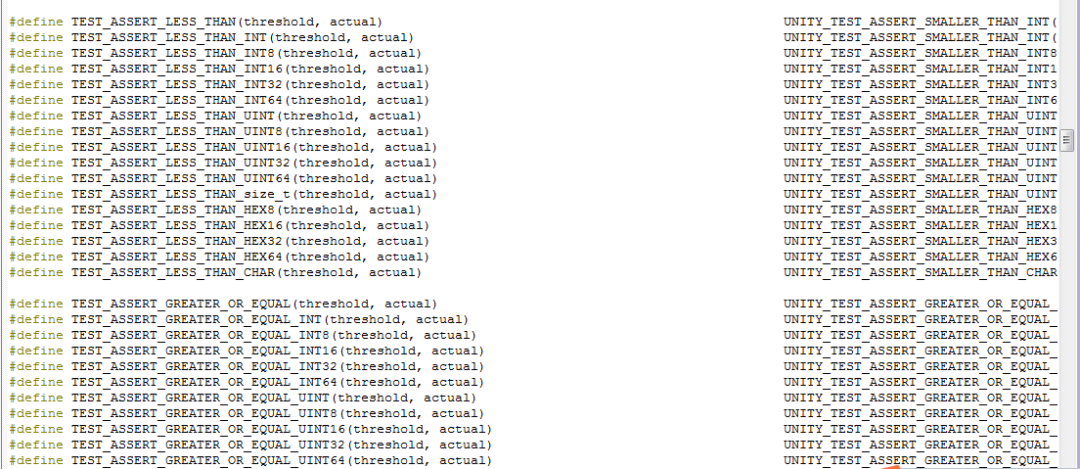

Unity requires implementing setup and teardown functions for test cases, both of which have no parameters and no return values. In the leap year judgment function test case, since no initialization or cleanup operations are needed, the two implemented functions are as follows:

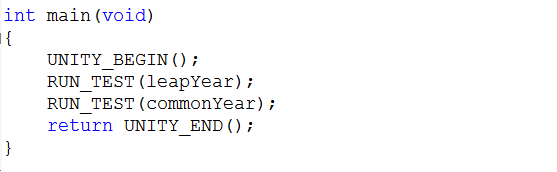

After writing the test cases, we can run them in the main function. In Unity, we use the macro RUN_TEST to run the test case, with the parameter being the name of the test case function. The main function is as follows:

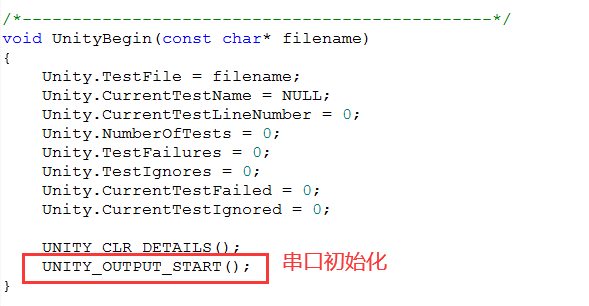

UNITY_BEGIN function is the UNITY initialization function, and our serial port initialization is also called here:

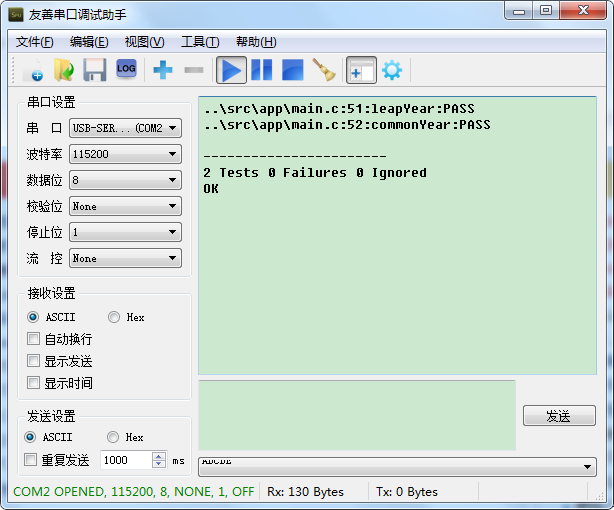

The RUN_TEST function is used to run our test cases. The UNITY_END function returns our test results. Finally, the output is as follows:

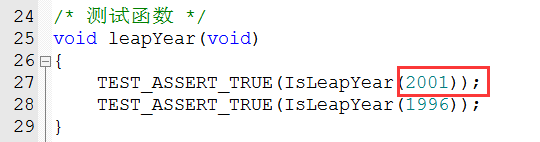

If we change the test function for leap years from 2000 to 2001:

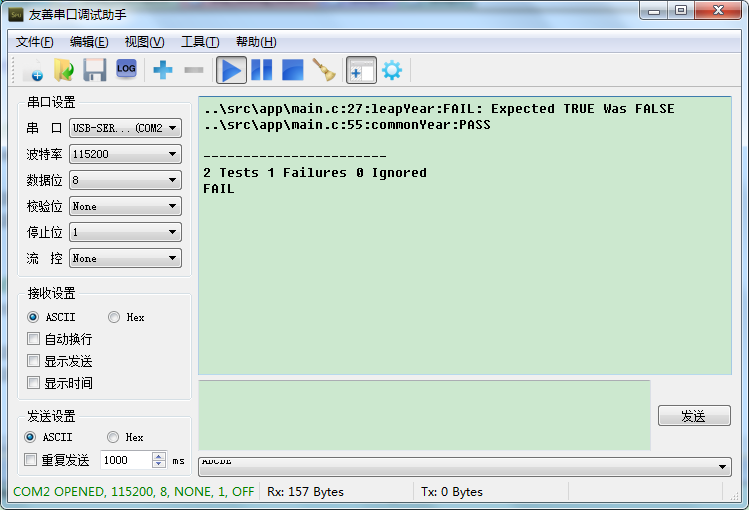

The output will change to:

From the results, we can see the lines of code related to the failed test cases. Before conducting such tests, we must understand the functionality of our functional code and its expected output to design test cases and conduct testing.

Related Book: “Test-Driven Development in Embedded C”

3. Defensive Programming

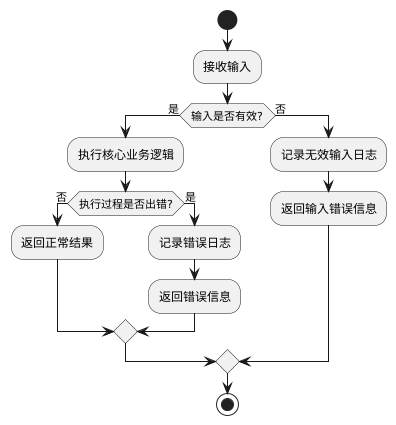

Defensive Programming is a programming paradigm aimed at ensuring that programs remain stable, degrade gracefully, or report errors clearly in the face of potential errors, exceptional inputs, or undefined behaviors, rather than crashing or causing uncontrollable consequences.

1. Core Principles

Trust no input: Assume all inputs (including function parameters, user inputs, external interface data, etc.) are untrustworthy and must be validated.
Minimize potential harm: Isolate risky code and limit scope to prevent local errors from spreading throughout the system.
Clear error feedback: Provide clear error messages or logs when errors occur to facilitate debugging.
Graceful degradation: When unable to handle errors, let the system enter a safe state.

2. Best Practices

(1) Parameter Validation

Check the legality of function entry parameters:

float safe_sqrt(float x) {
    if (x < 0) {
        return NAN;  // or trigger error handling
    }
    return sqrt(x);
}

(2) Assertions

Validate assumptions that “should not happen” to assist debugging:

#include <assert.h>

void memcpy_safe(void* dst, size_t dst_size, const void* src, size_t src_size) {
    assert(dst != NULL && src != NULL);  // pointers are not null
    assert(dst_size >= src_size);       // target space is sufficient
    // actual copy logic
}

(3) Error Codes and Error Handling

Functions convey error states through return values or output parameters:

enum error_code {
    SUCCESS = 0,
    ERR_INVALID_PARAM,
    ERR_OUT_OF_MEM
};

enum error_code init_device(struct device* dev) {
    if (dev == NULL) return ERR_INVALID_PARAM;
    if (allocate_memory(dev) != 0) return ERR_OUT_OF_MEM;
    return SUCCESS;
}

(4) Defending Against Undefined Behavior

Ensure integer division does not overflow:

int divide_safe(int a, int b) {
    if (b == 0) return INT_MAX;  // or trigger error
    if (a == INT_MIN && b == -1) return INT_MAX;  // handle -2147483648 / -1 overflow
    return a / b;
}

Prevent null pointer dereference:

void print_string(const char* str) {
    if (str == NULL) {
        printf("(null)\n");
        return;
    }
    printf("%s\n", str);
}

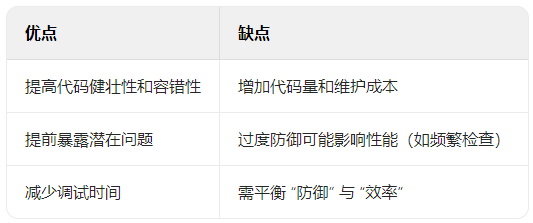

3. Advantages and Disadvantages of Defensive Testing

4. Agile Development

Agile Development emphasizes rapid iteration, customer feedback, and team collaboration. In embedded development, projects can be divided into multiple small iterative cycles, each with a runnable version.

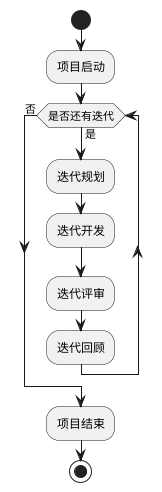

Iterative Development and Continuous Integration

Short Iterative Cycles: Divide the project into multiple short iterative cycles, each typically lasting 1-4 weeks. In each iteration, the team completes a certain number of user stories and delivers a runnable product increment. Short iterative cycles help quickly validate requirements and designs, allowing timely adjustments to project direction.
Continuous Integration: Establish an automated continuous integration environment that compiles, tests, and integrates automatically after each code submission. In embedded development, hardware integration testing is also required to ensure software and hardware compatibility. Continuous integration can promptly identify code conflicts and defects, improving code quality.
Iteration Review and Retrospective: At the end of each iteration, hold an iteration review meeting to present the iteration results to customers and stakeholders, collecting feedback. At the same time, hold an iteration retrospective meeting where team members summarize the lessons learned from the iteration and propose improvements to be applied in the next iteration.

5. Waterfall Model

The Waterfall Model is a traditional software development model that proceeds through stages of requirements analysis, design, coding, testing, and maintenance in a linear order, like a waterfall flowing down. Each stage must be completed before moving on to the next.

The Waterfall Model, as a classic software development method, has significant advantages in many fields, including embedded development.

1. Clear Stages and Order

The stages of the Waterfall Model are clearly defined, progressing linearly from requirements analysis, design, coding, testing to maintenance.

This clear stage division makes the project process easy to understand and manage, with each stage having clear inputs and outputs, facilitating project team members to clarify their responsibilities and tasks.

2. Emphasis on Documentation

This model places great importance on documentation writing and management, producing corresponding documents at each stage, such as requirement specifications, design documents, and test reports.

These documents are not only important outcomes of each project stage but also serve as important communication tools among project team members, providing strong support for project maintenance and upgrades.

3. Easy to Control and Manage

Due to the linear order and clear stage division of the Waterfall Model, project managers can easily monitor and control the project.

Each stage has clear milestones and deliverables, allowing managers to assess project progress and quality based on these milestones, promptly identifying issues and taking appropriate measures to adjust.

For example, after the coding phase, code reviews and unit tests can be conducted to assess code quality. If issues are found, feedback can be promptly provided to developers for modification.

This concludes this sharing. If you find the article helpful, please help share it, thank you!
