In the rapid development of electronic technology, chip packaging technology plays a crucial role. Today, we will explore two mainstream chip packaging technologies: SIP (System in Package) and SOC (System on Chip). These two technologies play a key role in the miniaturization, efficiency, and integration of electronic devices.

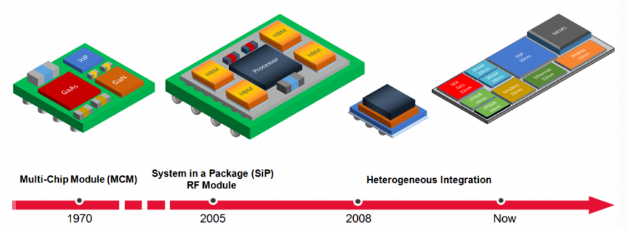

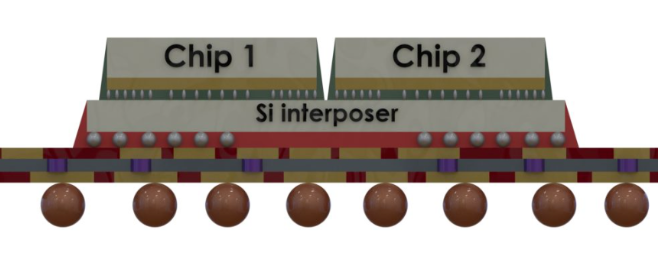

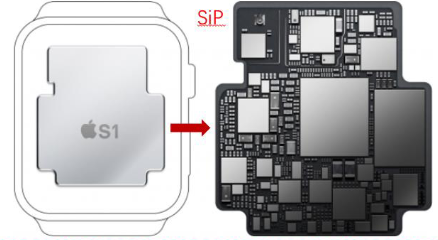

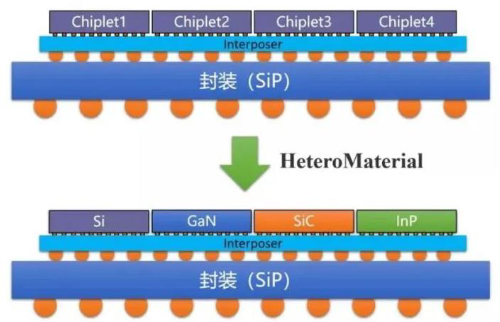

SIP technology integrates multiple active electronic components, passive devices, and MEMS or optical devices with different functions into a standard package, forming a system or subsystem with specific functions. This technology allows for the integration of multiple chips within a single package, significantly reducing package size and improving packaging efficiency. The advantages of SIP include design flexibility, short cycles, low costs, and compatibility with different technologies and materials. This technology is particularly suitable for products that require rapid iteration and cost control, such as wireless communication devices and automotive electronic systems.
On the other hand, SOC technology integrates all core components of a system, including processors, memory, communication modules, etc., onto a single chip. The advantages of this technology include high-density integration, high speed, and low energy consumption, making it suitable for high-performance products such as smartphones and image processing chips. However, SOC has a longer development cycle and relatively higher costs, and once the design is completed, it is difficult to make changes.

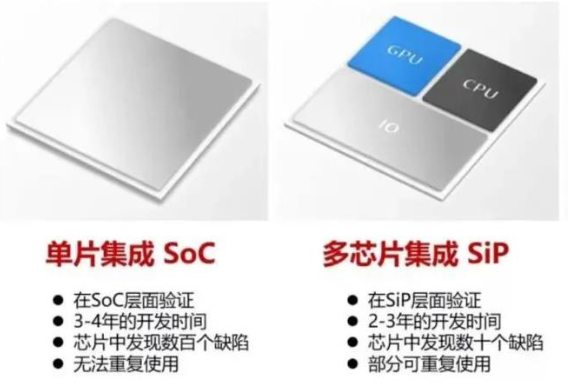

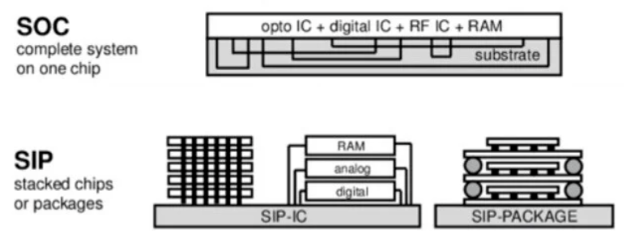

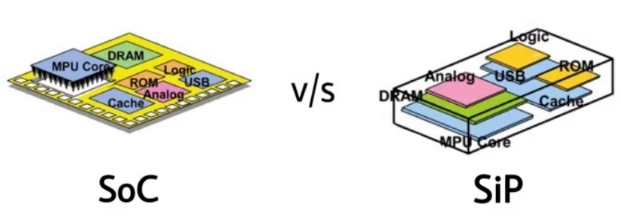

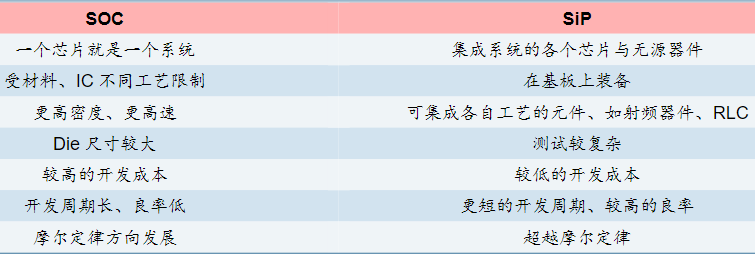

The main difference between SIP and SOC lies in their design perspectives and implementation methods. SIP starts from the packaging perspective, combining multiple functional chips through packaging technology, while SOC starts from the design perspective, integrating the required components into a single chip. SIP technology can overcome the limitations of SOC in process compatibility while providing higher integration and flexibility.

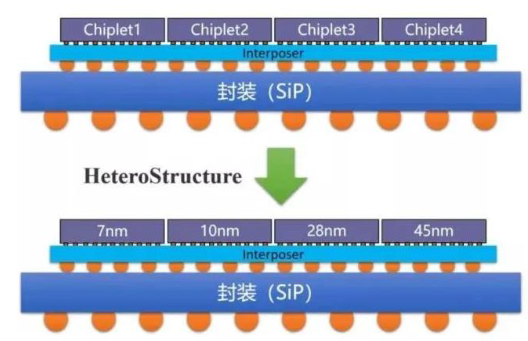

The advantage of SIP lies in its high packaging efficiency, allowing for significant reduction in package size by integrating multiple chips. This means we can achieve more functions within a smaller space, which is a huge advantage for electronic products pursuing thin and light designs. SIP technology can also shorten time to market, as it simplifies the design, verification, and debugging processes, which is crucial for products that need to respond quickly to market changes. Additionally, SIP has good compatibility, allowing it to integrate chips with different processes and materials, resulting in lower system costs and providing low-power, low-noise system-level connections, achieving high frequency bandwidth operations.
In terms of physical dimensions, SIP is also making continuous progress. The packaging thickness continues to decrease, and the most advanced technology has achieved ultra-thin packaging for five-layer stacked chips. This technological advancement has led to widespread applications of SIP in fields such as wireless communication, automotive electronics, and medical electronics.

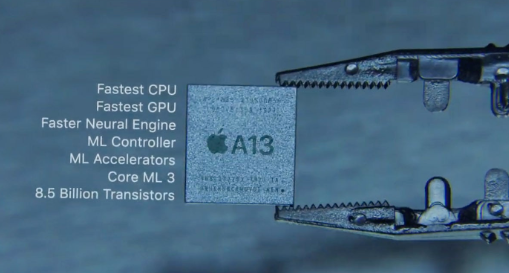

Meanwhile, the application of SOC is more concentrated in high-performance products. For example, smartphones require high-performance processors and image processing capabilities, which SOC can meet well. Additionally, with the development of AI technology, SOC is also integrating more AI processors and 5G communication modules, driving the further evolution of intelligent devices.
In practical applications, the choice between SIP and SOC depends on specific application requirements and cost-effectiveness considerations. If a product needs to be brought to market quickly and is cost-sensitive, SIP may be the better choice. For products that require high performance and high integration, SOC may be more suitable.In the field of wireless communication, the application of SIP is very widespread. With the promotion of 5G technology, the demand for high-performance, low-power communication modules is increasing. SIP technology can provide such solutions by integrating multiple chips to achieve a balance between high performance and low power consumption. In automotive electronics, with the development of automotive intelligence, the demand for highly integrated and reliable electronic systems is also on the rise. SIP technology plays an important role here as well.In the field of medical electronics, the application of SIP technology is also continuously expanding. With the development of medical devices towards portability and intelligence, the demand for miniaturized, high-performance electronic systems is also increasing. SIP technology can provide effective solutions here as well.In the fields of computing and military electronics, the applications of SIP and SOC are also very widespread. These fields have extremely high requirements for high performance and reliability of electronic systems. Both SIP and SOC technologies can find their place here.
SIP and SOC are two very important chip packaging technologies in modern electronic technology. Each has its advantages and applicable scenarios. With the advancement of technology, we can foresee that SIP and SOC will continue to drive the system integration technology of the electronic industry forward, providing more efficient, miniaturized, and cost-effective solutions for various applications. Whether it is wireless communication devices pursuing thin designs or smartphones requiring high-performance processing capabilities, SIP and SOC play indispensable roles in both.
