The chip development process generally includesfour stages: chip design, prototype production, testing and validation, and mass production. After completing the chip design, engineers need to obtain some chip prototypes to test and validate whether the newly developed chip meets the design requirements in terms of functionality and performance. If the prototypes pass the tests, mass production can proceed as planned; if there are design flaws in the prototypes, the chip design needs to be modified, and new prototypes must be produced for testing.

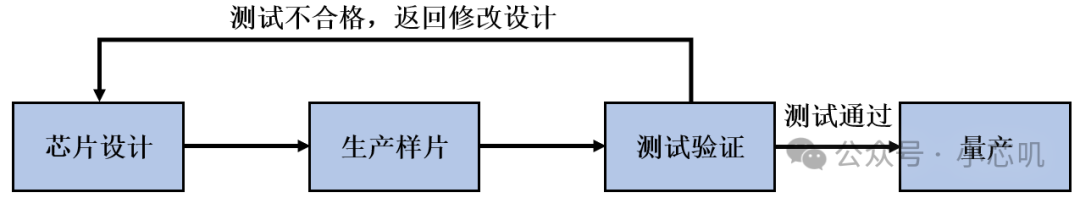

Chip Development Process
Full Mask and MPW are two different fabrication methods used in the chip development process.
Full Mask means using a complete set of masks, where all the masks are specifically used for producing the same chip.This fabrication method is very expensive, with costs around $5 million for a single run using 14nm technology and about $15 million for 7nm technology. Such high production costs are unaffordable for small and medium-sized chip development companies, universities, and research institutions.Full Mask is only chosen when there is complete confidence in the design’s success and when preparing for large-scale production.
Therefore, during the prototype production stage, chip design companies can use MPW to complete prototype production in the most cost-effective way.MPW stands for Multi-Project Wafer, which allows multiple chip design projects with the same manufacturing process to be produced on the same wafer.After production, each chip design project can obtain dozens to hundreds of chip prototypes, which R&D engineers use to test and validate the correctness of the chip design. The fabrication costs of MPW are shared among all participating companies based on the chip area, resulting in very low fabrication costs.

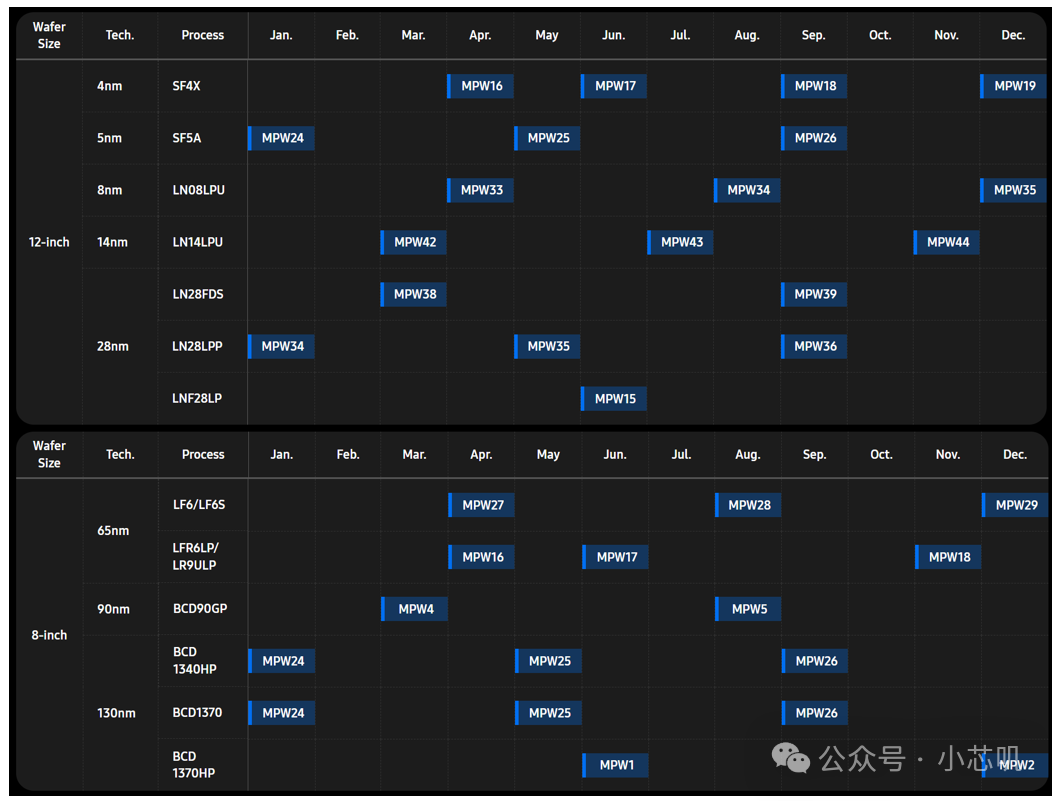

Samsung’s 2025 MPW Schedule
MPW is usually organized by foundries or third-party service providers,and the MPW time points for various processes are predetermined throughout the year, referred to as Shuttle, which means they are scheduled to start at specific times, so participating in MPW is often referred to as catching a certain shuttle. This puts significant pressure on the design and development of chips, and when foundry capacity is tight, MPW sessions may be canceled, leading to delays in product launches.
MPW Fabrication Services

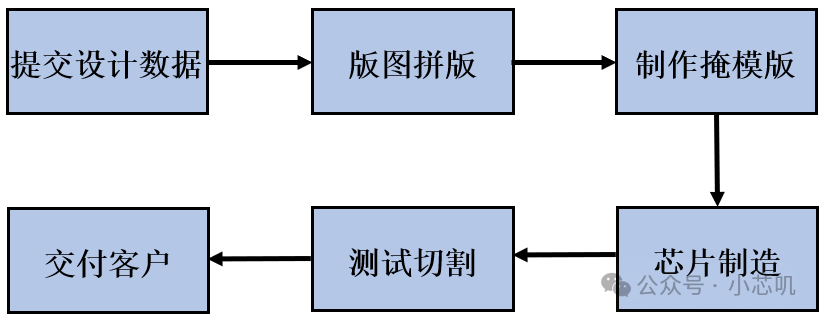

MPW Process
-
Submit Design Data: After confirming participation in a specific MPW, customers must submit layout files, netlists, test vectors, and other data before the deadline.
-
Layout Assembly: The foundry or third-party service provider will perform DRC and LVS checks, then arrange and combine the layouts of these projects according to certain rules to generate unified layout data.
-
Mask Production: The foundry will produce masks based on the assembled layouts.
-
Chip Manufacturing: The foundry will produce chips for multiple projects simultaneously according to the specified process flow.
-
Testing and Dicing: The completed wafers undergo WAT and CP testing before being diced to separate chips from different projects. Customers can choose third-party service providers for packaging and testing services or can commission other organizations themselves.
-
Delivery to Customer: The tested and qualified chips are delivered to the customer, who performs functional validation and optimizes the design based on the structure.
MPW and Full Mask complement each other, covering the entire R&D process from design to mass production of chips. Without MPW fabrication services, many small and medium-sized chip design companies would be unable to conduct chip design and development, thusthe important role of MPW is to significantly reduce chip R&D costs. When chips enter large-scale production,Full Mask fabrication can reduce long-term production costs, accelerate commercialization, and ensure mass production performance, all of which directly determine the market competitiveness of the product.
