Introduction
In today’s industrial automation field, the demand for high performance and reliability is growing. To meet these requirements, ArtInChip has launched the brand new D133CBS chip, designed as the main controller for industrial Human-Machine Interface (HMI) products with its outstanding performance and powerful features.
ArtInChip
D133CBS Core Performance
Increased Clock Speed:
The D133CBS chip features a clock speed of up to 480MHz, ensuring that even the most complex tasks can be processed quickly, meeting the stringent real-time requirements in industrial automation environments.
Large Capacity Memory:
Equipped with 1MB zero-latency SRAM and 8MB high-bandwidth PSRAM, this large memory provides ample space for running complex programs while facilitating instant processing of large data volumes, undoubtedly enhancing its capability as a main controller.
Operating System and Communication
Real-Time Operating System:
The built-in RTOS system or Bare-metal provides a reliable operating platform for HMI products, ensuring system stability and efficiency, which is an indispensable feature for demanding industrial control environments.
Rich Communication Interfaces:
Integrated with a built-in Ethernet controller and 8 serial ports, the D133CBS chip offers high flexibility and adaptability in multi-protocol communication and device interconnection.
Enhanced Functionality and Stability
Integrated Touchscreen Driver:
The built-in 4-wire resistive touchscreen driver provides users with convenient interaction while reducing peripheral BOM costs.
Electrostatic Protection Capability:
With ESD HBM protection of up to 8KV, this ensures that the chip can withstand various electromagnetic interferences in harsh industrial environments, enhancing system reliability.
High Precision EPWM Control:
Supports high precision Electronic Pulse Width Modulation (EPWM) control, ensuring that the needs for complex motor control and fine process control are met, making the D133CBS more precise in control applications.
Design and Cost
Simplified PCB Design:
The D133CBS requires only a two-layer PCB for layout, simplifying hardware design and reducing production costs.
Cost-Effectiveness:
By integrating multiple functions and high performance, this chip provides a highly cost-effective solution, making the D133CBS an ideal choice for manufacturers seeking high-performance HMI controllers at a reasonable price.

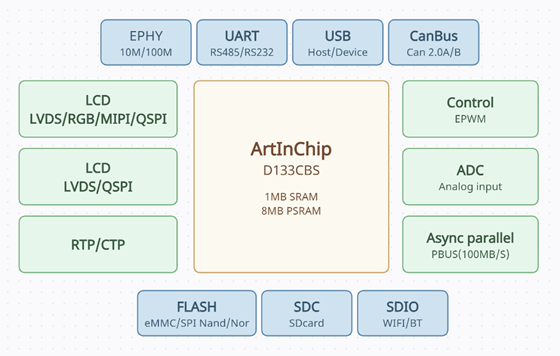

Industrial HMI Application Block Diagram
The ArtInChip D133CBS chip, with its high processing power, large memory, robust RTT real-time system, diverse communication interfaces, advanced EPWM control, and excellent electrostatic protection capability, has become the ideal main control chip for industrial HMI products. The simplified PCB design further enhances its competitiveness in the market, providing users with efficient, stable, and cost-effective product options.
