Environment: Windows 10 x64
pjsip Version: 2.14.1
microsip Version: 3.19.30
Previously organized content related to pjsip and DTMF:
Analysis of pjsip Source Code: Audio Encoding
Analysis of pjsip Source Code: Volume Adjustment
Analysis of pjsip Source Code: Call Hold
Analysis of pjsip Source Code: DTMF Sending
pjsip Compilation, Instructions, and Example Usage with VS2022Using pjsip to Wrap a Custom Softphone SDKParsing WAV Files to Obtain DTMF Values with Python3
The pjsip library includes HTTP client functionalities. Today, I will organize notes related to HTTP requests, hoping they will be helpful to you.
1. HTTP Module Description
Module File Path: pjlib-util\src\pjlib-util\http_client.c
1. Usage Limitations

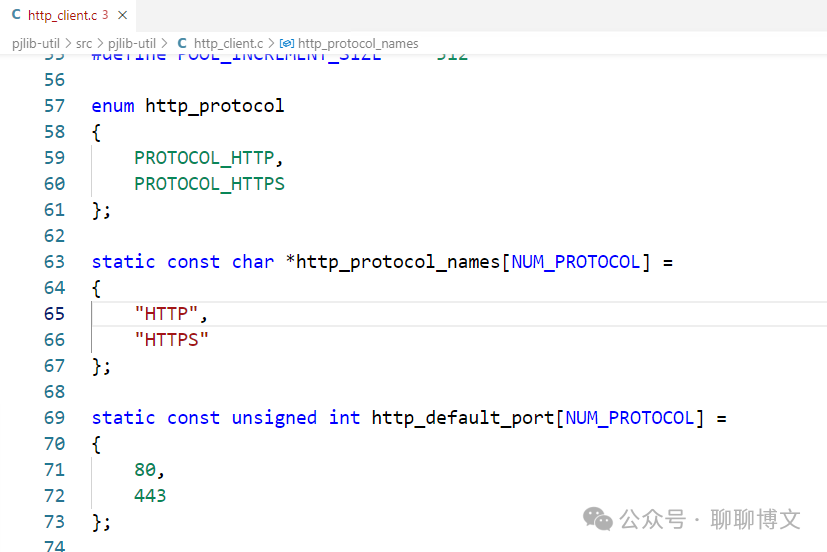

1) Using HTTPS formatted URLs will result in errors.
Although the module supports HTTPS functionality:
Accessing HTTPS interfaces will report errors (possibly due to issues with the compiled version, etc.):

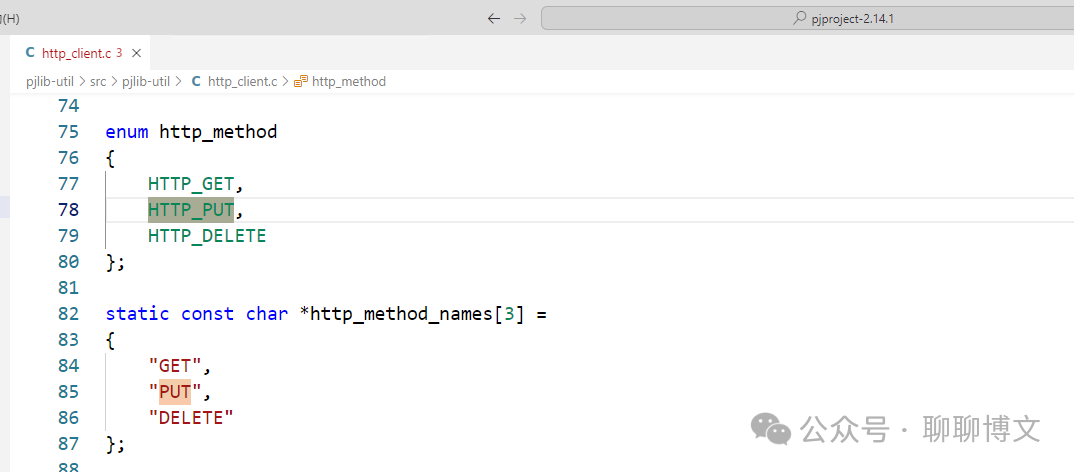

2) Only supports GET, PUT, and DELETE methods
2. Data Structure Description

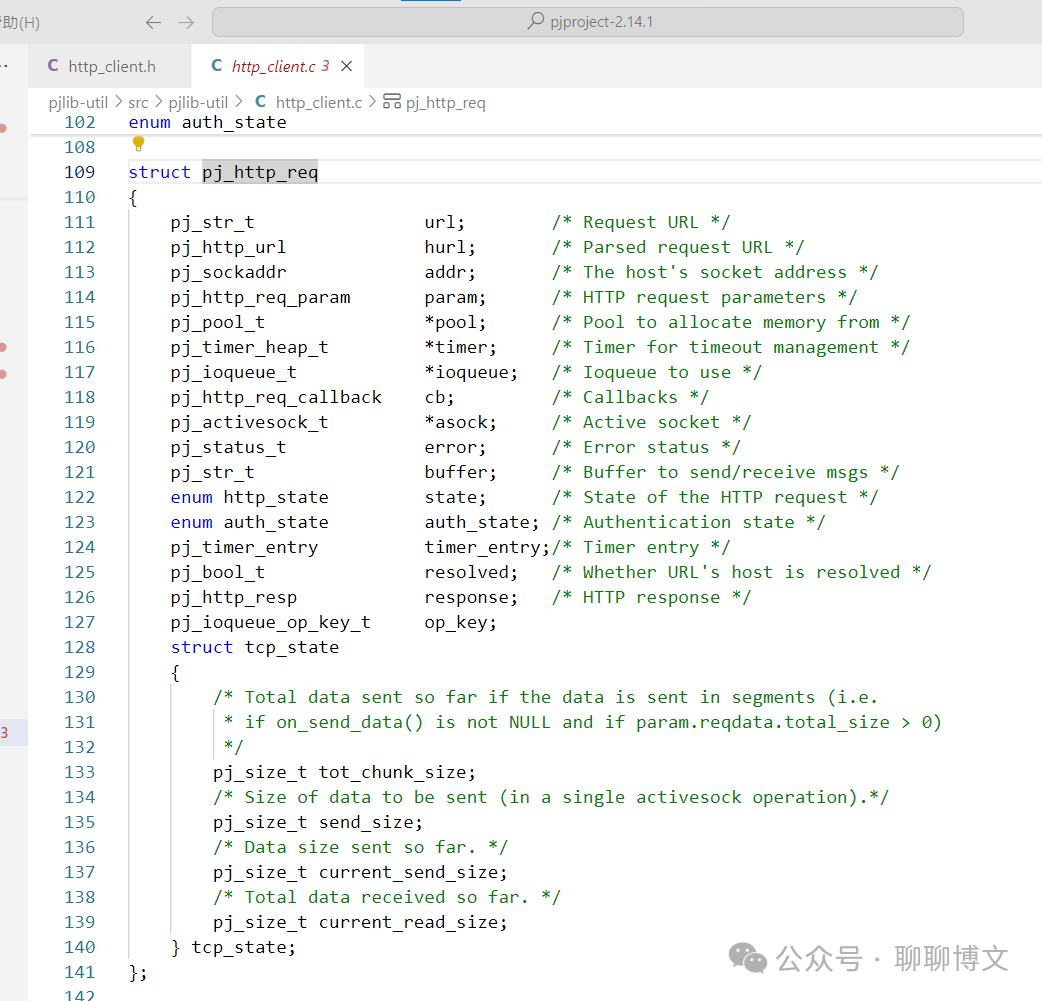

1) pj_http_req Structure
This is the main data structure for HTTP requests, containing the URL, request parameters, callback functions, etc.
Defined as follows:
struct pj_http_req{ pj_str_t url; /* Request URL */ pj_http_url hurl; /* Parsed request URL */ pj_sockaddr addr; /* The host's socket address */ pj_http_req_param param; /* HTTP request parameters */ pj_pool_t *pool; /* Pool to allocate memory from */ pj_timer_heap_t *timer; /* Timer for timeout management */ pj_ioqueue_t *ioqueue; /* Ioqueue to use */ pj_http_req_callback cb; /* Callbacks */ pj_activesock_t *asock; /* Active socket */ pj_status_t error; /* Error status */ pj_str_t buffer; /* Buffer to send/receive msgs */ enum http_state state; /* State of the HTTP request */ enum auth_state auth_state; /* Authentication state */ pj_timer_entry timer_entry;/* Timer entry */ pj_bool_t resolved; /* Whether URL's host is resolved */ pj_http_resp response; /* HTTP response */ pj_ioqueue_op_key_t op_key; struct tcp_state { /* Total data sent so far if the data is sent in segments (i.e. * if on_send_data() is not NULL and if param.reqdata.total_size > 0) */ pj_size_t tot_chunk_size; /* Size of data to be sent (in a single activesock operation).*/ pj_size_t send_size; /* Data size sent so far. */ pj_size_t current_send_size; /* Total data received so far. */ pj_size_t current_read_size; } tcp_state;};

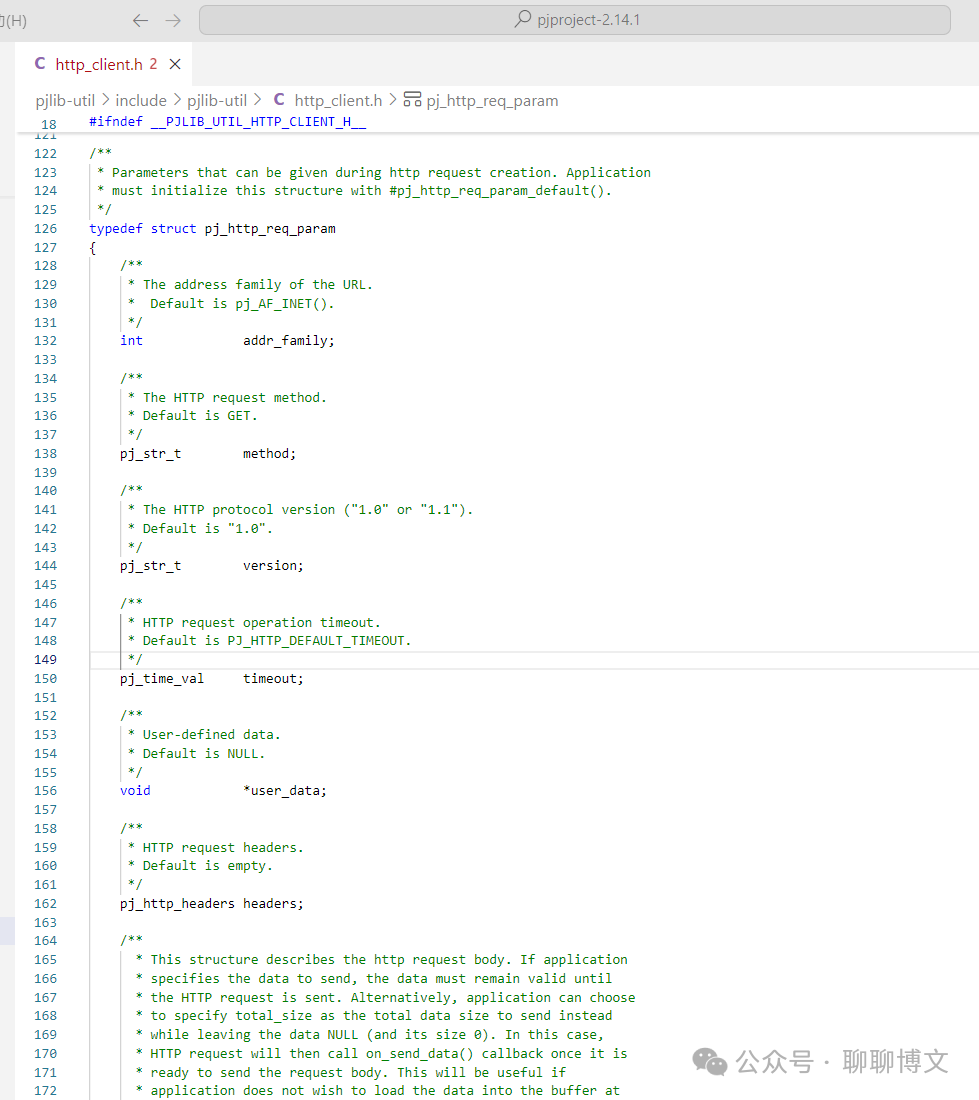

2) pj_http_req_param Structure
Used to define HTTP request parameters, such as request method, HTTP version, HTTP headers, request data, etc.
Defined as follows:
/** * Parameters that can be given during http request creation. Application * must initialize this structure with #pj_http_req_param_default(). */typedef struct pj_http_req_param { /** * The address family of the URL. * Default is pj_AF_INET(). */ int addr_family; /** * The HTTP request method. * Default is GET. */ pj_str_t method; /** * The HTTP protocol version ("1.0" or "1.1"). * Default is "1.0". */ pj_str_t version; /** * HTTP request operation timeout. * Default is PJ_HTTP_DEFAULT_TIMEOUT. */ pj_time_val timeout; /** * User-defined data. * Default is NULL. */ void *user_data; /** * HTTP request headers. * Default is empty. */ pj_http_headers headers; /** * This structure describes the http request body. If application * specifies the data to send, the data must remain valid until * the HTTP request is sent. Alternatively, application can choose * to specify total_size as the total data size to send instead * while leaving the data NULL (and its size 0). In this case, * HTTP request will then call on_send_data() callback once it is * ready to send the request body. This will be useful if * application does not wish to load the data into the buffer at * once. * * Default is empty. */ struct pj_http_reqdata { void *data; /**< Request body data */ pj_size_t size; /**< Request body size */ pj_size_t total_size; /**< If total_size > 0, data */ /**< will be provided later */ } reqdata; /**< The request body */ /** * Authentication credential needed to respond to 401/407 response. */ pj_http_auth_cred auth_cred; /** * Optional source port range to use when binding the socket. * This can be used if the source port needs to be within a certain range * for instance due to strict firewall settings. The port used will be * randomized within the range. * * Note that if authentication is configured, the authentication response * will be a new transaction * * Default is 0 (The OS will select the source port automatically) */ pj_uint16_t source_port_range_start; /** * Optional source port range to use when binding. * The size of the port restriction range * * Default is 0 (The OS will select the source port automatically)) */ pj_uint16_t source_port_range_size; /** * Max number of retries if binding to a port fails. * Note that this does not address the scenario where a request times out * or errors. This needs to be taken care of by the on_complete callback. * * Default is 3 */ pj_uint16_t max_retries;} pj_http_req_param;

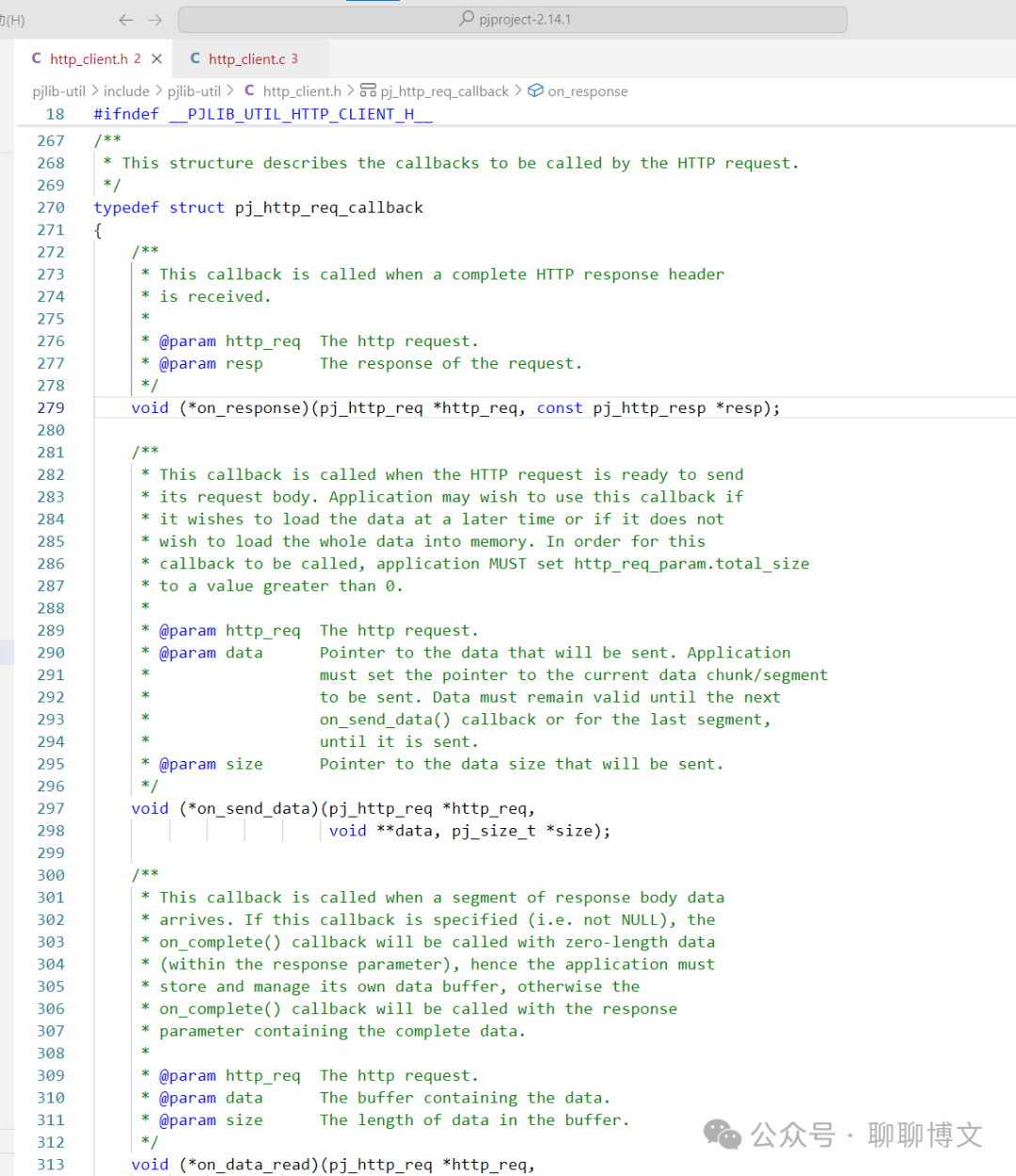

3) pj_http_req_callback Structure
Used to manage callback functions.
Defined as follows:
/** * This structure describes the callbacks to be called by the HTTP request. */typedef struct pj_http_req_callback{ /** * This callback is called when a complete HTTP response header * is received. * * @param http_req The http request. * @param resp The response of the request. */ void (*on_response)(pj_http_req *http_req, const pj_http_resp *resp); /** * This callback is called when the HTTP request is ready to send * its request body. Application may wish to use this callback if * it wishes to load the data at a later time or if it does not * wish to load the whole data into memory. In order for this * callback to be called, application MUST set http_req_param.total_size * to a value greater than 0. * * @param http_req The http request. * @param data Pointer to the data that will be sent. Application * must set the pointer to the current data chunk/segment * to be sent. Data must remain valid until the next * on_send_data() callback or for the last segment, * until it is sent. * @param size Pointer to the data size that will be sent. */ void (*on_send_data)(pj_http_req *http_req, void **data, pj_size_t *size); /** * This callback is called when a segment of response body data * arrives. If this callback is specified (i.e. not NULL), the * on_complete() callback will be called with zero-length data * (within the response parameter), hence the application must * store and manage its own data buffer, otherwise the * on_complete() callback will be called with the response * parameter containing the complete data. * * @param http_req The http request. * @param data The buffer containing the data. * @param size The length of data in the buffer. */ void (*on_data_read)(pj_http_req *http_req, void *data, pj_size_t size); /** * This callback is called when the HTTP request is completed. * If the callback on_data_read() is specified, the variable * response->data will be set to NULL, otherwise it will * contain the complete data. Response data is allocated from * pj_http_req's internal memory pool so the data remain valid * as long as pj_http_req is not destroyed and application does * not start a new request. * * If no longer required, application may choose to destroy * pj_http_req immediately by calling #pj_http_req_destroy() inside * the callback. * * @param http_req The http request. * @param status The status of the request operation. PJ_SUCCESS * if the operation completed successfully * (connection-wise). To check the server's * status-code response to the HTTP request, * application should check resp->status_code instead. * @param resp The response of the corresponding request. If * the status argument is non-PJ_SUCCESS, this * argument will be set to NULL. */ void (*on_complete)(pj_http_req *http_req, pj_status_t status, const pj_http_resp *resp);} pj_http_req_callback;
2. Usage Example
1. HTTP Client Example
Here is an example using the GET and PUT methods.
The content of the httpClient.cpp file is as follows:
#include <pjlib.h>#include <pjlib-util.h>#include <pjsua-lib/pjsua.h>#include <pj/log.h>#define THIS_FILE "httpClient.cpp"static pj_timer_heap_t* timer_heap;static pj_ioqueue_t* ioqueue;static pj_pool_t* pool;static pj_size_t send_size = 0;static int counter = 0;static pj_pool_factory* mem;static pj_caching_pool caching_pool;static void on_data_read(pj_http_req* hreq, void* data, pj_size_t size){ PJ_LOG(3, (THIS_FILE, "Data received: %ld bytes", size)); if (size > 0) { printf("%.*s\n", (int)size, (char*)data); }}static void on_complete(pj_http_req* hreq, pj_status_t status, const pj_http_resp* resp){ PJ_LOG(3, (THIS_FILE, "on http complete !")); if (status == PJ_ECANCELLED) { PJ_LOG(5, (THIS_FILE, "Request cancelled")); return; } else if (status == PJ_ETIMEDOUT) { PJ_LOG(5, (THIS_FILE, "Request timed out!")); return; } else if (status != PJ_SUCCESS) { PJ_LOG(3, (THIS_FILE, "Error %d", status)); return; } PJ_LOG(5, (THIS_FILE, "Data completed: %ld bytes", resp->size)); if (resp->size > 0 && resp->data) { printf("%.*s", (int)resp->size, (char*)resp->data); }}static void on_response(pj_http_req* hreq, const pj_http_resp* resp){ PJ_LOG(3, (THIS_FILE, "http response , code : %d! , data : %s", resp->status_code, resp->data ));}int http_client_get_test1(const char* url){ pj_http_req* http_req; pj_str_t dst_url = pj_str((char*)url); pj_http_req_callback hcb; pj_http_req_param param; PJ_LOG(3, (THIS_FILE, "http_client_test1 begin , url : %s", url)); pj_bzero(&hcb, sizeof(hcb)); hcb.on_complete = &on_complete; hcb.on_data_read = &on_data_read; hcb.on_response = &on_response; pj_http_req_param_default(param); pj_caching_pool_init(&caching_pool, NULL, 0); mem = &caching_pool.factory; pool = pj_pool_create(mem, NULL, 8192, 4096, NULL); if (pj_timer_heap_create(pool, 16, &timer_heap)) { PJ_LOG(3, (THIS_FILE, "create timer fail")); return -1; } PJ_LOG(3, (THIS_FILE, "create timer ok")); if (pj_ioqueue_create(pool, 16, &ioqueue)) { PJ_LOG(3, (THIS_FILE, "create ioqueue fail!")); return -1; } if (pj_http_req_create(pool, &dst_url, timer_heap, ioqueue, param, &hcb, &http_req)) { PJ_LOG(3, (THIS_FILE, "create http req fail!")); return -1; } if (pj_http_req_start(http_req)) { PJ_LOG(3, (THIS_FILE, "http start fail!")); return -1; } PJ_LOG(3, (THIS_FILE, "http start success!")); while (pj_http_req_is_running(http_req)) { pj_time_val delay = { 0, 50 }; pj_ioqueue_poll(ioqueue, &delay); pj_timer_heap_poll(timer_heap, NULL); } pj_http_req_destroy(http_req); pj_ioqueue_destroy(ioqueue); pj_timer_heap_destroy(timer_heap); pj_pool_release(pool); PJ_LOG(3, (THIS_FILE, "http_client_test1 end!\n")); return 0;}int http_client_put_test1(const char* url, const char* msg){ pj_http_req* http_req = NULL; pj_str_t dst_url = pj_str((char*)url); pj_http_req_callback hcb; pj_http_req_param param; char* data = NULL; int length = 0; PJ_LOG(3, (THIS_FILE, "http_client_test1 begin , url : %s", url)); if (msg) length = strlen(msg);// +1; pj_bzero(&hcb, sizeof(hcb)); hcb.on_complete = &on_complete; hcb.on_data_read = &on_data_read; hcb.on_response = &on_response; pj_http_req_param_default(param); pj_caching_pool_init(&caching_pool, NULL, 0); mem = &caching_pool.factory; pool = pj_pool_create(mem, NULL, 8192, 4096, NULL); if (pj_timer_heap_create(pool, 16, &timer_heap)) { PJ_LOG(3, (THIS_FILE, "create timer fail")); return -1; } PJ_LOG(3, (THIS_FILE, "create timer ok")); if (pj_ioqueue_create(pool, 16, &ioqueue)) { PJ_LOG(3, (THIS_FILE, "create ioqueue fail!")); return -1; } pj_strset2(param.method, (char*)"PUT"); data = (char*)pj_pool_alloc(pool, length); memset(data, 0, length); memcpy(data, msg, length); param.reqdata.data = data; param.reqdata.size = length; if (pj_http_req_create(pool, &dst_url, timer_heap, ioqueue, param, &hcb, &http_req)) { PJ_LOG(3, (THIS_FILE, "create http req fail!")); return -1; } if (pj_http_req_start(http_req)) { PJ_LOG(3, (THIS_FILE, "http start fail!")); return -1; } PJ_LOG(3, (THIS_FILE, "http start success!")); while (pj_http_req_is_running(http_req)) { pj_time_val delay = { 0, 50 }; pj_ioqueue_poll(ioqueue, &delay); pj_timer_heap_poll(timer_heap, NULL); } pj_http_req_destroy(http_req); pj_ioqueue_destroy(ioqueue); pj_timer_heap_destroy(timer_heap); pj_pool_release(pool); PJ_LOG(3, (THIS_FILE, "http_client_test1 end!\n")); return 0;}The content of httpClient.h is as follows:
#pragma onceint http_client_get_test1(const char* url);int http_client_put_test1(const char* url, const char* msg);Example of calling:
int set_action_url(int act_type, const char* url){ http_client_get_test1(url); http_client_put_test1(url, "test 1233333"); return 0;}2. HTTP Server Example
A simple HTTP server can be implemented using a Python script.
The example code is as follows (httpServer1.py):
#! /usr/bin/env python3#-*- coding:utf-8 -*- import tornado.ioloopimport tornado.webimport tornado.httpserverimport jsonsettings = { "debug" : False , }class MainHandler(tornado.web.RequestHandler): def get(self): print("get") print(self.request.arguments) #query = self.get_query_argument("query") #print("query : %s" % query) self.set_header('content-type', 'application/json') #self.write(json.dumps({"result" : "test message"})) self.finish(json.dumps({"result" : "get message"})) def put(self): print("put") print(self.request.body) self.finish(json.dumps({"result" : "put message"})) def post(self): print("post") print(self.request.body) self.finish(json.dumps({"result" : "post message"}))if __name__ == "__main__": port = 8093 print("listen on port %d"%port) application = tornado.web.Application([ (r"/.*", MainHandler), ],**settings) application.listen(port) #http_server = tornado.httpserver.HTTPServer(application) #http_server.bind(port,"0.0.0.0") #http_server.start(num_processes=0) tornado.ioloop.IOLoop.instance().start()3. Running Effects

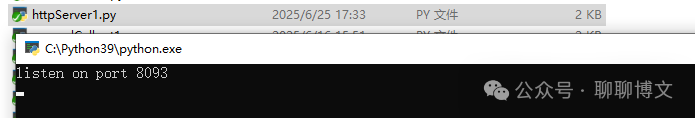

1. Start the Python script to simulate the HTTP server;
2. Use the client to access the HTTP server
URL: http://127.0.0.1:8093/ringAction

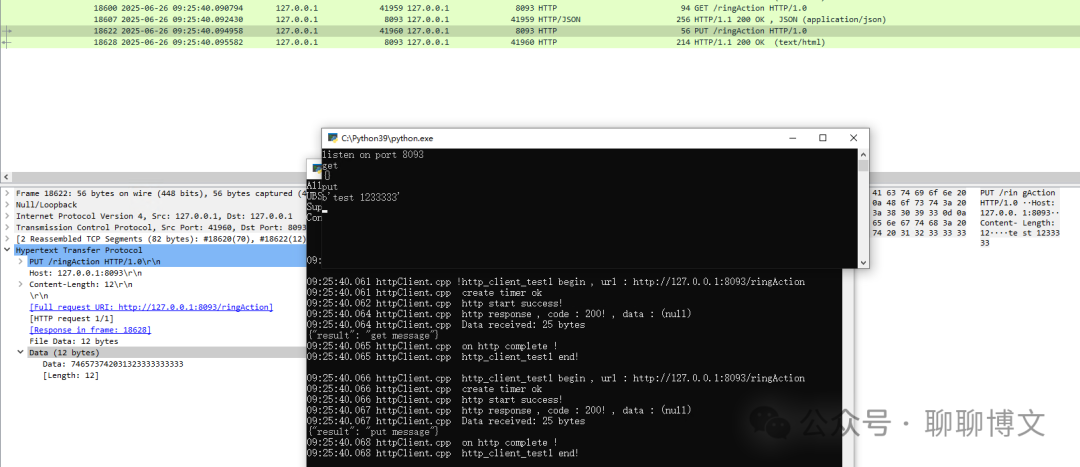

The running effect is as follows:
That’s all for now, don’t forget to like it!
