ACROVIEW, a leader in chip programming, announced the expansion of its compatible chip model list alongside the release of its new programming software. The newly added model includes ConvenientPower’s wireless charging transmitter chip CPS8200, which is now supported by the ACROVIEW universal programming platform AP8000.
The CPS8200 is an efficient, Qi-compliant magnetic coupling inductive wireless power transmission chip with a wide voltage range: input voltage (VIN) from 3.9V to 24V (maximum 26V), and power stage voltage from 2V to 45V (maximum 50V). It supports secure bidirectional communication with wireless power receivers (using ASK/FSK methods), equipped with flexible communication interfaces, and reliable over-voltage, over-current, and over-temperature protection mechanisms.
This chip integrates a buck converter, low-dropout linear regulator, DC-DC controller, full-bridge driver, communication modulator/demodulator, foreign object detection (FOD) functionality, a multi-channel 12-bit ADC (sampling rate up to 4 million times per second), and on-chip MTP (multi-time programmable) memory, achieving high software flexibility while maintaining very low standby power consumption.

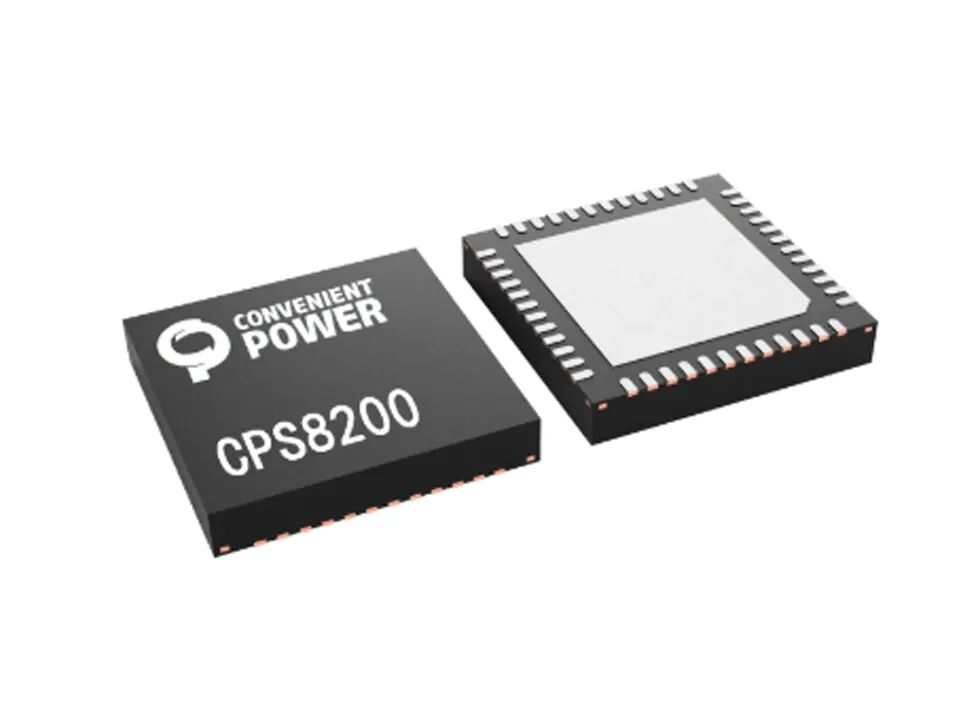

The CPS8200 is packaged in a lead-free, compact 6×6mm QFN package with 48 pins. The operating temperature range of this product is -40°C to 105°C.
Features
• WPC Qi 2.0 compatible wireless charging Tx
• Integrated MTP core, ROM, SRAM
• Supports MTP updates via CC or DP/DN lines
• Integrated 2x I2C interfaces, 2x UART interfaces
• Supports multiple fast charging protocols: QC2.0/QC3.0/PD3.0/SCP/AFC
• Integrated 3 pairs of half-bridge drivers
• Integrated Buck or Boost controller
• Supports dual Rx charging applications
• Integrated external crystal driver
• Low power mode
• Over-voltage/current/temperature protection
• Compliant with RoHS standards, halogen-free, lead-free
Applications
• Vertical wireless chargers
• Smartphones
• MP3 players
• Bluetooth devices
• Tablets
• Accessories

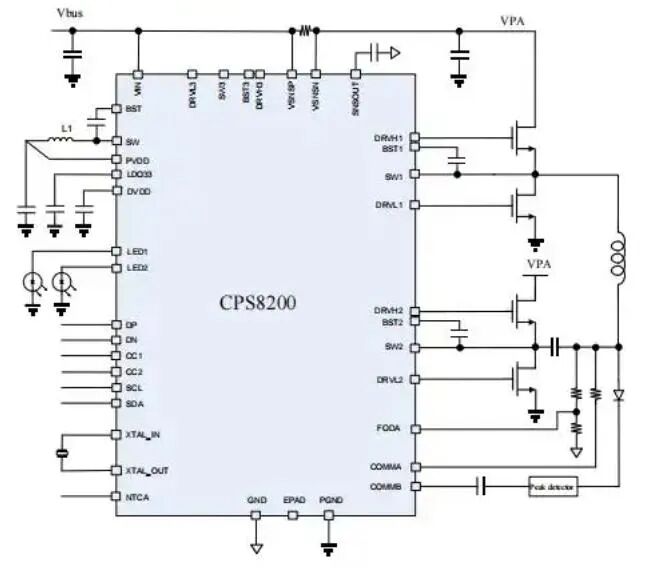

Internal Block Diagram
With a strong technical foundation, ACROVIEW’s self-developed AP8000 universal programmer is regarded as a benchmark-level programming solution in the industry. This device supports flexible one-to-one and one-to-eight configurations, providing both online and offline working modes, and has developed dedicated programming solutions for eMMC and UFS storage chips, fully meeting the bare chip offline programming and on-board programming needs of ConvenientPower’s entire series of chips. The AP8000 consists of three core modules: host, baseboard, and adapter, and this modular design grants it excellent compatibility and expandability. As a universal programming platform, the AP8000 can adapt to various programmable chips on the market and, due to its stable and efficient performance, has become the core component of ACROVIEW’s automated IPS5800S programming system, efficiently handling large-scale chip programming tasks to meet mass production needs.
The AP8000 host features flexible connectivity options, equipped with USB and NET interfaces, allowing for easy networking of multiple programmers. Through the networking function, users can easily achieve synchronized control of multiple programmers, efficiently conducting parallel programming operations. In terms of safety, the host is equipped with an intelligent safety protection circuit that can monitor the chip placement status and circuit connection in real-time. If it detects abnormal conditions such as chip reverse insertion or short circuits, it will immediately trigger a power-off protection mechanism, fully safeguarding the safe operation of the chip and programmer. The host is equipped with a high-speed FPGA chip, significantly enhancing data transmission and processing efficiency, ensuring a smooth and efficient programming process. To enhance user convenience, the back of the host is equipped with an SD card slot, allowing users to store project files generated on the PC to the SD card and insert it into the slot. They can then complete file selection and loading for programming operations through the physical buttons on the programmer, achieving independent operation without a PC. This design not only reduces dependence on computer hardware configurations but also simplifies the setup process of the working environment, significantly enhancing operational flexibility.
In terms of expandability and compatibility, the AP8000 adopts a modular design of baseboard and adapter board, effectively expanding the functional boundaries of the host. Currently, this device has achieved support for products from all major semiconductor manufacturers, covering well-known brands such as HOLTER, Fibocom, BOYAMICRO, NOVATEK, and Megawin. It supports a wide range of device types, including NAND, NOR, MCU, CPLD, FPGA, EMMC, etc., and is fully compatible with various industry-standard file formats such as Intel Hex, Motorola S, Binary, and POF, providing users with a one-stop, all-scenario chip programming solution.
Company Introduction
About ConvenientPower: ConvenientPower was established in 2016 and is a rapidly growing high-performance analog and mixed-signal integrated circuit chip design company, quickly laying out a full range of products from 220V power to battery: AC/DC, fast charging protocol chips, cable ICs, USB port protection ICs, wireless charging chips, switch charging chips, charge pumps, and related power management chips.
About ACROVIEW: ACROVIEW is a national-level specialized and innovative “little giant” enterprise engaged in the research, development, production, and sales of semiconductor chip testing and programming equipment. The company is committed to empowering the entire industry chain customers, including Fabless, IDM, OSAT, wafer fabs, and end-device companies, through innovative semiconductor testing technologies and solutions. ACROVIEW’s pioneering fully automated aging testing ABI (Auto Burn-In) system greatly enhances the aging testing efficiency of customer chips and reduces the Per DUT testing cost. Additionally, it provides customers with equipment products and solutions for all stages from PSV, CP, FT, BI, SLT, to programming. We perfectly integrate the leading advantages of product technology, system-level expertise, and a globally laid-out R&D and sales service network to create value for customers to gain a competitive edge in the market.
