A Comprehensive Framework for Multi-Platform Testing

Background

As we all know, there are many automation testing tools available in the market. For web automation, we have Selenium, Robot Framework, Playwright, etc. For API automation testing, tools like HttpRunner, Postman, and JMeter are popular. Performance testing can be done using JMeter, LoadRunner, Locust, nGrinder, etc., while mobile testing can be handled by Appium, Airtest, and others. But is there a tool that supports multi-platform testing? Certainly, Airtest supports mobile and web testing, but it does not support API testing (although scripts can be written to achieve this). Robot Framework supports web, mobile, and API testing but does not support performance testing. Additionally, similar testing tools each have their own characteristics. For example, Airtest supports image recognition for controls, Robot Framework can be seen as a high-level wrapper for Selenium and Appium, reducing the cost of code writing. HttpRunner allows API test cases to be completed through configuration, lowering the barrier for script writing, and can directly convert API test cases into performance test cases using Locust. Is it possible to integrate all these tools into a single framework? Based on this idea, Airobots was born.

Introduction

The name Airobots comes from the combination of Airtest and Robot Framework. Naturally, the framework is an integration of Airtest and Robot Framework, and it can also be understood as an extension of the web testing plugin Airtest-Selenium. To also support API testing and performance testing, HttpRunner is a good choice, so this tool has also been integrated. Thus, Airobots has the following capabilities:

1. Supports mobile testing

2. Supports web testing

3. Supports desktop application testing

4. Supports API testing

5. Supports performance testing

6. Control recognition supports XPath (and other traditional methods) and image recognition

7. Test case execution is based on pytest, allowing customization of test case execution order and data-driven generation of test cases

8. Test reports based on Allure, high-end and elegant

Installation

1. Install Python Runtime Environment

The installation process is brief; it is recommended to install Python 3.8 or higher.

2. Install Airobots

GitHub address: https://github.com/BSTester/Airobots

One-click installation:

pip install airobots -i https://mirrors.aliyun.com/pypi/simple

If the installation fails on Windows, it may be necessary to install the C++ build tools: visualcppbuildtools_full.exe. Please pay attention to the console error messages for specific errors.

To run WEB tests, you need to install ChromeDriver and GeckoDriver. You can download them from https://npm.taobao.org/mirrors/ or install Node.js and execute the following command:

npm install -g chromedriver geckodriver

3. Install Allure

Running Allure requires a Java runtime environment. The installation process for Java is brief; please install it yourself and configure the environment variables.

  • Linux

sudo apt-add-repository ppa:qameta/allure
sudo apt-get update
sudo apt-get install allure

  • Mac OS X

For Mac OS, you can install it automatically via Homebrew.

brew install allure

  • Windows

For Windows, you can obtain Allure from the Scoop command line installation program.

To install Allure, please download and install Scoop (you may need to use a VPN), then execute the following in PowerShell:

scoop install allure

Executing Tests

  • Functional and API Testing

Allure Report (Recommended)

airobots -t api ./API/Case/Path/ --alluredir=Results --clean-alluredir              # API Testing
a robots -t web ./Web/Case/Path/ --alluredir=Results --clean-alluredir              # Web Testing
a robots -t android ./Android/Case/Path/ --alluredir=Results --clean-alluredir      # Android Testing
a robots -t ios ./IOS/Case/Path/ --alluredir=Results --clean-alluredir              # iOS Testing

HTML Report

airobots -t api ./API/Case/Path/ --html=Results/report.html          # API Testing
a robots -t web ./Web/Case/Path/ --html=Results/report.html          # Web Testing
a robots -t android ./Android/Case/Path/ --html=Results/report.html  # Android Testing
a robots -t ios ./IOS/Case/Path/ --html=Results/report.html          # iOS Testing

  • Performance Testing

locusts ./API/Case/Path/                                                            # Performance Testing

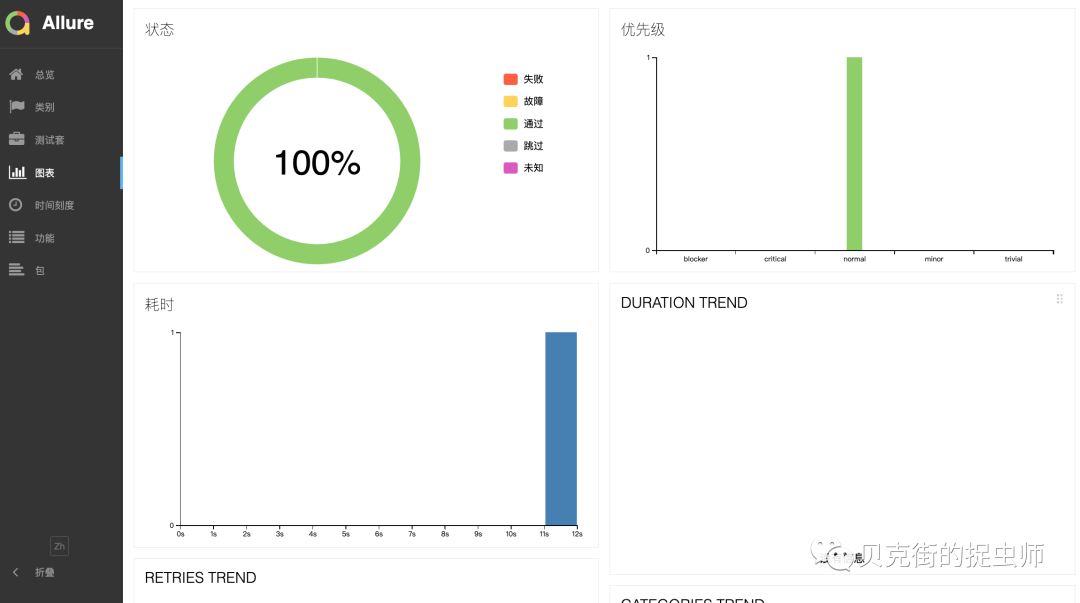

View Allure Report

allure serve ./Results

A Comprehensive Framework for Multi-Platform Testing

Demo Project

GitHub address: https://github.com/BSTester/AirobotsDemo

In the next issue, we will introduce how to write web test cases using Airobots.
