20 Types of PLC Component Numbering and Modbus Address Correspondence Table

Having previously worked with microcontrollers and the following 20 types of PLCs for Modbus RTU serial communication, I am now sharing the correspondence table of these 20 PLC input, output, and register components with their Modbus address numbers.

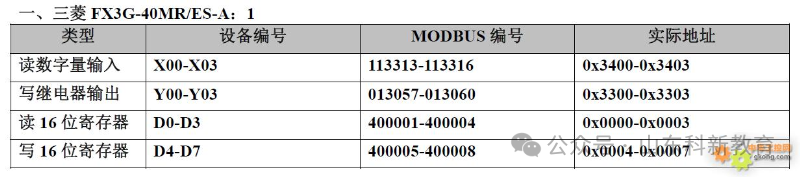

Mitsubishi

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

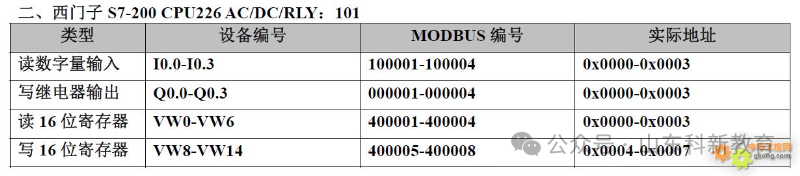

Siemens

I components support Modbus function code 02;

Q components support Modbus function codes 01, 05, and 15;

V components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

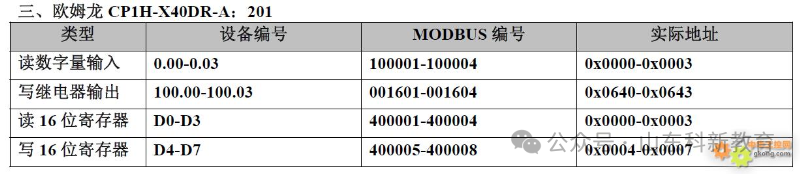

Omron

CIO0 components support Modbus function code 02;

CIO100 components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

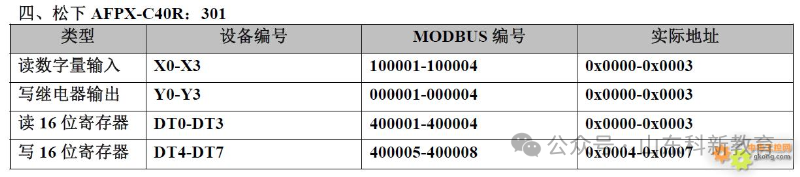

Panasonic

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

DT components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

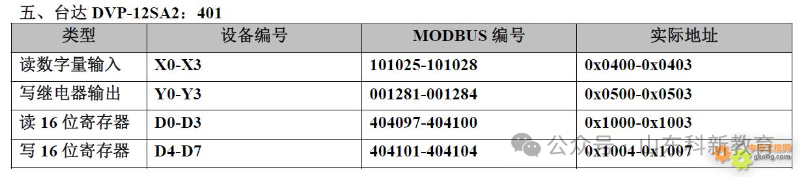

Delta

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

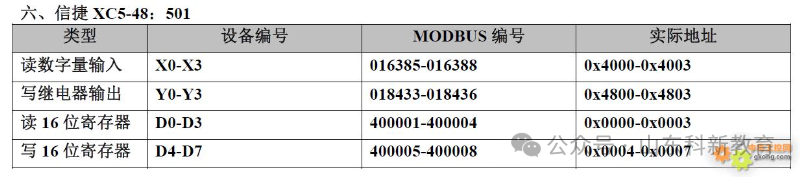

Xinjie

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

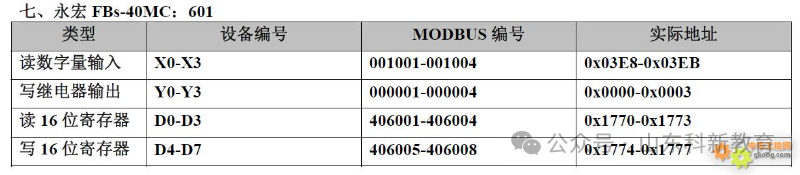

Yonghong

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

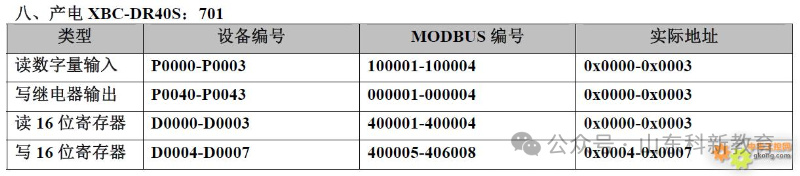

Chande

P0 components support Modbus function code 02;

P40 components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

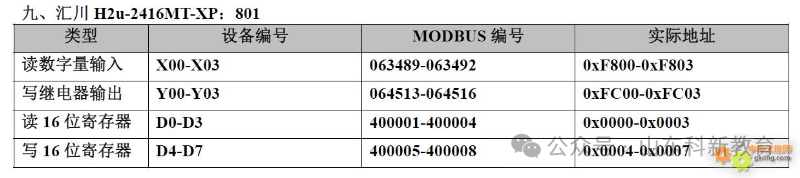

Inovance

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

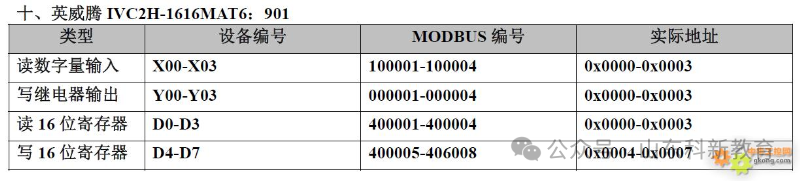

Invertech

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

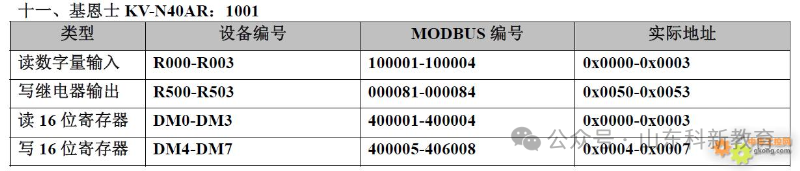

Keyence

R0 components support Modbus function code 02;

R500 components support Modbus function codes 01, 05, and 15;

DM components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

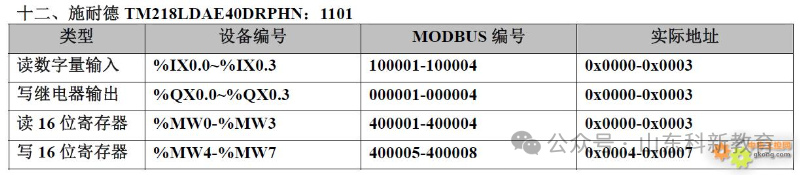

Schneider Electric

After updating the firmware, it supports function codes 01, 02, and 15

I components support Modbus function code 02;

Q components support Modbus function codes 01 and 15;

M components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

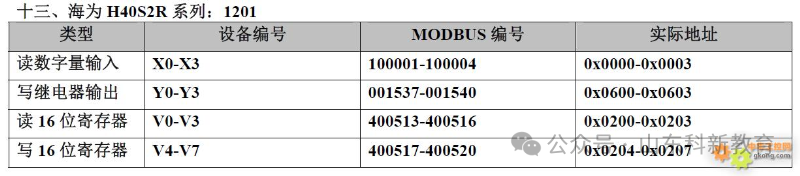

Haiwei

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

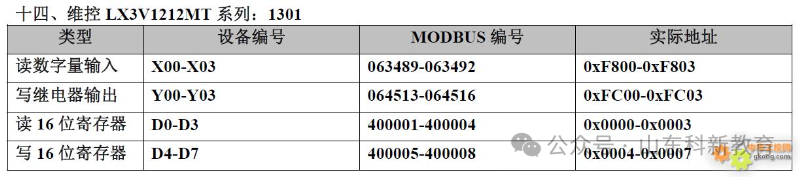

Weikong

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

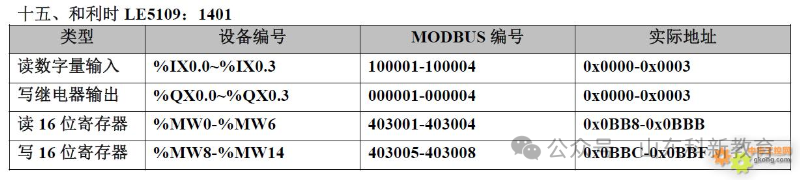

Holley

I components support Modbus function code 02;

Q components support Modbus function codes 01, 05, and 15;

M components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

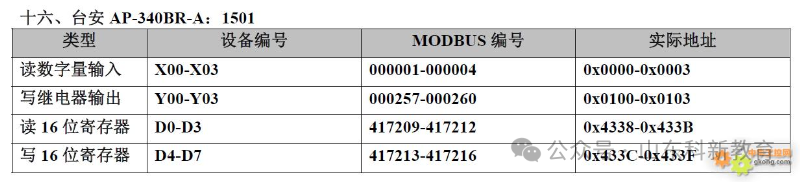

Tai’an

X components support Modbus function code 02;

Y components support Modbus function codes 01, 05, and 15;

D components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

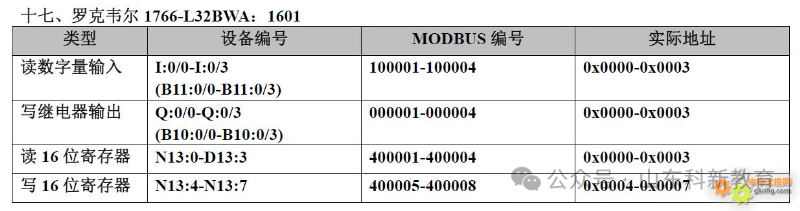

Rockwell

I components support Modbus function code 02;

Q components support Modbus function codes 01, 05, and 15;

N components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

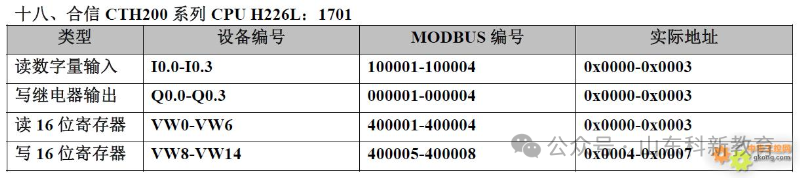

Hexion

I components support Modbus function code 02;

Q components support Modbus function codes 01, 05, and 15;

V components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

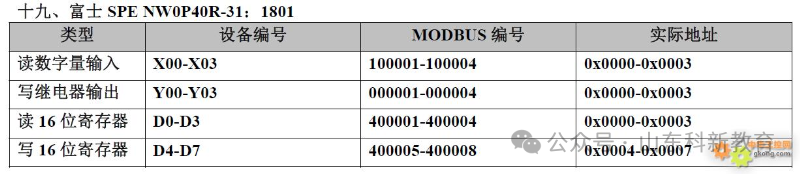

Fuji

(Implemented without protocol programming)

X components support Modbus function code 02;

Y components support Modbus function codes 01 and 15;

D components support Modbus function codes 03 and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

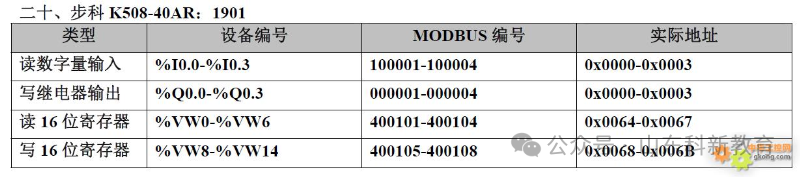

Beckhoff

I components support Modbus function code 02;

Q components support Modbus function codes 01, 05, and 15;

V components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

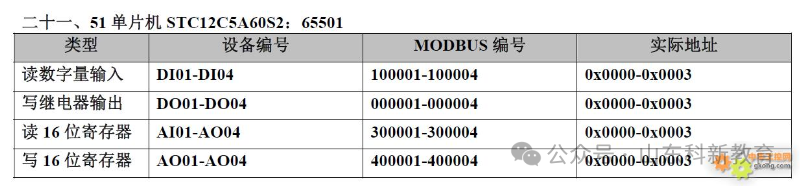

Microcontroller

DI components support Modbus function code 02;

DO components support Modbus function codes 01, 05, and 15;

AI components support Modbus function code 04;

AO components support Modbus function codes 03, 06, and 16.

20 Types of PLC Component Numbering and Modbus Address Correspondence Table

Source: This article is shared from the internet, and the copyright belongs to the original author. If there are any copyright issues, please contact us for deletion. Thank you!
