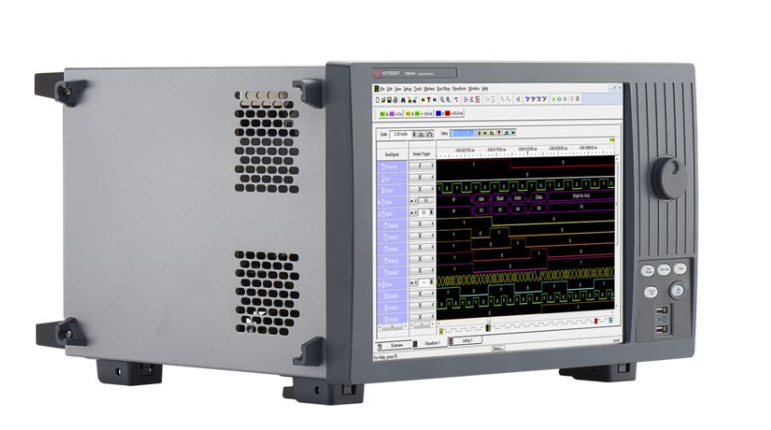

16861A 34-Channel Portable Logic Analyzer
Overview
The 16861A portable logic analyzer offers faster deep memory timing capture capabilities, helping you complete digital debugging more quickly.
Main Features
◆ ◆
Logic Analyzer Configuration
-
34 channels, 350 MHz state, 12.5 GHz timing scaling, 2.5 GHz timing, 2 Mb deep memory standard
-

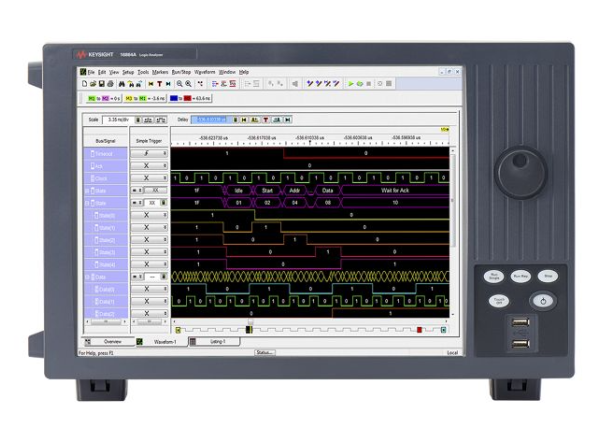

15-inch (38.1 cm) color touchscreen display allows you to view a large number of signals and buses, and navigate quickly
-
Built-in removable solid-state drive, USB 3.0 ports, and LAN port for fast data transfer and large data storage
-
1.4 GHz trigger sequence generator ensures capture of high-speed events
Timing Analysis (Asynchronous Sampling)
-
Up to 2.5 GHz/5.0 GHz (full channel/half channel) timing, supports capturing signal activity at high resolution
-
Up to 128 Mb/256 Mb (full channel/half channel) deep memory, supports identifying long-interval issues and root causes of symptoms
-
12.5 GHz (80 ps) timing scaling and 256 K memory depth support analysis of trigger events at high resolution
State Analysis (Synchronous Sampling)
-
State data rate up to 1.4 Gb/s, state clock rate up to 700 MHz, supports high-speed data capture
-
Automatic threshold/sample position setting for accurate measurements on high-speed buses
-
Simultaneous display of eye diagrams for all channels allows for quick identification of problematic signals
