There are Proteus simulations for ARM7 available online, and if you are interested in Proteus, you probably have downloaded it. Are you unable to open the Proteus simulation like I am? Are you encountering the following issues:
SIMULATION LOG
==============
Design: E:\Microcontroller Data\Recent Data\Proteus\Examples\ARM7\Serial\Serial.DSN
Doc. no.: <NONE>
Revision: <NONE>
Author: <NONE>
Created: 06/01/19
Modified: 06/01/19
Compiling source files…
Build completed OK.
Compiling netlist…
Linking netlist…
WARNING [LINKER] : Unresolved module pin ‘U1_XTAL2’.
WARNING [LINKER] : Unresolved module pin ‘U1_XTAL1’.
Partition analysis…
Simulating partition 1 [A34F618B]…
Animation started successfully…
PROSPICE Release 6.9 SP2 (C) Labcenter Electronics 1993-2006.
SPICE Kernel Version 3f5. (C) Berkeley University ERL.
Reading netlist…
Reading SPICE models…
Building circuit…
Instantiating SPICE models…
[U1_ARMCORE] Loading HEX file ‘ADS\SENDSTR_Data\DebugRel\test.hex’.
[U1_ARMCORE] Read a total of 1732 bytes from file ‘ADS\SENDSTR_Data\DebugRel\test.hex’.
[U1_SYSCON] Memory configuration: 128KB ROM, 16KB RAM
ERROR: [U1_VM2] ‘1.8V VCore’ (2.73V) is outside the specified range (1.65V-1.95V). Real Time Simulation failed to start.
Totaliters=0, Totalsteps=1, Goodsteps=1, Badsteps=0
Real Time Simulation FAILED.
If you look closely, you’ll understand that the issue is indicating that the voltage is incorrect.
So how do we solve it?

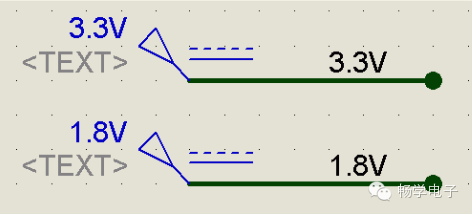

Step 1

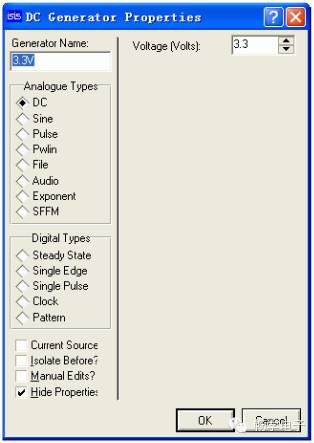

Step 2
Step 3
Hehe, try again, is it working now?
