The industry’s smallest packaged Power Good function, an efficient DC-DC controller for automotive use.
●Using the industry’s smallest package to miniaturize automotive cameras.

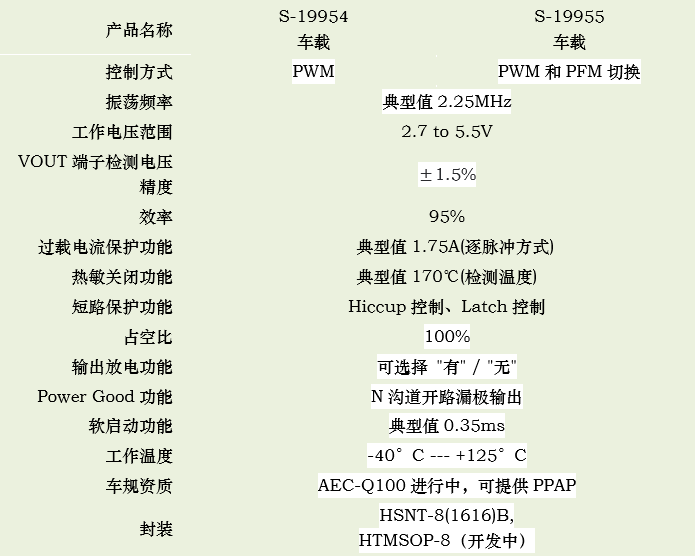

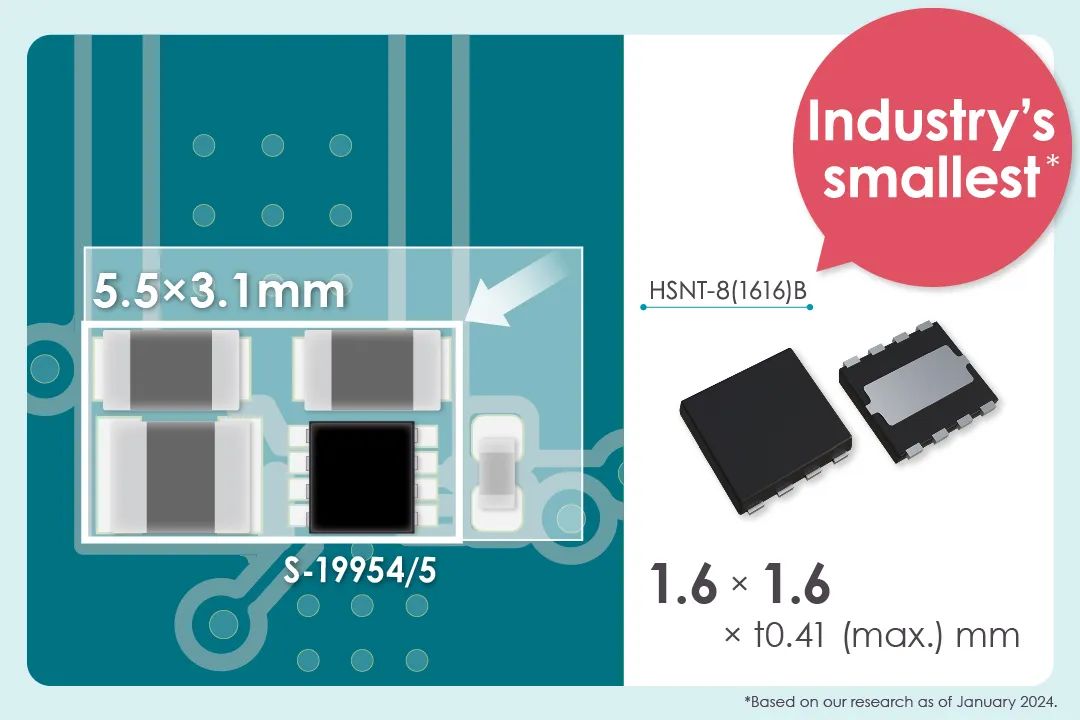

The S-19954/5 series HSNT-8 (1616)B package (1.6 × 1.6 × 0.41 (max) mm) is designed for 5.5V operation, 1A output, 2.25MHz oscillation frequency, and synchronous buck switching regulator, making it the smallest package in the industry. It requires only one inductor and two capacitors as external components, occupying minimal space to build the application circuit.
*According to our company’s survey as of January 2024
●Enhancing system reliability through the Power Good function.

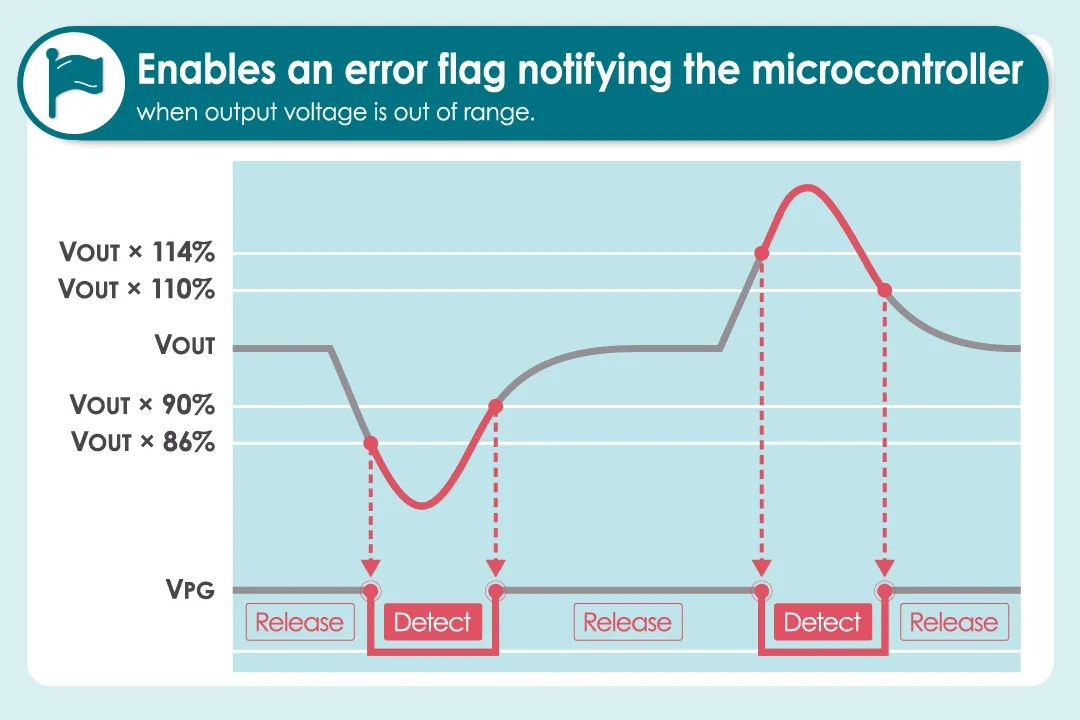

The S-19954/5 series features a Power Good function that monitors the output voltage to remain within the normal range. This function activates an error flag to notify the microcontroller when the output voltage exceeds the normal range.
Other features include overcurrent protection circuits, short-circuit protection circuits, and thermal shutdown circuits, which also contribute to enhanced system safety.
●Industry-leading high efficiency reduces thermal loss.

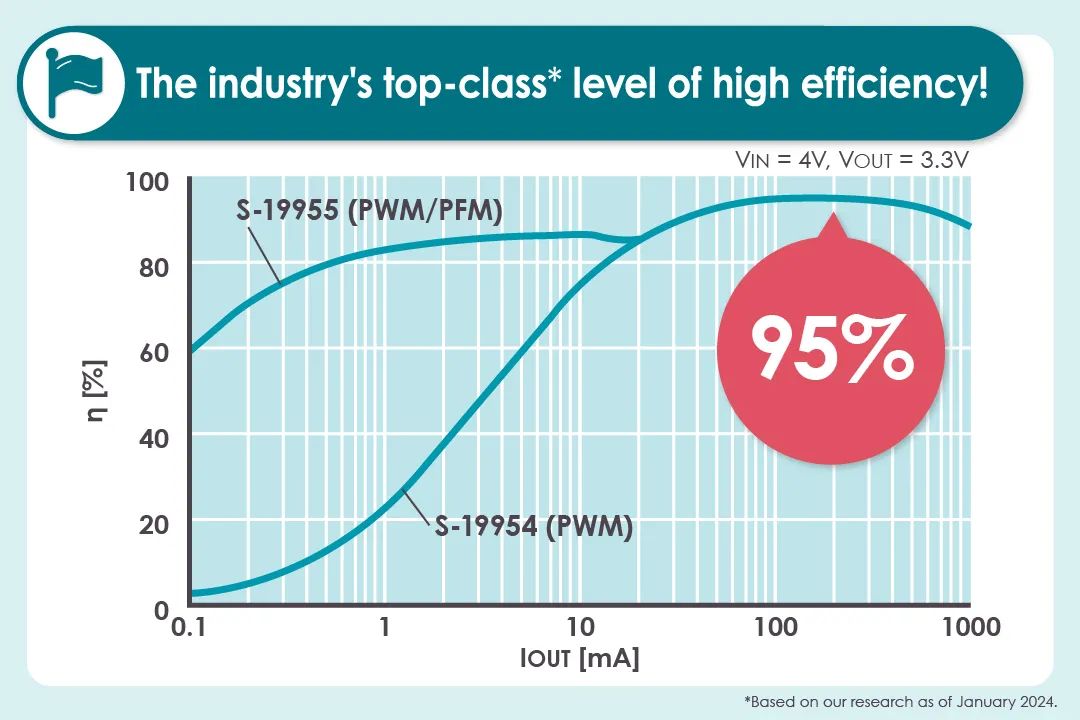

The S-19954/5 series achieves a power conversion efficiency of up to 95% (at 4V input voltage, 3.3V output voltage, and 200mA output current), reaching industry-leading levels.
In recent years, automotive cameras have been required to achieve higher pixel density in smaller enclosures than before, making thermal design increasingly important. The S-19954/5 series helps reduce thermal loss.
* According to our company’s survey as of January 2024
Applications

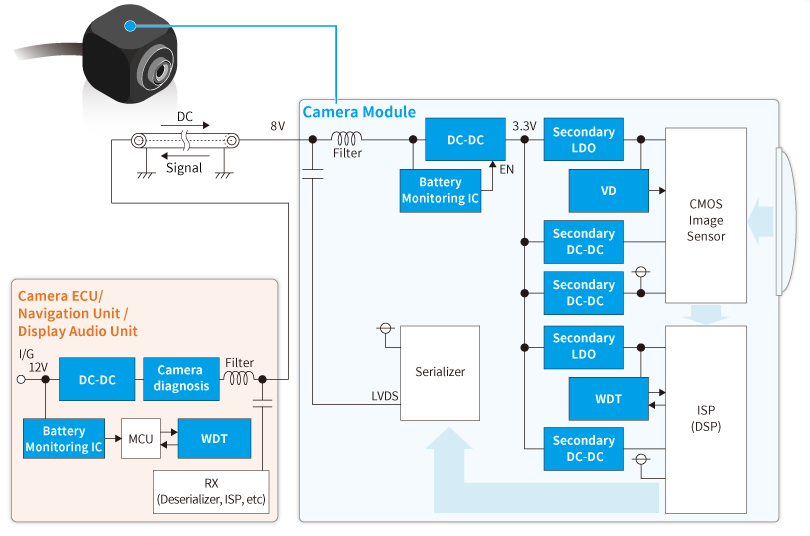

●Automotive Camera
View Camera Module
Sensor Camera Module
Dash Cam
Driver Monitoring System
●Various Automotive ECUs

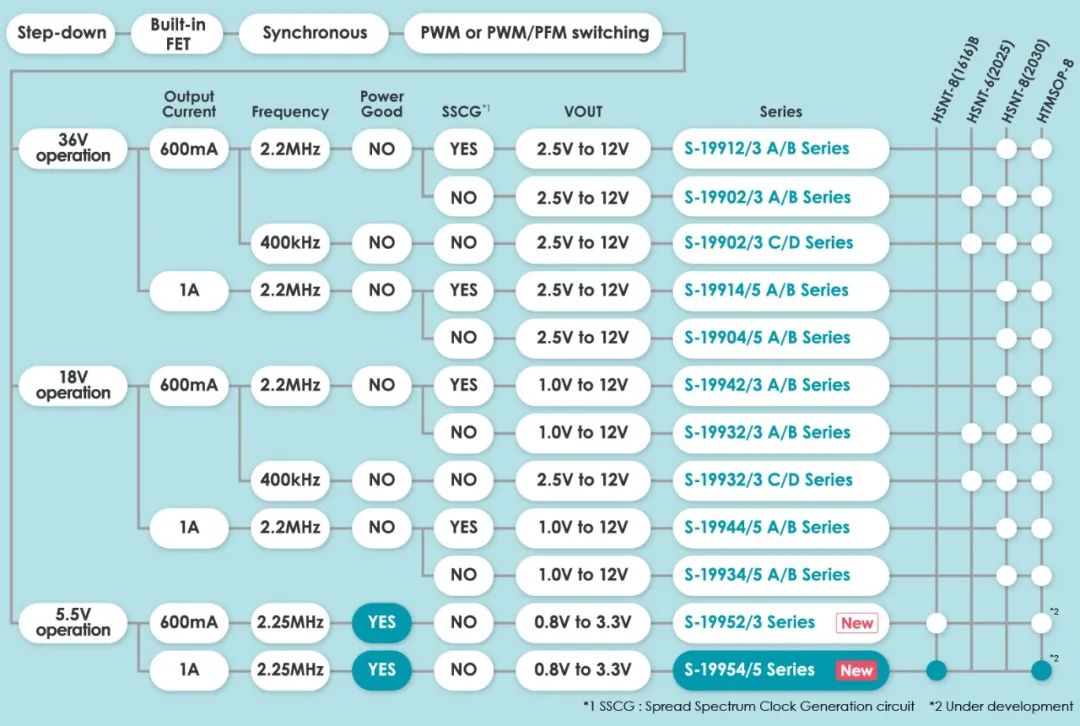

Automotive Switching Regulator Series List
