Teardown Report: BeiLing A10 Children’s Smart Learning Machine

—–Audio Love Network Teardown Report No. 1351—–

BeiLing is a well-known brand focused on early childhood education, primarily providing products such as children’s reading pens, early education machines, and story machines. By combining rich and high-quality content resources, it cleverly integrates learning with play, stimulating children’s interest in learning and helping them explore the world and grow happily in a relaxed and enjoyable environment.The BeiLing A10 Children’s Smart Learning Machine is designed for children aged 3 and above. It features a cute and portable design made of ABS and silicone materials, ensuring safety during use. It supports IPX7 waterproofing and has a drop-resistant design, allowing it to accompany children as they grow. It is equipped with high-fidelity dual magnetic speakers that provide clear sound quality and supports Bluetooth connectivity to expand content resources.In terms of content, the BeiLing A10 covers six major areas: early education, English enlightenment, Chinese classics, character development, scientific exploration, and mathematics encyclopedia, encompassing 2,973 minutes of 1,070 selected early education content. It also supports connecting to mobile phones and computers to download resources, further expanding audio content. Now, let’s take a look at the detailed teardown report of this product!

1. Unboxing the BeiLing A10 Children’s Smart Learning Machine

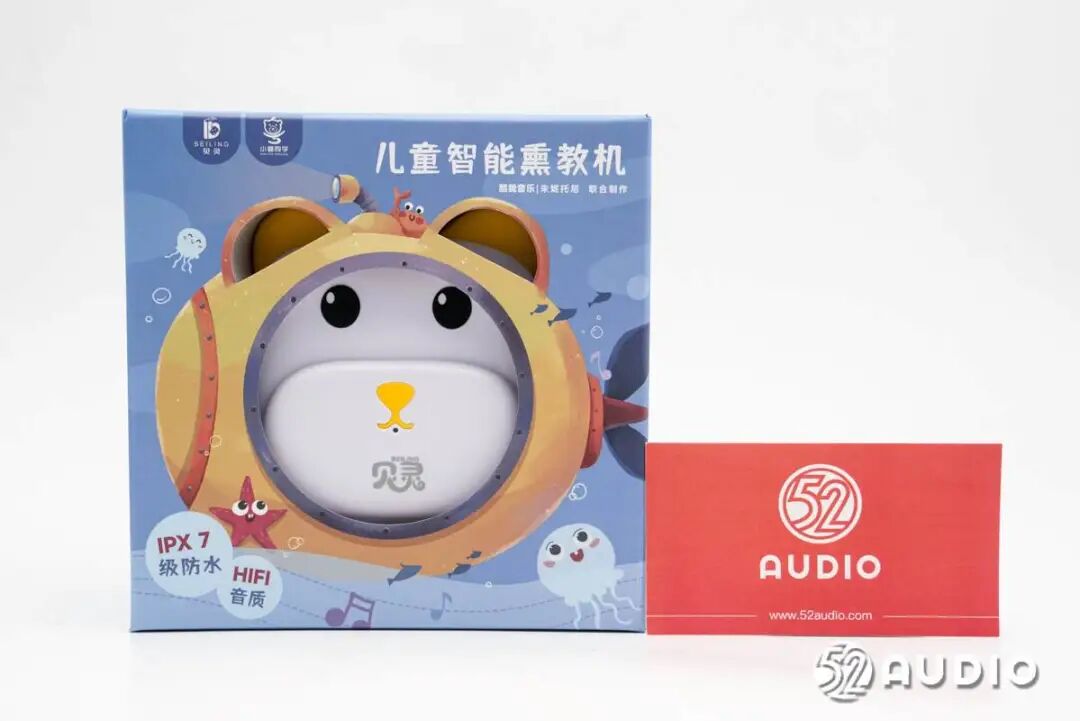

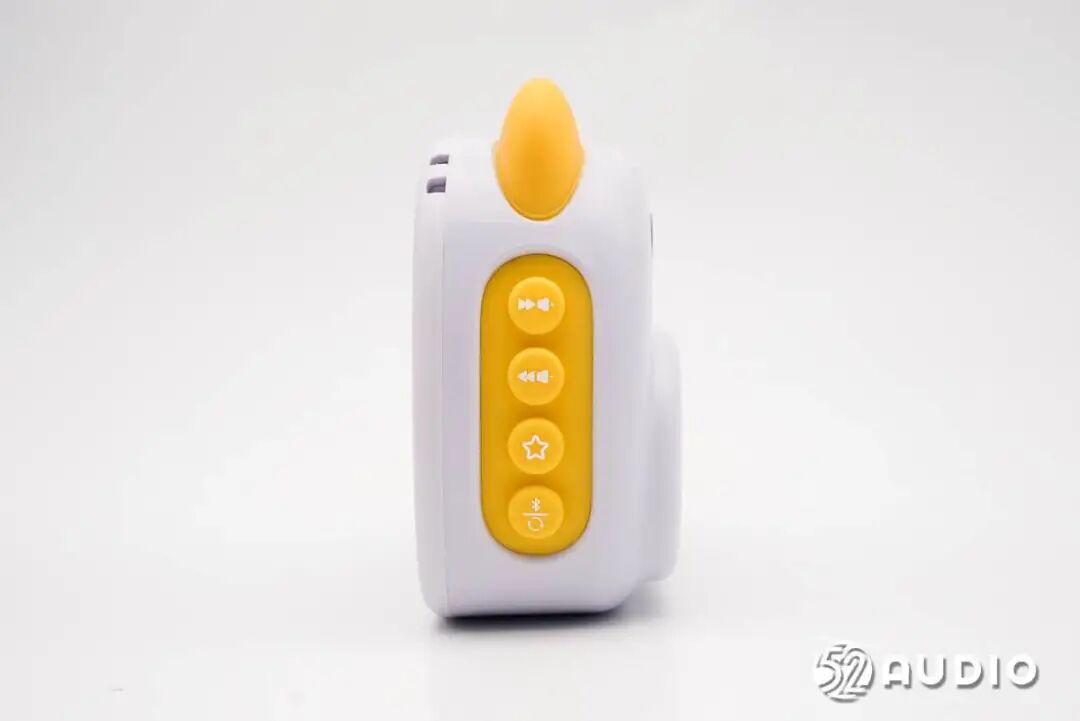

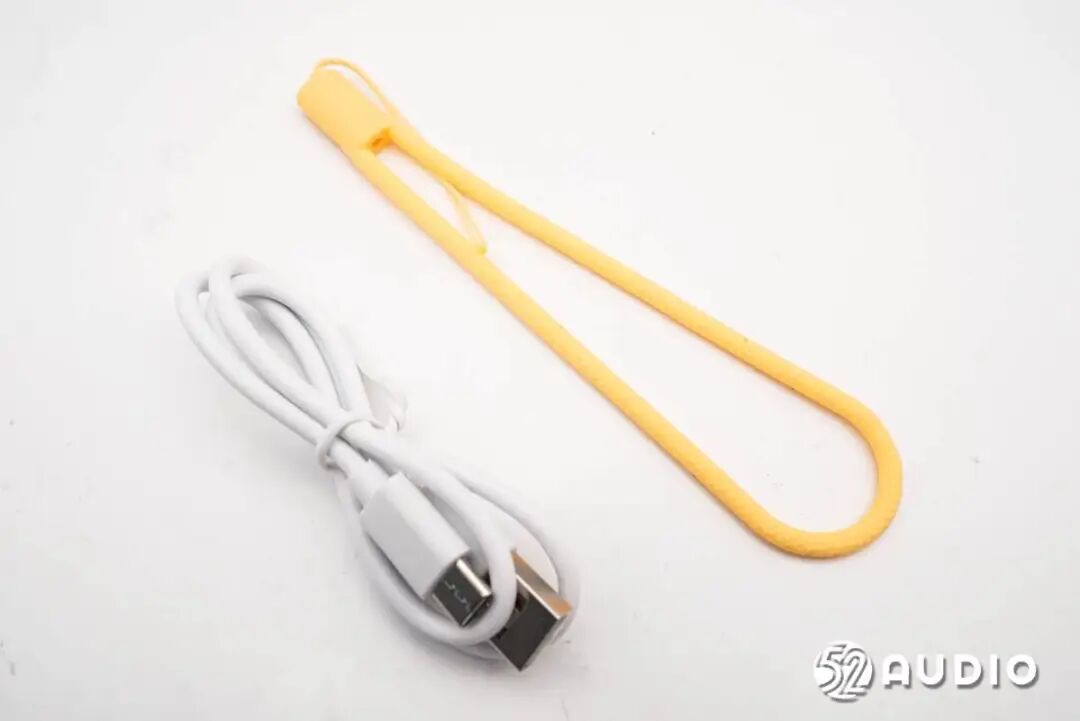

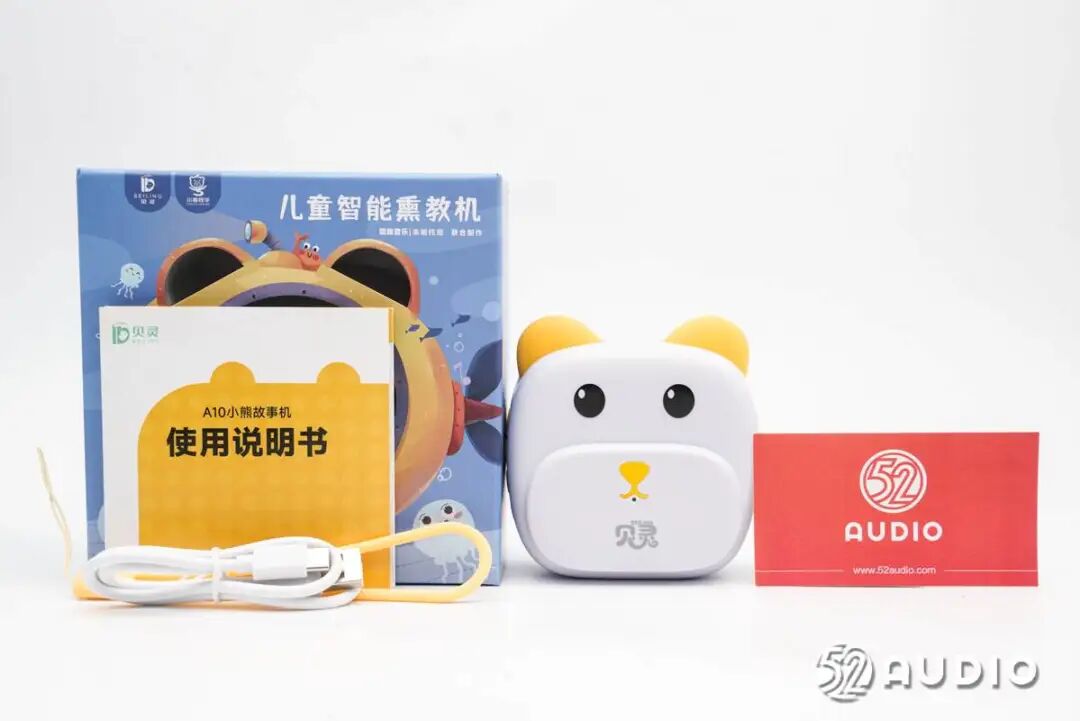

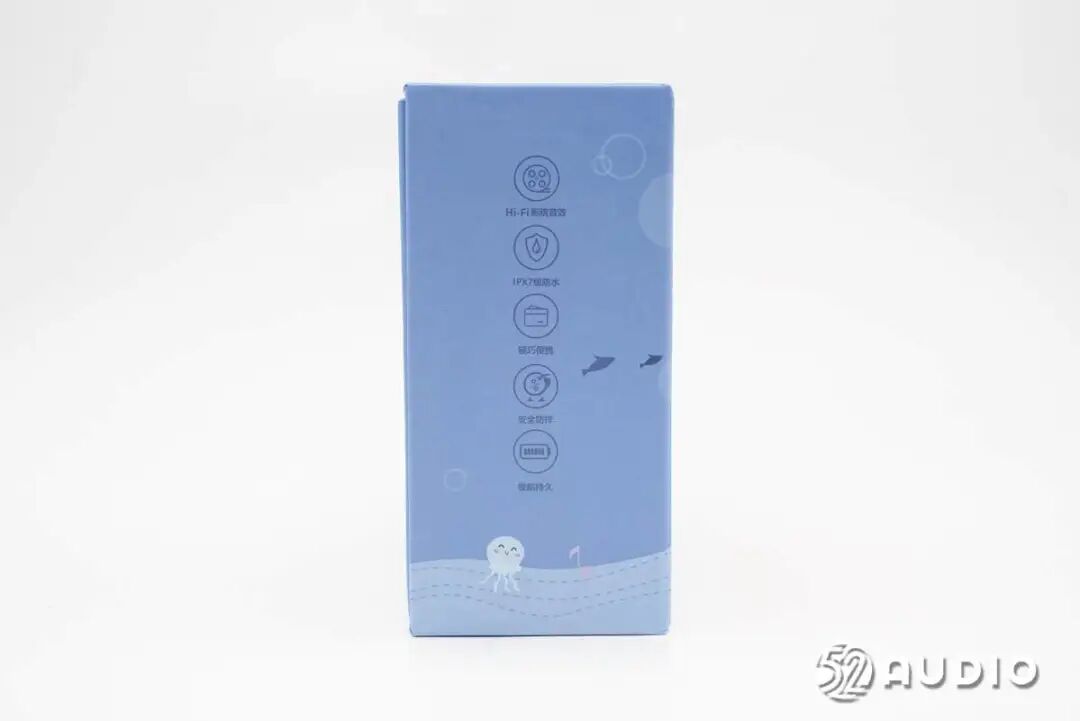

The packaging of the BeiLing A10 features bright colors, with a “space capsule” window on the front that reveals the product inside, cleverly showcasing a fun cartoon character to attract children’s attention. It also mentions that it is co-produced by “Cool Music” and “Juni Tony,” supports IPX7 waterproofing, and provides Hi-Fi sound quality.The back of the packaging provides product information and precautions. Product Name: BeiLing Children’s Smart Learning Machine, Model: A10, Main Material: Plastic, Suitable Age: 3 years and above, Manufacturer: Shanghai Yangling Electronic Technology Co., Ltd. This product contains small parts and is not suitable for children under 3 years old. Please use under adult supervision!The front of the packaging displays the character Xiaoyue and the BeiLing brand logo along with the product name.The side of the packaging introduces product features: Hi-Fi cinema sound, IPX7 waterproof, lightweight and portable, safe drop resistance, and long battery life.The other side introduces product features: daily early education, quality resources, one-click switching, voice interaction, and micro-chat reading companion.Upon opening the packaging, the internal items include the main unit, charging cable, lanyard, and user manual.The included USB-A to Type-C charging cable and portable silicone lanyard.The BeiLing A10 features a rounded body design resembling a “little cat,” with a lively and interesting appearance that is very appealing to children.A close-up of the “cat ears” on the top of the device, made of soft material with a delicate and skin-friendly touch, equipped with ambient lights that can be illuminated.Below the “cat nose,” there is a microphone pickup hole for voice interaction.The back of the device has a speaker output hole, with parameter information labeled. Model: A10, Input: DC5V-2.0A.The right side of the device has a power switch (pause/play), music switch, voice, and micro-chat buttons.The left side has volume + (previous track), volume – (next track), favorite, and single loop keys (Bluetooth mode).The bottom of the device has a charging port sealed with a soft rubber plug to prevent dust and water.Opening the rubber plug reveals a Type-C charging port and a reset button.The top of the device has a lanyard hole for enhanced portability.According to our tests, the BeiLing A10 weighs approximately 141.8g, making it lightweight and portable.We used the CHARGERLAB POWER-Z KM003C to test the charging of the BeiLing A10, with an input power of approximately 4.29W.

2. Teardown of the BeiLing A10 Children’s Smart Learning Machine

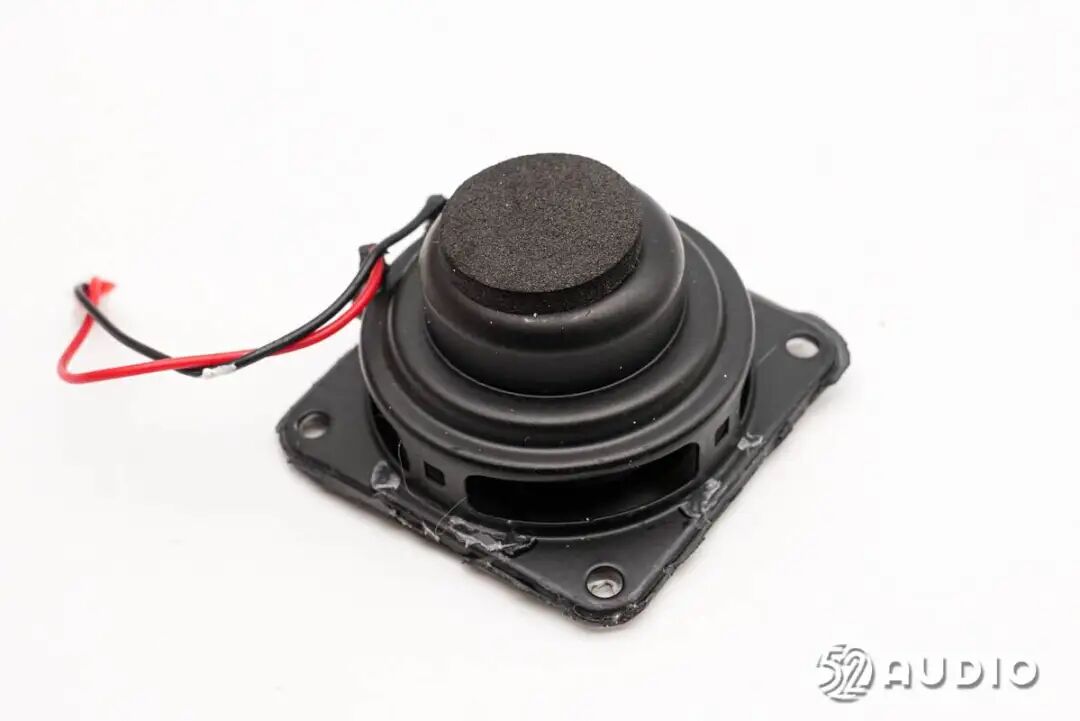

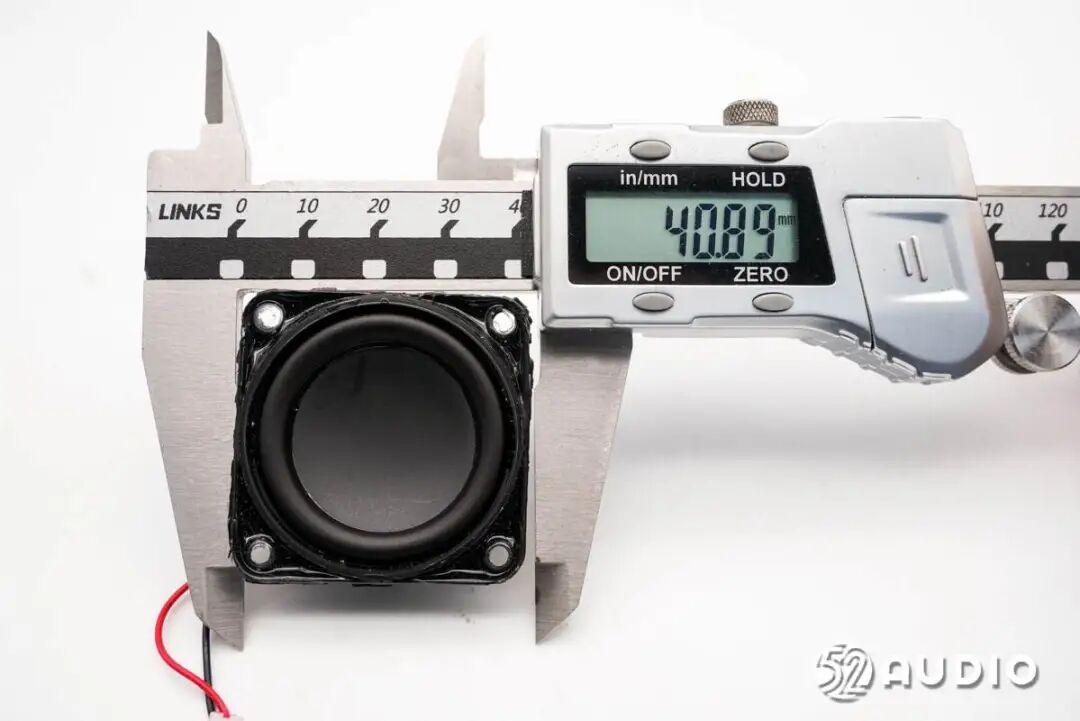

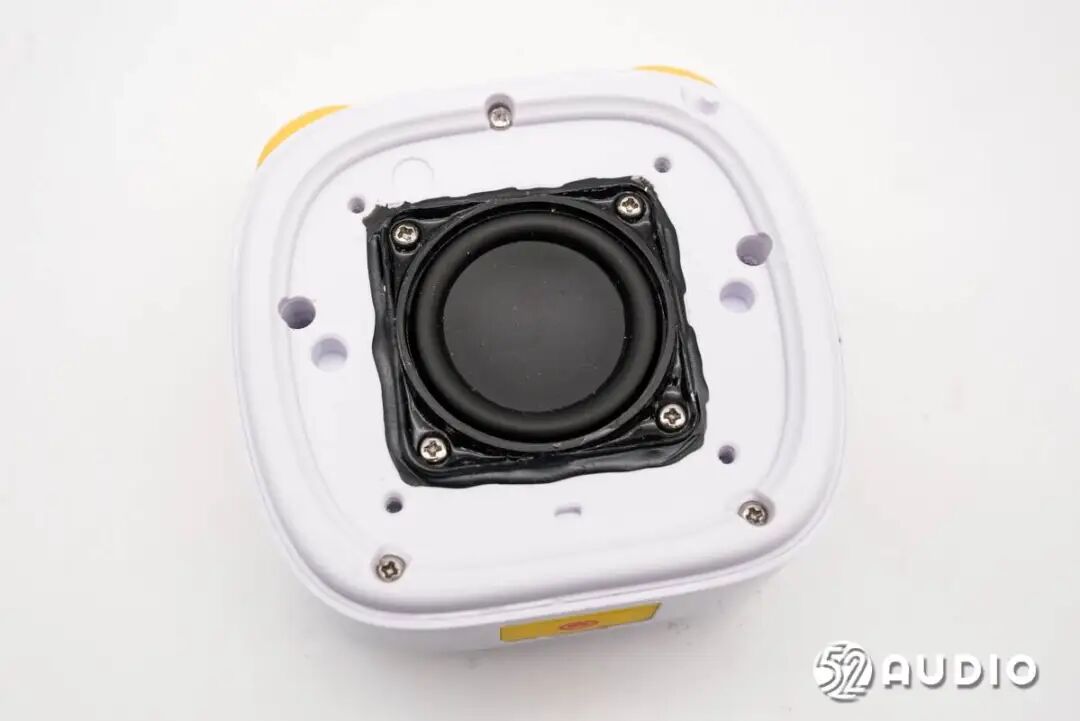

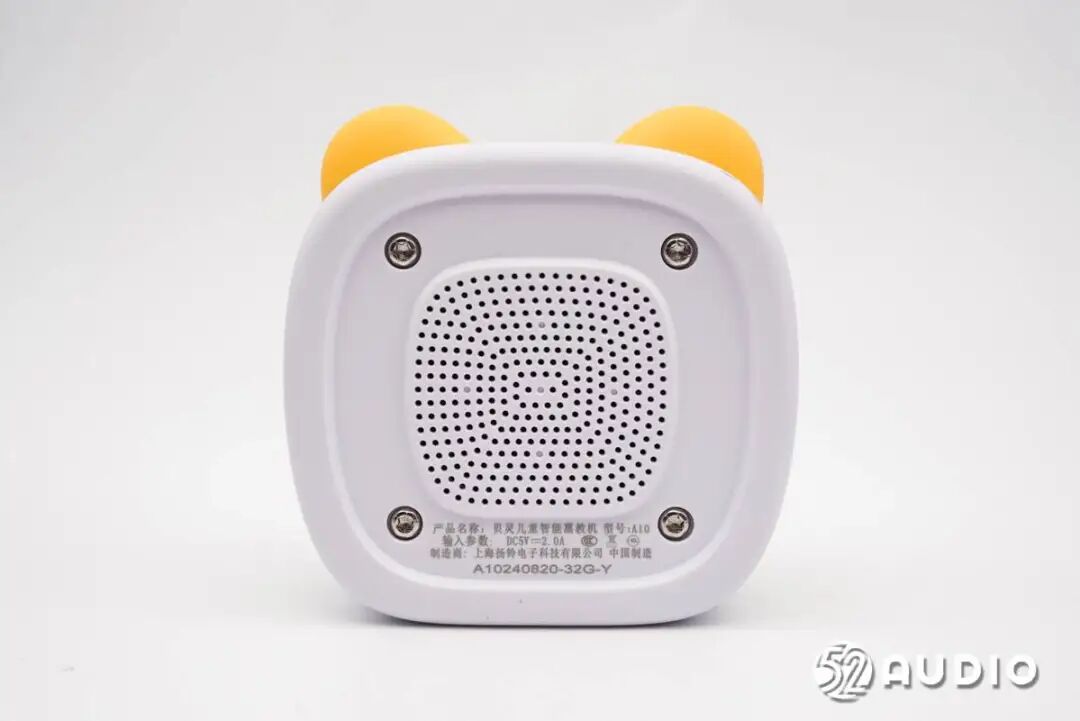

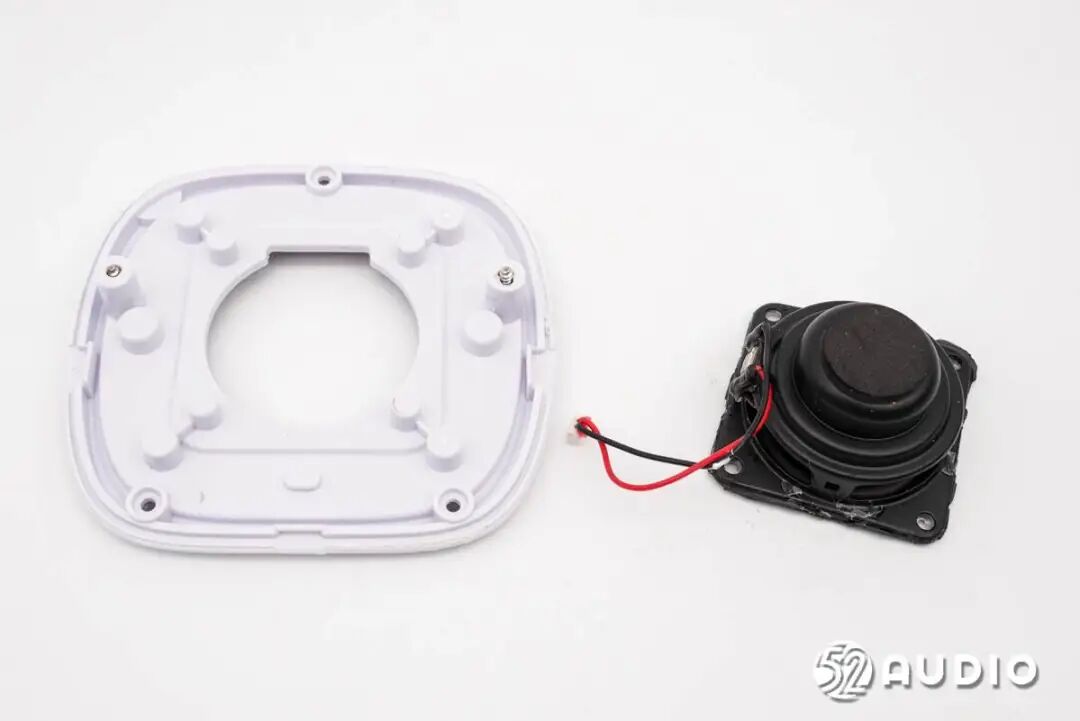

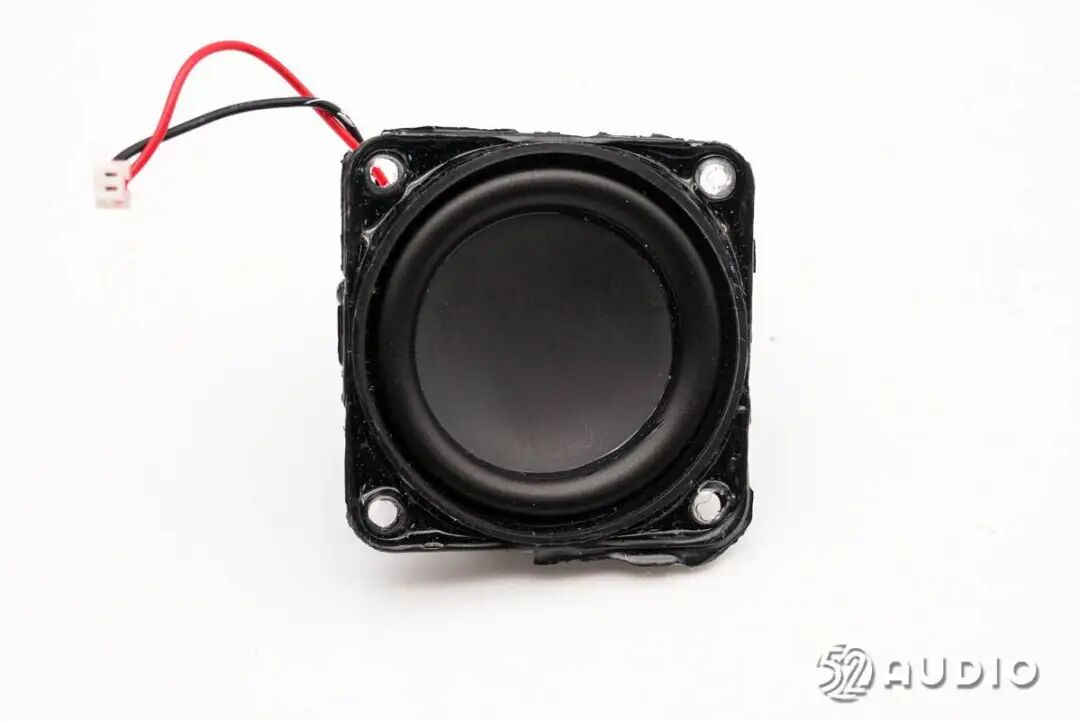

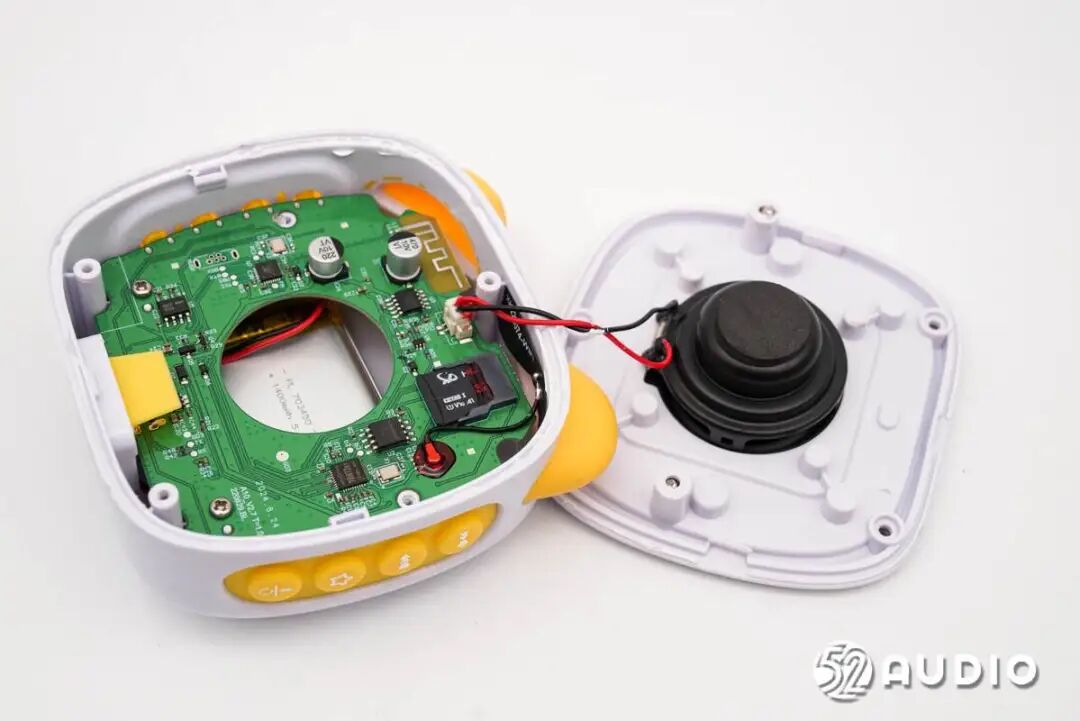

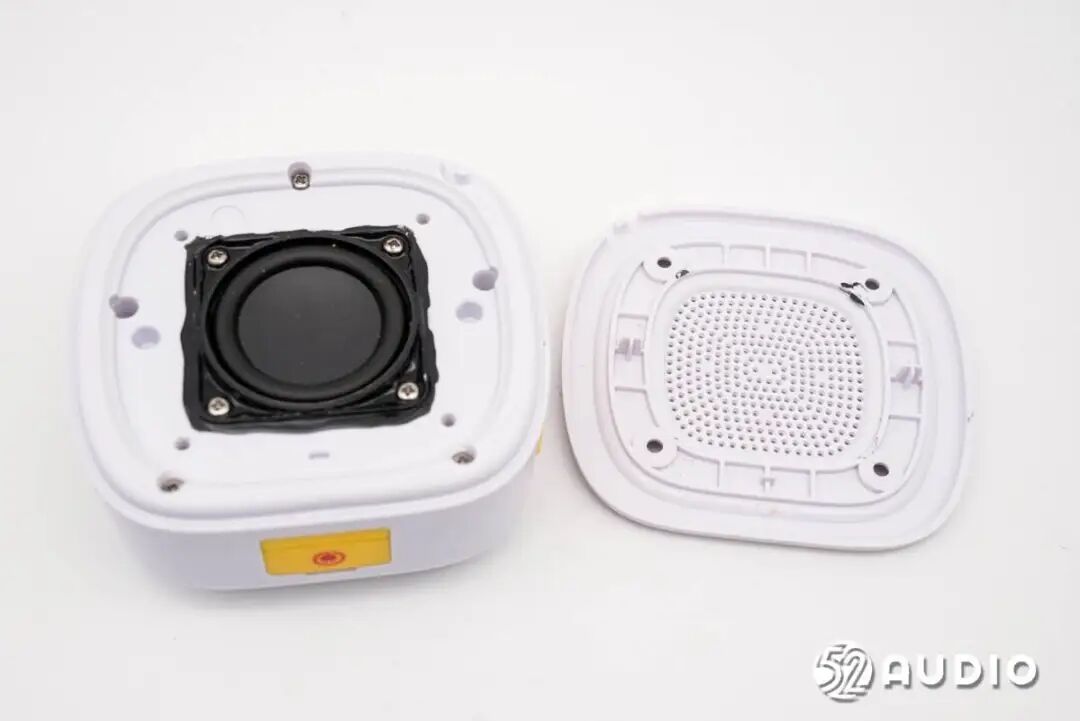

Through unboxing, we have detailed the cute and lightweight design of the BeiLing A10. Now, let’s move on to the teardown section to examine the internal structure and configuration information.Remove the screws and take off the back cover of the device.An overview of the sound chamber cover structure, secured by screws, with a dynamic speaker in the center.Remove the screws and take off the sound chamber cover; the internal speaker is connected to the mainboard via a socket.Disconnect the connector and remove the speaker from the sound chamber cover.A close-up of the front of the speaker.A close-up of the back structure of the speaker, which is equipped with foam protection.Comparison of the speaker size with a one-yuan coin.According to our tests, the speaker diameter is approximately 41mm.We used the CHARGERLAB POWER-Z KM003C to test the charging of the BeiLing A10, with an input power of approximately 4.29W.

3. Summary from Audio Love Network

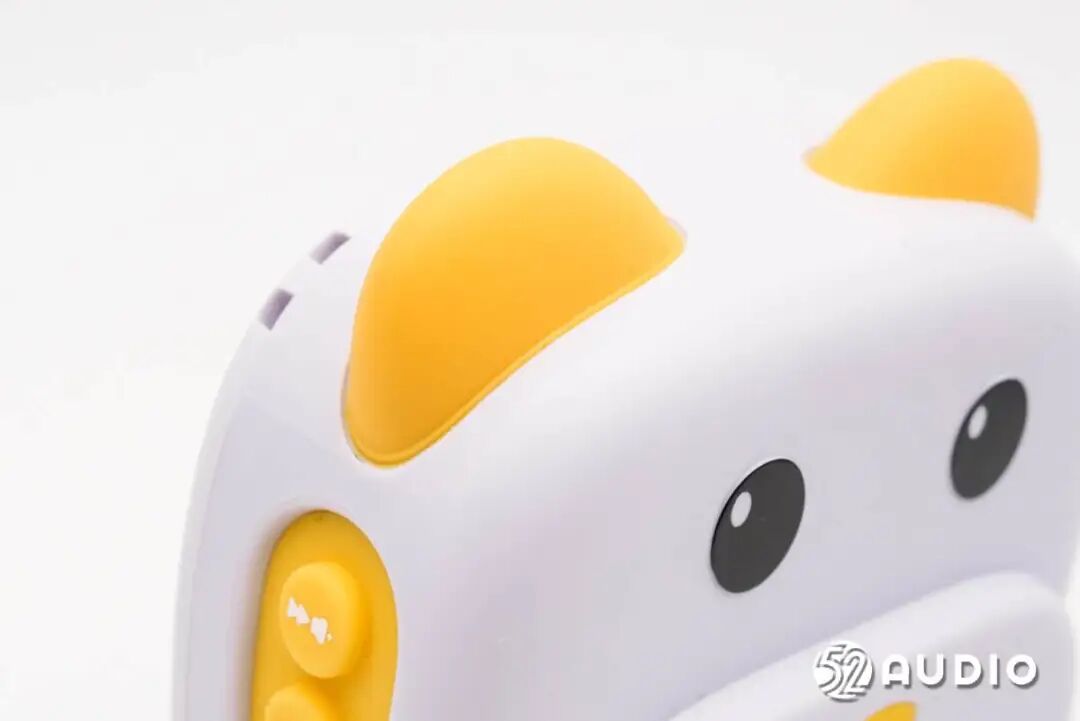

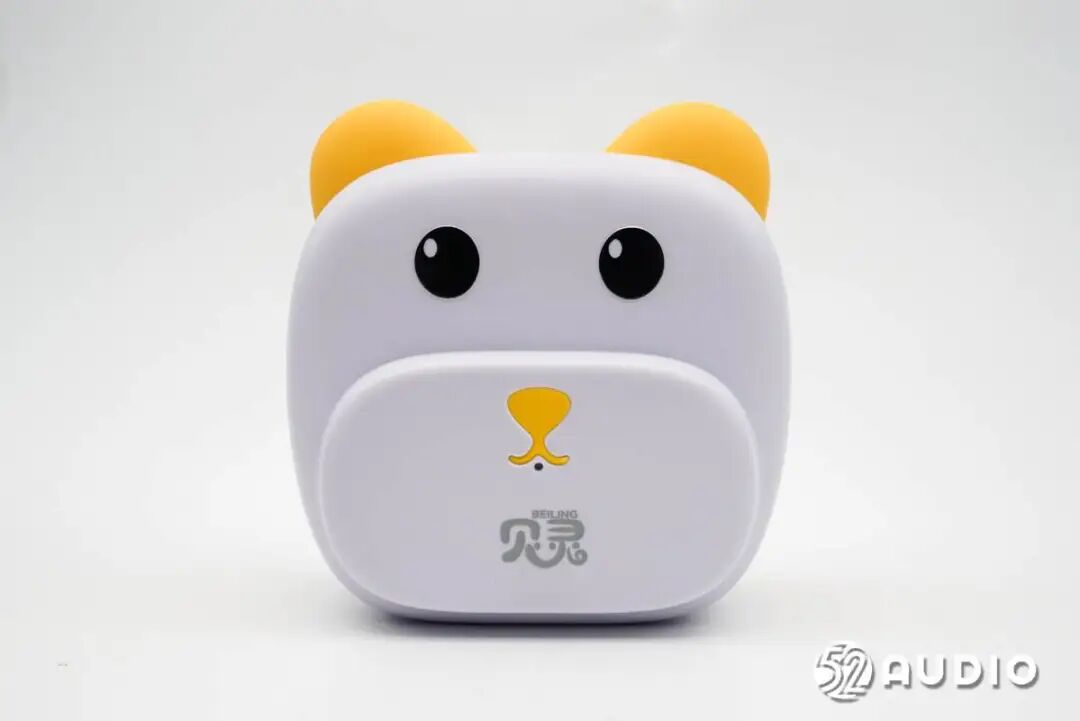

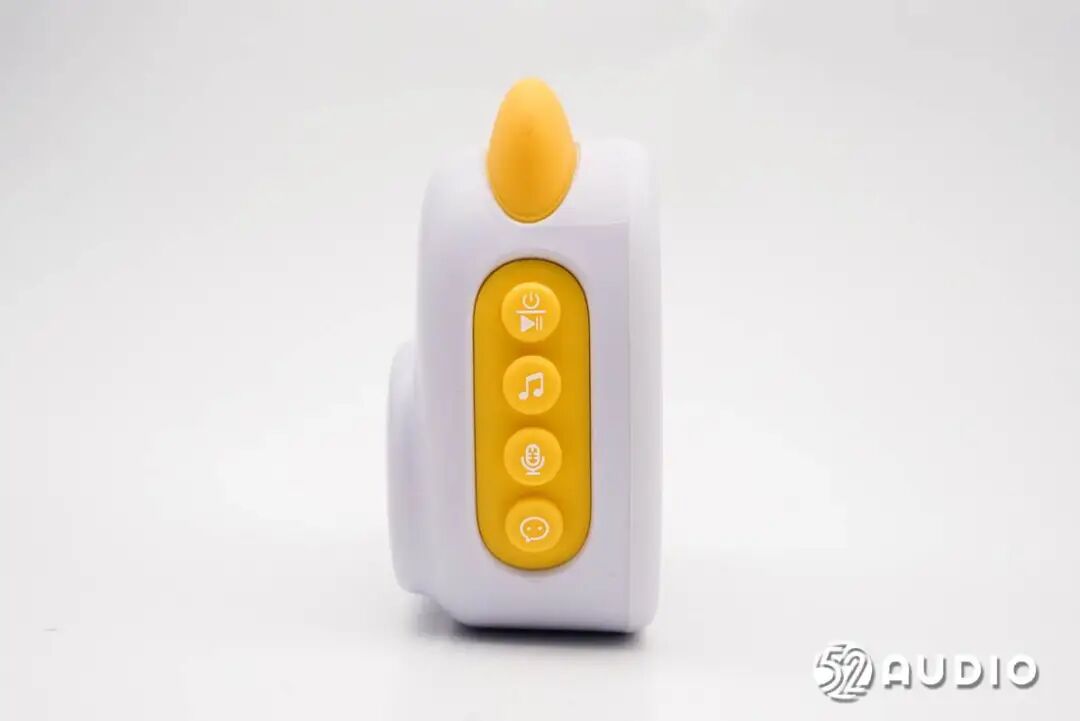

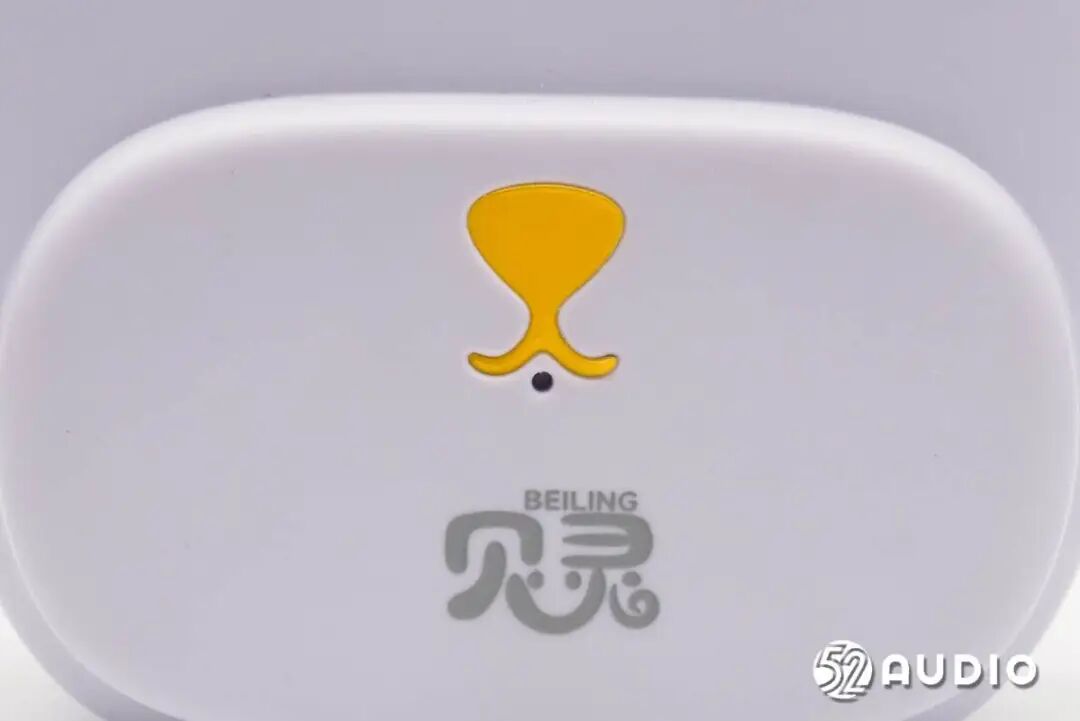

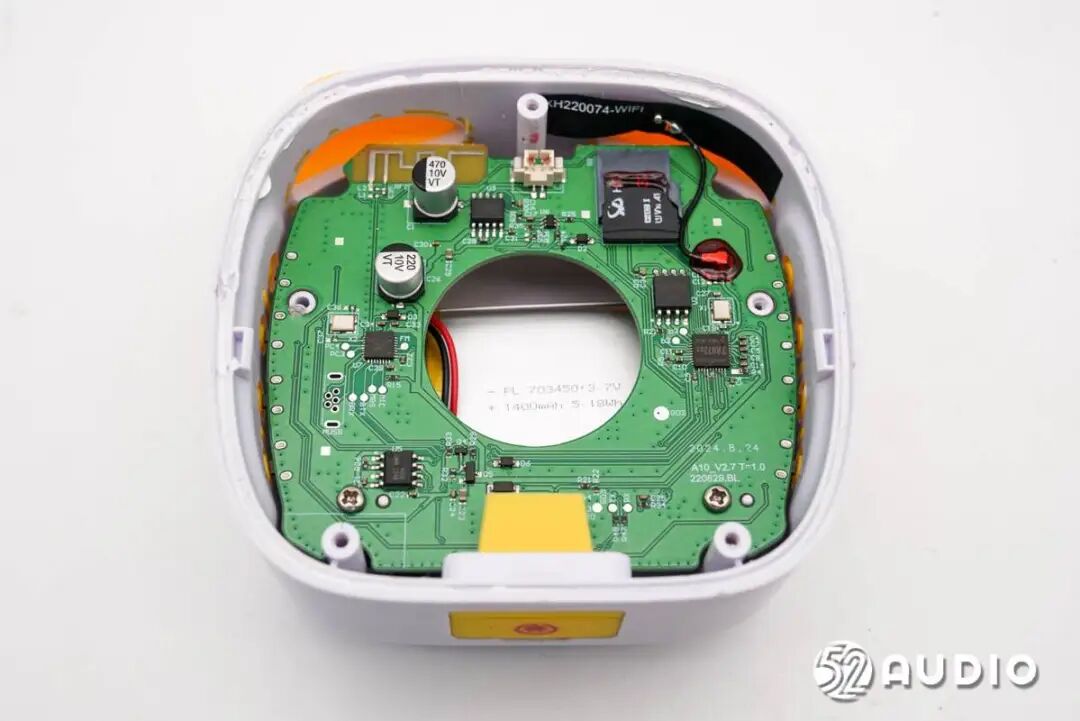

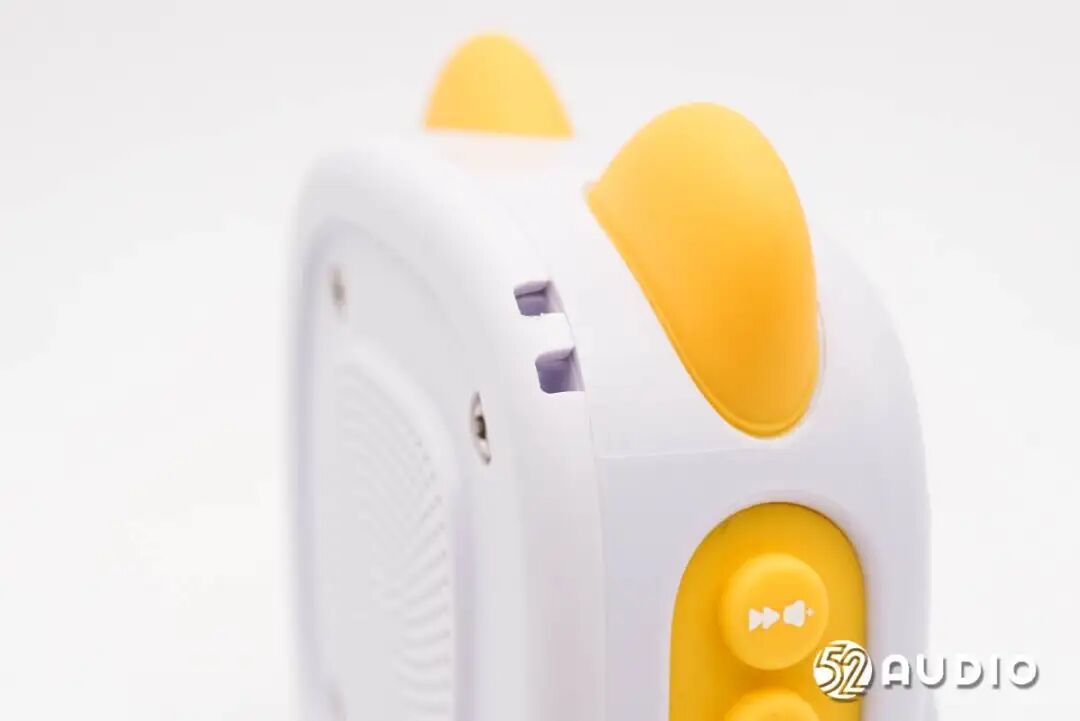

The BeiLing A10 Children’s Smart Learning Machine features a very cute cartoon design that aligns well with children’s preferences. The soft and skin-friendly “cat ears” cleverly integrate ambient lights, making it lively and interesting. The device is equipped with a variety of functional buttons that provide a convenient operating experience.In terms of internal configuration, it is equipped with an approximately 41mm dynamic speaker, a built-in electret microphone, and a large capacity 1400mAh battery. The mainboard includes a 32GB memory card, utilizes the Nsiway NS4830 audio power amplifier, Allwinner XR872ET wireless IoT chip, Winbond W25Q32JV serial NOR flash, JL AC6956C Bluetooth audio SoC, and Genesys GL823K card reader controller, among others.Products mentioned in the article:June 13 | 2025Asia AI Smart Wireless Microphone Conference continues to be exciting!Contact for exhibition: 17722503948 (WeChat same number)AudioIndustry annual report is continuously updated. If you want to know the latest trends in the consumer audio industry, please followAudio Love NetworkYay 😀Click on the blue text to learn about the following popular topics,or you can reply with the following keywords in the Audio Love Network WeChat backendto get the topic“2024 Market Trends Explained”
