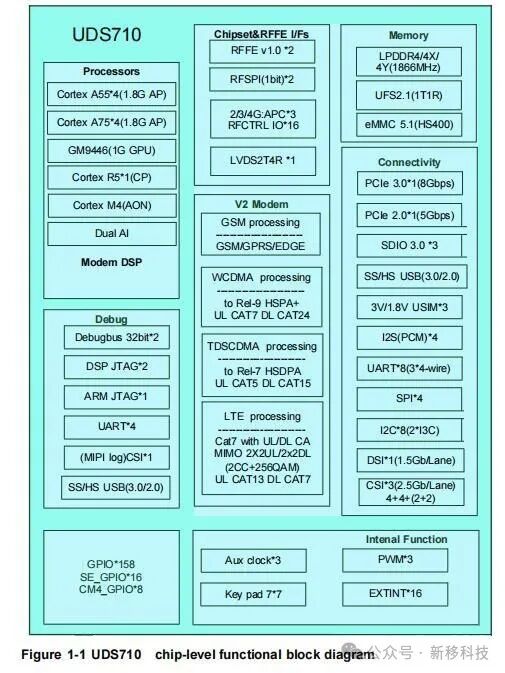

The T710 uses the Zhanrui 4G UDS710 chip, which is a powerful module with rich interfaces in the WiFi version. It is a highly integrated embedded application processor that includes a quad-core ARM Cortex-A75 00P core and a quad-core ARM Cortex-A55MP as the application processor.
It runs on the Android 10.0 system, supports 2.4G and 5G WiFi, Bluetooth 5.0, GPS, and FM. It supports FHD MIPI screens, dual-camera light and distance sensing, gyroscope, and other functions.
The Tiger Ben T710 integrates the industry’s latest architecture NPU, providing strong computational support for AI calculations, and supports running AI algorithms with various data bit widths such as FP16, INT8, INT4, providing a robust platform for AI application development.
Features of the T710 Platform:
1. AP Subsystem • Quad-core ARM CortexTM A75MP processor, up to 1.8GHz • Quad-core ARM CortexTM A55MP processor, up to 1.8GHz • 64KB L1 I-cache and 64KB L1 D-cache, 256KB L2 cache for ARM CortexTM A75MP processor • 32KB L1 I-cache and 32KB L1 D-cache, 128KB L2 cache for ARM CortexTM A55MP processor • Shared 2048KB L3 I-cache • NEON multimedia processing engine with SIMDv2/VFPv4 ISA support • Supports 800MHz GM9446 • Supports booting from SD, USB, UART, eMMC, UFS • Supports UID and secure boot • Both CPU and GPU support DVFS technology • Supports SensorHub • Supports VDSP • Supports NPU
2. Peripheral and Connection Interfaces • Supports three SIM cards, 1.8V and 3.0V devices • Supports 3 SDIO 3.0 • Supports USB 2.0 HS interface, type C, USB 1.1 USB OTG, and one USB 3.0 interface • Supports 8 UARTs • Supports 4 dedicated SPI • Supports 1 4-datalane DSI • Supports 2 JTAG ports • Supports 2 4-datalane CSI and 1 2p2lane CSI • Supports 4 IIS ports • Supports 1 PCIe GEN2 for WCN and 1 PCIe GEN3 for 5G modem– Supports IPA • Supports default 3×3 keyboard (maximum 7×7) • Supports 8 IIC ports, host mode only • Over 150 GPIO pins • Three PWM outputs • Supports SIM/USIM • Supports 2 digital microphones
3. External Memory Interfaces • Supports eMMC 5.1 HS400 • Supports LPDDR4, LPDDR4x, LPDDR4y • Supports UFS2.1 • Supports the following memory combinations: eMCP(eMMC/LPDDR4/LPDDR4x/LPDDR4y) eMMC + LPDDR4 eMMC + LPDDR4x eMMC + LPDDR4y uMCP(UFS2.1/LPDDR4/LPDDR4x/LPDDR4y) UFS2.1 + LPDDR4 UFS2.1 + LPDDR4x UFS2.1 + LPDDR4y • eMMC flash is supported by the eMMC controller with the following features: Supports 1.8V input/output Supports 1.8 or 3.0V VCC Supports 1/4/8 bit devices Complies with eMMC5.1
T710 Platform Parameters:
| Basic Parameters | |
| Process | 12nm |
| CPU Architecture | 4*A75 2.0GHz+4*A55 1.8GHz |
| CPU Cores | 8 cores |
| GPU Model | Imagination 9446,800MHz |
| Functional Parameters | |
| Cellular Network | Cellular: NA |
| LTE Category: NA | |
| Voice Function | Bluetooth 5.0 |
| WiFi Support | b/g/n/ac |
| Positioning Support | GPS, Glonass, Beidou, Galileo |
| Camera Support | Camera: 24M |
| Frame Rate: 30fps | |
| Video Support | Video Decoding: 4K 30fps H.265, VP9; 1080P 30fps; H.264, H.263, MPEG4, VP8 |
| Video Encoding: 4K 30fps H.265, VP9; 1080P 30fps; H.264, VP8 | |
| Display Support | 3200*1440 |
| Memory Performance | LPDDR4/4x/4y |
| Storage Performance | eMMC5.1, UFS2.1 |
| Other Performance | NPU > 3.2 TOPS |
