During the process of information acquisition and transmission, signals and images inevitably suffer from noise interference (such as Gaussian white noise, impulse noise, salt-and-pepper noise, etc.), leading to a decline in data quality and affecting subsequent processing (such as feature extraction and target recognition). Traditional denoising methods (such as wavelet transform and mean filtering) often face issues of high computational complexity and insufficient adaptability when dealing with high-dimensional or heavily noisy data.Quantum Adaptive Transform combines the parallelism of quantum computing with the flexibility of adaptive transforms, achieving efficient separation of noise and signals by constructing dynamic basis functions in quantum state space, providing a new approach for high-resolution signal and image denoising.

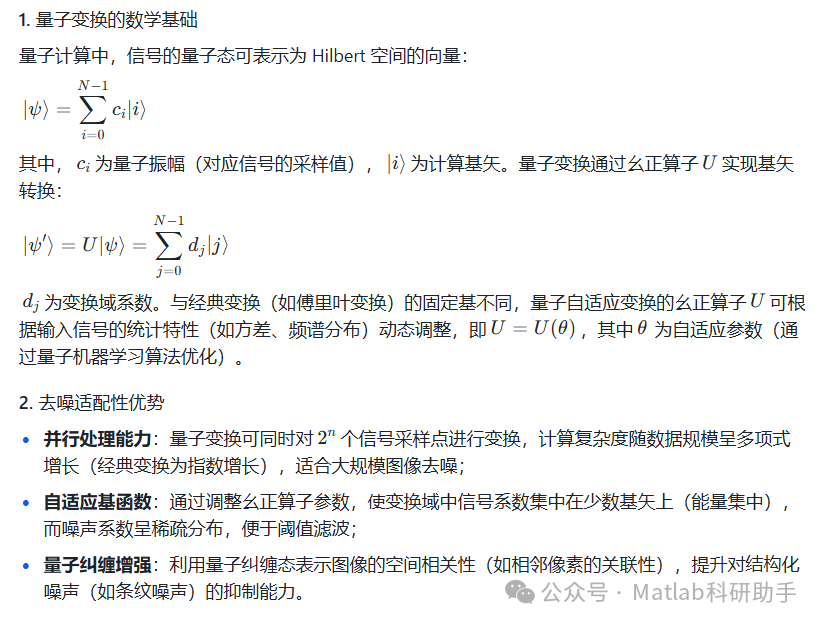

1. Principles of Quantum Adaptive Transform and Denoising Adaptability
The core of Quantum Adaptive Transform is utilizing the superposition and entanglement of quantum states to construct a dynamically adjustable set of basis functions in quantum space that can adaptively match the local features of signals or images (such as edges and textures), thereby achieving sparse representation of noise and compact representation of signals in the transform domain.

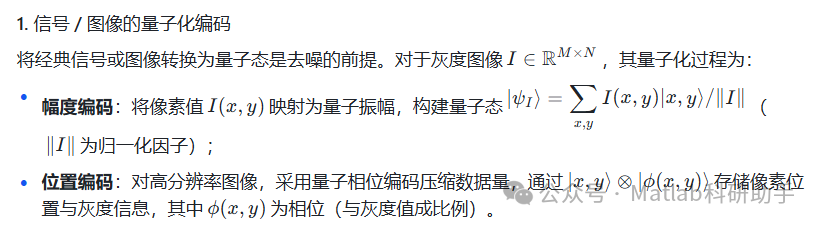

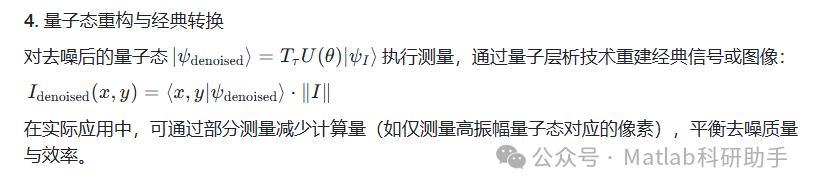

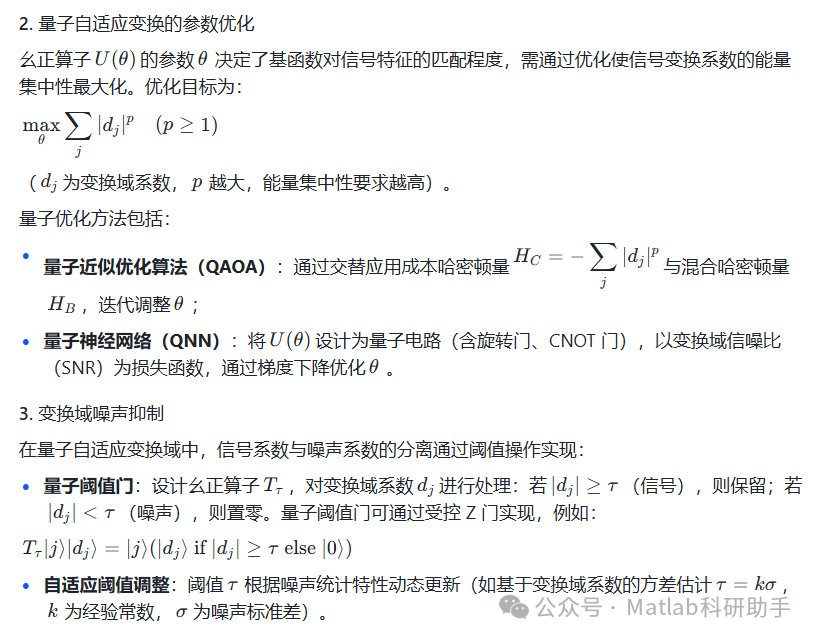

2. Denoising Process Based on Quantum Adaptive Transform
Taking image denoising as an example, the denoising process of Quantum Adaptive Transform can be divided into the following steps, with the core being the combination of “quantum domain noise suppression” and “adaptive parameter optimization”:

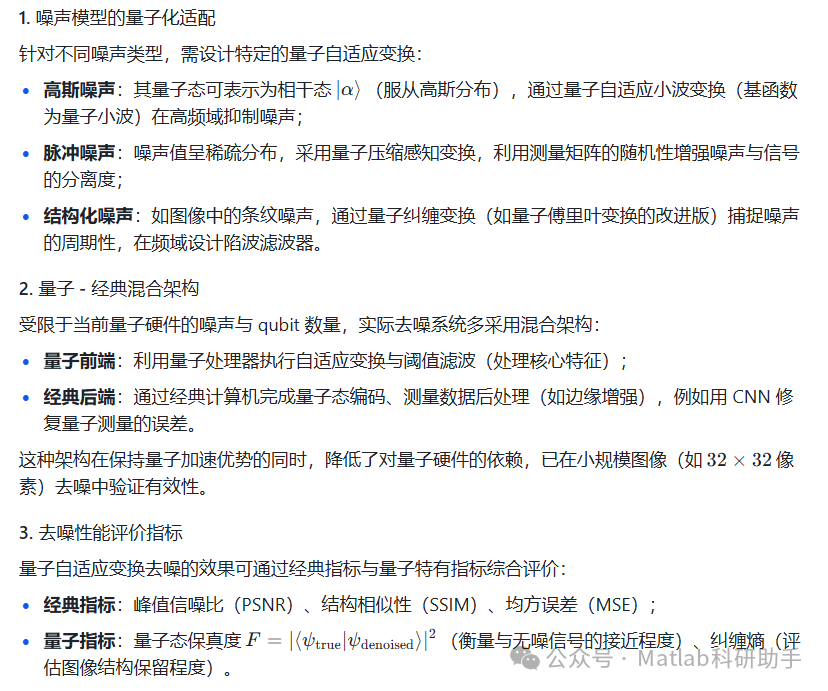

3. Key Technologies and Performance Optimization
4. Challenges and Future Directions
The current core challenges faced by quantum adaptive transform denoising include:
- Quantum Hardware Limitations: The existing NISQ (Noisy Intermediate-Scale Quantum) devices have a limited number of qubits (usually < 100), making it difficult to process high-resolution images (such as
1024×1024
pixels), requiring the development of quantum error correction and modular quantum computing;
- Transformation Design Complexity: The dimension of adaptive parameters
θ
increases with the complexity of the signal, and the convergence speed of quantum optimization algorithms needs to be improved (e.g., by combining reinforcement learning to accelerate parameter search);
- Classical-Quantum Interface Loss: The quantization coding and measurement process of signals introduce errors, necessitating the optimization of coding schemes (e.g., using segmented coding to reduce information loss).
Future research directions include:
- Multi-Scale Quantum Adaptive Transform: Combining quantum fractal theory to construct multi-resolution basis functions, enhancing the ability to preserve image details (such as textures and edges);
- Quantum Transfer Learning: Transferring knowledge from classical denoising tasks (such as BM3D) to quantum models to accelerate the parameter optimization of quantum adaptive transforms;
- Three-Dimensional Image Denoising Expansion: Utilizing Quantum Volume to enhance the processing capability for stereoscopic images or video sequences, capturing dynamic noise characteristics through time-space joint quantum states.
Conclusion
Quantum Adaptive Transform breaks through the bottleneck of classical denoising methods in high-dimensional data processing through the parallelism of quantum computing and dynamic adjustment of basis functions, showing potential advantages in denoising strong noise and high-resolution signals and images. Despite limitations imposed by current quantum hardware, quantum-classical hybrid architectures have paved the way for practical applications. As quantum computing technology matures, Quantum Adaptive Transform is expected to become a core technology for the next generation of signal processing, achieving a leap from “noise suppression” to “intelligent enhancement” in fields such as remote sensing imaging, medical imaging, and communication.

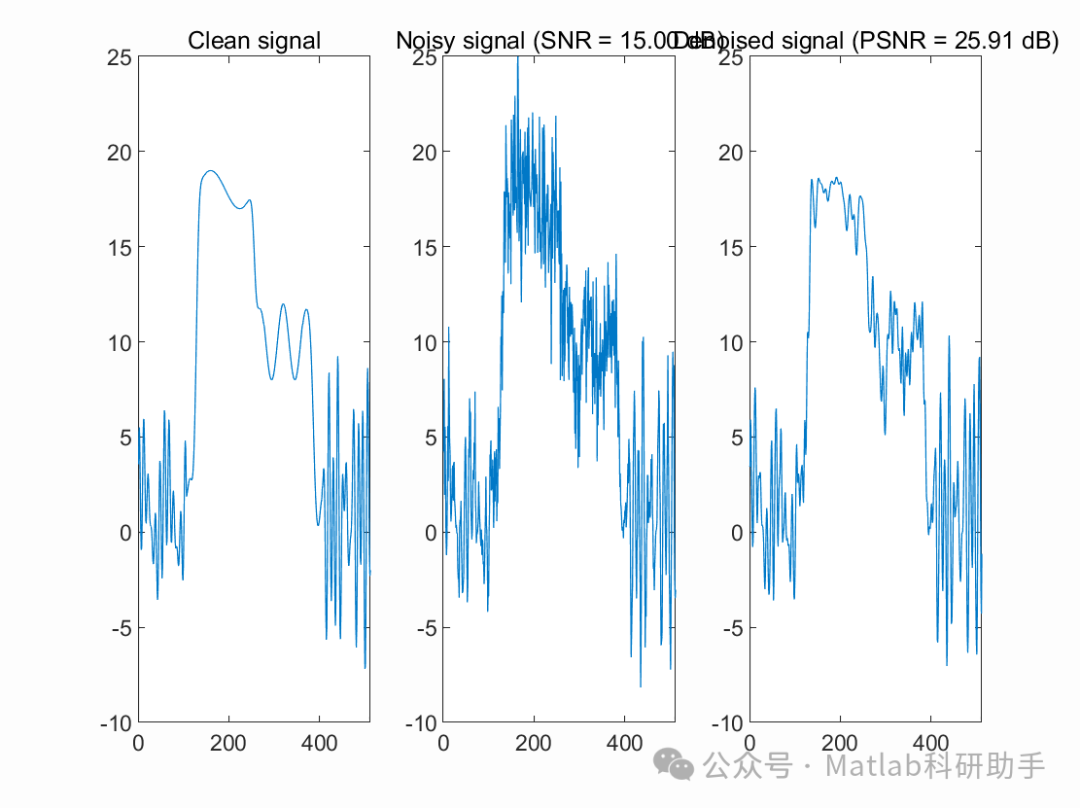

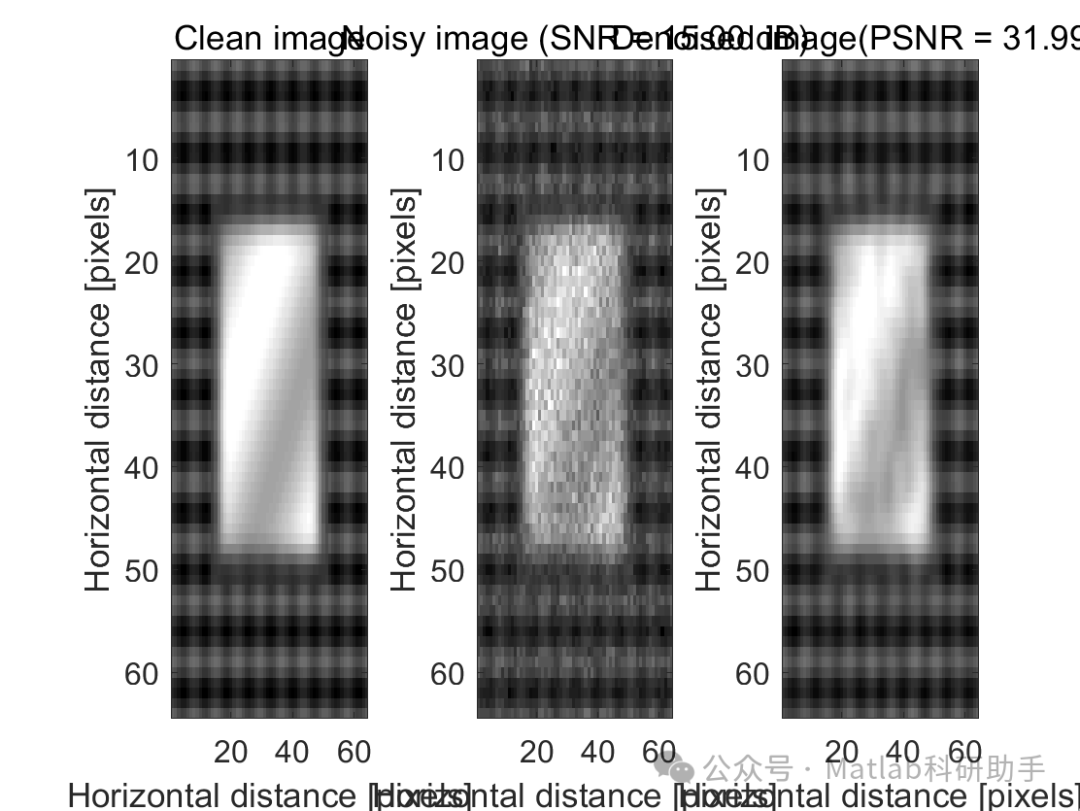

⛳️ Running Results
🔗 References
[1] Li Zhi, Zhang Genyao, Wang Bei, et al. Image Denoising Based on Median Filtering and Wavelet Transform [J]. Modern Electronic Technology, 2014, 37(13):3. DOI:10.3969/j.issn.1004-373X.2014.13.020.
[2] Zhang Yong, Jin Xuebo. Chemical Signal Analysis Based on Image Processing and Wavelet Denoising [J]. Chemical Automation and Instrumentation, 2007, 34(1):5. DOI:10.3969/j.issn.1000-3932.2007.01.016.
[3] Jiang Yuan. Image Denoising of MATLAB Automotive Images Based on Wavelet Transform [J]. Science and Technology Information, 2010(34):2. DOI:10.3969/j.issn.1001-9960.2010.34.468.
