ADAS calibration provides what you need
– Fully collapsible and highly portable –
Professional equipment makes calibration easy
We are professionals in ADAS calibration

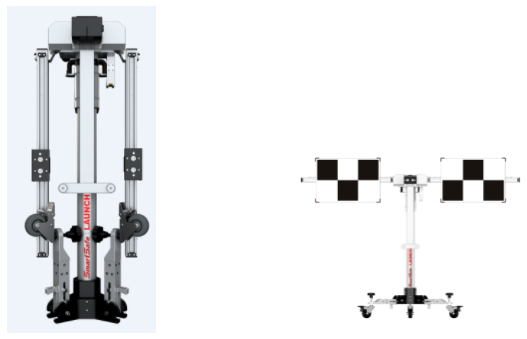

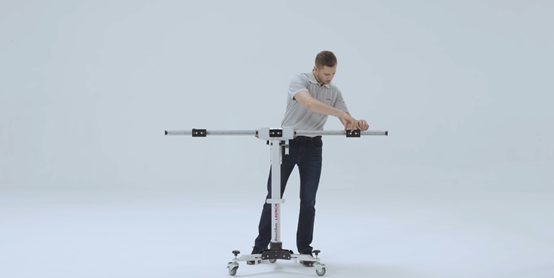

The base and dual arms are foldable for easy transport
The dual arms can be tightly folded back to the sides of the calibration main frame, and even the lifting handle is foldable. The multifunctional base integrates universal wheels, locking and unlocking features, and leveling adjustments to adapt to uneven ground, while the equilateral triangle design ensures frame stability.
With a minimalist design and a “slim” body made entirely of aluminum alloy, it is 67% lighter than the ADAS PRO, making it easy to carry and handle.

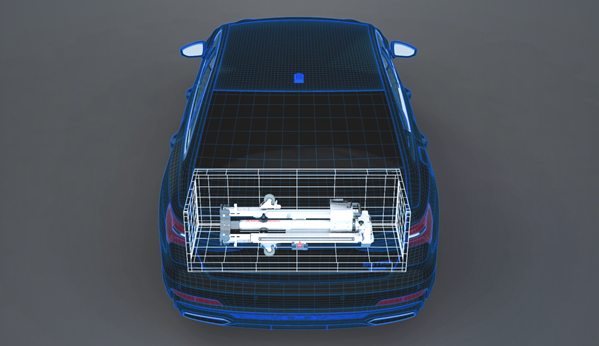

Therefore, compared to some ADAS calibration devices on the market that require assembly, this product is much more portable, can be carried in a vehicle, and is ready to use, meeting outdoor mobile calibration needs without being limited by location, allowing for multi-site service with one device.

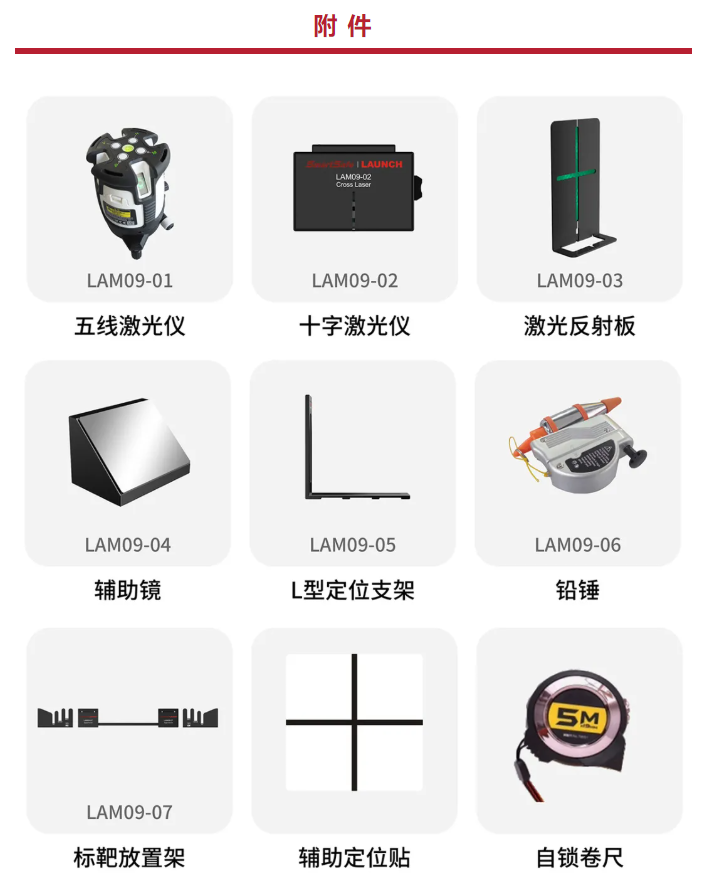

Multiple auxiliary positioning tools ensure high calibration accuracy

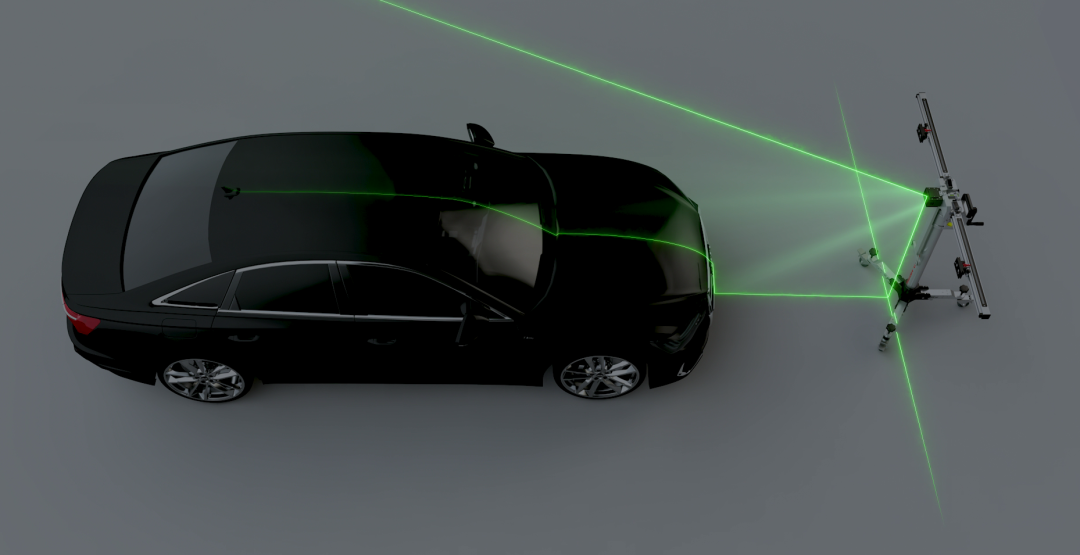

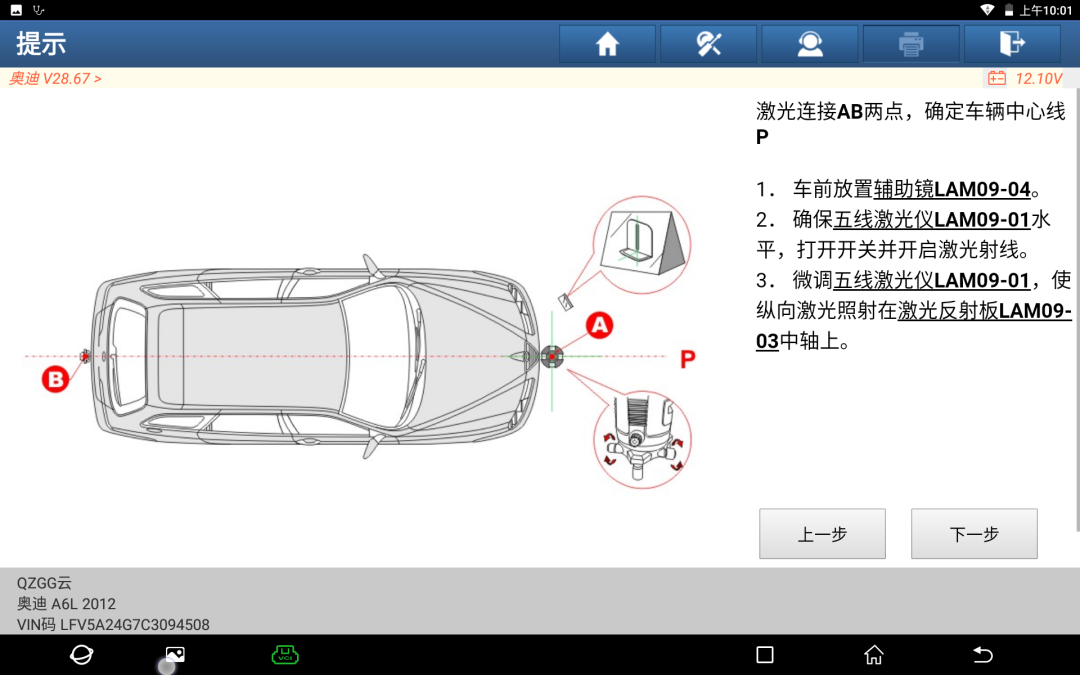

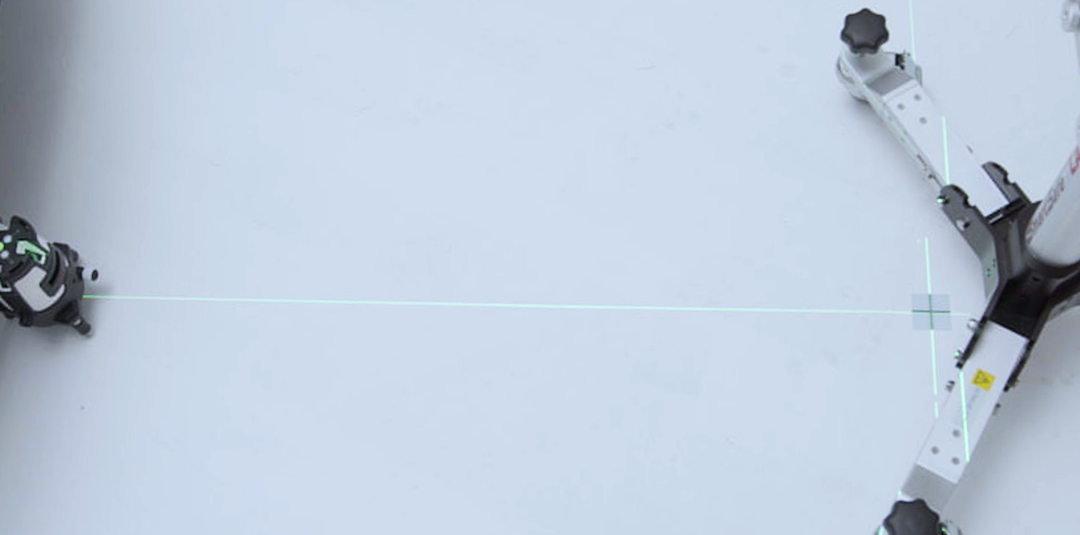

ADAS calibration primarily relies on accuracy and positioning. First, the five-line and cross laser instruments utilize optical collimation principles to align visible laser beams with reference points for precise positioning, ensuring calibration accuracy.

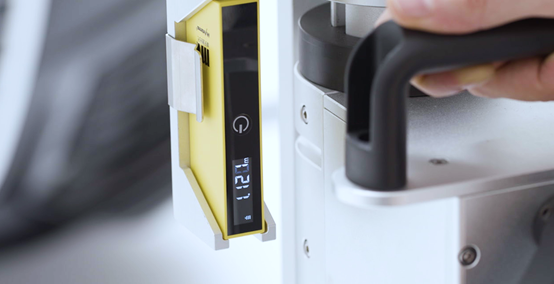

Moreover, the laser instrument can display the height of the crossbar, ensuring it matches the standard value, allowing users to quickly position without needing additional tools.

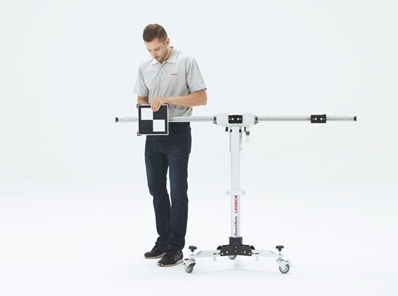

The dual arms of ADAS Mobile not only carry targets but also serve as a ruler, ensuring no error in target installation distance.

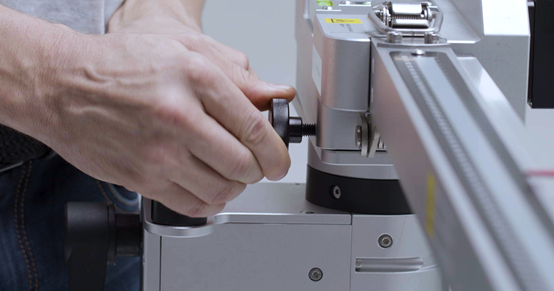

It supports horizontal fine-tuning, adjusting the device’s beam to be parallel with the vehicle for easy alignment.
With various positioning aids, ADAS Mobile not only ensures the accuracy of ADAS calibration but also lowers the usage threshold, allowing users to quickly master the skills, making it easy for anyone to calibrate. A small “trick”: large targets become small targets

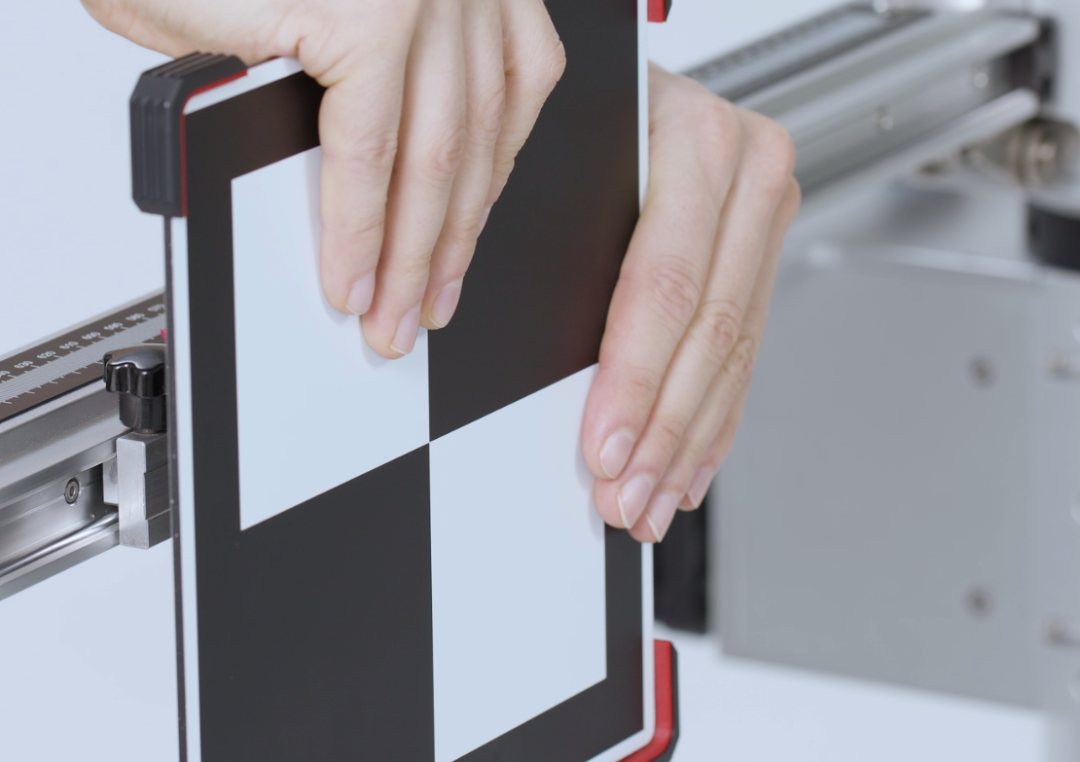

To meet outdoor portability requirements, some targets of ADAS Mobile have undergone a breakthrough design compared to the large targets of ADAS PRO. First, they are smaller, about the size of a tablet, lightweight, and very convenient to carry, taking up little space.

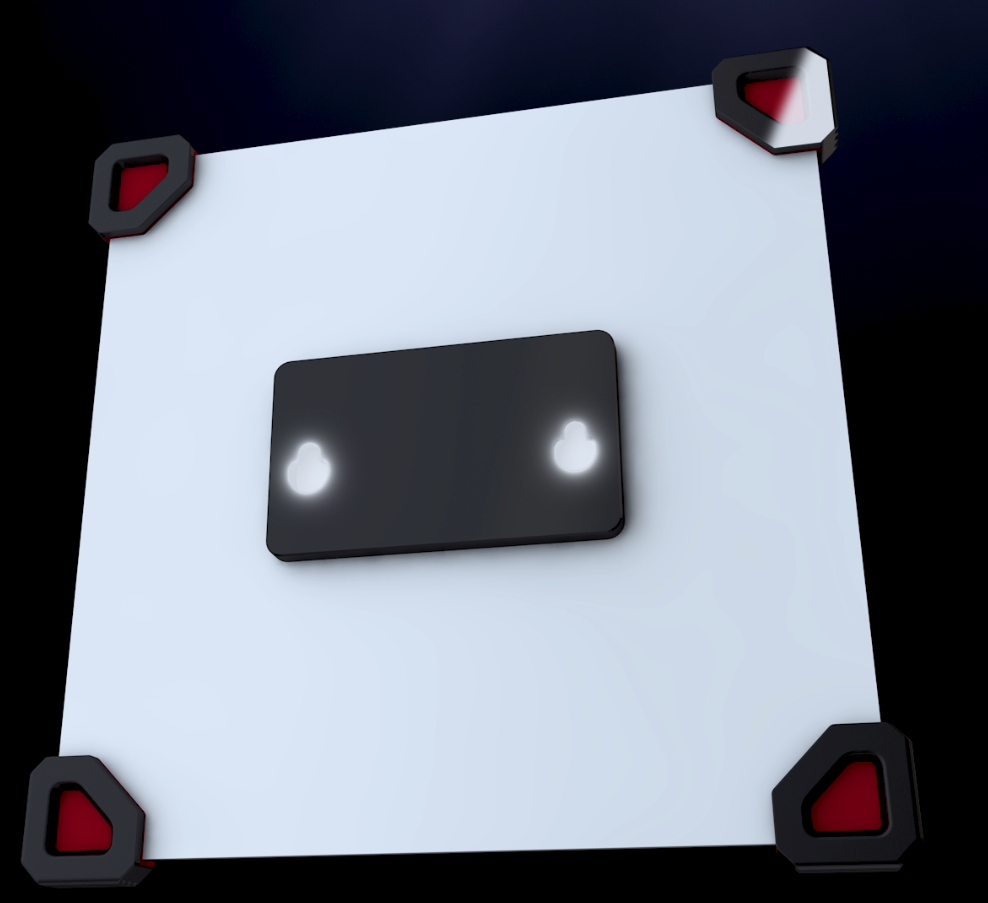

Secondly, the design is anti-collision and anti-drop, with high craftsmanship, fitting the working environment of repair enterprises.
Anti-collision and anti-drop design

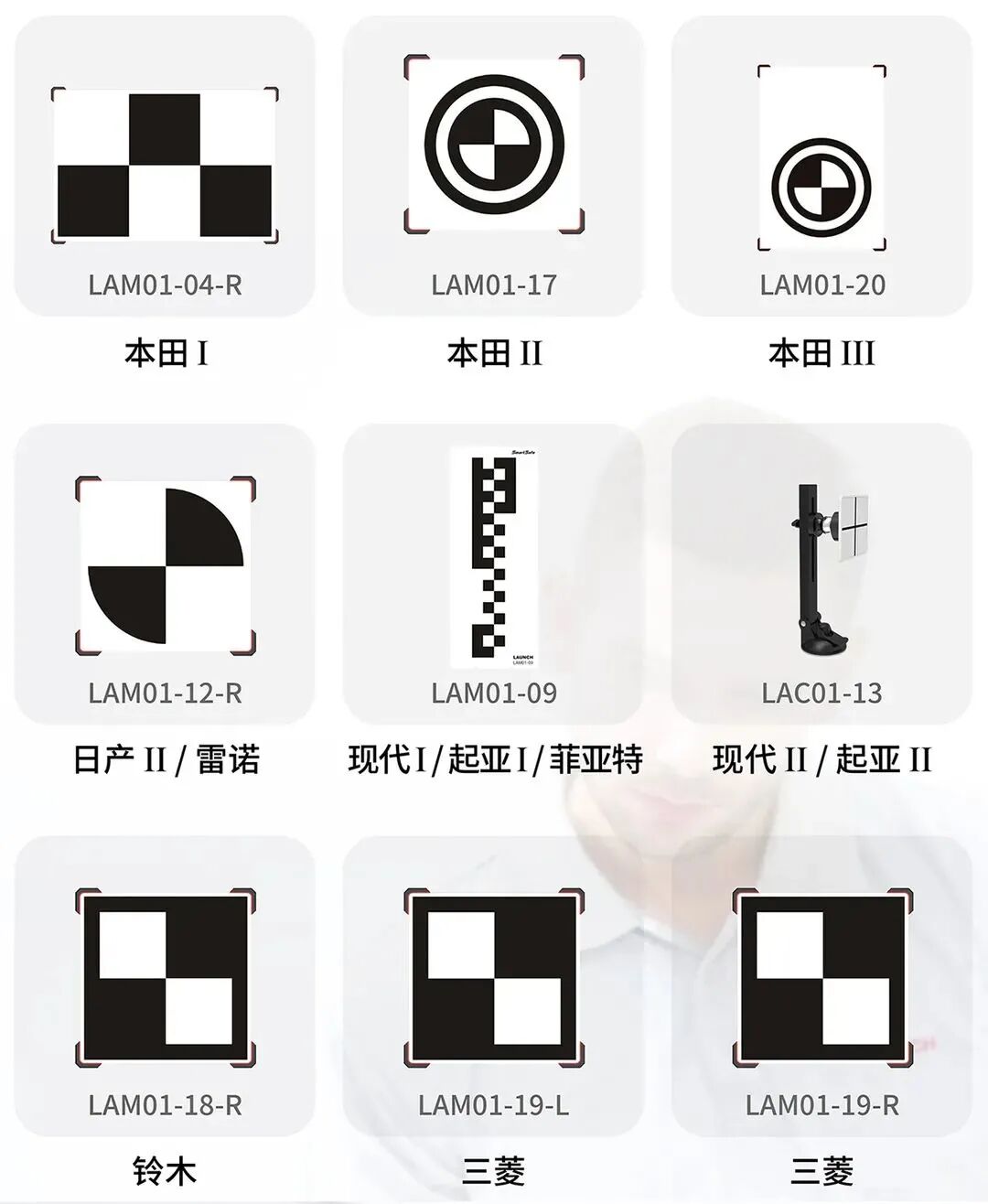

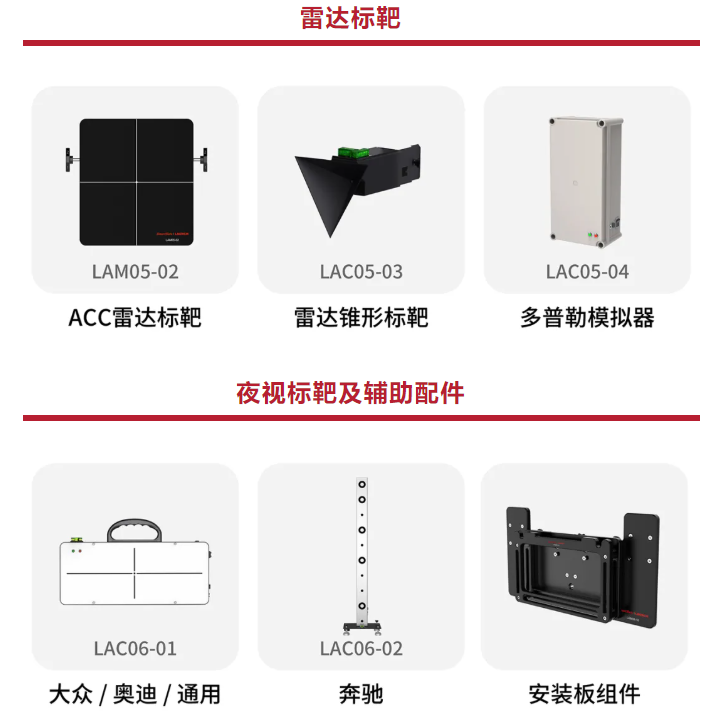

Wide vehicle coverage with rich targets
One-stop calibration service, equipped with over 20 different brand vehicle calibration targets, supporting ADAS function calibration for more than 49 vehicle brands, covering European, American, Asian, and domestic models, with continuous updates.
European models: Mercedes, BMW, Volkswagen, Audi, Land Rover, Jaguar, Porsche, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Peugeot, Alfa Romeo, SMART, MINI, etc.
American models: General Motors, Buick, Cadillac, Chevrolet, Ford, Lincoln, Chrysler, Dodge, Jeep, etc.
Asian models: Toyota, Lexus, Honda, Acura, Nissan, Infiniti, Kia, Hyundai, Mazda, Mitsubishi, Suzuki, Subaru, etc.
Domestic models: Geely, Great Wall, Chery, BYD, etc.
Note: Supported models are continuously increasing.

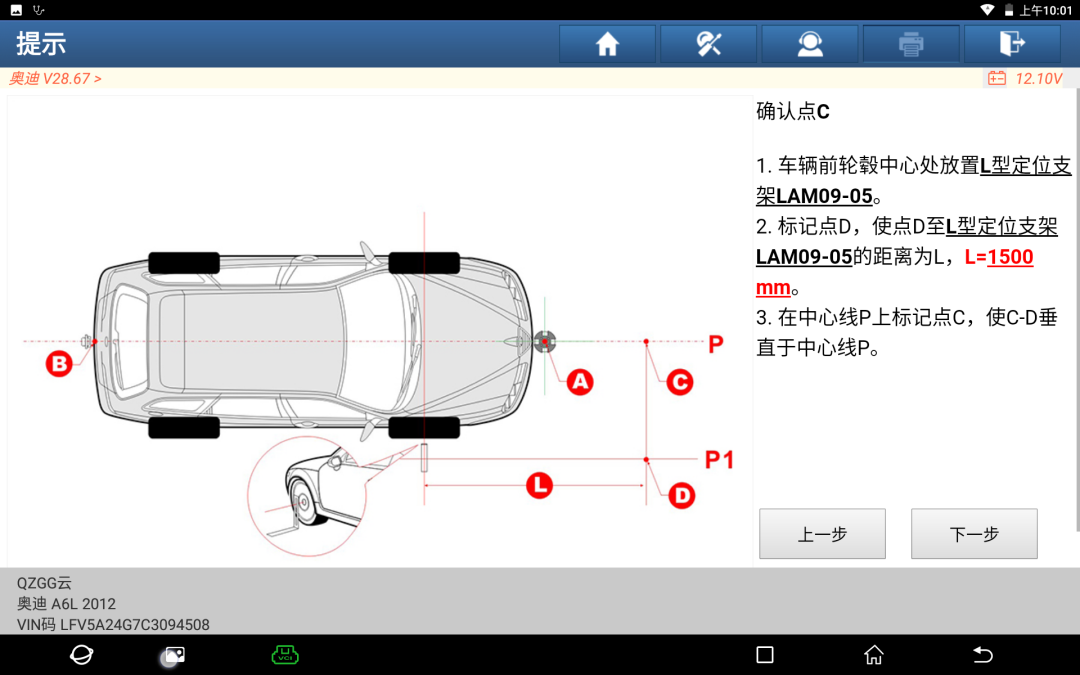

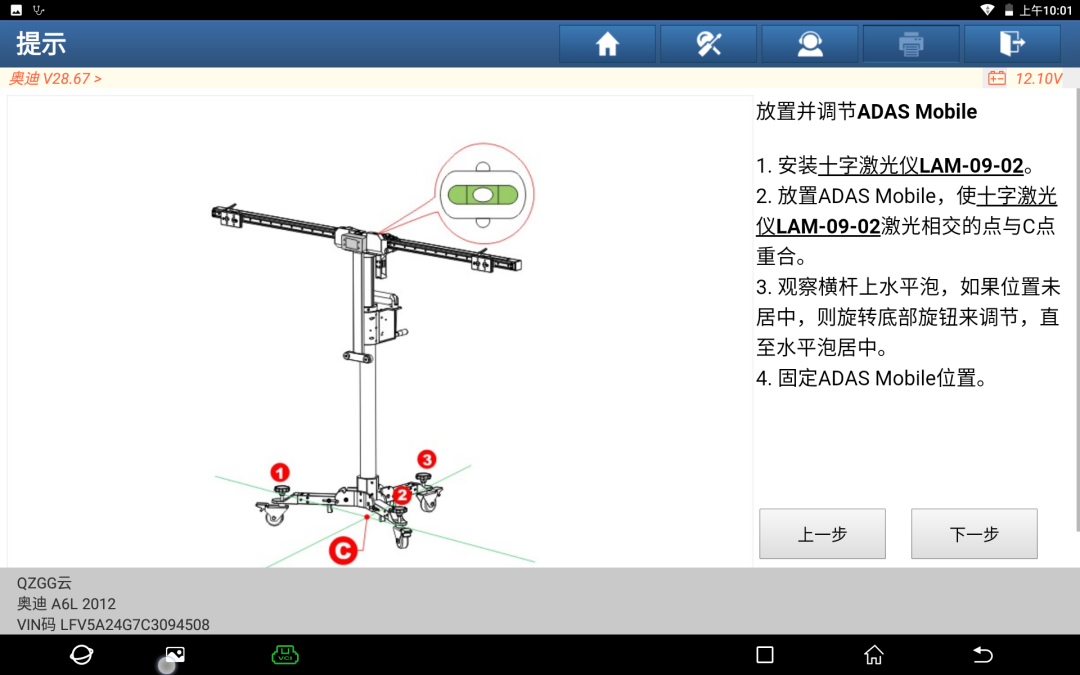

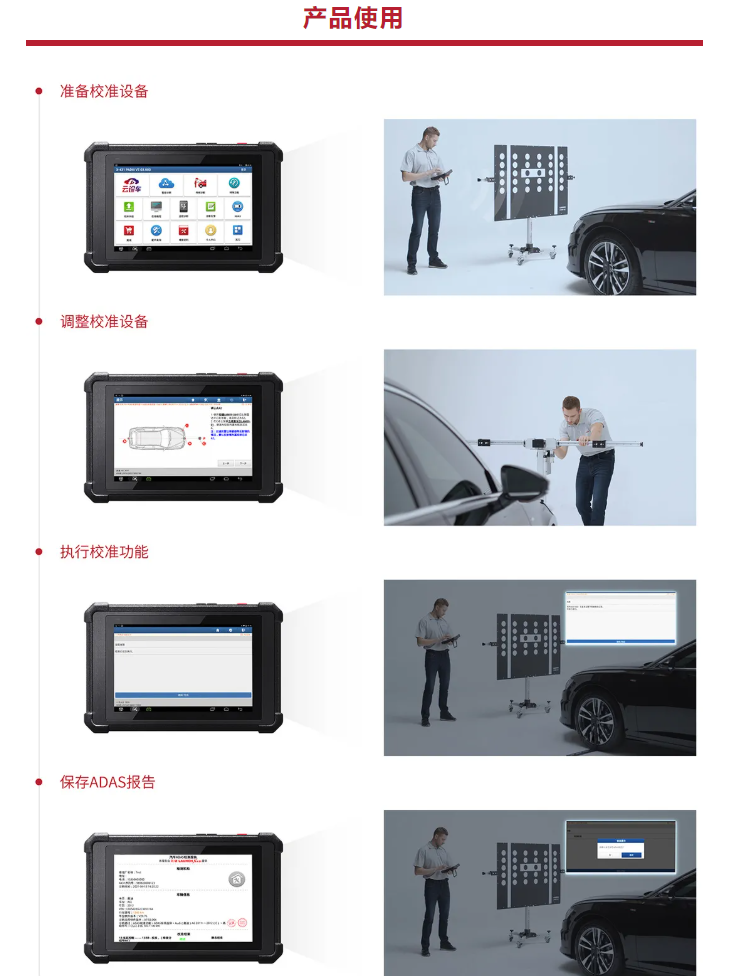

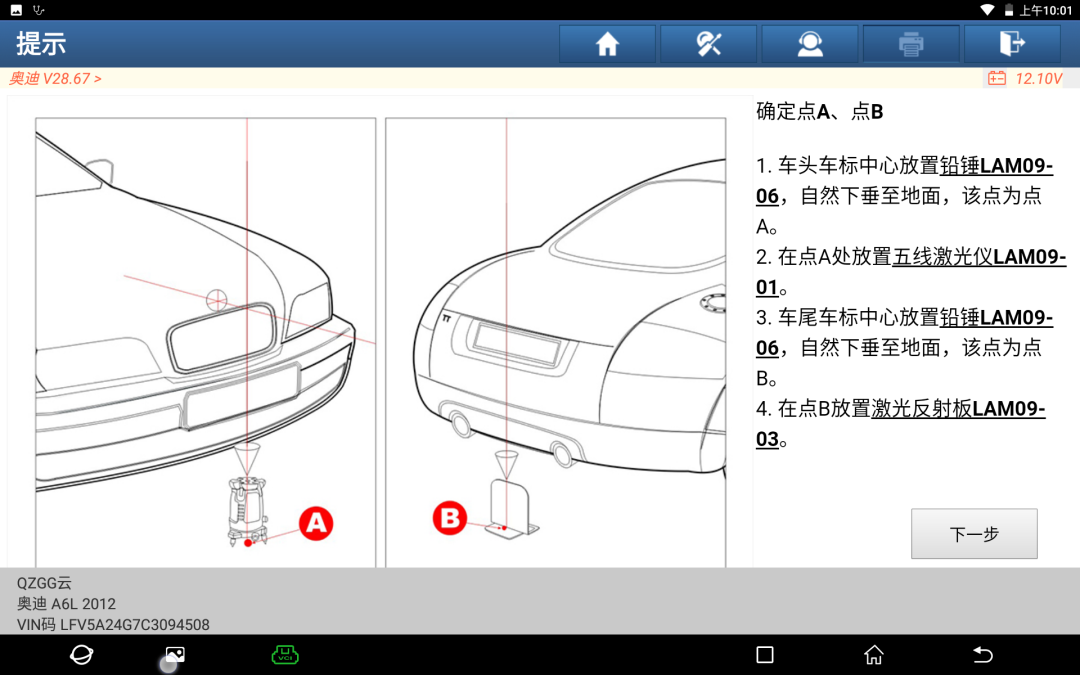

Providing detailed operation steps and illustrations for a good user experience

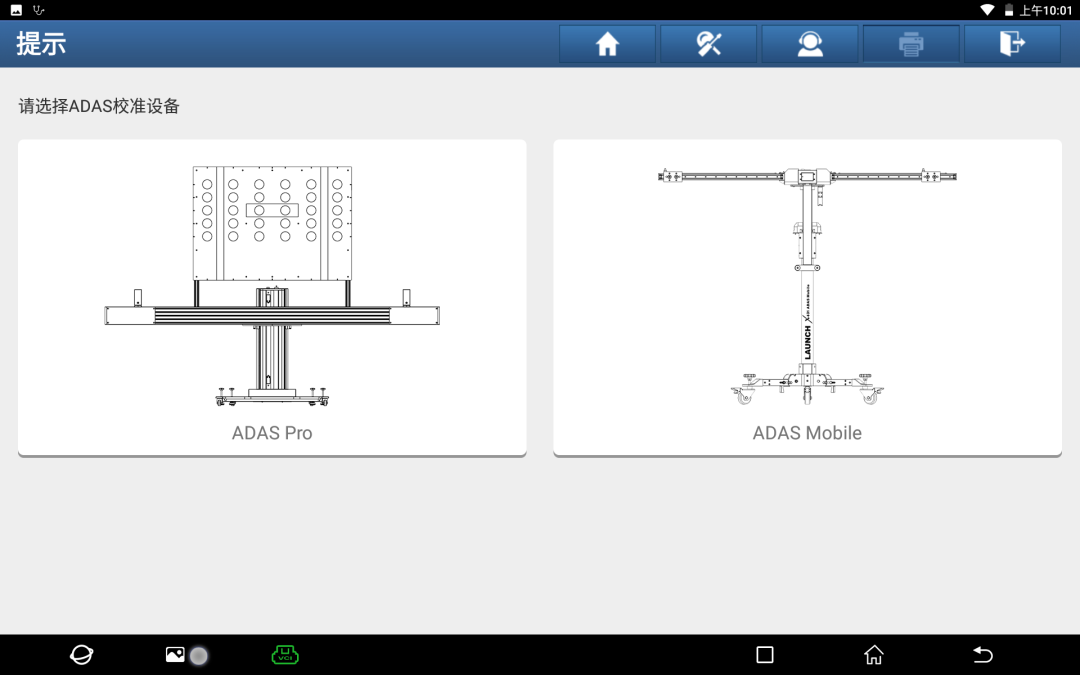

ADAS Mobile is compatible with diagnostic devices including PAD III, PAD V, PRO5, which contain graphical operation guides for easy calibration work, and require no installation; it can be used immediately upon unfolding, allowing for single-person operation.

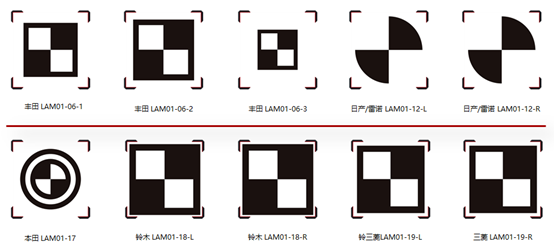

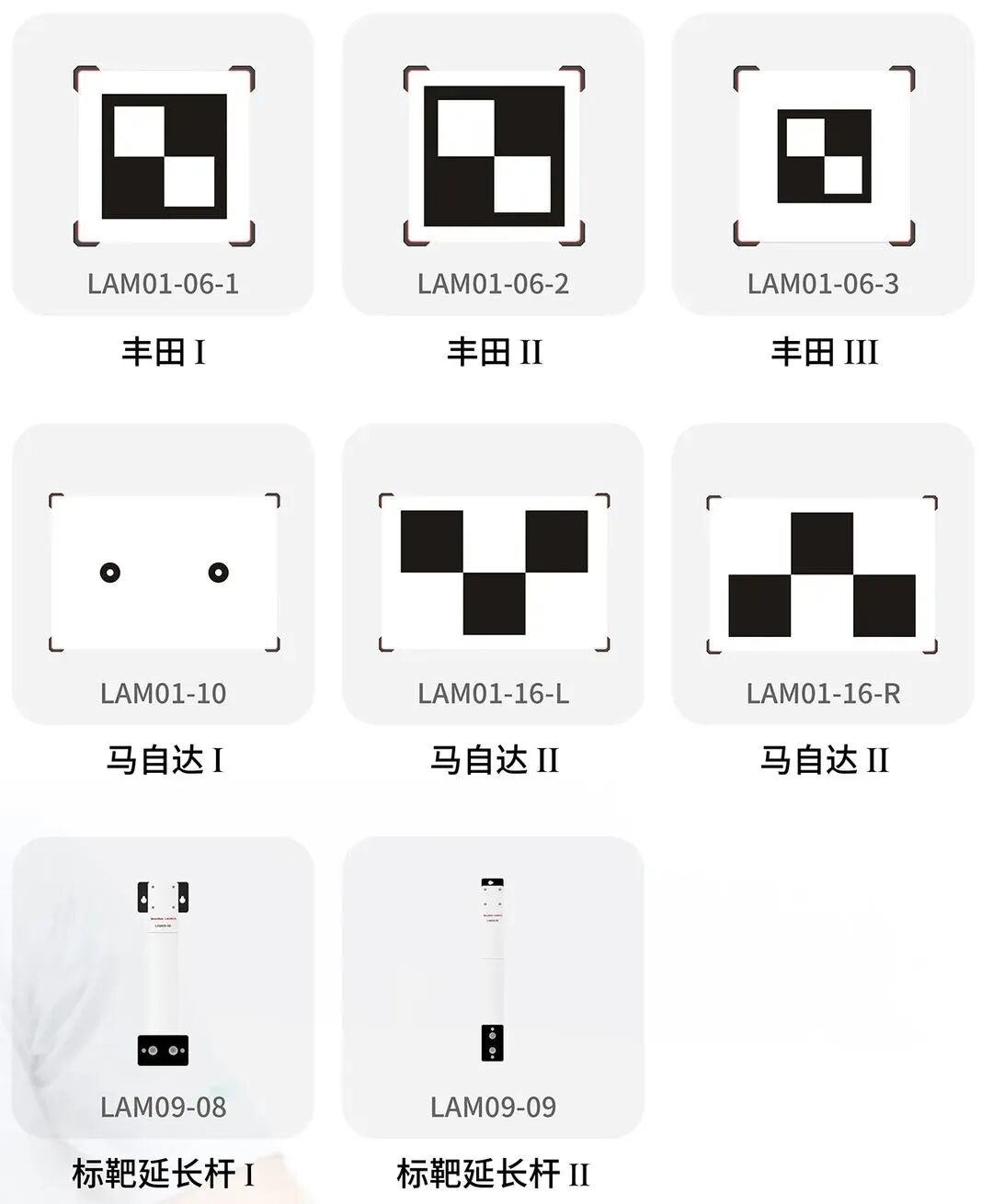

Front camera target
Text description
Text description
Swipe left or right to see more

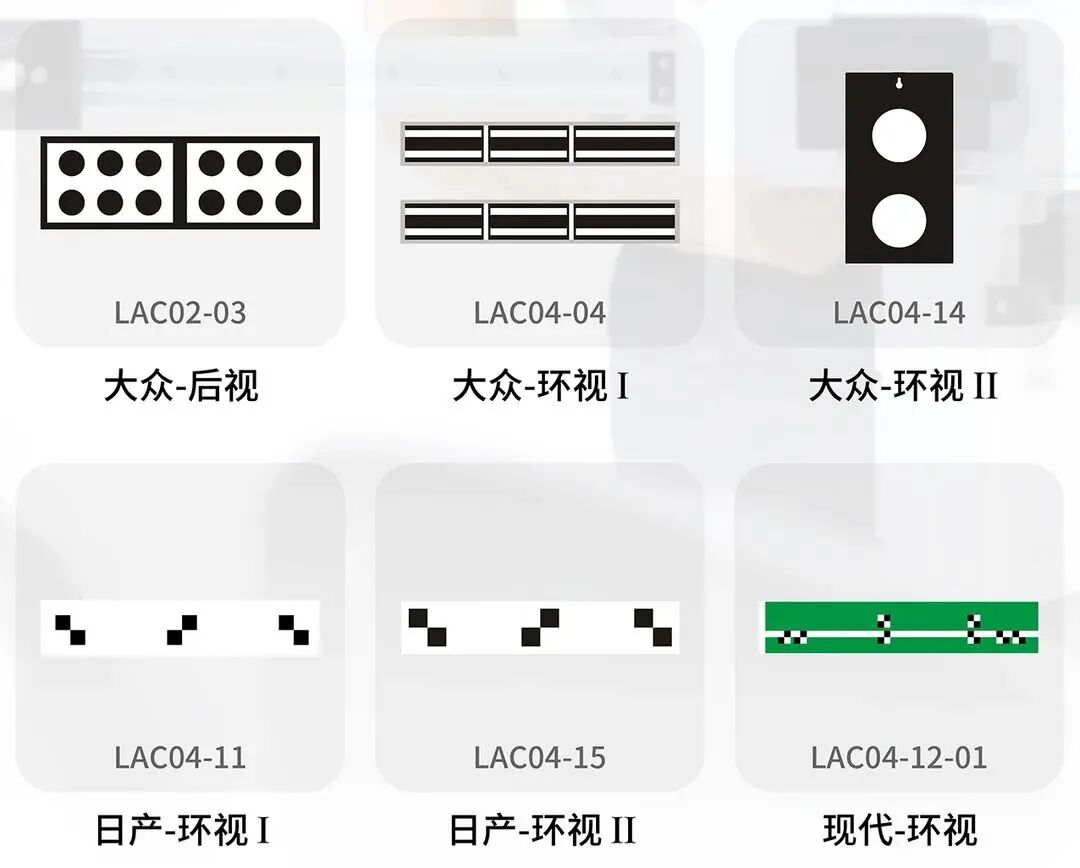

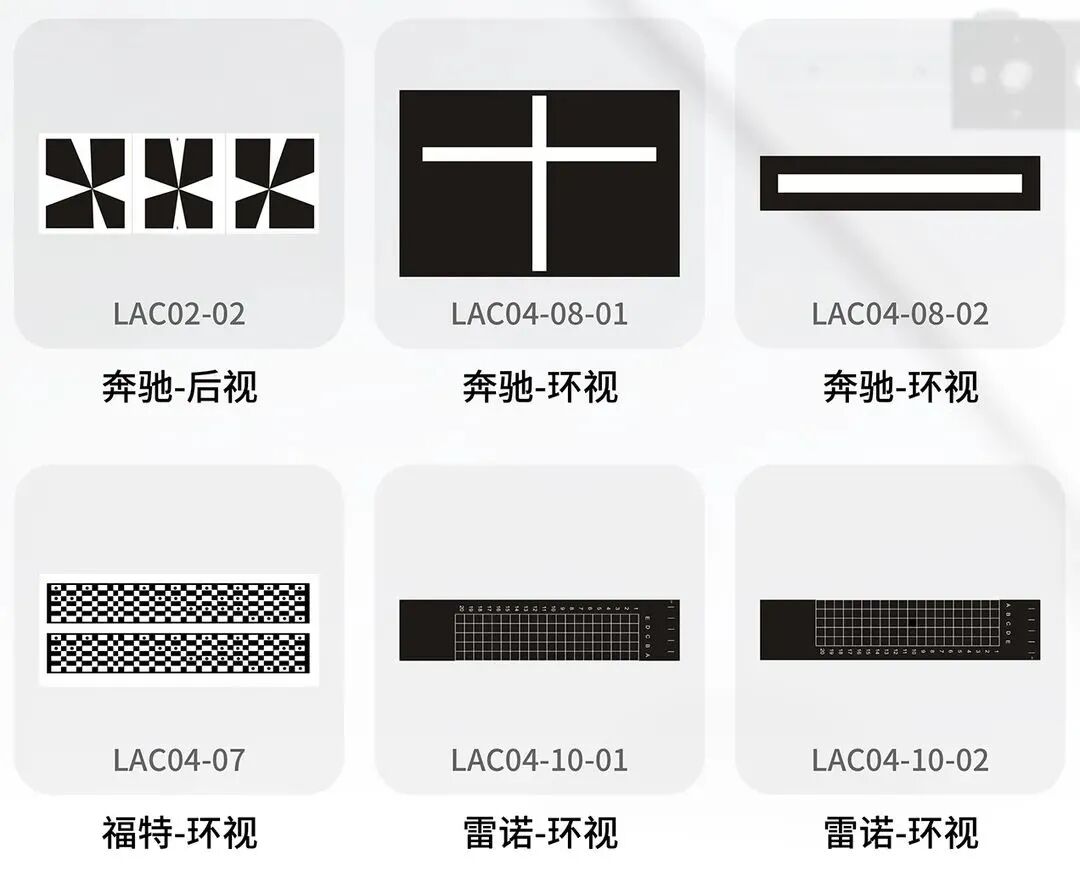

Rear and surround camera targets
Text description
Text description
Swipe left or right to see more

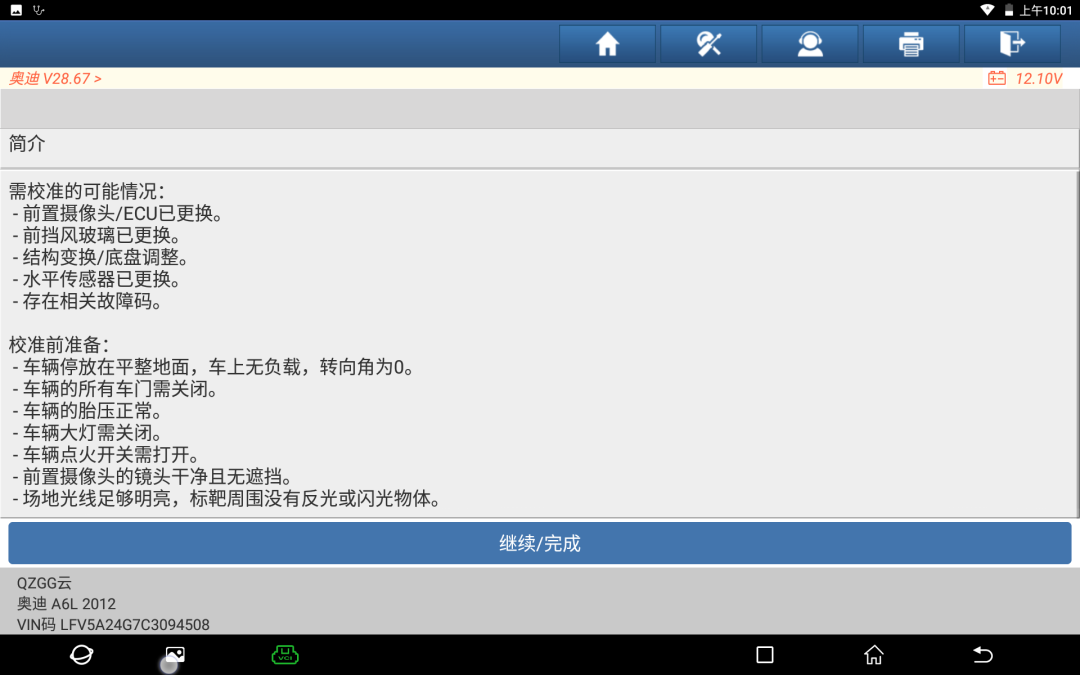

【Usage Tips】What should be noted before performing calibration on the vehicle?
Before using the calibration tool to execute the calibration steps, please ensure the following conditions:
1. The vehicle’s sensor area must not be damaged.
2. The bracket holding the sensor must not be deformed.
3. Check the tire air pressure and correct it to the recommended value if necessary.
4. Engage the parking brake and close the doors.
5. Ensure that the vehicle’s coolant and oil are within the recommended range and fill the fuel tank. The vehicle should not carry any items (passengers or cargo).
6. Connect the VCI to the vehicle, ensuring that there are no fault codes in systems other than ADAS-related systems.
7. Follow the device’s step-by-step guide to use the correct targets and their distance parameters.
8. During the adjustment process, do not support anything on the vehicle.
How do I obtain ADAS software?
The vehicle model software can be obtained from the upgrade center for the latest software version. After entering the ADAS module on the main interface and binding the activation, you can access all ADAS functions and detailed operation guides.
What if my vehicle is not level during calibration?
The ADAS device and the vehicle must be on the same horizontal plane, with a deviation of no more than ±5°. If the calibration environment is uneven, the bottom wheels of the ADAS Mobile device are equipped with leveling adjustment knobs and have a long adjustment range. By rotating the calibration main frame’s wheel knob, you can compensate for some unevenness in the ground.
Do I need to assemble the ADAS Mobile device before use?
No, the ADAS Mobile features an integrated folding design. After receiving the device, simply take it out of the packaging and unfold it for immediate use, with no assembly required.
Do I need training before operating the ADAS Mobile device?
No. The device has warning labels on parts that may cause injury to operators or damage to the equipment, helping you quickly understand which situations may damage the device. The diagnostic software will guide you step-by-step on how to place the product and which targets to use. However, as ADAS Mobile is a precision professional device, it is recommended that you carefully read the user manual before use to avoid injury or damage to the equipment.
How do I activate ADAS functions?
After obtaining the ADAS activation card, click on the ADAS module on the diagnostic device’s main interface. If your current device serial number is not activated, the activation interface will be displayed. After entering your activation code, click activate to start using ADAS-related functions.
How do I know which target to use for the current vehicle model?
1. During your calibration process, the software will provide detailed prompts regarding calibration parameters, including target numbers, distances, heights, etc. Based on the software prompts, you will know which target to use and how to operate.
2. We provide ADAS measurable vehicle query support. By selecting calibration vehicle information (brand, model, year), you can clearly see which systems can be calibrated for that model and which targets are used for calibrating that system.
Can I purchase individual targets or accessories later?
Yes. Existing targets, accessories, components, and newly launched targets can all be purchased separately. Please consult your local dealer for specific sales policies.
