DS-WIFI Remote Wireless Data Acquisition
The DS-WIFI device is a Wi-Fi modem used for remote wireless data transmission between our data acquisition systems. It is ideal for testing mobile objects and remote measurement applications.
Main Features
-
Remote: The DS-WIFI4 has high output power, providing a longer data transmission range of up to 2 kilometers in open environments.
-
Perfect Size: Due to the compact size of the wireless modem, it can be placed anywhere on vehicles, motorcycles, or any other objects.
-
Sturdy, Reliable, Waterproof: The modem and antenna are housed in a robust, waterproof industrial-grade metal casing.
-
2.4/5 GHz Software Optional, AC Support: The Gigabit Ethernet port supports 2.4 GHz, 5 GHz, and all traditional wireless modes with channels up to 80 MHz wide—802.11 b/g/n for 2.4 GHz/802.11 a/n/ac for 5 GHz.
-
Includes Installation Accessories: The DS-WIFI kit includes all installation and wiring accessories needed to connect to the data acquisition system.
Wireless Data Acquisition
The new DS-WIFI4 Wi-Fi modem is used for wireless data transmission between data acquisition systems during testing and for remote measurement applications.
Compared to wired connections, Wi-Fi data acquisition offers freedom and flexibility in remote data collection, analysis, and control. It is typically used for mobile vehicles to transmit data to a base station, allowing for precise adjustments based on remote real-time track data that would otherwise only be analyzed.
The wireless transmission distance can reach up to 2 kilometers within line of sight, with optional 2.4GHz and 5GHz dual-band frequencies.

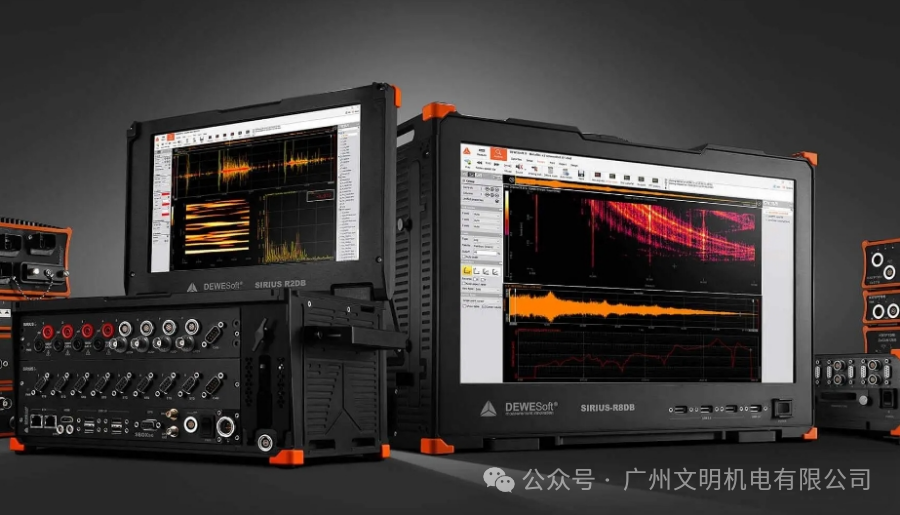

Compatible with All Dewesoft Data Acquisition Systems
The DS-WIFI can be used with any Dewesoft data acquisition system that requires remote data transmission from or to a remote location. The DS-WIFI requires a PC to operate. It can be used with the following:
Modular Dewesoft data acquisition systems connected to a standard PC or our own industrial-grade rugged SBOX or KRYPTON CPU computers.
Data acquisition systems with integrated computers, such as MINITAURs, SIRIUS modules R1DB, R2DB, R3, R4, or R8.
Then connect, control multiple computers, and multiple running DewesoftX software instances, communicating via Dewesoft NET.
Application Fields
Wireless data transmission can be used when at least two data acquisition devices need to share data wirelessly or need to control each other.
Such applications can be found in the automotive, marine, and aerospace fields, which often require wireless data transmission from target vehicles to base stations or between two moving vehicles.
It is also frequently used in industrial and manufacturing applications to control measurements or perform remote measurement analysis.

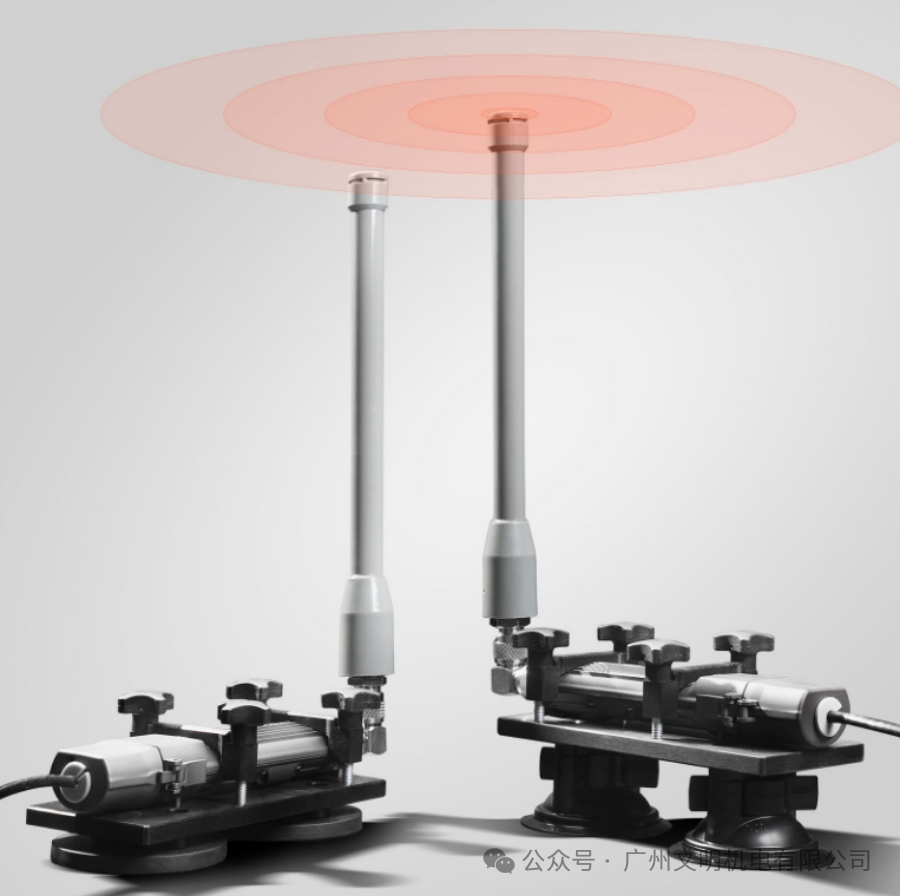

Excellent Range and Speed

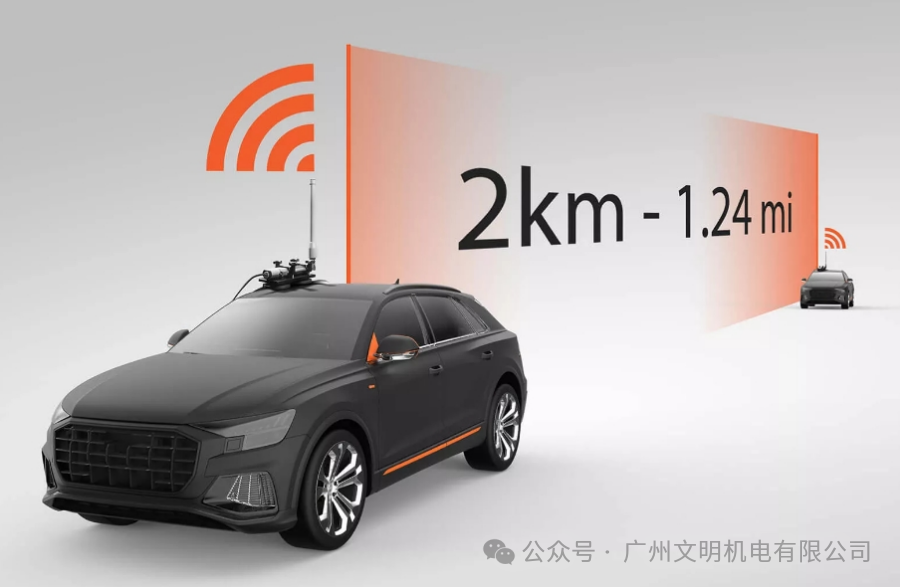

The DS-WIFI has a long wireless range, reaching up to 2 kilometers in open environments. In closed or obstructed environments, range and speed may be limited.

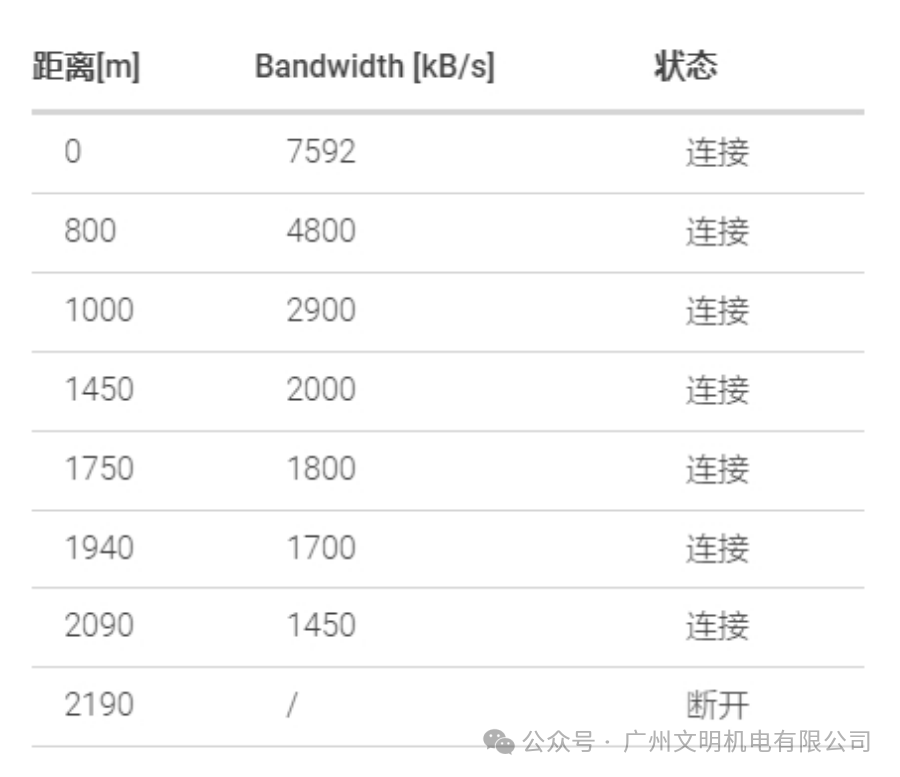

Dewesoft range and speed test data:

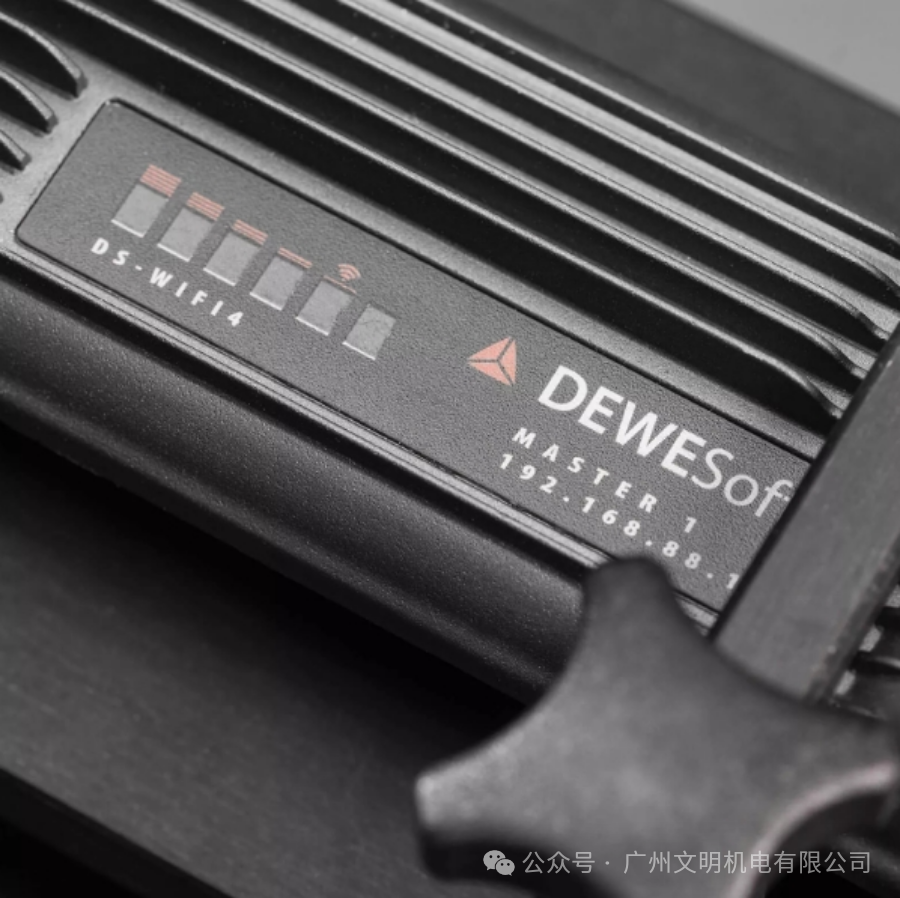

Sturdy and Reliable
The DS-WIFI features a robust metal casing that is fully sealed and completely waterproof. This makes it very suitable for outdoor testing and easy to use in rainy and dusty environments.
The DS-WIFI wireless modem operates within a temperature range of -40°C to 70°C.

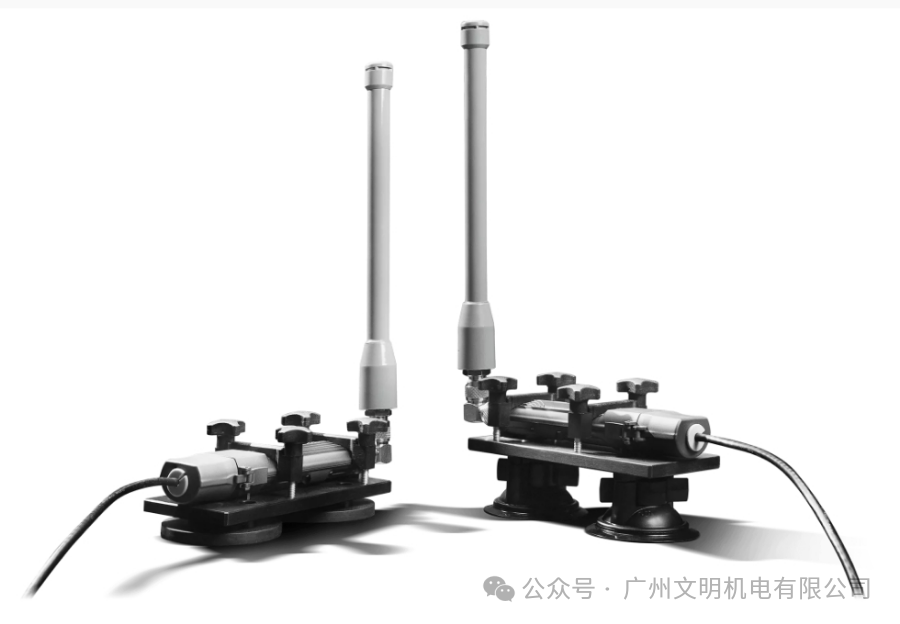

Compact and Easy to Place

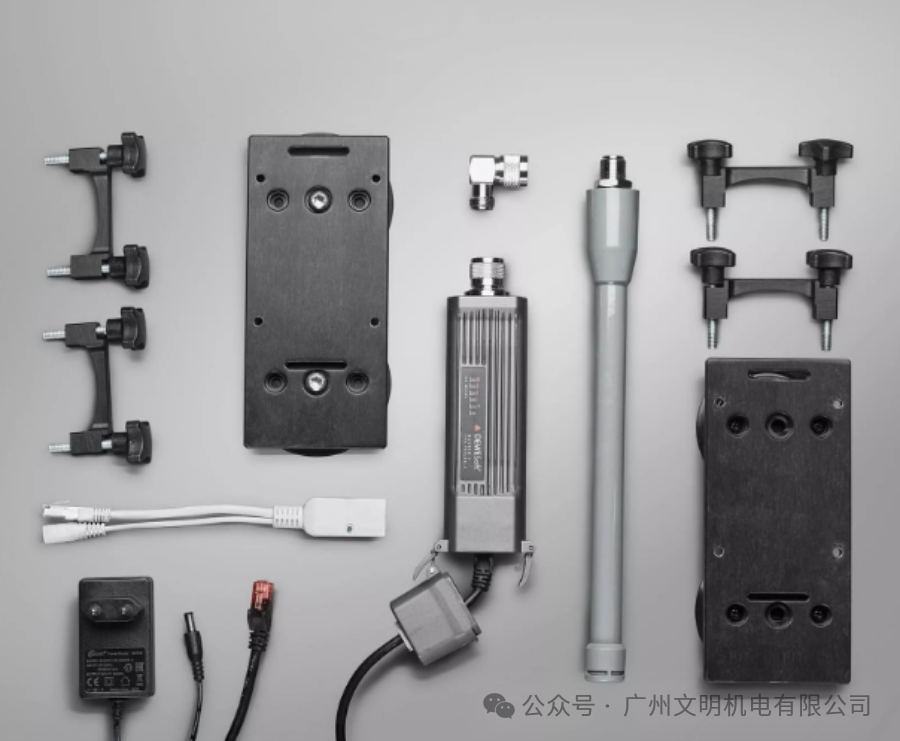

Smaller and more compact, it can be easily placed anywhere on vehicles, motorcycles, or any other objects. The DS-WIFI installation package includes installation accessories to help you mount it on objects. Here is what is included in the package:
-
2x DS-WIFI4 Modems
-
2x Magnetic Bases
-
2x Suction Cup Mounts
-
2x POE Injectors
-
2x Dewesoft Daisy Chain Cables (for powering Sirius)
-
2x Power Supplies (with adapters for different power sockets)
-
2x Antennas
-
2x Right Angle Antenna Mounts
-
2x Ethernet Cables
