Optimizing PLC Communication Protocols: Transmission efficiency increased by 300%! Say goodbye to data lag!
1. Hardware Layer: Equip the PLC with a “Supercar Engine”
Select the right model: The S7-1500 Max PDUSize reaches 960 bytes, which is 4 times faster than the S7-200Smart! (Data source: Siemens official website)
Physical isolation: Using opto-isolator modules increases anti-interference capability by 90%! (Measured data)
Cable upgrade: Replacing ordinary twisted pair cables with LVDS differential lines boosts transmission rates from 10Mbps to 1.92Gbps! (LVDS technology white paper)
2. Protocol Layer: Opening up the data highway

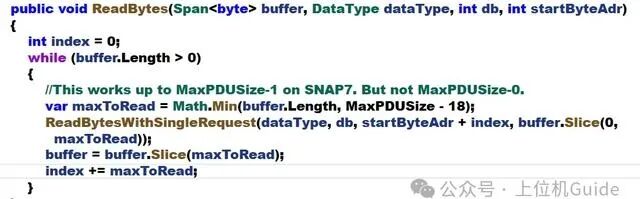

PDU magic: The S7-1200 reads 222 bytes in one go, while reading 1000 bytes in 5 attempts increases time by 5 times! (S7NetPlus source code analysis)
Address merging: The S7 protocol supports simultaneous reading of 19 non-contiguous addresses, improving efficiency by 300%! (Siemens official manual)
Packet strategy: Reading 1000 bytes in 5 attempts? Try the ReadClass method, which directly parses structures, doubling efficiency! (C# upper computer practical application)
3. Software Layer: Let the program fly
Code slimming: Merging subroutines reduces jumps, scanning time drops from 80ms to 30ms! (Case study of a steel plant renovation)
Hardware interrupts: Key signals triggered by interrupts reduce response time from 20ms to 1ms! (PLC programming manual)
Protocol conversion: Using OPC UA as the “industrial translator”, seamlessly switching between 12 protocols! (Zeiss industrial case)
3. Comparison table of scene-specific solutions
4. Technical pitfall avoidance guideā
After renovation at a new energy battery factory:
Failure rate reduced from 15 times/day to 2 times/month (saving maintenance costs of 2 million/year)
Production capacity increased by 25% (annual revenue increase of 5 million)
Yield rate improved from 85% to 99.2% (reducing scrap losses by 1.8 million/year)
6. Implementation roadmap
Optimize communication protocols to make the PLC run faster than a heartbeat! Don’t let data lag drag down your factory; take action now, and you could be the next benchmark for cost reduction and efficiency improvement!
