One Minute, One Diagram: Mastering TCP/IP

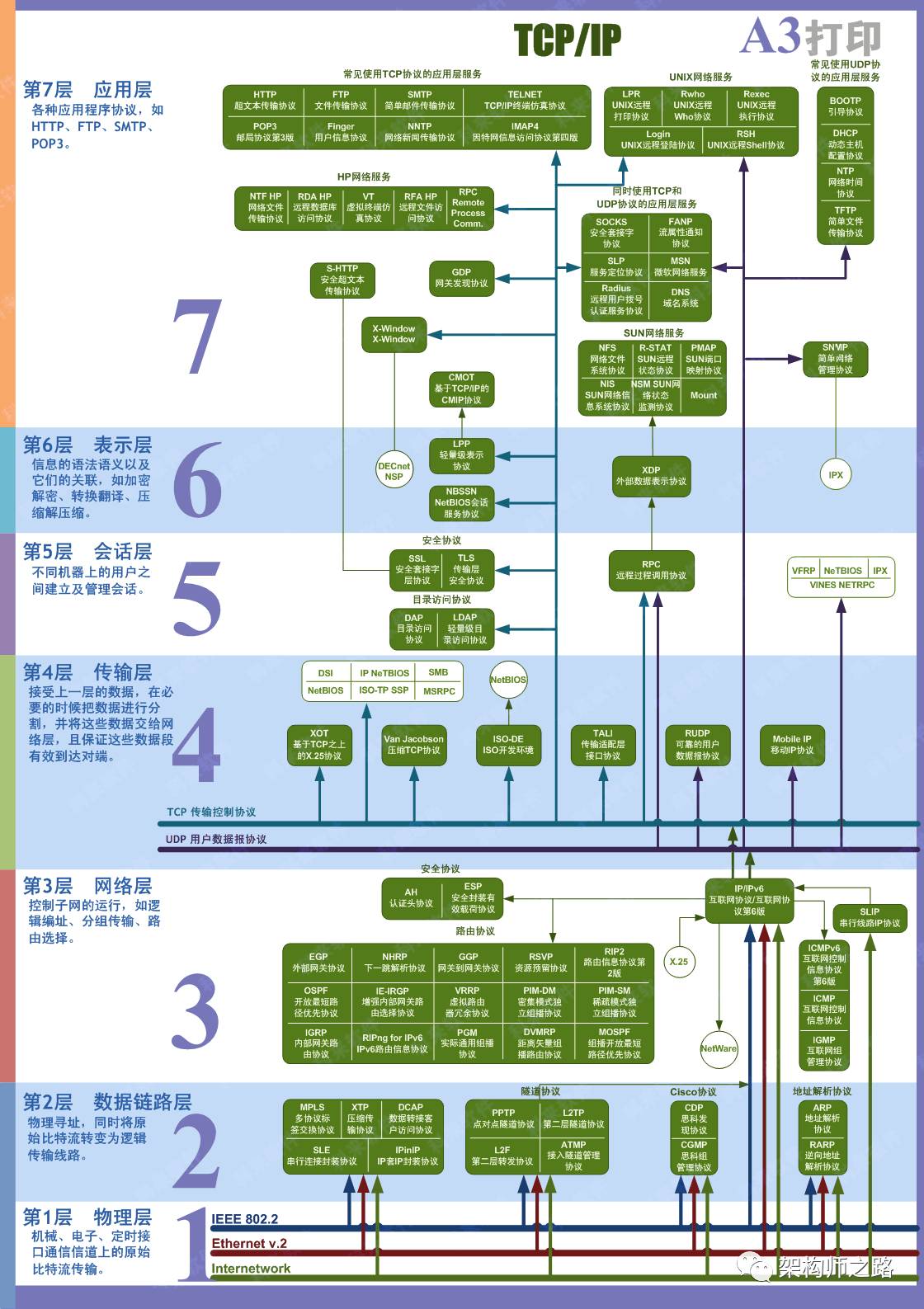

One Minute, One Diagram: Mastering TCP/IPHigh-definition image, sourced from the internet. Suggestions:

1) View on PC

2) If viewing on mobile, please click the image to zoom

Application Layer, Presentation Layer, Session Layer: HTTP, FTP, SMTP, POP3, encryption and decryption, compression and decompression, session management

Transport Layer: TCP, UDP, ensuring data segments arrive effectively

Network Layer: IP, ICMP, RIP, packet transmission, routing selection

Data Link Layer: ARP, PPTP, L2TP, physical addressing

Physical Layer: Bitstream transmission
