MediaTek MT6896 Dimensity 8200 utilizes a 4nm process, fully unleashing high performance and energy efficiency advantages, delivering outstanding performance for high-end smartphones.
High performance octa-core CPU architecture, with a Cortex-A78 clock speed of up to 3.1GHz and Mali-G610 GPU accelerates daily applications, making gaming smoother.

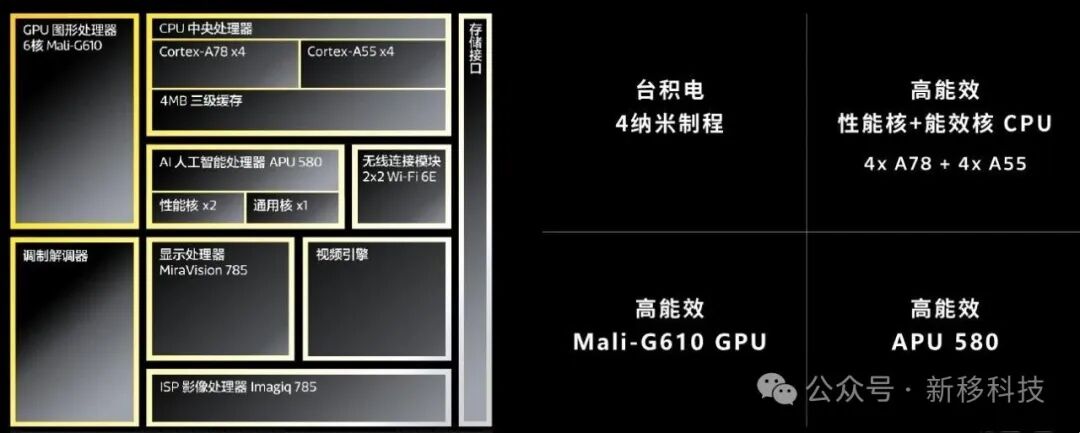

Overview of the main features of the MT6896 Dimensity 8200 platform:
The MT6896 is equipped with a core clocked at 3.1GHz A78, which provides faster computing speeds and lower power consumption, ensuring that mobile devices such as smartphones can run various applications smoothly and stably.
It also features 3 cores clocked at 3.0GHz A78, which further enhance the processor’s computing power, making smartphones more adept at handling multitasking and high-intensity operations like large games.
In addition to its powerful core capabilities, the MT6896 also includes 4 cores clocked at 2.0GHz A55. These cores allow the processor to be more energy-efficient when handling low-intensity tasks, thereby ensuring the battery life of mobile devices.
In terms of graphics processing
the MT6896 is equipped with a Mali-G610 MC6 GPU. This GPU enables smoother performance for high-load graphics tasks such as running high-definition games and video playback.
Whether it’s large games like PUBG or Honor of Kings, or 4K video playback, the MT6896 Dimensity 8200 can handle it effortlessly, providing users with an exceptional visual experience.
In terms of AI the MT6896 Dimensity 8200 also features an APU 580 NPU, which provides efficient performance for artificial intelligence processing. In areas such as voice recognition and image processing, the Dimensity 8200 can deliver quick responses.In terms of network connectivity the MT6896 Dimensity 8200 integrates a 5G modem, supporting 3 frequency bands of Wi-Fi 6E (a/b/g/n/ac/ax) providing higher network transmission rates, with a 2×2 antenna for more stable and higher-performance wireless network connections.
-
Full-band Sub-6GHz 5G network and three-carrier aggregation
-
Bluetooth 5.3
-
MediaTek 5G UltraSave 2.0 power-saving technology
-
Wi-Fi 6E 2×2
Display technology the MT6896 Dimensity 8200 adopts MiraVision 785 adaptive refresh rate technology, which intelligently adjusts the screen refresh rate based on the displayed content, providing a smoother display effect. Equipped with the Imagiq 785 image processor, the 14-bit HDR high-performance ISP provides strong imaging capabilities, supporting simultaneous HDR video capture with three cameras, allowing multiple lenses to capture images at once.
-
Supports 120Hz WQHD+, or 180Hz FHD+
-
Supports 4K AV1 video decoding
-
Supports 320MP main camera
-
Supports 4K HDR video recording, or FHD 30FPS recording, and AI noise reduction
For comparison:
|
Dimensity 8200 |
Snapdragon 888 | Apple A13 | |
| Process |
TSMC N4 |
Samsung 5nm LPE |
TSMC N7P |
| Big Core |
1x A78 (3.1GHz) |
1x Cortex-X1(2.84GHz) | 2x performance cores (2.65GHz) |
| Large Core | 3x A78(3.0GHz) | 3x Cortex-A78 (2.42GHz) | 4x efficiency cores (1.8GHz) |
| Small Core | 4x A55(2.0GHz) | 4x A55(1.8GHz) | |
| GPU |
Mali-G610 MC6@950MHz |
Adreno 660@840Mz |
4-core 1.35GHz self-developed GPU |
| System Cache |
16MB |
||
|
GeekBench6 Single-core |
1217 | 1541 | 1730 |
|
GeekBench6 Multi-core |
3866 | 3955 | 3842 |
MT6896 Dimensity 8200 platform performance parameters：
| CPU | Processor |
1x Arm Cortex-A78: 3.1GHz 3x Arm Cortex-A78: 3.0GHz 4x Arm Cortex-A55: 2.0GHz 4MB L3 cache |
| Cores | Octa (8) | |
| Memory & Storage |
Memory Type |
Quad-channel LPDDR5 |
|
Max Memory Frequency |
Up to 6400Mbps |
|
|
Storage Type |
UFS 3.1 |
|
| Connectivity |
Cellular Technologies |
2G-5G Multi-Mode, 5G/4G CA, 5G/4G FDD / TDD, CDMA2000 1x/EVDO Rev. A (SRLTE), EDGE, GSM, TD-SCDMA, WDCDMA |
|
Specific Functions |
SA & NSA modes; SA Option2, NSA Option3 / 3a / 3x, NR TDD and FDD bands, DSS, NR DL 3CC, 200MHz bandwidth, 4×4 MIMO, 256QAM NR UL 2CC, R16 UL Enhancement, 2×2 MIMO, 256QAM VoNR / EPS fallback |
|
|
Peak Downlink Speed |
4.7Gbps |
|
|
GNSS |
GPS L1CA+L5 BeiDou B1I+ B2a + B1C Glonass L1OF Galileo E1 + E5a QZSS L1CA+ L5 NavIC |
|
|
Wi-Fi |
Wi-Fi 6E (a/b/g/n/ac/ax) |
|
|
Wi-Fi Antenna |
2T2R |
|
|
Bluetooth |
5.3 |
|
| Camera |
Max Camera Sensor Supported |
320MP 32+32+32MP |
|
Max Video Capture Resolution |
4K60 (3840 x 2160) |
|
|
Camera Features |
14-bit HDR-ISP Video HDR Video Bokeh Video EIS AI-Shutter AI-NR HDR / AI-HDR AI-AE / AI-AF / AI-AWB / AI-FD |
|
| Graphics |
GPU Type |
Arm Mali-G610 MC6 |
|
Video Encoding |
H.264 HEVC |
|
|
Video Playback |
H.264 HEVC VP-9 AV1 |
|
| Graphics |
Max Refresh Rate |
FHD+ @ 180Hz WQHD+ @ 120Hz |
| AI |
MediaTek 5th generation NPU |
NPU 580 (multi-core) |
