Microcontroller Training Session 5 Overview

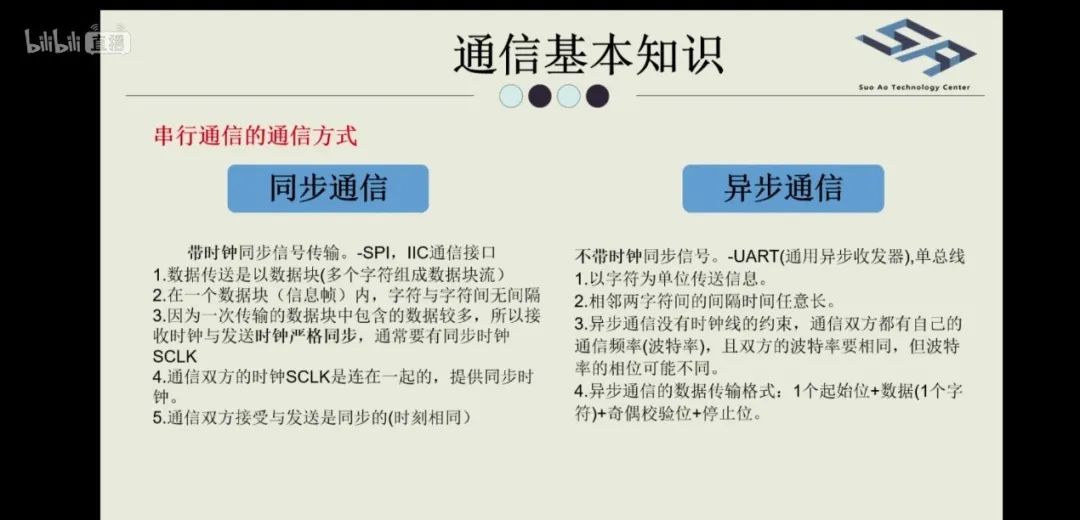

Communication between the microcontroller and external devices is called communication, which can be parallel or serial. Do you remember the difference between synchronous and asynchronous communication? If anyone is confused, you can watch the replay. The senior sister gave a very interesting example of a secret code~

SPI is a high-speed, full-duplex, synchronous communication bus that only occupies four lines on the chip pins. Do you remember which four lines they are?

They are:

(1) SDO (MOSI) – Master device data output, slave device data input

(2) SDI (MISO) – Master device data input, slave device data output

(3) SCLK (SCK) – Clock signal generated by the master device

(4) CS (NSS) – Slave device enable signal (pulling down the signal line to enable), controlled by the master device

Actually, three lines can also work~

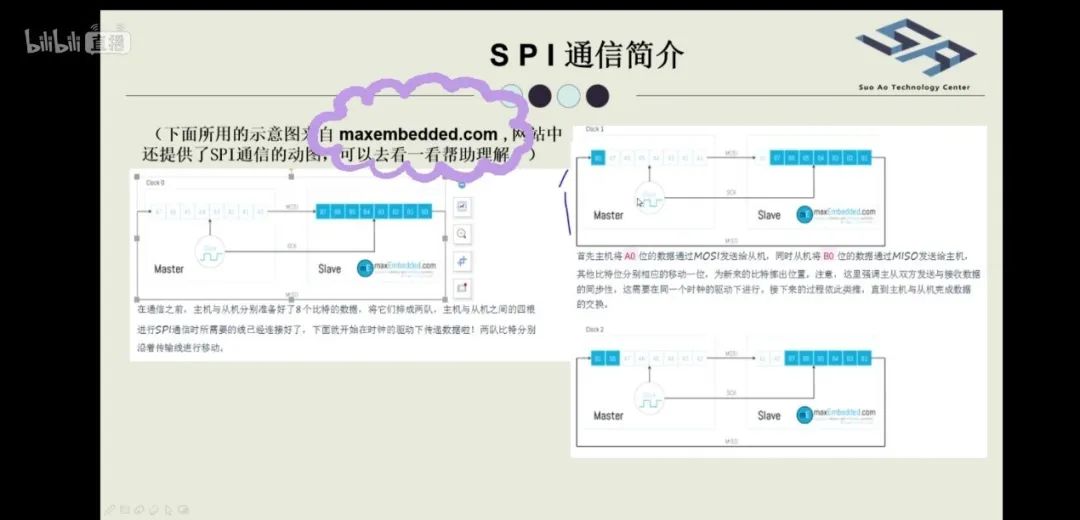

For more knowledge about the introduction to SPI communication, you can watch the replay or visit the website shown in the image below to see the communication animation~

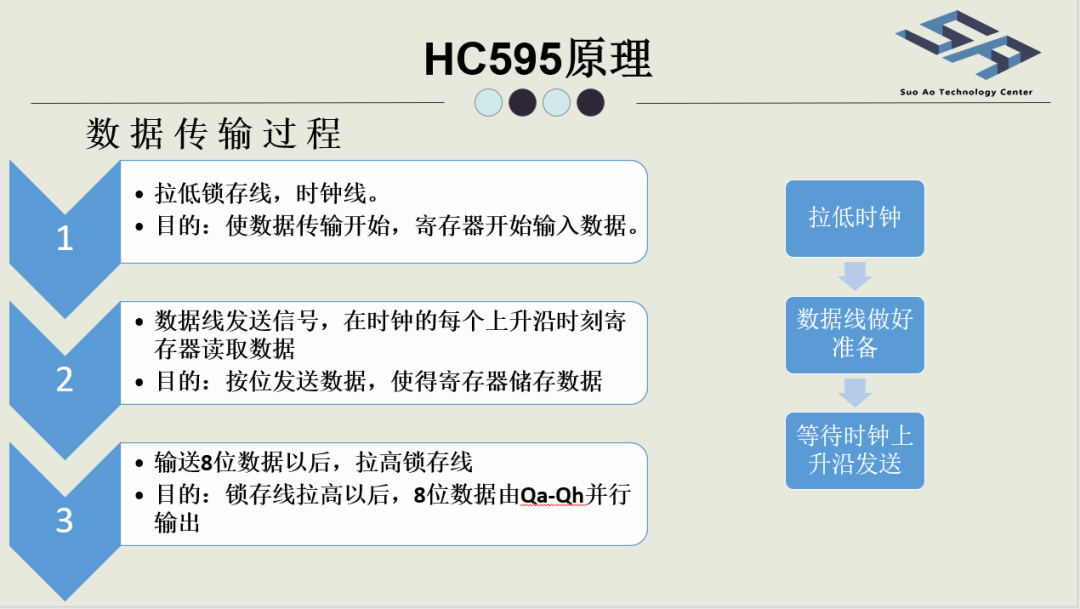

What is a latch? What is its purpose? What does the data transmission process look like? Those who are still confused should quickly check the replay~

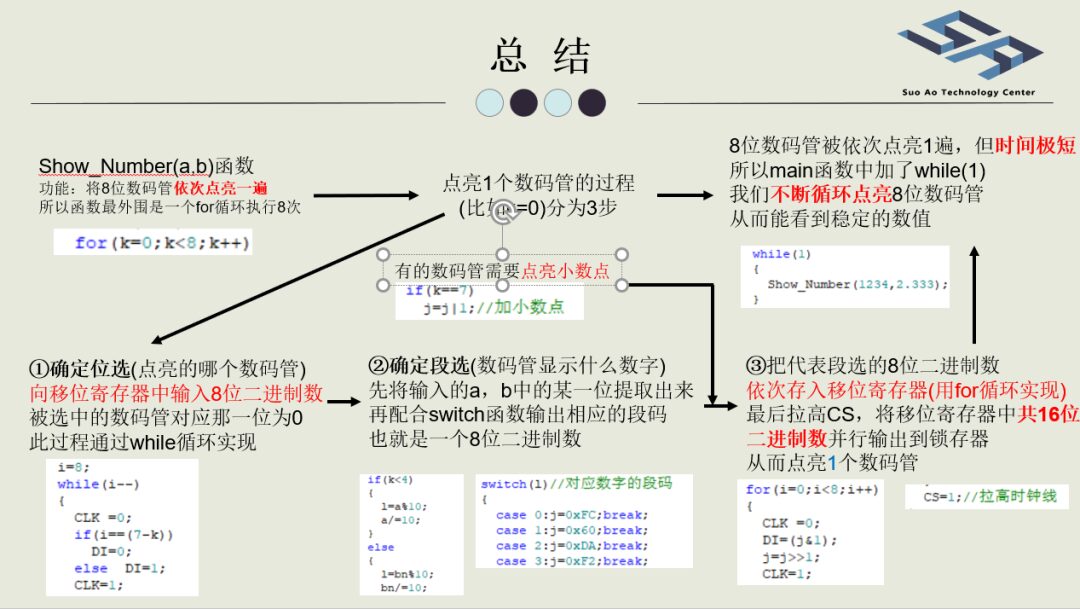

In the replay, the senior sister opened Keil to demonstrate for everyone. You should watch it yourself; the summary in the image below is also very beneficial~
