BLE Mesh is designed for networks supporting large-scale node communication. It can support more nodes communicating over longer message transmission distances (relay nodes), lower power consumption IoT nodes (low power nodes), and reliable message transmission (secure encryption). For instance, BLE Mesh nodes can be deployed in scenarios like parking lots, building automation, and indoor supermarkets, achieving secure and reliable data interaction through the inherent characteristics of Mesh.
The goal of BLE Mesh is a trusted and secure network with full interoperability, a mature ecosystem, and the ability to meet industrial-grade applications while supporting large-scale node networking.

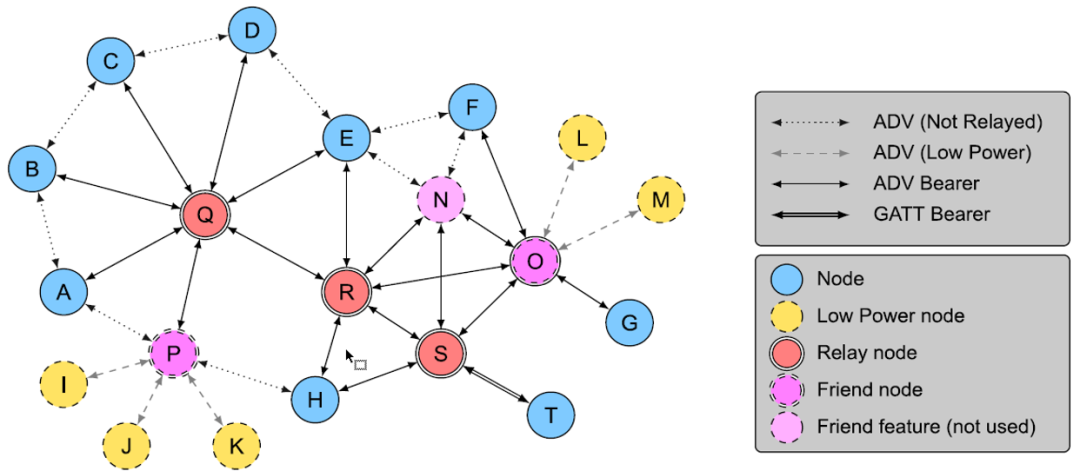

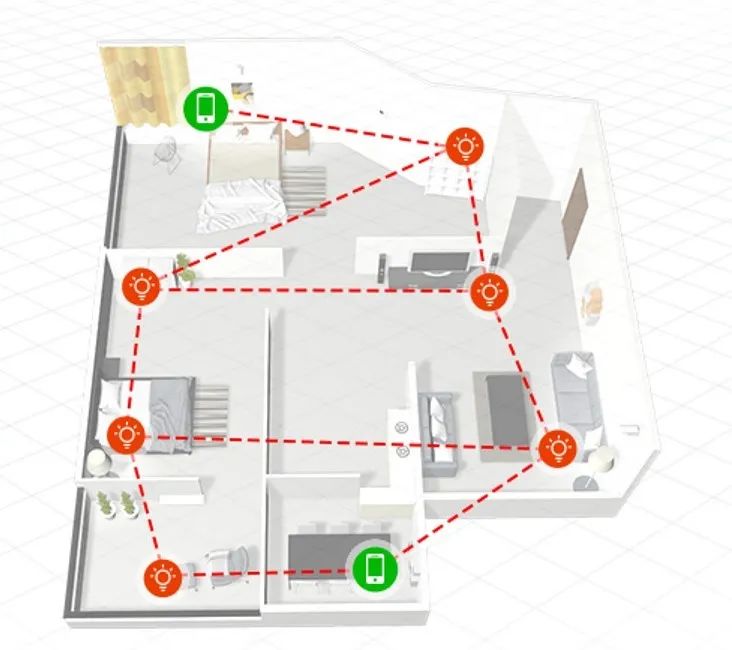

BLE Mesh Network Topology Diagram
This issue of Firefly Academy invites Teacher Deng Hongming to explain the related technical solutions of “Firefly Workshop BLE Mesh Module”. (For the complete solution, please click on the bottom of the article to read the original text.)
Mesh Features
• No central node in the network • One-click network configuration • Remembers network information, automatically connects within 1 second of power-up • Supports SIG Mesh standard model • Supports serial data transparent transmission, with a maximum single packet size of 380 bytes • Supports mobile phone network configuration and control of mesh nodes • Quick integration with Alibaba Cloud IoT platform, configurable via tools • Product ID • Attributes • Events • Services
Application Scenario Characteristics to be Addressed by Mesh
• Wide coverage capability • Strong interoperability • Monitoring and control capabilities for large-scale node devices • Optimized low power consumption capability as much as possible • Effective use of RF resources, strong scalability • Compatibility with current smart phones, tablets, and PC products • Industrial standard level, government level security
Target Application Scenarios

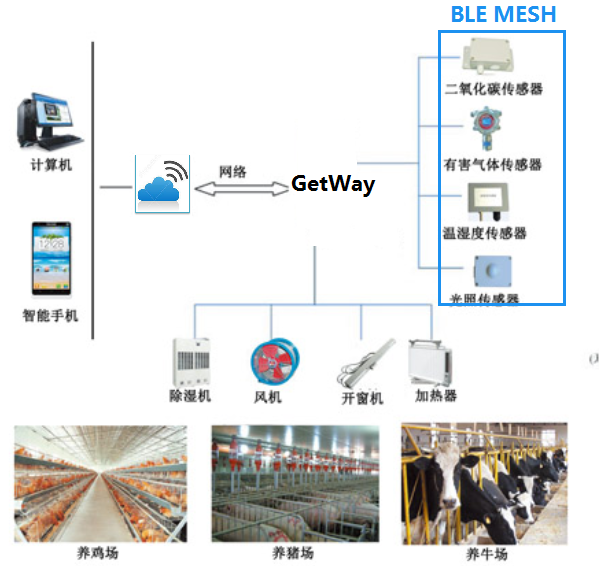

Smart buildings, sensor networks, smart homes, robotics, lighting control, industrial farming, and IoT applications.

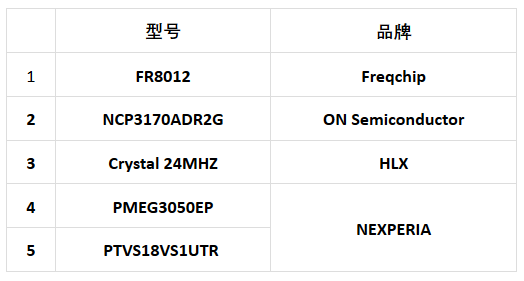

Key Components
