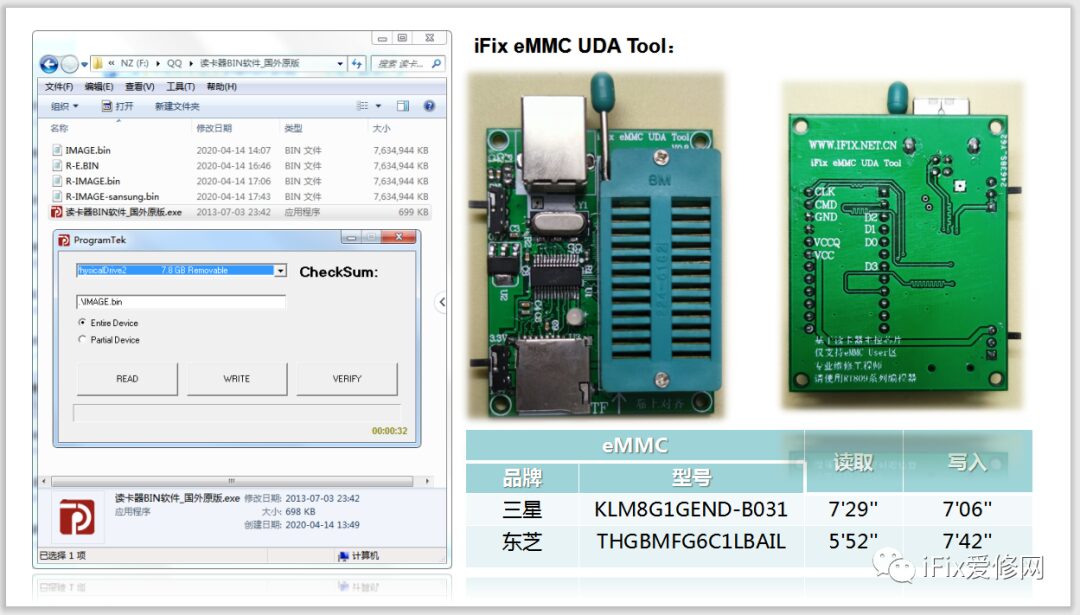

Is the eMMC Reader Scheme Powerful?

Original article address: https://item.szlcsc.com/97263.html iFix eMMC UDA Tool modified based on this document, special thanks! If the following images are unclear, you can click to enlarge.

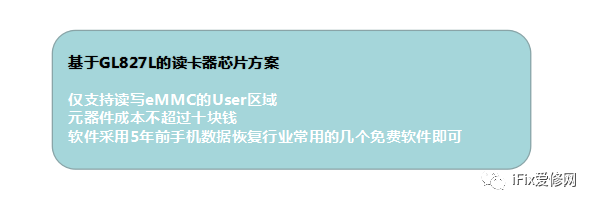

Is the eMMC Reader Scheme Powerful?

Is the eMMC Reader Scheme Powerful?

If you don’t understand the above image, no worries, keep reading:

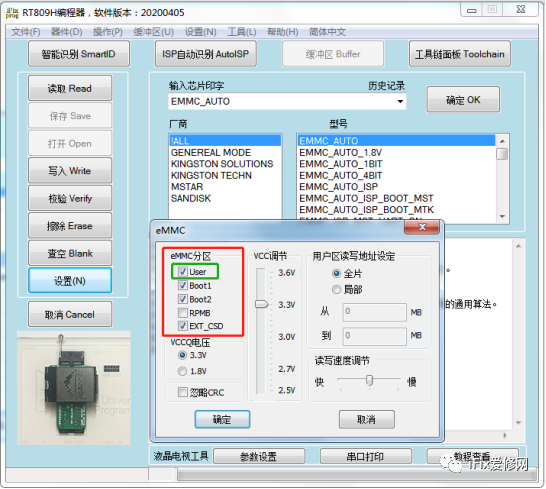

Open the RT809H programmer software, in the EMMC chip settings, there are 5 eMMC partitions, but only 4 are used on the TV motherboard (as far as I know so far), see the red circle in the image below:

Is the eMMC Reader Scheme Powerful?

However, the read-write small board only supports one of the partitions, namely the User area.

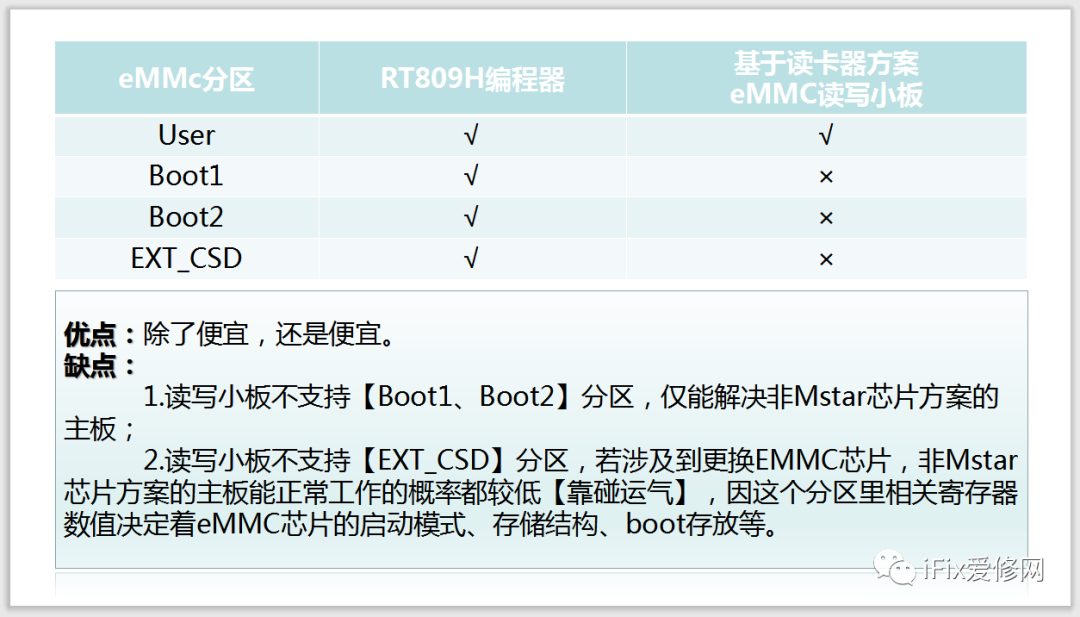

Please see the comparison image:

Is the eMMC Reader Scheme Powerful?

I believe you now have some understanding of the eMMC read-write small board made based on the card reader scheme.
Professional repair engineers, please use the RT809 series programmer.

The following materials are provided for free, welcome interested friends to play:

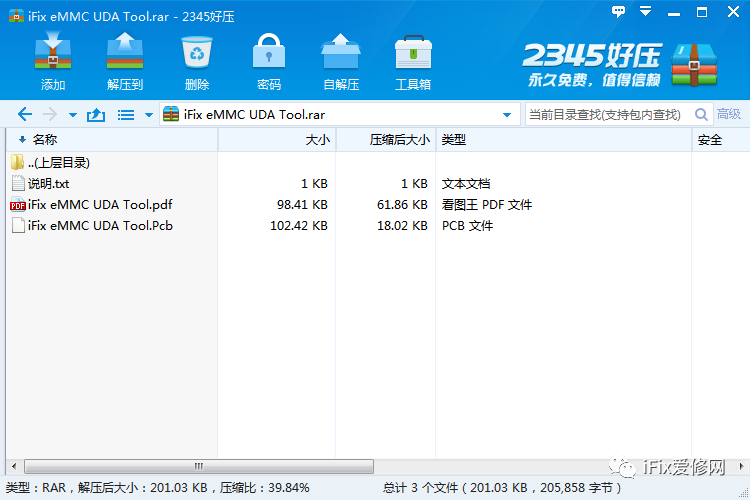

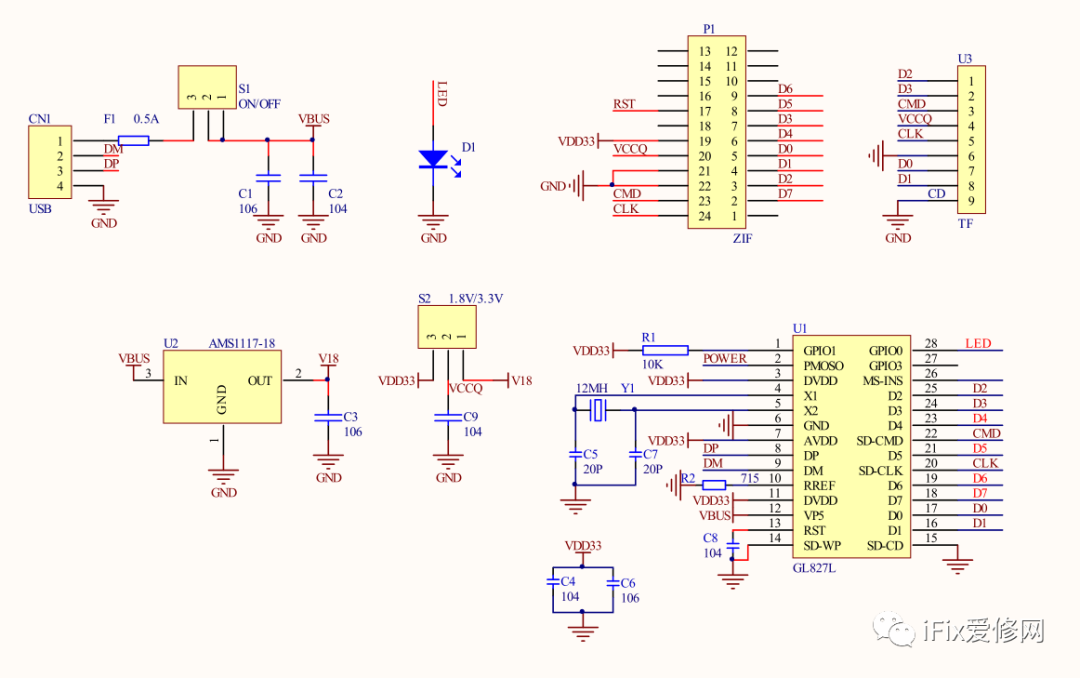

  • The schematic and PCB files of the iFix eMMC UDA Tool, which can be directly sent for sampling:

Is the eMMC Reader Scheme Powerful?

Is the eMMC Reader Scheme Powerful?

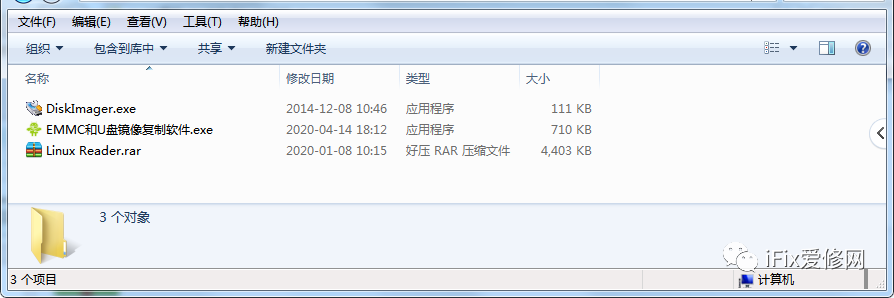

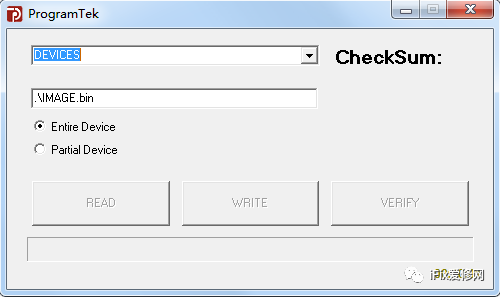

  • Read-write software for the small board:

    • This is the original version of the read-write software from abroad, the download link also has a Chinese version. If it looks familiar, it’s probably the truth from some experts.

Is the eMMC Reader Scheme Powerful?

  • Data recovery software:

Is the eMMC Reader Scheme Powerful?

Linux Reader and similar software can directly view Android system files, allowing for direct copying or replacement. This was commonly used for data recovery, but since Android version 6.0, full-disk encryption has been enforced, making this method ineffective.

Material download:

① Please first copy the Baidu Cloud extraction code 【 lww3 】, then click the lower left corner “Read the original text” to obtain;

② RT809x programmer official group x file.
