Formaldehyde Detector
Formaldehyde detectorProject Overview
The formaldehyde detector: This project is made using an ESP32 board, a formaldehyde sensor, and an LCD color screen. The formaldehyde sensor is responsible for detecting the concentration of formaldehyde and TVOC values in the air, as well as the concentration of carbon dioxide. The ESP32 handles data processing, while the LCD screen displays the detected values.

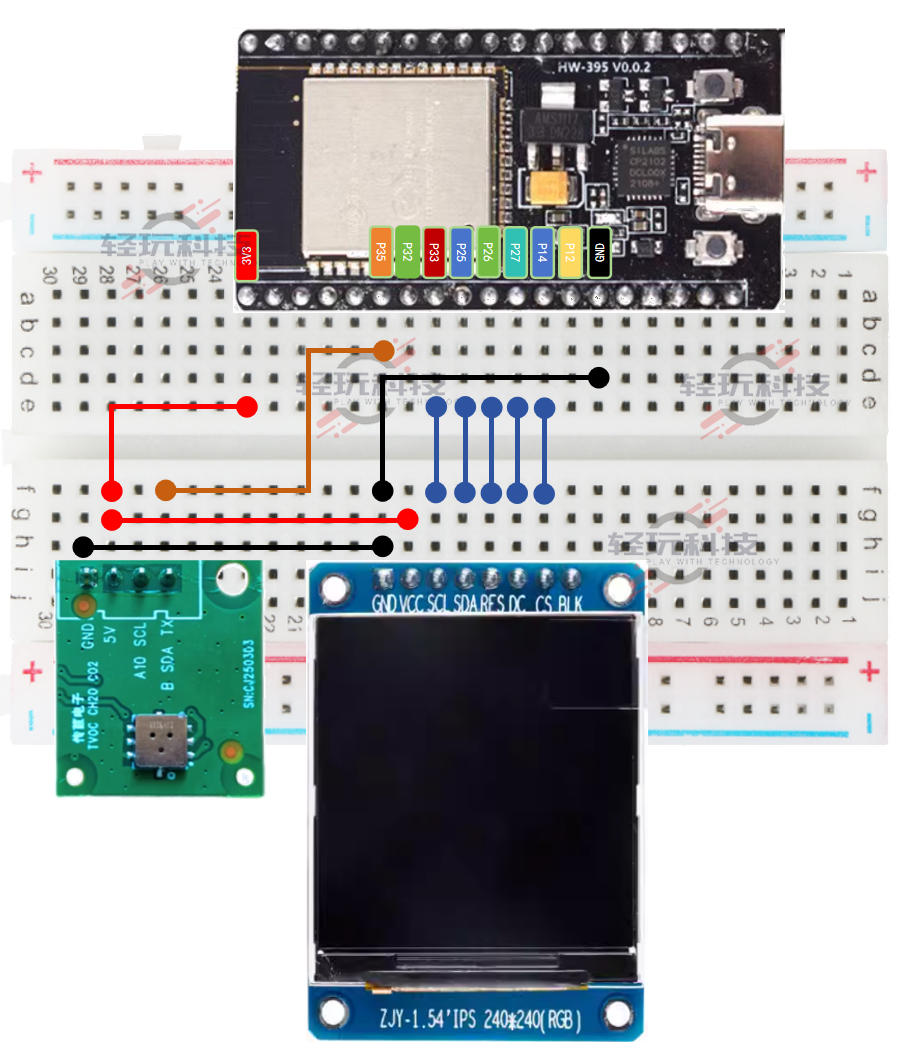

Wiring Diagram
Materials List#01 ESP32 Board x1
#02 Formaldehyde Sensor x1#03 ST7789 Color Screen x1
#05 Breadboard x1
#06 Jumper Wires 1 box#07 Type-C Data Cable x1
#08 OTG Adapter x1
Scan to OrderModule Explanation

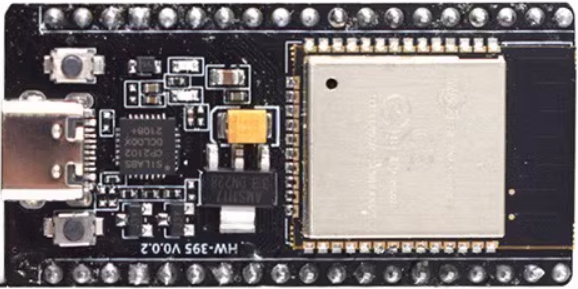

1. ESP32 Board: Responsible for information processing, controlling the screen display based on the data detected by the sensor.

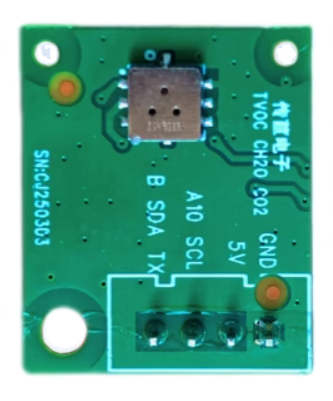

2. Formaldehyde Sensor: Responsible for detecting the concentration of formaldehyde, TVOC values, and carbon dioxide concentration in the air.

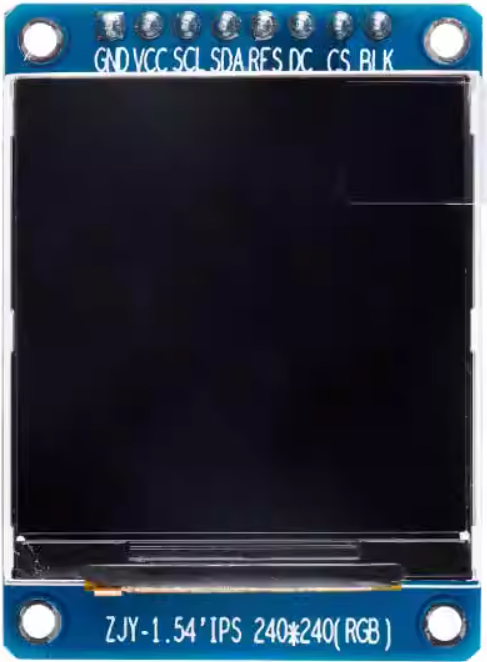

3. ST7789 Color Screen: Responsible for displaying the data detected by the sensor.

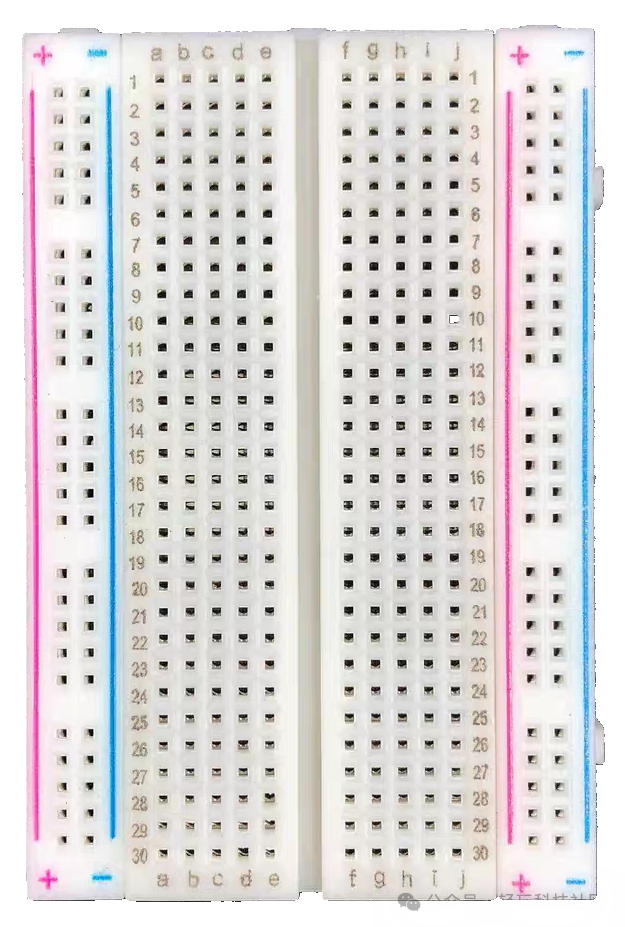

4. Breadboard: Supports components and circuit connections.

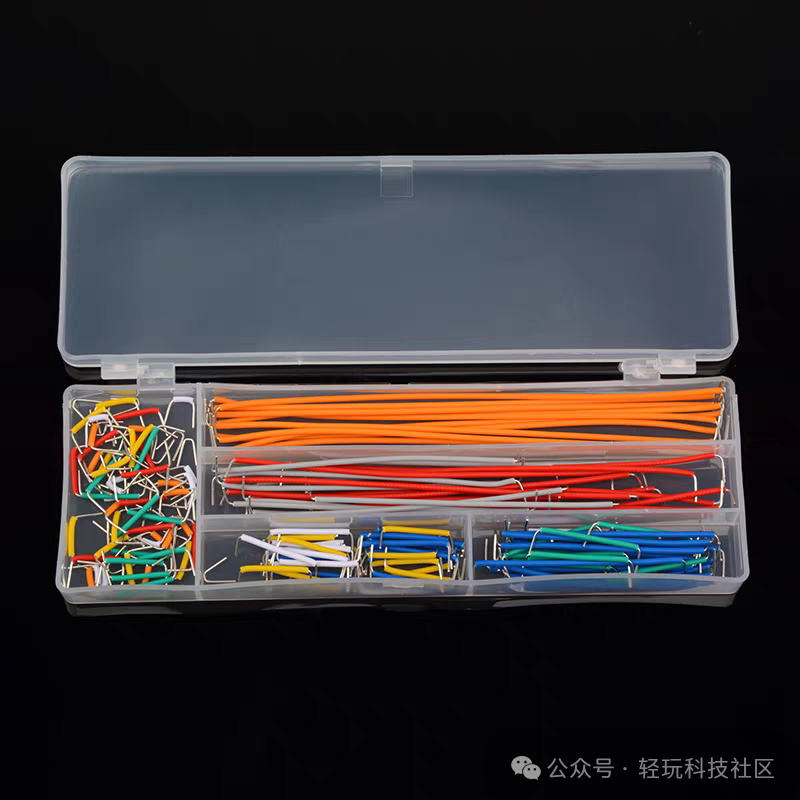

5. Jumper Wires: Used for circuit connections.

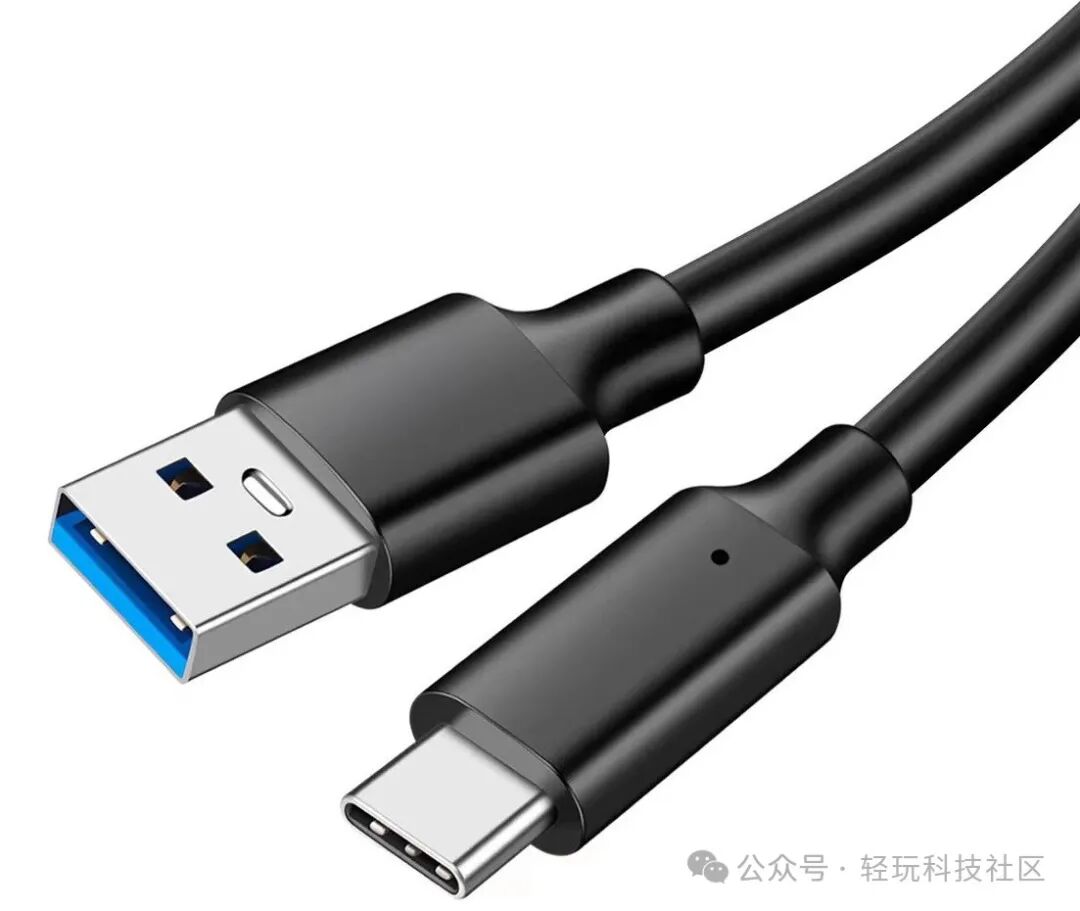

6. Type-C Data Cable: For power supply and program downloading.

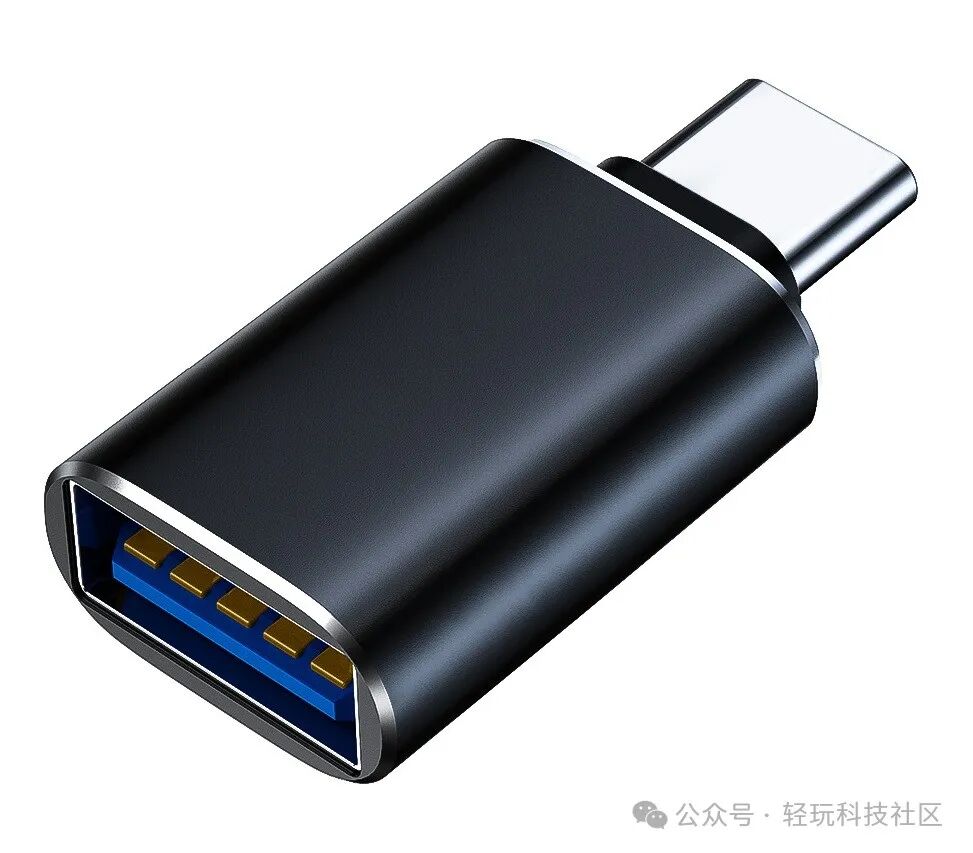

7. OTG Adapter: Used to convert standard data to dual Type-C data cable.
Essential Basics
The essential basics for the IoT project practical course are the same, using a weather clock as an example for explanation.
Project Production
Firmware Program
