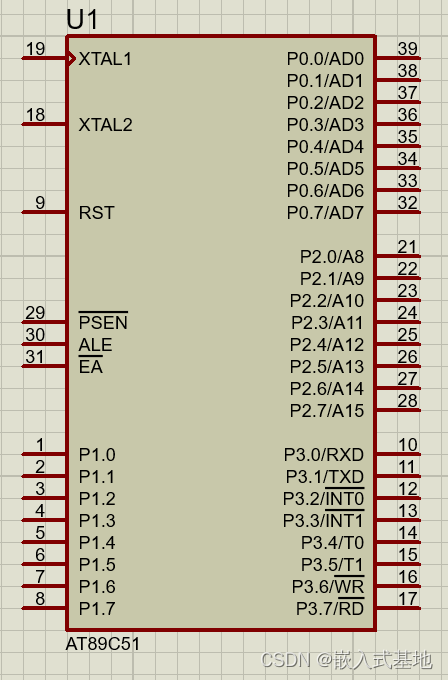

AT89C51 (Classic Microcontroller)
-

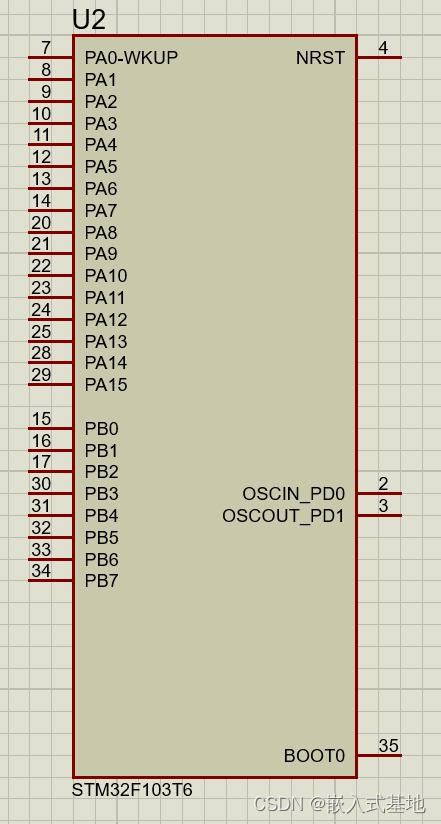

STM32F103
-
SWITCH (Single Switch)
-
SW-SPST (Single Pole Single Throw Switch)
-

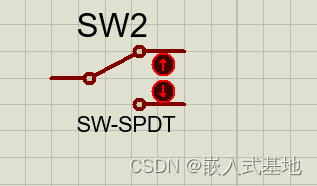

SW-SPDT (Single Pole Double Throw Switch)
-
SW-ROT-3 (Single Pole Triple Throw Switch)
-
CAP (Non-polarized Capacitor)
-
CAP-ELEC (Polarized Capacitor)
-
CRYSTAL (Crystal Oscillator)
-
DIODE (Diode)
-

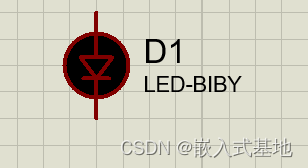

LED-BIBY (Light Emitting Diode)
-
DIODE-LED (Light Emitting Diode)
-
PHOTODIODE (Photodiode)
-
RES (Resistor)
-
BUTTON (Button)
-
BUS (Bus)
-
VCC (Power Supply)
-
GROUND (Ground)
-
BUZZER (Buzzer) device: General Buzzer active: Active Buzzer, produces sound through DC operation from the sound card
-

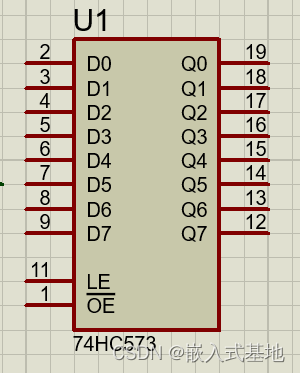

74HC573 (Common Latch)
-

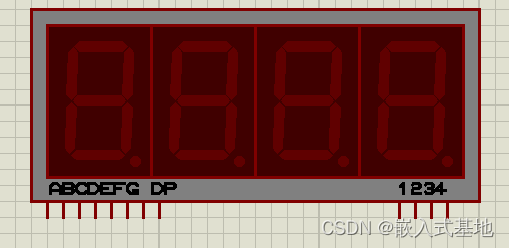

7SEG-MPX4-CA (Common Anode Seven-Segment Display) cc indicates common cathode, ca indicates common anode;
-

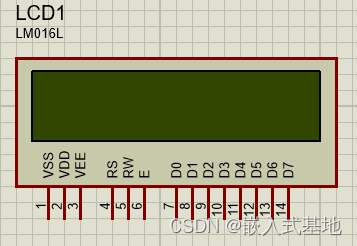

LM016L (Common LCD)
-

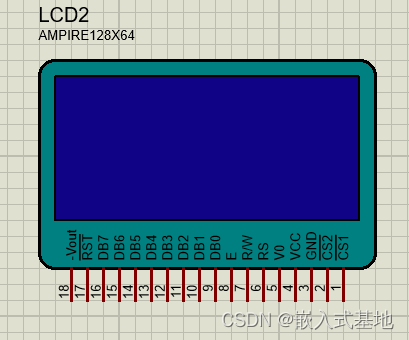

12864
-
MATRIX-8×8 (8×8 Matrix)
-
POT (Potentiometer) POT-HG Sliding Resistor (Adjustment Precision 1%) POT-LIN Sliding Resistor (Adjustment Precision 10%) POT-LOG Sliding Resistor (Adjustment Precision 10%)
-

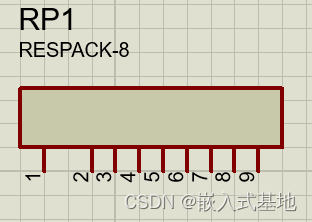

respack (Resistor Pack)
-

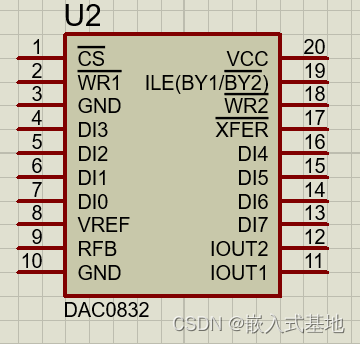

DAC0832 (D/A Converter)
-
PNP (Transistor)
-
NPN (Transistor)
-
LAMP (Light Bulb)
-
Default Terminal (One line plus a hollow circle) Right side: Terminal Mode -> DEFAULT
-

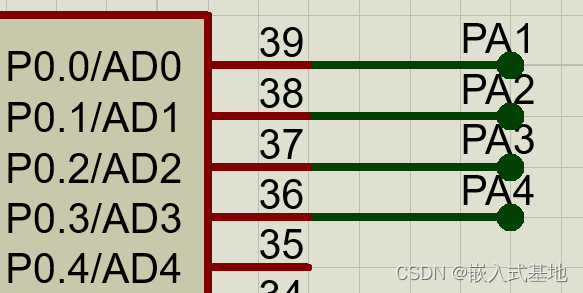

Double-click the solid circle point formed by the wire to use with the network label (Mouse over the wire -> Right-click properties -> Add network label)
-

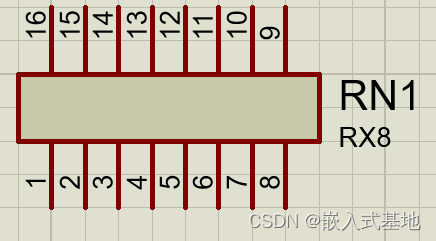

RX8 (Dual Row x8 Resistor Network)
-
SPEAKER (Speaker) device: Cannot produce sound
active: Active, can produce sound
-
74HC154 Decoder
-
NOT (Inverter) (A triangle with a circle in front)
-
DIPSWC (DIP Switch)
-
VSINE (AC Power Supply)
-
MOC3052 (Bidirectional Optocoupler)
-
TRIAC (Triac Switch)
-

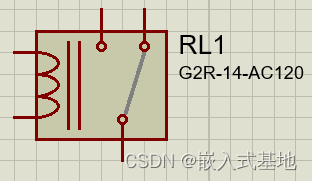

G2R Relay Series
-
RELAY (Relay)
-
7406 (Bipolar Transistor)
-
PULSE (Pulse Generator) Right side -> Select Excitation Source Mode
-
SINE (Sine Wave Generator)
-

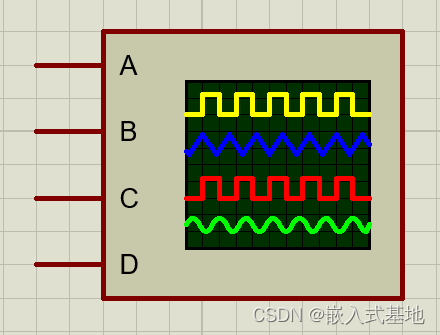

OSCILLOSCOPE (Oscilloscope) Right side instrument -> Select
