Introduction to C++ Multithreaded Concurrent Programming

Introduction: Why Do We Need Concurrency?

In today’s world, where Moore’s Law is slowing down, the improvement of single-core performance has reached a bottleneck. CPU manufacturers have turned to multi-core architectures, which means modern computers generally have multiple cores capable of executing multiple computational tasks simultaneously. To fully utilize these hardware resources, concurrent programming has emerged.

Concurrency: Refers to the overlapping execution of multiple tasks in time, where they can execute alternately, appearing to run simultaneously. This is logically simultaneous execution.
Parallelism: Refers to the actual simultaneous execution of multiple tasks at the same time, which requires support from multi-core processors. This is physically simultaneous execution.

The release of the C++11 standard was a milestone in the history of C++ development, as it provided cross-platform support for concurrent programming at the language level for the first time, liberating developers from the obscure and platform-dependent Pthreads (POSIX) or Windows API. This article will systematically explore C++ multithreaded programming based on the modern features of C++11/14/17/20.

Chapter 1: Basics of Threads – `std::thread`

std::thread is the cornerstone of the C++ thread library, allowing us to create and manage a new execution thread.

1.1 Creating and Starting Threads

By creating a std::thread object and passing a callable object (function, lambda expression, function object, etc.), the thread will immediately start executing.

#include <iostream>
#include <thread>
#include <chrono>
void task() {
    std::cout << "Task Thread ID: " << std::this_thread::get_id() << std::endl;
    std::this_thread::sleep_for(std::chrono::seconds(1));
}
int main() {
    std::cout << "Main Thread ID: " << std::this_thread::get_id() << std::endl;
    // Create and start thread
    std::thread my_thread(task);
    std::cout << "Main Thread continues executing..." << std::endl;
    // Wait for the child thread to finish
    my_thread.join();
    std::cout << "Main Thread ends." << std::endl;
    return 0;
}

1.2 Thread Lifecycle: `join()` and `detach()`

Each std::thread object must have a defined state before it is destroyed: either wait for it to finish using join(), or separate it from the std::thread object using detach().

join(): Blocks the current thread (usually the main thread) until the called thread finishes executing. This is a common method to ensure the visibility of the results of the child thread’s operations. If you do not join(), the main thread may finish before the child thread, leading to abnormal program termination or forced interruption of the child thread.
detach(): Separates the child thread from the std::thread object, making the child thread a “daemon thread” that runs independently in the background. The main thread can no longer interact with it, nor can it join(). Once detached, the lifecycle of the child thread is managed by the C++ runtime library. This is suitable for “fire and forget” tasks.

Warning: Forgetting to join() or detach() will cause the program to call std::terminate() when the std::thread object is destructed, causing the program to crash.

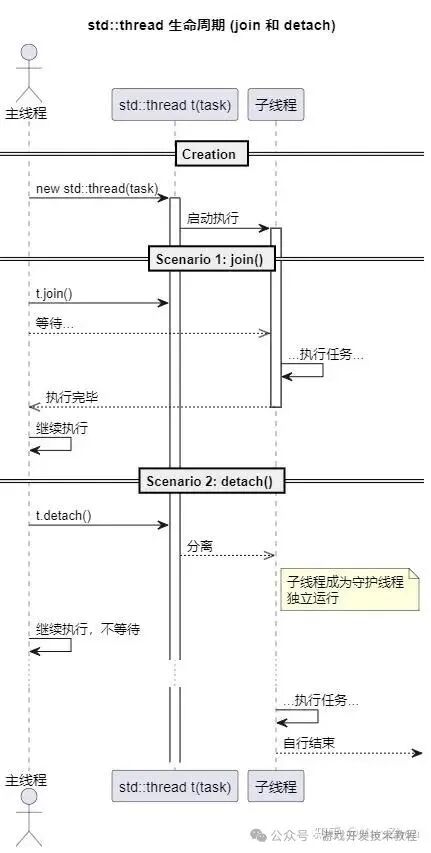

UML – Thread Lifecycle Sequence Diagram

Introduction to C++ Multithreaded Concurrent Programming

1.3 Passing Parameters to Threads

When passing parameters to a thread function, by default, the parameters are copied or moved into the thread’s internal storage.

void print_message(const std::string& msg) {
    std::cout << "Thread Message: " << msg << std::endl;
}
int main() {
    std::string message = "Hello, Thread!";
    // message is copied into the thread
    std::thread t(print_message, message);
    t.join();
}

If you need to pass a reference, you must use std::ref() or std::cref() wrappers; otherwise, the parameters will still be copied.

#include <functional> // For std::ref
void update_value(int& val) {
    val = 100;
}
int main() {
    int my_value = 10;
    // Use std::ref to pass by reference
    std::thread t(update_value, std::ref(my_value));
    t.join();
    std::cout << "Updated value: " << my_value << std::endl; // Outputs 100
    return 0;
}

Chapter 2: The Nightmare of Shared Data – Data Races and Race Conditions

Problems arise when multiple threads access the same shared resource, and at least one thread modifies that resource.

Race Condition: The correctness of the program depends on the relative execution order of operations by multiple threads.
Data Race: Specifically refers to concurrent access to the same memory location by two or more threads performing non-atomic operations without synchronization, with at least one being a write operation. This is undefined behavior in C++.

Example: A Faulty Counter

#include <iostream>
#include <thread>
#include <vector>
int counter = 0;
void increment() {
    for (int i = 0; i < 100000; ++i) {
        // The problem: read-modify-write operation is not atomic
        counter++;
    }
}
int main() {
    std::vector<std::thread> threads;
    for (int i = 0; i < 10; ++i) {
        threads.push_back(std::thread(increment));
    }
    for (auto& t : threads) {
        t.join();
    }
    // The result is almost certainly not 1,000,000
    std::cout << "Final count: " << counter << std::endl;
    return 0;
}

counter++ consists of at least three steps: 1. Read the value of counter into a register; 2. Increment the value in the register; 3. Write the register value back to counter. Two threads may read the old value simultaneously, leading to a lost increment.

Chapter 3: Synchronization Primitives (I) – Mutexes and Locks

To solve data races, we need synchronization mechanisms to protect shared data. A mutex is the most basic synchronization primitive.

3.1 `std::mutex`

std::mutex (mutex lock) ensures that only one thread can acquire the lock and access the protected resource at any given time.

#include <iostream>
#include <thread>
#include <vector>
#include <mutex>
int counter = 0;
std::mutex mtx; // Declare a mutex
void safe_increment() {
    for (int i = 0; i < 100000; ++i) {
        mtx.lock();   // Acquire lock
        counter++;
        mtx.unlock(); // Release lock
    }}// ... main function similar to before, but calls safe_increment ...

This code is now thread-safe, but manually calling lock() and unlock() is dangerous: if an exception occurs between locking and unlocking, the lock will never be released, leading to deadlock.

3.2 RAII-style Lock Management: `std::lock_guard` and `std::unique_lock`

To address the above issue, C++ provides RAII (Resource Acquisition Is Initialization) style lock wrappers.

std::lock_guard: A lightweight RAII wrapper. It acquires the lock in its constructor and releases it in its destructor. It is simple and efficient but has limited functionality.

void safe_increment_guard() {
    for (int i = 0; i < 100000; ++i) {
        std::lock_guard<std::mutex> guard(mtx); // Lock on construction, automatically unlocks on scope exit
        counter++;
    } // guard destructs here, lock is released
}

std::unique_lock: A more flexible but slightly more expensive RAII wrapper. It supports deferred locking, try-locking, timed locking, and transfer of lock ownership, and is essential for using condition variables.

std::unique_lock<std::mutex> lock(mtx, std::defer_lock); // Create without locking
lock.lock(); // Manually lock
// ...
lock.unlock(); // Manually unlock

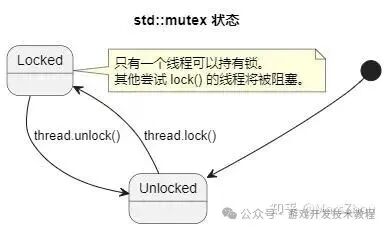

UML – Mutex State Diagram

3.3 Deadlock

Deadlock occurs when two or more threads are waiting for each other to release resources. A classic example is two threads acquiring two locks in different orders.

std::mutex mtx1, mtx2;
void func1() {
    std::lock_guard<std::mutex> guard1(mtx1);
    std::this_thread::sleep_for(std::chrono::milliseconds(10)); // Create deadlock opportunity
    std::lock_guard<std::mutex> guard2(mtx2);
    // ...}
void func2() {
    std::lock_guard<std::mutex> guard2(mtx2);
    std::this_thread::sleep_for(std::chrono::milliseconds(10));
    std::lock_guard<std::mutex> guard1(mtx1); // Opposite order to func1
    // ...}

Solutions:

Ensure Locking Order: All threads acquire locks in the same order.
Use std::lock (C++11) or std::scoped_lock (C++17): They can atomically lock multiple mutexes, using an algorithm that avoids deadlock. std::scoped_lock is a more modern and recommended choice.

void safe_func() {
    // C++17: RAII style, automatically manage locks
    std::scoped_lock lock(mtx1, mtx2);
    // ... safely operate on shared resources ...
}

Chapter 4: Synchronization Primitives (II) – Condition Variables

std::condition_variable allows one or more threads to wait for a specific condition to be met. It is typically used in conjunction with std::mutex and std::unique_lock to implement complex inter-thread communication, such as the classic “producer-consumer” model.

4.1 Producer-Consumer Model

One or more producer threads add data to a queue, while one or more consumer threads take data from the queue for processing.

When the queue is empty, consumers must wait.
When the queue is full, producers must wait.

#include <iostream>
#include <thread>
#include <mutex>
#include <condition_variable>
#include <queue>
#include <chrono>
std::mutex mtx;
std::condition_variable cv;
std::queue<int> data_queue;
const unsigned int MAX_QUEUE_SIZE = 10;
void producer() {
    for (int i = 0; i < 20; ++i) {
        std::unique_lock<std::mutex> lock(mtx);
        // Wait until the queue is not full
        cv.wait(lock, []{ return data_queue.size() < MAX_QUEUE_SIZE; });
        std::cout << "Producing: " << i << std::endl;
        data_queue.push(i);
        lock.unlock(); // Unlock early to let consumers work as soon as possible
        cv.notify_one(); // Wake up one waiting consumer
        std::this_thread::sleep_for(std::chrono::milliseconds(100));
    }}
void consumer() {
    while (true) {
        std::unique_lock<std::mutex> lock(mtx);
        // Wait until the queue is not empty
        cv.wait(lock, []{ return !data_queue.empty(); });
        int data = data_queue.front();
        data_queue.pop();
        std::cout << "Consuming: " << data << std::endl;
        lock.unlock(); // Unlock early
        cv.notify_one(); // Wake up a producer that may be waiting for the queue to be not full
        if (data == 19) break; // Exit after consuming the last one
        std::this_thread::sleep_for(std::chrono::milliseconds(200));
    }}
int main() {
    std::thread p(producer);
    std::thread c(consumer);
    p.join();
    c.join();
    return 0;
}

Key Points:

cv.wait(lock, predicate): Atomically unlocks lock and puts the thread into a waiting state. When woken up, it re-locks and checks the predicate (a lambda returning a boolean). If predicate is true, wait returns; if false (spurious wakeup), it continues waiting.Always use the wait version with a predicate.
cv.notify_one(): Wakes up one waiting thread.
cv.notify_all(): Wakes up all waiting threads.

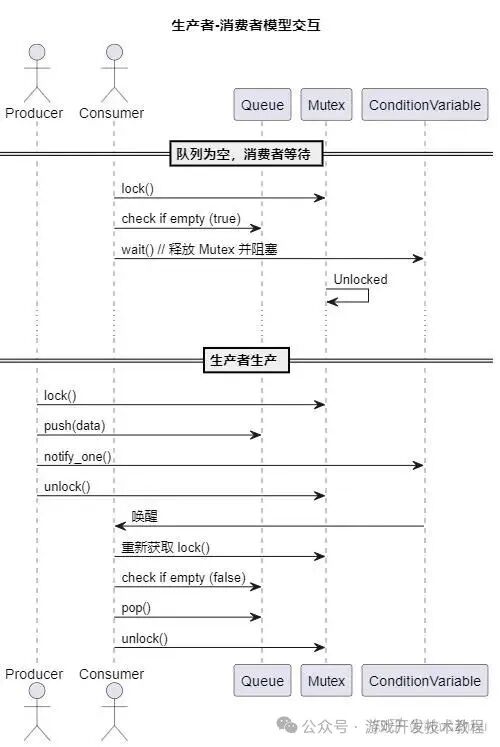

UML – Producer-Consumer Sequence Diagram

Chapter 5: Advanced Abstractions – `future`, `promise` and `async`

C++ provides higher-level concurrency abstractions for handling task-based concurrency, rather than directly manipulating threads and locks.

5.1 `std::async`, `std::future`

std::async is a function template that starts a callable object asynchronously (possibly in a new thread) and returns a std::future object.std::future represents the eventual result of that asynchronous operation.

#include <iostream>
#include <future>
#include <chrono>
int long_computation() {
    std::this_thread::sleep_for(std::chrono::seconds(2));
    return 42;
}
int main() {
    std::cout << "Starting asynchronous computation..." << std::endl;
    // Start task, std::launch::async policy forces execution in a new thread
    std::future<int> result_future = std::async(std::launch::async, long_computation);
    std::cout << "Main thread can do other things..." << std::endl;
    // ... do other work ...
    // When the result is needed, call get()
    // get() will block until the result is ready
    int result = result_future.get();
    std::cout << "Computation result: " << result << std::endl;
    return 0;
}

std::async launch policies:

std::launch::async: Guarantees asynchronous execution on a new thread.
std::launch::deferred: Deferred execution. The task will only execute on the current thread when future is called with get() or wait().
Default policy (std::launch::async | std::launch::deferred): Implementation decides whether to create a new thread immediately or defer execution.

5.2 `std::promise` and `std::packaged_task`

std::async is backed by the mechanisms of std::promise and std::packaged_task.

std::promise: Allows you to set a value in one thread and retrieve that value in another thread through the associated std::future. It establishes a one-time communication channel between producer and consumer.
std::packaged_task: Wraps a callable object so it can be called asynchronously. Its return value or exception is stored in a std::future. This is very useful for building task queues.

std::promise Example:

void set_value(std::promise<int> p) {
    try {
        // ... computation ...
        p.set_value(101);
    } catch (...) {
        p.set_exception(std::current_exception());
    }
}
int main() {
    std::promise<int> p;
    std::future<int> f = p.get_future();
    std::thread t(set_value, std::move(p));
    std::cout << "Waiting for result..." << std::endl;
    std::cout << "Result: " << f.get() << std::endl;
    t.join();
}

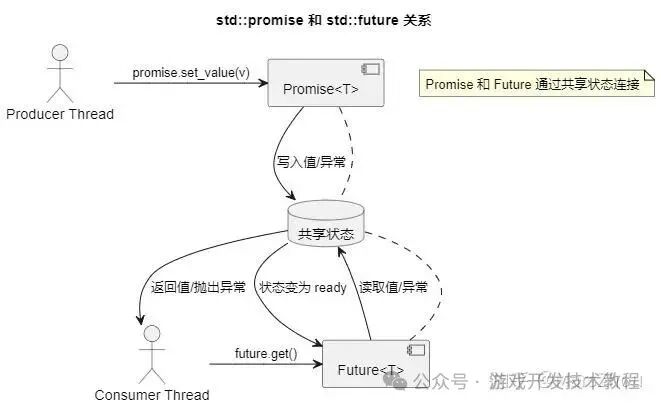

UML – Future/Promise Model

Chapter 6: Lock-Free Programming – Atomic Operations Library `<atomic>`

For very simple operations (like incrementing a counter, reading and writing pointers), the overhead of using mutexes may be too high.std::atomic library provides the ability to perform atomic operations on built-in types, which are indivisible and can avoid data races.

#include <atomic>
std::atomic<int> atomic_counter = 0;
void atomic_increment() {
    for (int i = 0; i < 100000; ++i) {
        // fetch_add is an atomic "read-modify-write" operation
        atomic_counter.fetch_add(1, std::memory_order_relaxed);
    }}

std::atomic is centered around memory order, which determines how atomic operations synchronize with other memory operations (including non-atomic and atomic operations).

memory_order_relaxed: The loosest, only guarantees the atomicity of the operation itself, without providing any synchronization or ordering constraints. Highest performance.
memory_order_acquire: Acquire semantics. No read or write operations in the current thread can be reordered to before this operation.
memory_order_release: Release semantics. No read or write operations in the current thread can be reordered to after this operation.
memory_order_acq_rel: Both acquire and release semantics.
memory_order_seq_cst: Sequential consistency. The strictest, guarantees that all threads see the order of all atomic operations consistently. This is the default for all atomic operations.

Memory order is a very complex topic that requires a deep understanding of compiler and hardware memory models. For beginners, sticking to the default memory_order_seq_cst is the safest choice.

Chapter 7: C++20 and Future Concurrency Features

C++20 introduces more powerful concurrency tools:

std::jthread: A std::thread that automatically calls join(). Its destructor checks if the thread can be joined, and if so, calls join(). It also introduces a cooperative interruption mechanism (via stop_token). This is a significant improvement over std::thread, and is highly recommended.

#include <thread> // in C++20, jthread is here
void some_task(std::stop_token st) {
    while (!st.stop_requested()) {
        // ... work ...
    }}
int main() {
    std::jthread jt(some_task);
    // ...} // jt destructs here, automatically requests stop and joins()

Semaphores (std::counting_semaphore): A classic synchronization primitive that allows a certain number of threads to access resources simultaneously.
Latches (std::latch) and Barriers (std::barrier): Used to synchronize multiple threads at a certain execution point. latch is one-time, while barrier is reusable.
Coroutines: C++20 introduces coroutine support, a brand new concurrency model (cooperative multitasking) that differs from preemptive multithreading. It allows functions to suspend and resume, making it very suitable for I/O-intensive asynchronous tasks, allowing you to write asynchronous code that is as easy to understand as synchronous code.

Conclusion and Best Practices

Modern C++ provides a powerful and rich toolbox for concurrent programming.

Prefer Higher-Level Abstractions: std::async, std::packaged_task are better than manually managing std::thread.
Embrace RAII: Always use std::lock_guard or std::unique_lock to manage mutexes. In C++17, prefer using std::scoped_lock to lock multiple mutexes. In C++20, replace std::thread with std::jthread.
Share Data Wisely: Reducing shared data is the best way to avoid concurrency issues. If sharing is necessary, strictly protect it with synchronization primitives.
Be Careful of Deadlocks: Ensure consistent locking order, or use std::scoped_lock.
Use Condition Variables Correctly: Always use them with mutexes and std::unique_lock, and use the version of wait with a predicate to prevent spurious wakeups.
Use Atomic Operations Only When Necessary: Consider std::atomic when performance is critical and operations are simple. But be cautious of the complexities introduced by memory order.
Understand Your Tools: Deeply understand the applicable scenarios, advantages, and overhead of each concurrency tool.

Concurrent programming is a double-edged sword; it can greatly enhance program performance but also introduces new complexities and sources of bugs. By mastering these tools and paradigms provided by modern C++, you can confidently write robust, efficient, and maintainable concurrent programs.

Note: This article is sourced from AI’s PY.

Perspective from Painters and Programmers
New Discoveries in Rendering Details of Mihayou ZZZ Absolute Zone Zero
Netizens Discover that “Black Myth: Wukong” Mistakenly Scanned Rebar into the Game, How to Evaluate Such Practices of Scene Scanning in Games? How Was It Done?
Collect and Forward, GPU, CPU, Memory, and More than 150 Game Development Performance Analysis Optimization Tips Collection!
Unity3D Game Development Implementation and Source Code Collection of 100+ Effects – Definitely Useful to Keep!
Not an Advertisement! 6-Year-Old Account Benefits, Outline, Depth of Field, Bloom, Shadow, and More than 60 Game Post-Processing Effects Implementation Collection!
Collect and Forward! Research Collection of Rendering Effect Techniques for 80+ Games such as Genshin Impact, Sekiro, and God of War 4! Free!

The statement: This article comes from the public account: Game Development Technology Tutorial (GameDevLearning), please attach the original link and this statement when reprinting.

Follow 【Game Development Technology Tutorial】

Game Development Technology, Skills, Tutorials, and Resources, Q&A, Internal PushInterviews

Introduction to C++ Multithreaded Concurrent Programming

Introduction to C++ Multithreaded Concurrent Programming

Introduction: Why Do We Need Concurrency?

Chapter 1: Basics of Threads – `<span>std::thread</span>`

1.1 Creating and Starting Threads

1.2 Thread Lifecycle: `<span>join()</span>` and `<span>detach()</span>`

UML – Thread Lifecycle Sequence Diagram

1.3 Passing Parameters to Threads

Chapter 2: The Nightmare of Shared Data – Data Races and Race Conditions

Chapter 3: Synchronization Primitives (I) – Mutexes and Locks

3.1 `<span>std::mutex</span>`

3.2 RAII-style Lock Management: `<span>std::lock_guard</span>` and `<span>std::unique_lock</span>`

UML – Mutex State Diagram

3.3 Deadlock

Chapter 4: Synchronization Primitives (II) – Condition Variables

4.1 Producer-Consumer Model

UML – Producer-Consumer Sequence Diagram

Chapter 5: Advanced Abstractions – `<span>future</span>`, `<span>promise</span>` and `<span>async</span>`

5.1 `<span>std::async</span>`, `<span>std::future</span>`

5.2 `<span>std::promise</span>` and `<span>std::packaged_task</span>`

UML – Future/Promise Model

Chapter 6: Lock-Free Programming – Atomic Operations Library `<span><atomic></span>`

Chapter 7: C++20 and Future Concurrency Features

Conclusion and Best Practices

Netizens Discover that “Black Myth: Wukong” Mistakenly Scanned Rebar into the Game, How to Evaluate Such Practices of Scene Scanning in Games? How Was It Done?

Leave a Comment Cancel reply

Introduction: Why Do We Need Concurrency?

Chapter 1: Basics of Threads – <span>std::thread</span>

1.1 Creating and Starting Threads

1.2 Thread Lifecycle: <span>join()</span> and <span>detach()</span>

UML – Thread Lifecycle Sequence Diagram

1.3 Passing Parameters to Threads

Chapter 2: The Nightmare of Shared Data – Data Races and Race Conditions

Chapter 3: Synchronization Primitives (I) – Mutexes and Locks

3.1 <span>std::mutex</span>

3.2 RAII-style Lock Management: <span>std::lock_guard</span> and <span>std::unique_lock</span>

UML – Mutex State Diagram

3.3 Deadlock

Chapter 4: Synchronization Primitives (II) – Condition Variables

4.1 Producer-Consumer Model

UML – Producer-Consumer Sequence Diagram

Chapter 5: Advanced Abstractions – <span>future</span>, <span>promise</span> and <span>async</span>

5.1 <span>std::async</span>, <span>std::future</span>

5.2 <span>std::promise</span> and <span>std::packaged_task</span>

UML – Future/Promise Model

Chapter 6: Lock-Free Programming – Atomic Operations Library <span><atomic></span>

Chapter 7: C++20 and Future Concurrency Features

Conclusion and Best Practices

Netizens Discover that “Black Myth: Wukong” Mistakenly Scanned Rebar into the Game, How to Evaluate Such Practices of Scene Scanning in Games? How Was It Done?

Leave a Comment Cancel reply

Chapter 1: Basics of Threads – `<span>std::thread</span>`

1.2 Thread Lifecycle: `<span>join()</span>` and `<span>detach()</span>`

3.1 `<span>std::mutex</span>`

3.2 RAII-style Lock Management: `<span>std::lock_guard</span>` and `<span>std::unique_lock</span>`

Chapter 5: Advanced Abstractions – `<span>future</span>`, `<span>promise</span>` and `<span>async</span>`

5.1 `<span>std::async</span>`, `<span>std::future</span>`

5.2 `<span>std::promise</span>` and `<span>std::packaged_task</span>`

Chapter 6: Lock-Free Programming – Atomic Operations Library `<span><atomic></span>`
