1. Introduction to the New Lesson: Understanding the World of Open Source Hardware

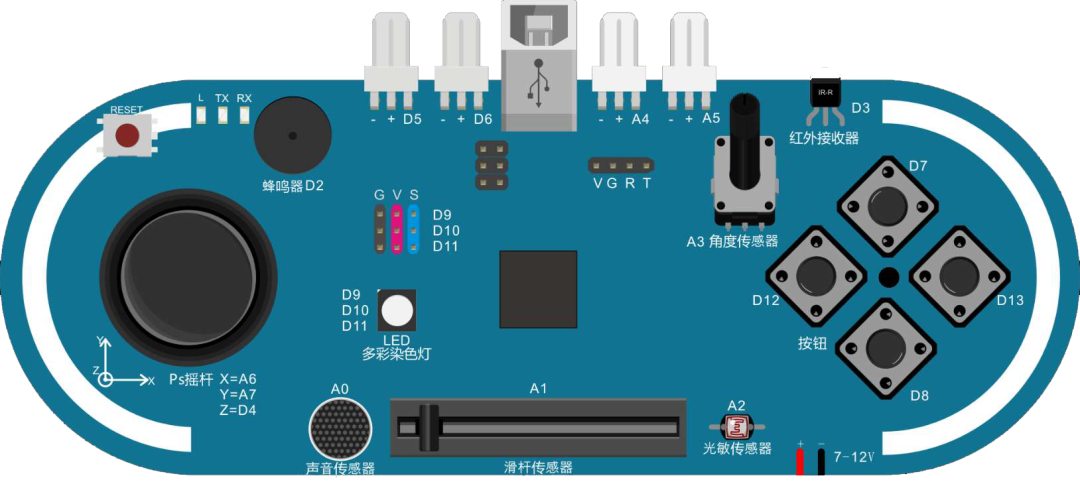

Game Development Board Improvement Board
Friends interested in this motherboard can leave a message in the WeChat public account backend to get crowdfunding methods.

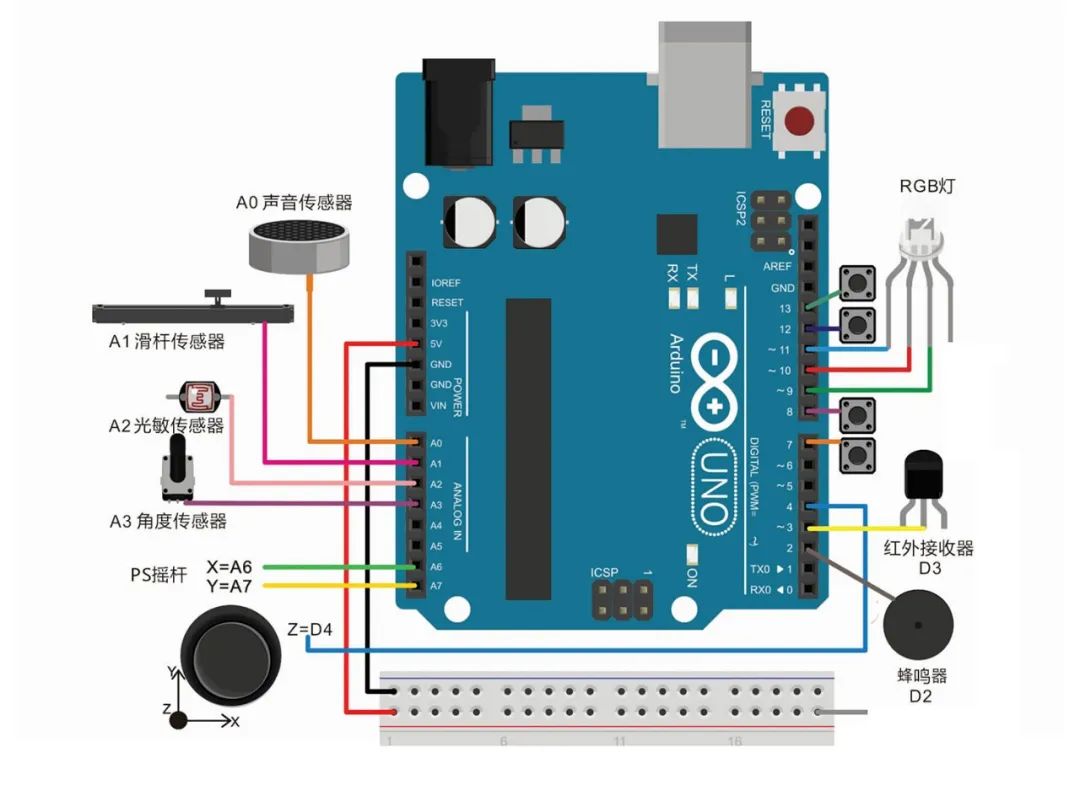

UNO Original and Sensor Matching Schematic
The open source hardware programming school-based curriculum has been carried out for more than 6 years since 2016 and has won the Special Prize for Basic Education Achievements in Zaozhuang City.
Undertaking the Shandong Provincial Education Science Planning Project “In-depth Development Research on Primary School Artificial Intelligence Education Curriculum Based on STEM Concepts”, the team has polished high-quality classes and won the first prize in the Shandong Provincial Education and Technology Museum for three consecutive years, and published 3 books.
Every year, students are organized to participate in related competitions to promote learning through competition, enhance abilities, and broaden their horizons. In 2022, two representative teams participated in the national student information literacy improvement practical activities.

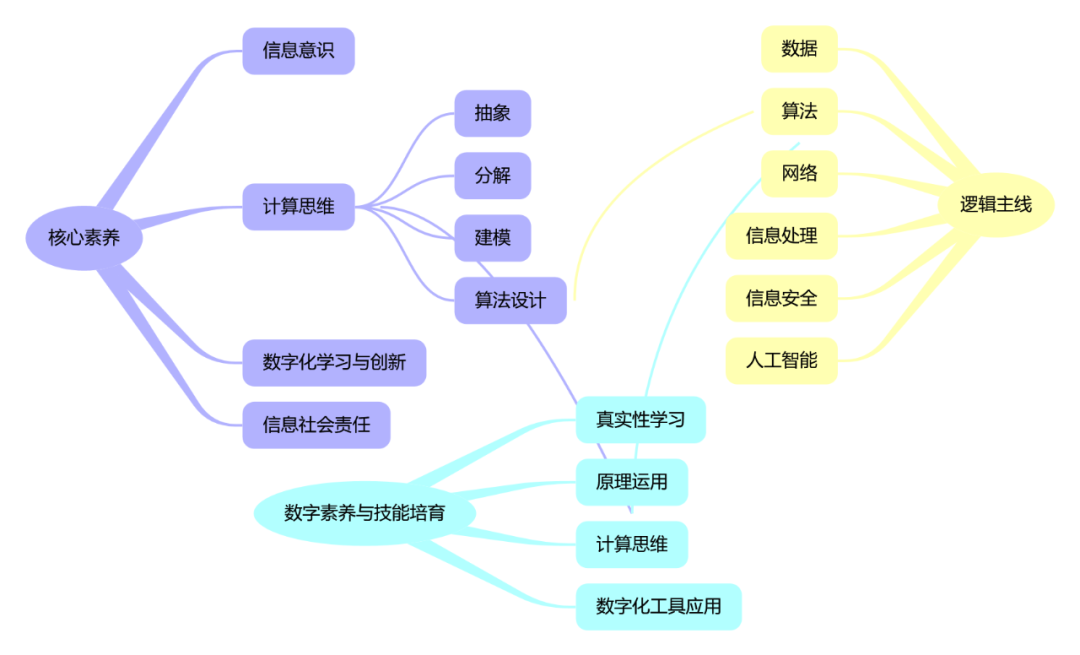

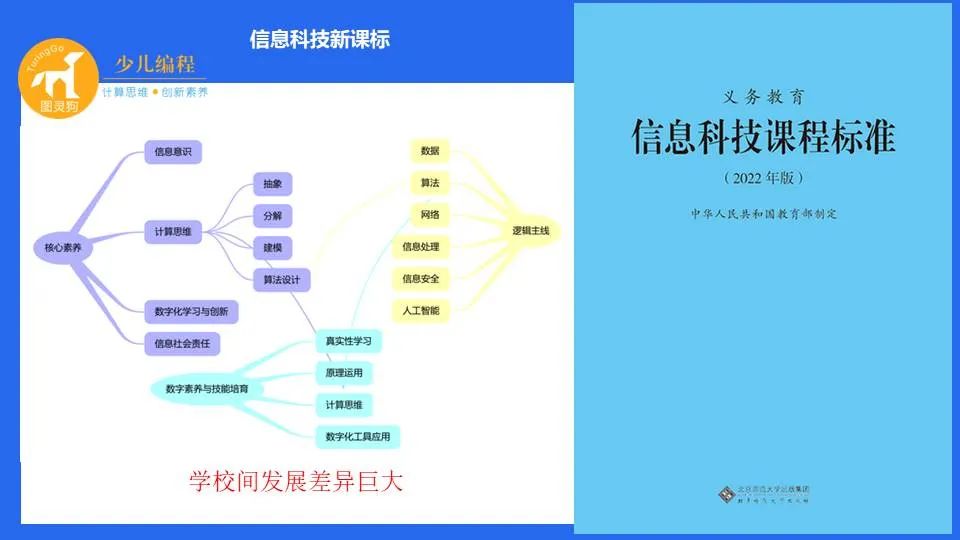

Information Technology 2022 Curriculum Core Vocabulary

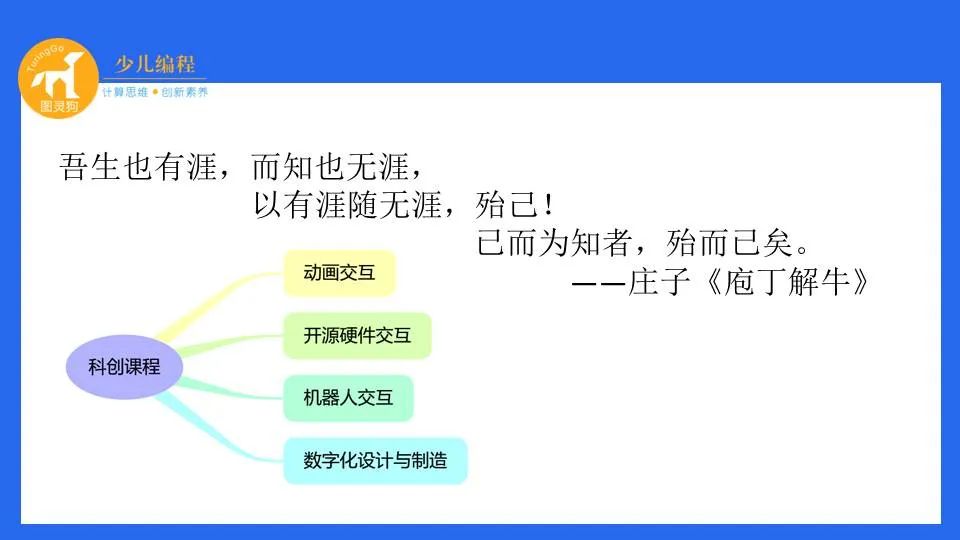

My life has limits, but knowledge has no limits. To follow the limited with the unlimited is perilous! To be knowledgeable is perilous enough.
Follow educational laws and cultivate innovative qualities.
Education should respect the actual level of children, and before children mature, we must patiently wait and not violate the natural laws of children’s development or artificially accelerate their development through training against their internal “timetable”.

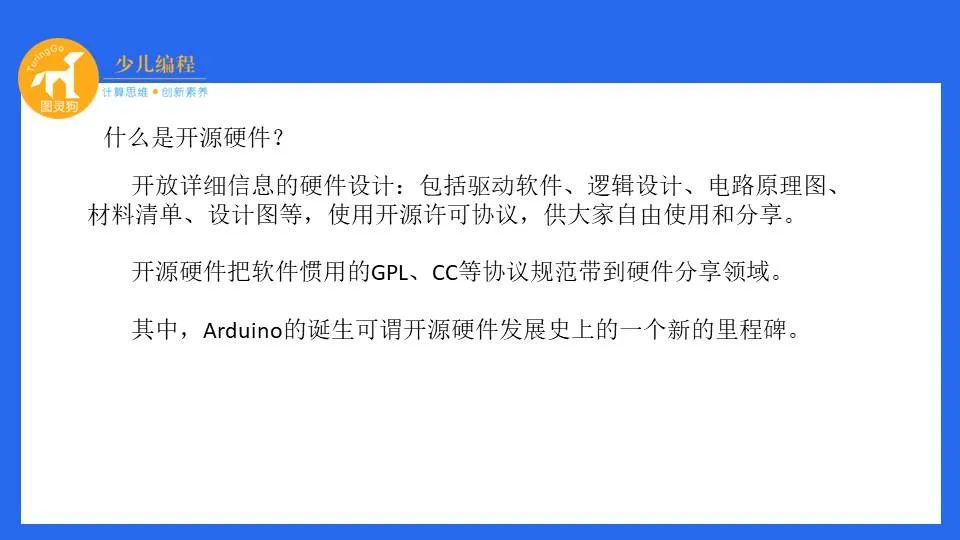

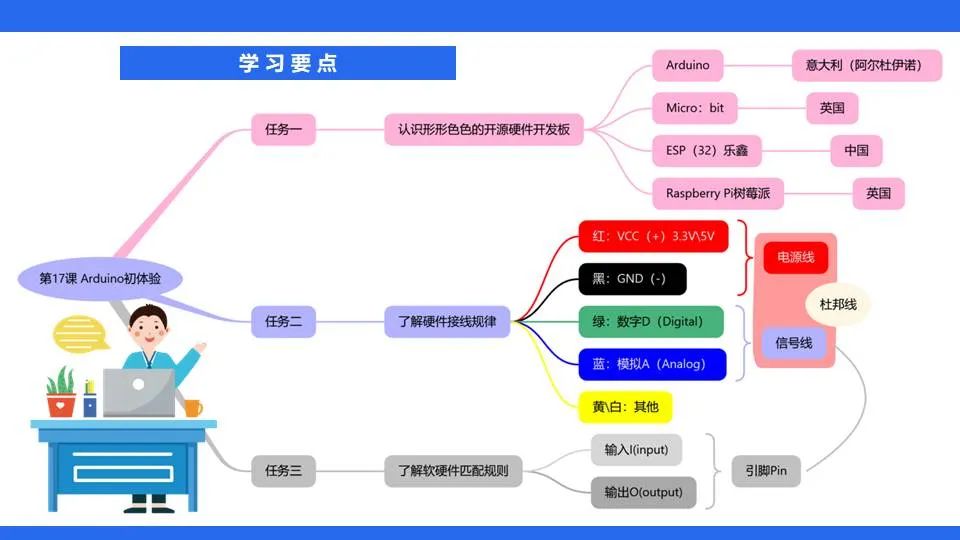

What is Open Source Hardware?
Hardware designs that open detailed information: including driver software, logic design, circuit schematics, material lists, design drawings, etc., using open source license agreements for everyone to use and share freely. Open source hardware brings the commonly used software protocols such as GPL, CC, etc., into the hardware sharing field.

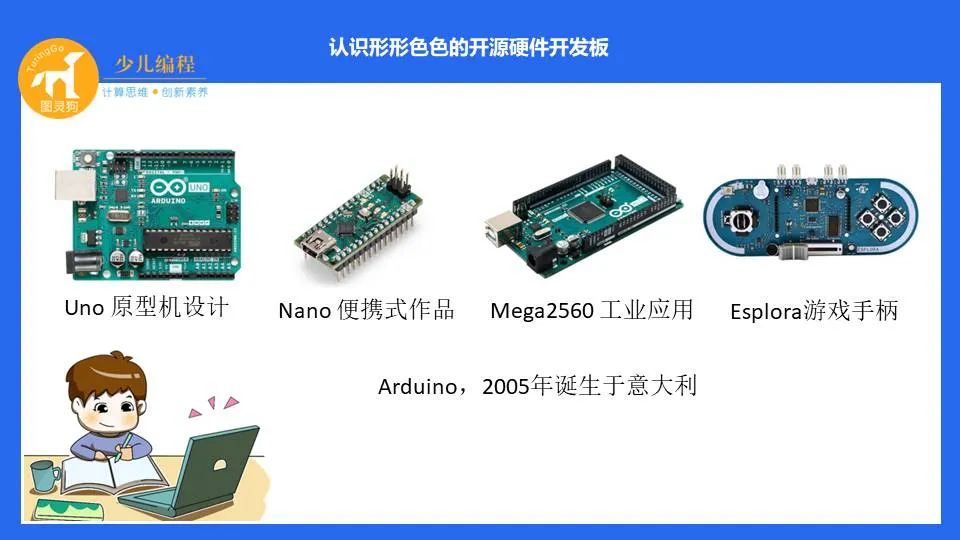

There are many versions of Arduino, and this chapter uses the game controller as an example for teaching.

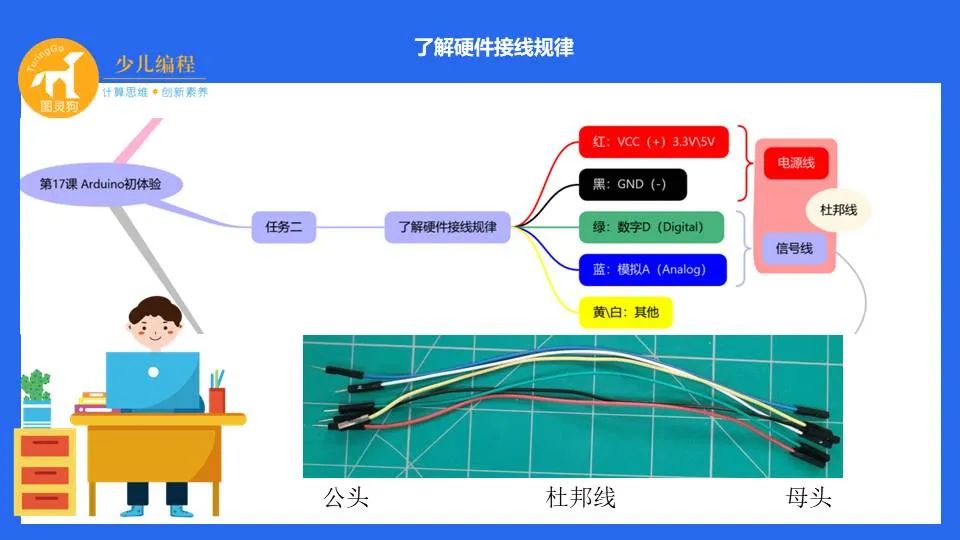

Using Dupont wires to connect electronic components makes it easy to create prototypes.

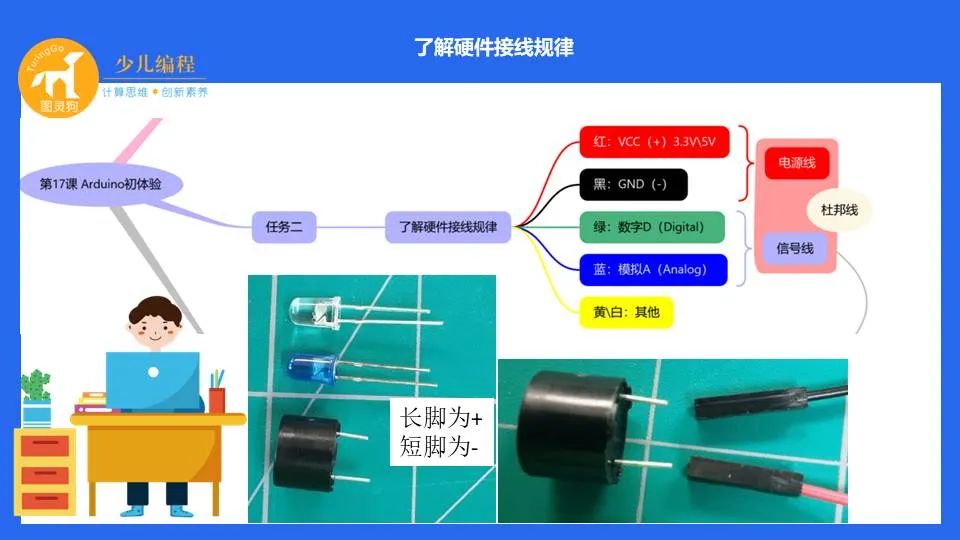

Buzzer and LED beads, the long leg is + connected to VCC or control PIN, the short leg is connected to -GND.

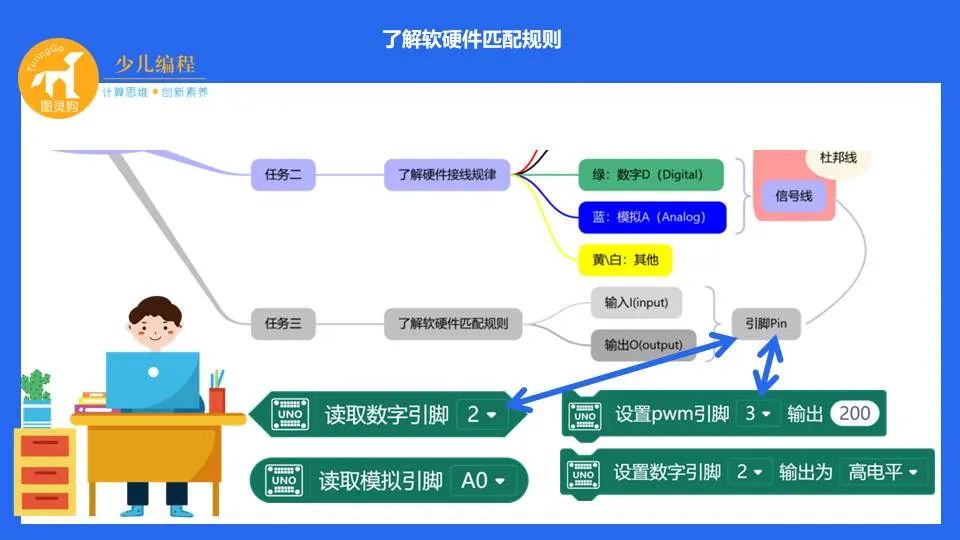

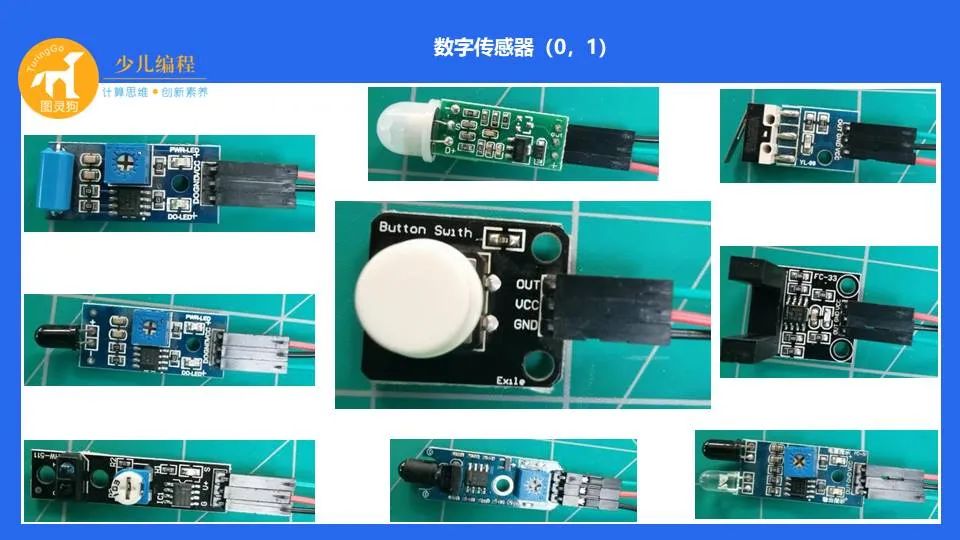

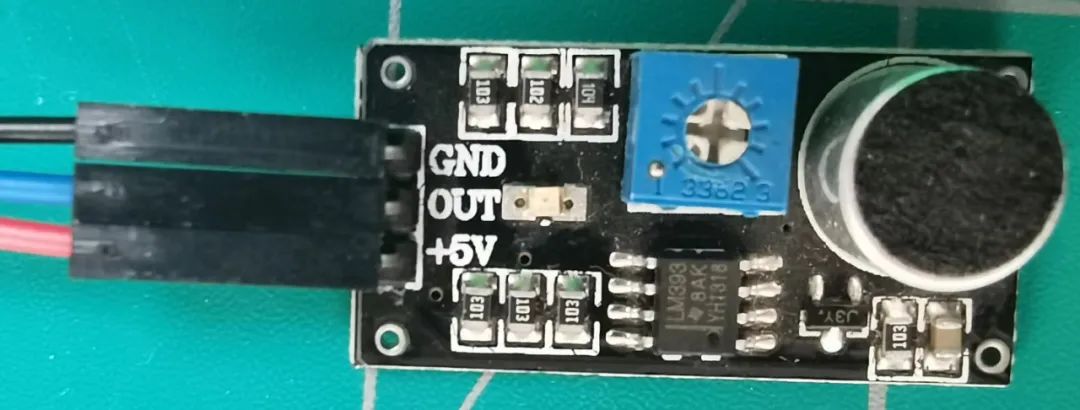

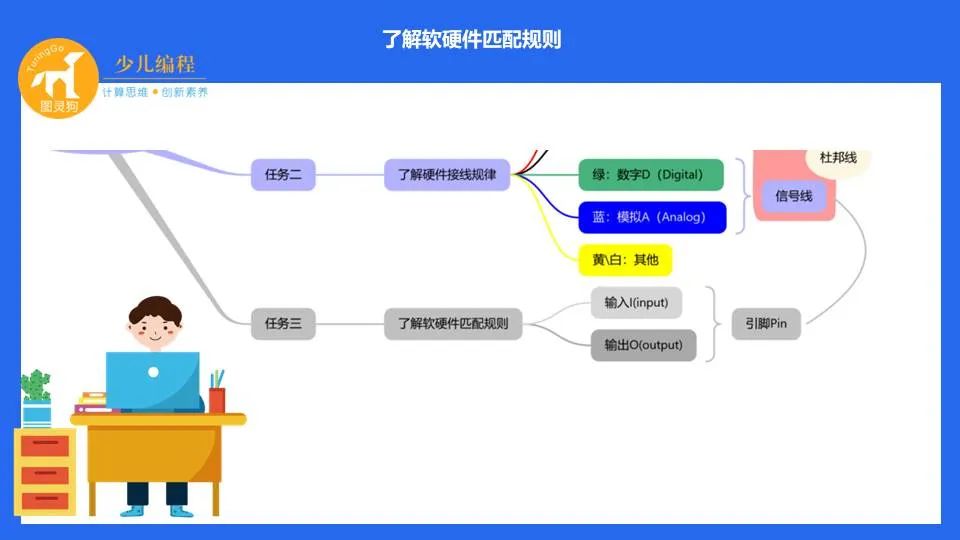

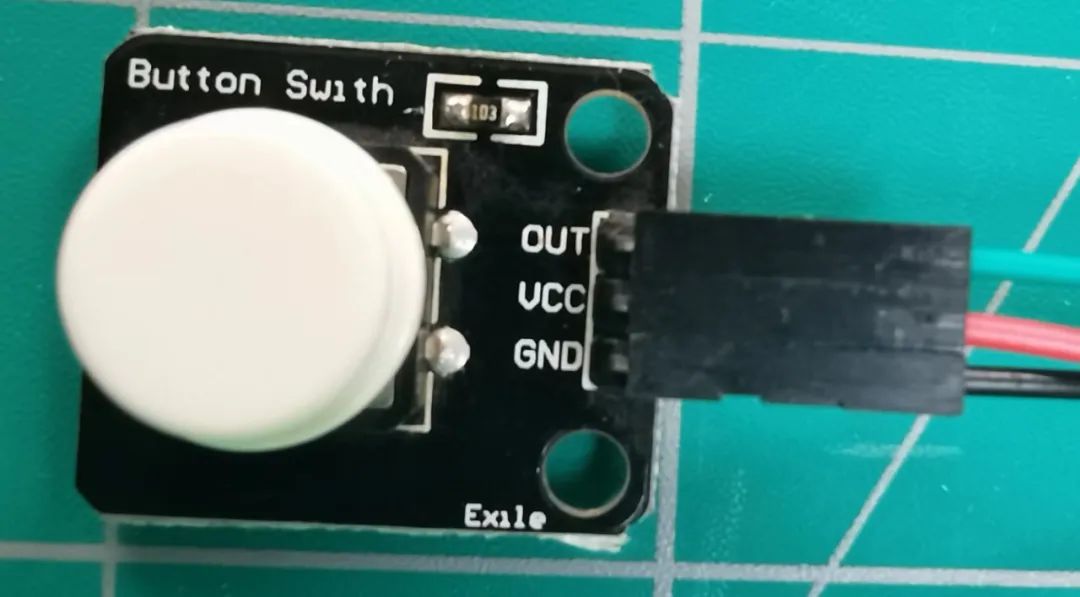

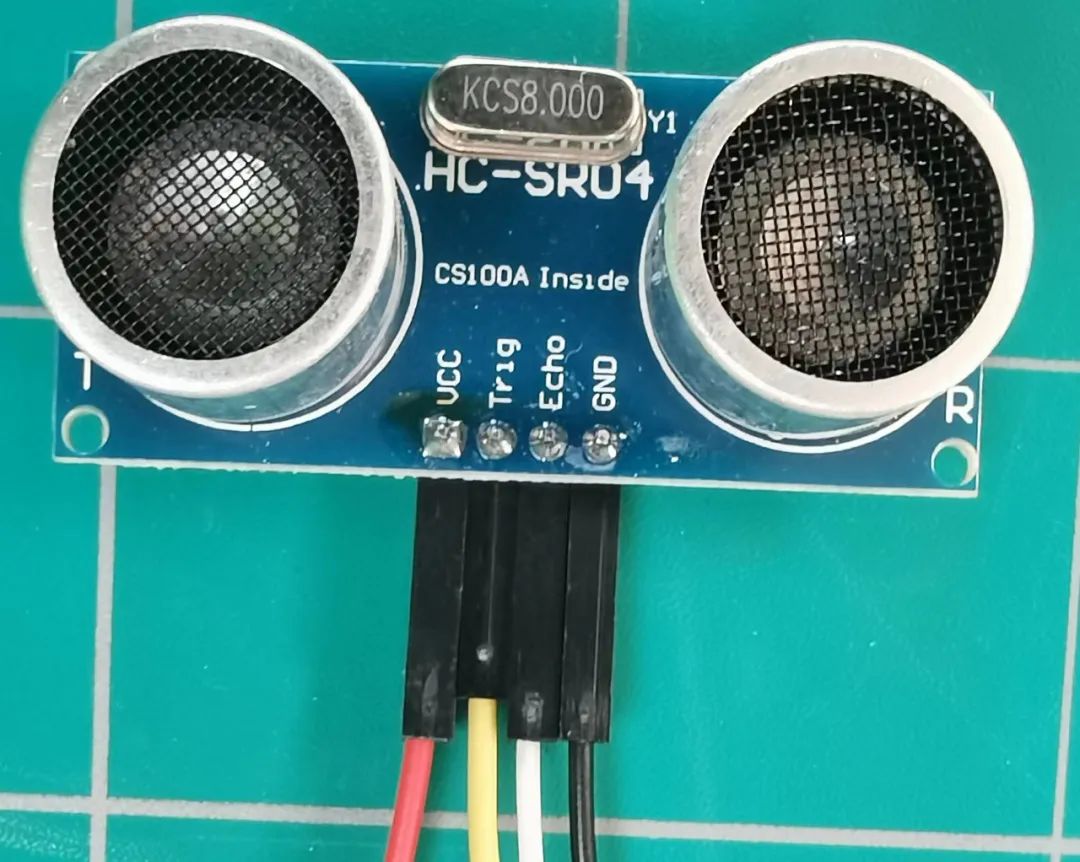

Digital sensors usually use green wires to connect to the signal end, such as S, OUT, DO

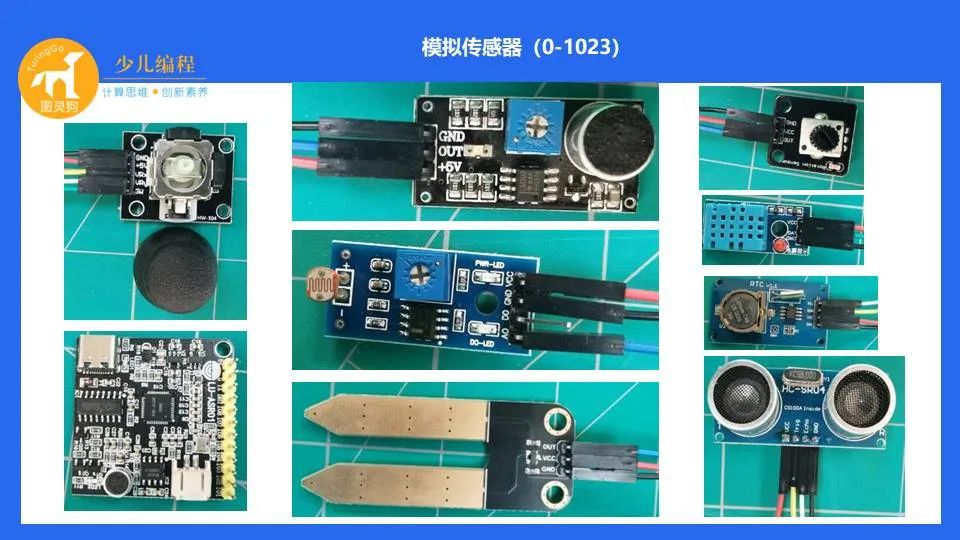

Analog sensors usually use blue wires to connect to the signal end, such as S, OUT, AO

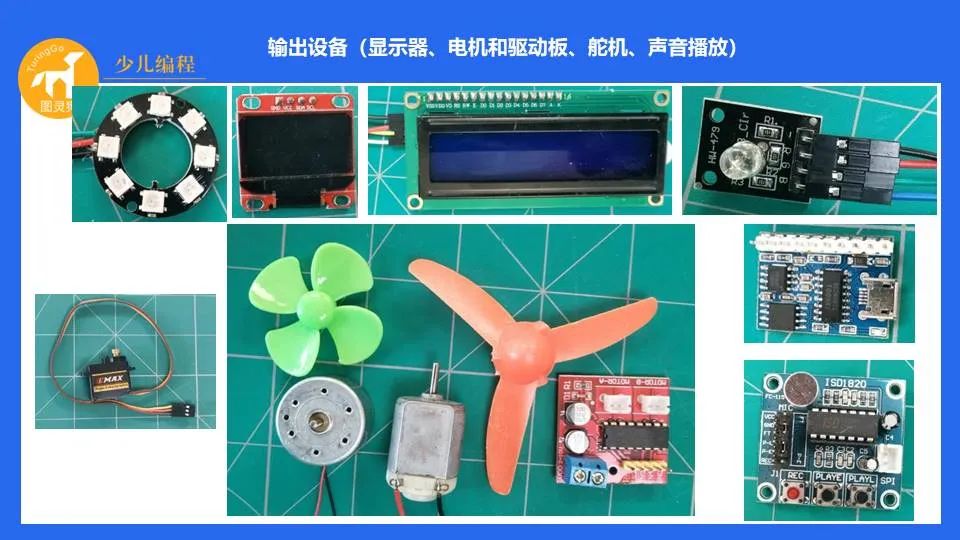

Output modules such as displays, motor expansion boards, voice broadcast modules, full-color LED lights, etc.

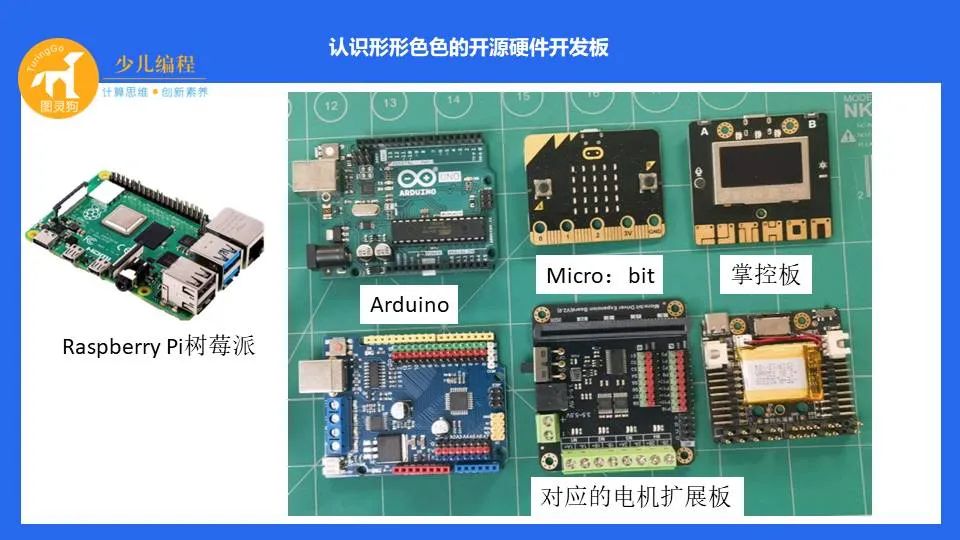

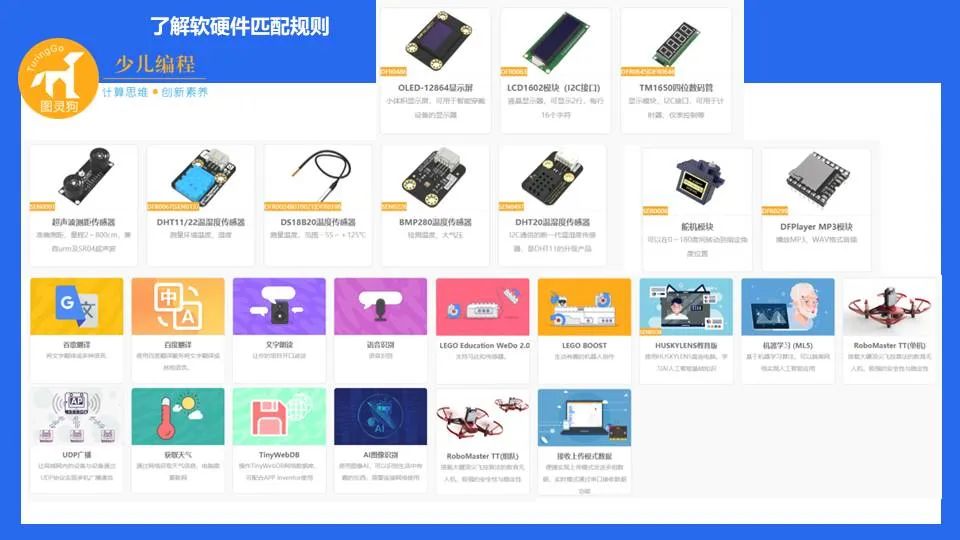

Rich hardware support modules
AI modules are also very rich

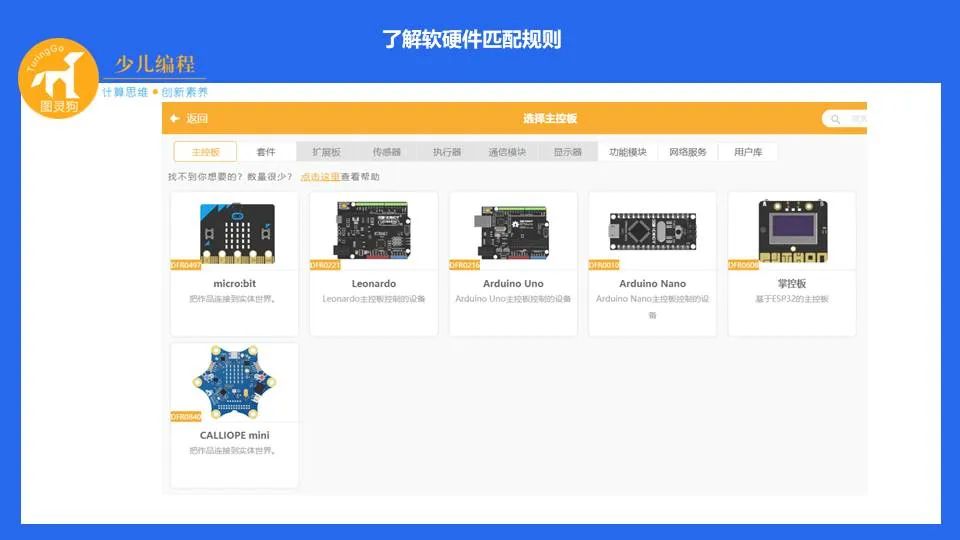

Software pin list options combined with hardware interfaces remain consistent.
Recommended Books

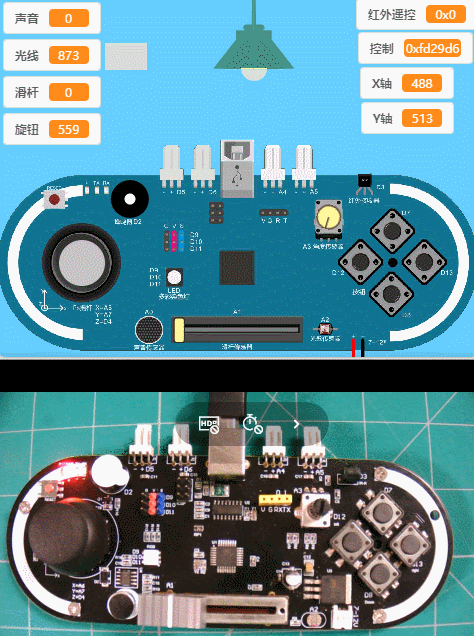

Real-time interaction demonstration effect of the handle
Programming software Mind+ download address
https://mindplus.cc/download.html
Mind mapping software ithoughts download address
https://www.toketaware.com/trial-download
——————————————
Essential tools and program source code can be downloaded from Aliyun Drive
https://www.aliyundrive.com/s/6BFFvFtUcJJ——————————————
