70 Years of OEM Pumps and Compressors
Ingersoll Rand Life Sciences
More Accurate, More Efficient
In addition to the well-known nucleic acid testing, in vitro diagnostics (IVD) also play a crucial role in physical examinations, chronic disease management, and critical monitoring. As the “tools” and “weapons” of laboratory medicine, the results provided by IVD equipment directly affect the diagnosis and treatment plans for diseases. Among IVD devices, the pump, as one of the key components, is like the “heart” of the equipment, and its performance directly relates to the accuracy and efficiency of test results. Therefore, how to select pumps that are more accurate and efficient for IVD, injecting powerful energy into diagnostic equipment, has become a key issue we need to focus on.
Oil-Free and Corrosion-Resistant
In the field of in vitro diagnostics (IVD), ensuring the contamination-free nature of the testing process is crucial, as any external interference can affect the accuracy of the diagnostic results.
The testing process involves reagents of different media, and to ensure the normal operation of the equipment, parts that come into contact with the media must be made of corrosion-resistant materials. At the same time, to maintain a contamination-free testing environment, choosing an oil-free pump is a very wise decision. Oil-free pumps not only avoid oil contamination but also reduce maintenance costs and improve the reliability of the equipment.
Low Noise and Low Vibration
A quiet testing environment not only helps laboratory personnel to work more focused but also effectively protects their physical and mental health. Therefore, choosing a pump that operates quietly is crucial for reducing overall equipment noise and achieving a low-noise testing environment.
First, we need to understand the noise generation mechanism of the pump. The noise from the pump mainly comes from mechanical movement, liquid flow, and electromagnetic interference. Therefore, when purchasing a pump, we should focus on its design and manufacturing process, choosing products that adopt low-noise designs and optimize mechanical structures and flow path designs.
Secondly, selecting pumps with silent technology is key to reducing noise. Some advanced pump products use silent bearings, shock-absorbing pads, and other technologies that effectively reduce mechanical vibration and noise generation. Additionally, some pumps are equipped with noise suppressors or soundproof covers to further reduce noise levels.
Long Lifespan and Strong Support
The increasing preference for in vitro diagnostics is closely related to their high cost-performance ratio. Data shows that about 80% of clinical diagnostic information comes from in vitro diagnostics, while their costs account for less than 20% of medical expenses. Choosing equipment with a long lifespan can significantly reduce usage costs. An excellent pump undergoes rigorous lifespan testing and validation during the design process to ensure that the product can be used without worries in the future.
At the same time, we also need to consider the supplier’s after-sales service and technical support. Quality after-sales service ensures that we receive timely responses and solutions when encountering problems during use, while technical support can provide us with professional advice and guidance to help us better use and maintain pump products.
Product Recommendations

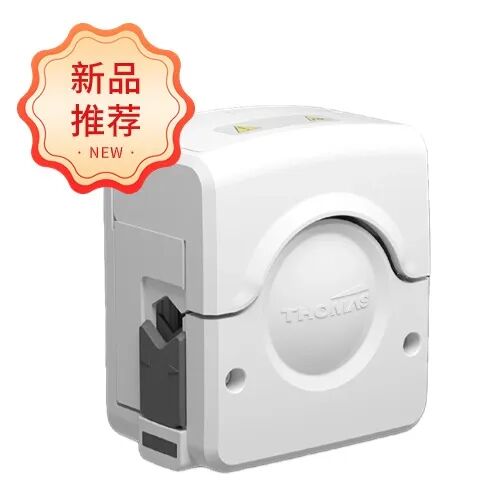

Thomas ETL500
√ Convenient Hose Installation
Continuous pipeline, no joints required
√ Extended Hose Lifespan
Spring closure reduces catheter wear
√ Wide Flow Range
Adjustable hose support suitable for different sizes of hoses
√ Durable Performance
Stable as new even after thousands of hose changes
√ Easy Operation
Tool-free pump head replacement

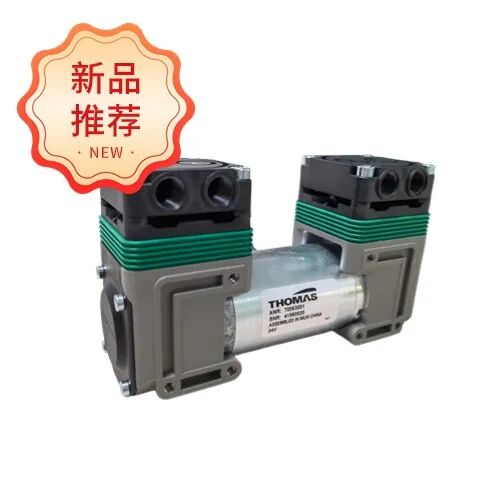

Thomas 7006 Gas-Liquid Mixing Diaphragm Pump
Powerful Gas-Liquid Mixing Capability
Liquid handling flow rate over 1000ml/min
Gas flow rate up to 14L/min
Maximum vacuum degree up to 75%
Diverse Configurations for Different Scenarios
Long-life DC motor and BLDC motor
Flexible pump head configuration
Materials selectable based on media type
Application Scenarios
Chemical laboratories, pharmaceuticals, biotechnology, environmental protection, food processing, etc.
Scan to obtain the parameter table

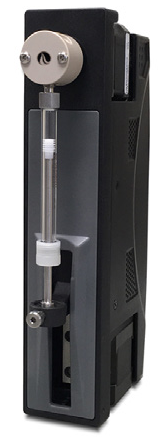

Trikon C3000 / 24000 Syringe Pump
Recommended Applications
Sample dispensing and distribution
Transporting diluents/reagents
Description
• Equipped with high-quality stepper motor and lead screw, up to 192,000 steps per full stroke
• Syringe capacity from 50 μL to 12.5 mL
• Offers a variety of rotary shear valves
• Features advanced communication capabilities
Advantages
√ Achieves the highest precision in liquid transfer and flow rate
√ Very wide dynamic range
√ Long lifespan, maintenance-free
√ Easy to install and operate, plug-and-play
Trikon CX Series Syringe Pump
Recommended Applications
Sample dispensing and distribution
Transporting diluents/reagents
Description
• High-resolution options up to 384,000 steps/full stroke
• Syringe volume from 50μL to 25 mL
• Long-life rotary shear valve
• Advanced communication capabilities
• Valves with various configurations up to 6 ports
Advantages
√ Suitable for large volume/high flow
√ Optimized for ultra-low flow applications requiring minimal pulsation
√ Designed for long lifespan and high reliability
√ Plug-and-play, easy to use

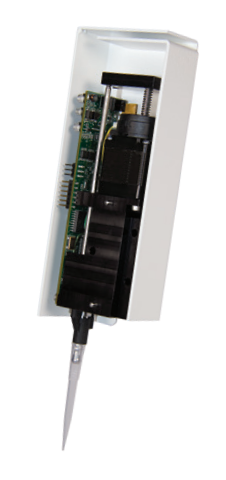

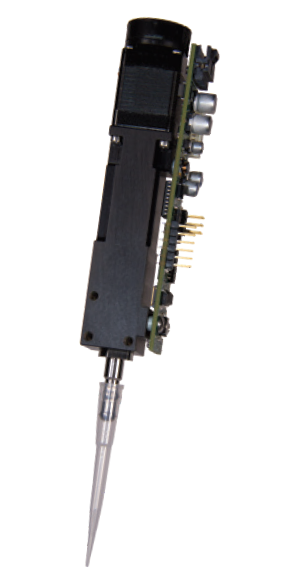

Trikon Air-Z Premier
Recommended Applications
Sample dispensing, distribution, and reconstitution
Description
• Equipped with high-quality stepper motor and lead screw, achieving high resolution
• Total capacity of 1000 μL
• Tip capacity ranges from 20 μL, 50 μL, 200 μL, to 1000 μL
• Features advanced communication capabilities
• Equipped with pressure sensors and capacity sensors
• Active tip drop design
Advantages
√ Very high liquid transfer accuracy and precision
√ Wide dynamic range from a few microliters to 1 milliliter
√ Liquid level detection (LLD) function with pressure, capacity, or both combined
√ Tip blockage detection
√ Active tip drop design for convenient reuse of tips
Trikon Air-Z Flex
Recommended Applications
Sample dispensing, distribution, and reconstitution
Description
• Available in capacities of 50 μL, 250 μL, and 1,000 μL
• With or without control electronics, including pressure sensors
• Available in vertical or horizontal models
• Can handle up to 15 devices individually
Advantages
√ High-resolution encoder for step loss detection
√ Space-saving compact design
√ Equipped with universal tip adapters suitable for multi-capacity tips
√ Equipped with pressure sensors for tip blockage detection
Trikon Air-Z Mini
Recommended Applications
Sample dispensing, distribution, and reconstitution
Description
• 50 μL capacity
• Most economical design, suitable for low-load cycling applications
• Easy to install and replace
• Does not achieve accuracy and precision when less than 1% of full stroke
Advantages
√ Lightweight, suitable for smaller care systems
√ Compact design, suitable for small applications
√ Can nest in 18 mm centers for simultaneous dispensing

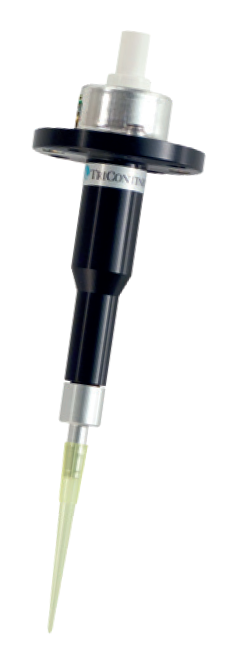

Trikon Air-Z Legacy
Recommended Applications
Sample dispensing, distribution, and reconstitution
Description
• Pump capacity options of 200 μL, 1,000 μL, 2,000 μL, and 5,000 μL
• Optional proximity switch
• Offers optional motion control board
Advantages
√ Instrument-ready design
√ Uses borosilicate glass and PTFE liquid contact surfaces for long lifespan
√ Compatible with most motion controllers

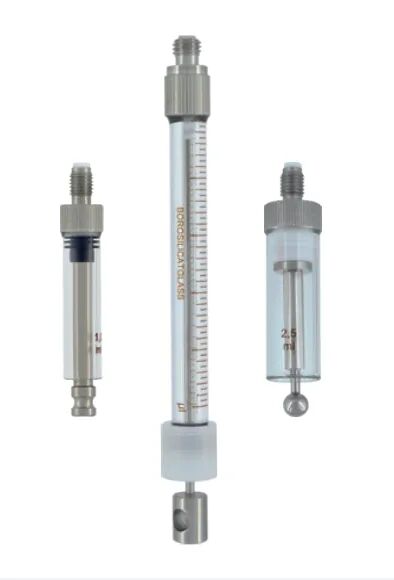

Trikon Automatic Syringe
Recommended Applications
Sample dispensing and distribution
Transporting diluents/reagents
Description
• Available in lengths of 3 cm and 6 cm
• PTFE or UHMWPE sealing options
• Syringe capacity from 50 μL to 25 mL
Advantages
√ Compatible with most industry-standard pumps
√ Made with high-quality sealing materials and borosilicate 3.3 glass, proven design
√ Custom designs available to meet your needs
Thomas 1210 Series Liquid Diaphragm Pump
Recommended Applications
Waste liquid removal
Description
• Liquid diaphragm pump for smooth, continuous liquid delivery
• Maximum liquid flow: 180 ml/min
• Maximum pressure height: 10 meters
• Maximum suction: 6 meters
Advantages
√ Ensures smooth, continuous flow of liquid with very low pulsation
√ No bubble generation during liquid transport
√ Fully compatible with corrosive and abrasive media
√ Flexible design for custom solutions

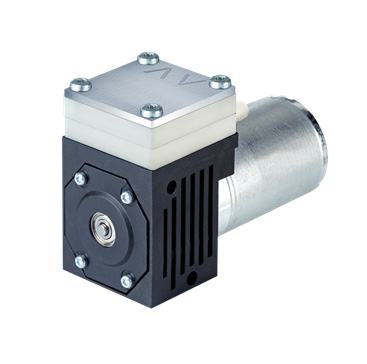

Thomas 6313 Liquid Diaphragm Pump
Recommended Applications
Waste liquid removal
Description
• Liquid diaphragm pump for thorough and rapid suction
• Maximum liquid flow: 300 ml/min
• Maximum gas flow: 2.3 L/min
• Maximum pressure height: 10 meters
• Maximum suction: 7 meters
Advantages
√ Excellent suction performance
√ Valve system optimized for gas-liquid mixtures
√ Efficient
√ Maintains excellent reliability and durability even with corrosive and abrasive media
√ Flexible customization based on customer needs

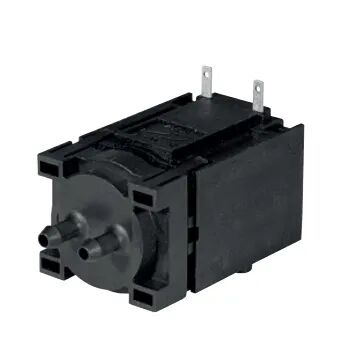

Thomas LMF Liquid Linear Diaphragm Pump
Recommended Applications
Reagent dispensing
Description
• Reliable and continuous liquid linear diaphragm pump for low-pressure conditions
• Maximum liquid flow: 300 ml/min
• Maximum pressure height: 5 meters
• Maximum suction: 2 meters
Advantages
√ Cost-effective
√ Quiet operation

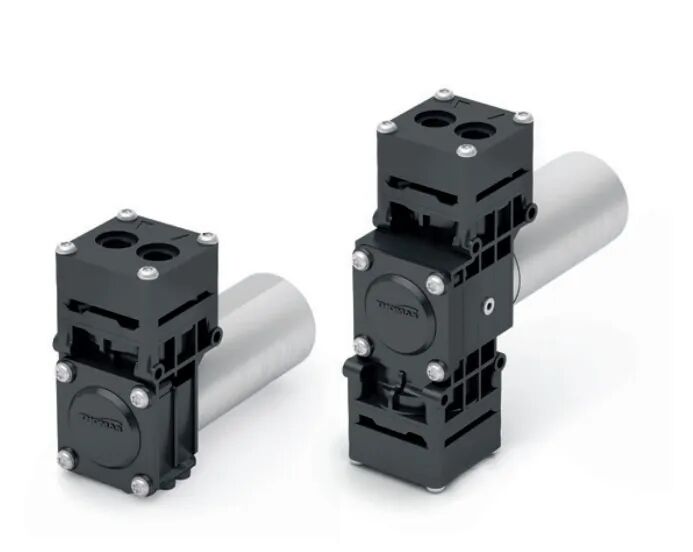

Thomas 1610 / 1620 Diaphragm Gas Pump
Recommended Applications
Waste removal
Description
• Diaphragm gas pump with high-end vacuum and stable performance
• Free flow rate up to 16 L/min
• Intermittent pressure up to 2 bar
• Intermittent vacuum up to 90%
Advantages
√ Maintains low noise and vibration during performance range operation
√ Fast exhaust speed
√ Ensures reliable performance during the lifespan
√ Configurable design for custom solutions

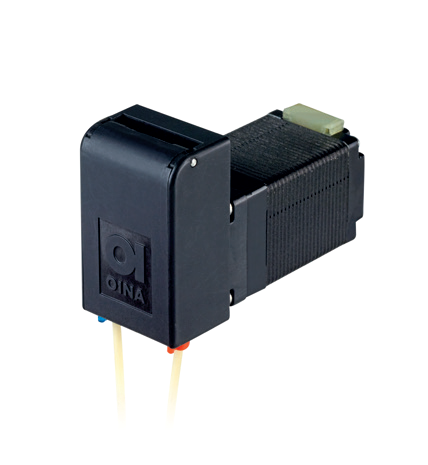

Thomas SR 10 / 30 Peristaltic Pump
Recommended Applications
Reagent dispensing
Description
• Peristaltic pump for low-precision dispensing
• Maximum liquid flow: 80 ml/min
• Maximum pressure height: 8 meters
• Maximum suction: 8 meters
Advantages
√ Simple operation, easy to change tubing
√ Sturdy and durable design
√ Reliable dispensing function
√ Flexible selection of motors and tubing

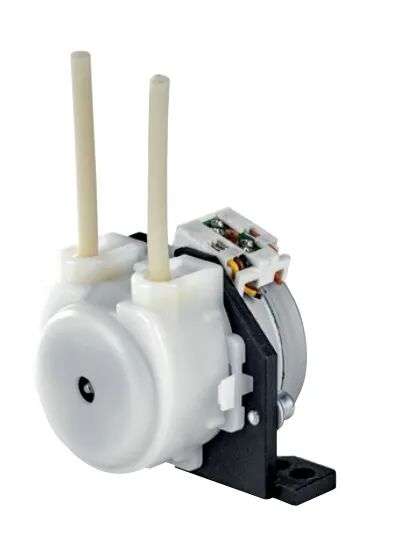

Thomas ETL200
Recommended Applications
Reagent dispensing
Description
• Peristaltic pump for precise dispensing
• Maximum liquid flow: 60 ml/min
• Maximum pressure height: 20 meters
• Maximum suction: 9 meters
Advantages
√ Double-spring engagement maximizes tubing lifespan and accuracy
√ One-button quick tubing installation
√ Equipped with bridging tubing
√ Stepper motor
√ Control board available

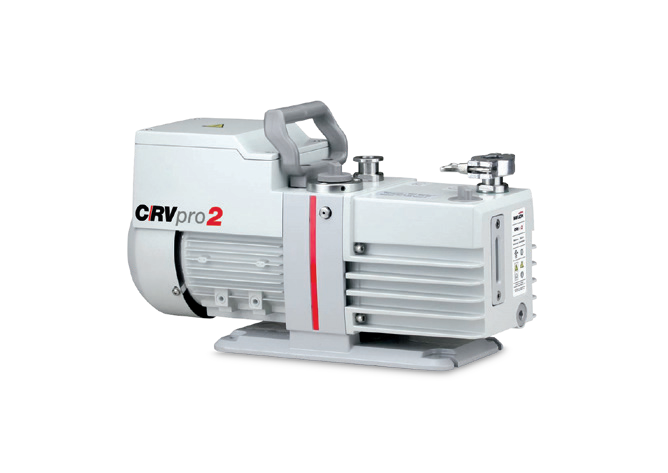

Welch CRVpro Series Vacuum Pump
Description
The Welch CRVpro series is the ultimate evolution of two-stage rotary vane vacuum pumps, designed for outstanding performance and durability to simplify your work.
Advantages
√ Large oil tank capacity effectively dilutes chemical vapors and reduces the risk of pump chemical corrosion and oil contamination
√ Enhanced airflow ensures low-temperature operation and slows corrosion
√ Internal PTFE coating combined with external black oxide coating effectively reduces the risk of chemical vapor corrosion
√ Extended oil change intervals minimize maintenance frequency and costs
√ Sturdy design provides stable operation while ensuring high reliability and longevity

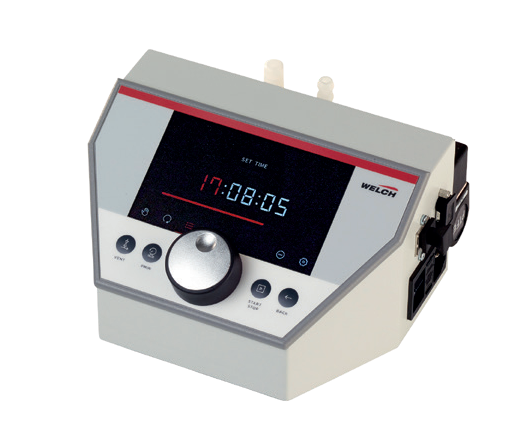

Welch VCpro 601 Vacuum Controller
Description
With Welch’s new vacuum controller VCpro 601, you can precisely and easily achieve vacuum regulation from 1100 to 1mbar for laboratory or industrial applications. This controller is equipped with a wide range of power supply, so no adapter is needed for global use.
Advantages
√ Intelligent and multiple programming modes
√ Safety levels suitable for administrators and general users
√ Log files record all pump activities for easy traceability
