01
—
Communication Connection Method
1.1 Connect the EPSON controller to the computer via USB cable
1.1.1 Open the EPSONRC+7.0 software, connect the controller using the USB cable, and stop the robot using the HMI.
1.1.2 Click ‘Settings’ – ‘Communication between Computer and Controller’.
1.1.3 Select ‘USB’ – ‘Connect’.
1.1.4 Choose the second option ‘Switch the controller to program mode…’ – ‘OK’.
1.2 Connect the EPSON controller to the computer using an Ethernet cable through a switch (HUB)
1.2.1 ‘Computer Controller Communication Controller’, click ‘Add’.
1.2.2 Select ‘Connect to Controller via Ethernet’.
1.2.3 Change the name to (Robot A side) for easy memory, modify the IP, and establish the connection.
1.2.4 After modification, click ‘Apply’.
1.2.5 For quick connection, select Ethernet connection.
02
—
Backup 31pts
The backup program mainly backs up the 31.pts coordinate file, with two methods:2.1 Read the program inside the controller
2.2 Backup the controller
2.1 Read the program inside the controller
2.1.1 Click ‘Project’ – ‘Import’.

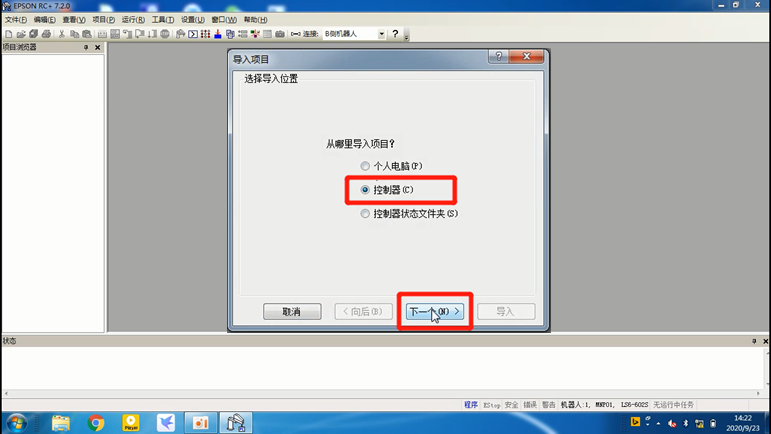

2.1.2 Select ‘Controller’ – ‘Next’.
2.1.3 Rename the program to backup.
2.1.4 Select import.
2.1.5 A program folder will be generated in the projects file with the project name, open the folder, and remove the read-only attribute of the 31.pts file.
02
—
Backup the Controller
2.2.1 Select ‘Tools’ – ‘Controller’.
2.2.2 Click ‘Backup Controller’.
2.2.3 Choose the location to keep the program.
2.2.4 After backup is complete, a folder will appear.
2.2.5 Find the corresponding 31.pts file in the backup project folder.
2.2.6 Remove the read-only attribute of the 31.pts file.
03
—
Download Program
3.1 Copy the robot program into the ESPON installation folder under the projects folder.
3.2 Copy the backed-up 31.pts file into the new program folder under projects to replace it.
3.3 Open the new program.
3.4 Select ‘Project’ – ‘Recreate’.
3.5 The status bar shows that the creation is complete with no errors, indicating that the program download is complete.
3.6 For quick connection, select ‘Offline’ to disconnect from the controller.
