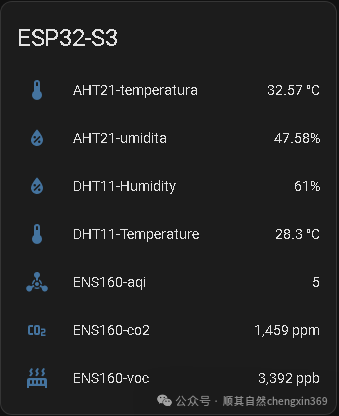

Last night I checked the data in Home Assistant, and the values from the ENS160 were extremely alarming
This morning, the data still looks alarming…ENS160:

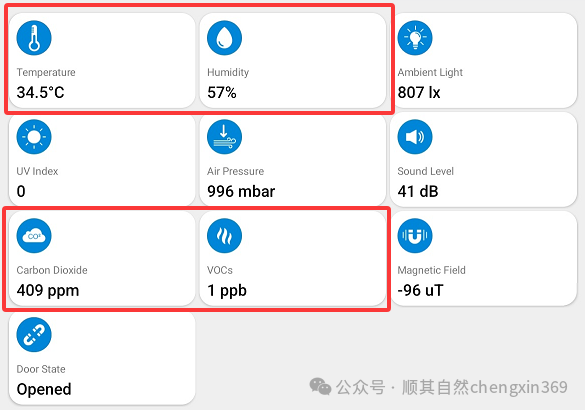

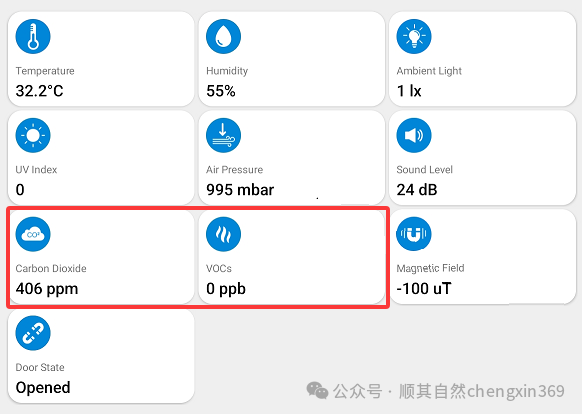

CCS811:

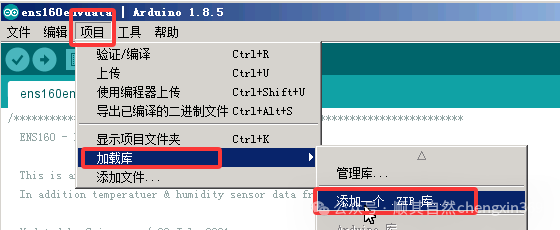

I still can’t figure out whether it’s an issue with the esphome settings or something else? I don’t want to dwell on it Let’s keep it simple — let’s use Arduino… To use Arduino, you need to load the library files, as follows:
Wiring for the sensors:

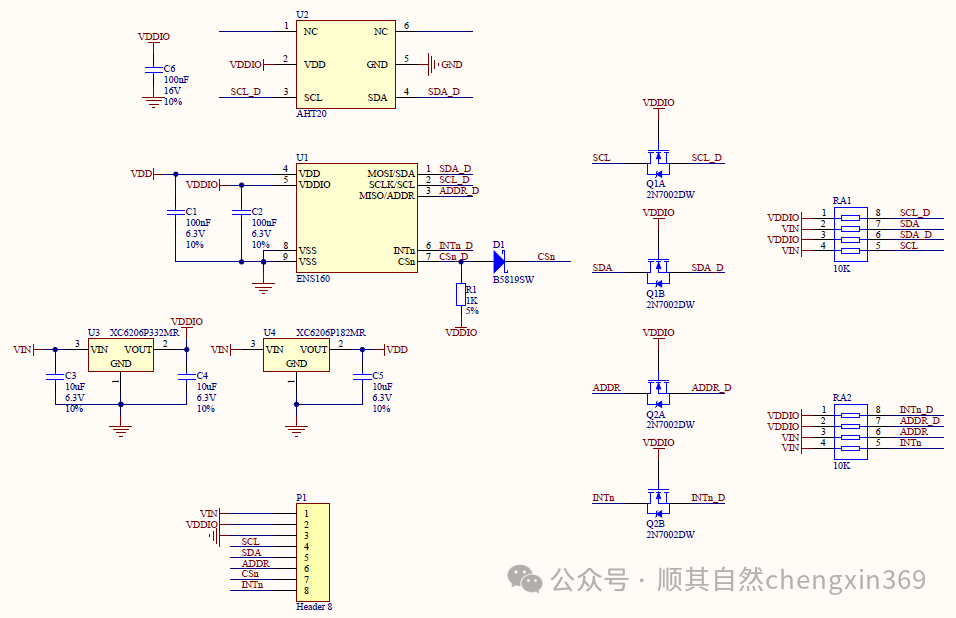

ENS160 Module Schematic (it looks a bit complicated at first but it still looks complicated after a second look):
Wiring:Arduino Nano — ENS160 Module A4 —————— SDA A5 —————— SCL 5V —————— VIN GND —————— GNDData:CCS811:

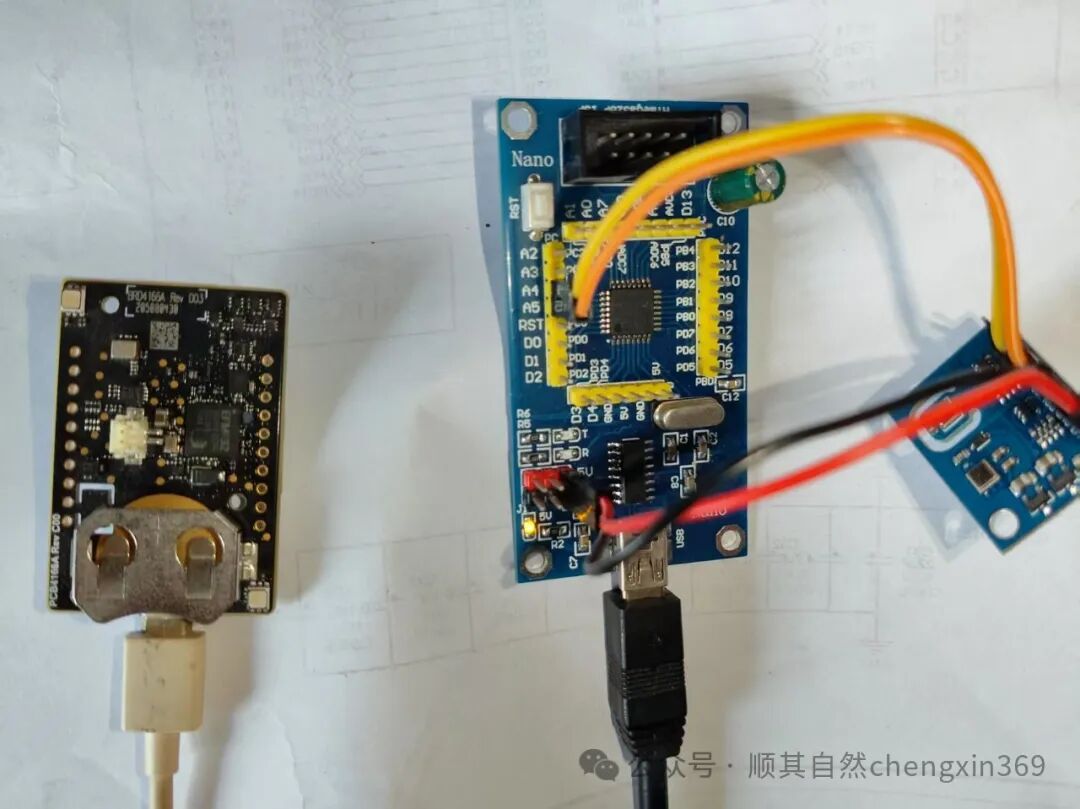

Arduino Nano + ENS160 Module:

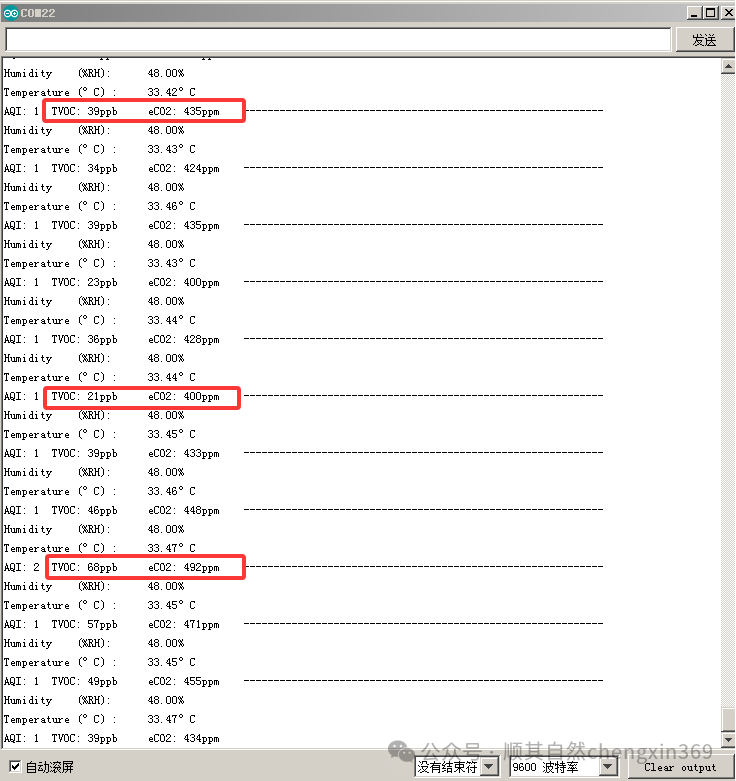

The data from the ENS160 is still high, still drifting, but compared to before, it’s not too outrageous I will place an order soonfor the SGP30, etc.Once the SGP30 arrives, I will conduct a comparative test with all three sensors
