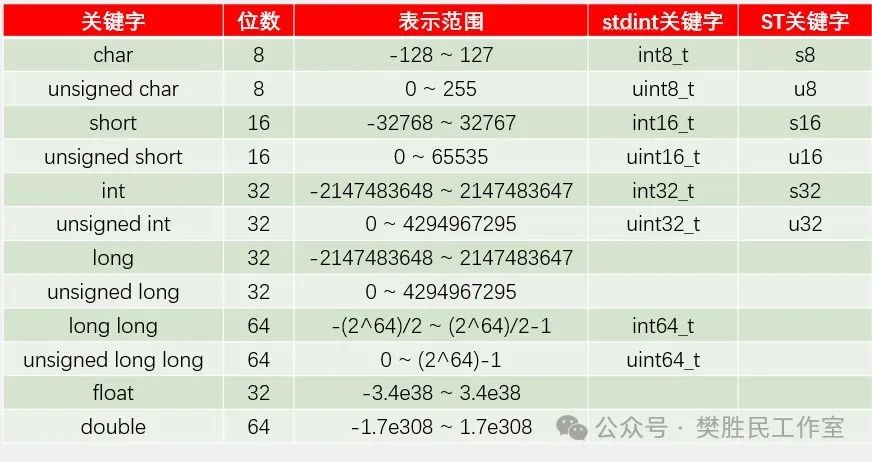

Here is a brief summary of the main differences in C language data types between STM32 and C51:
STM32 (32-bit microcontroller based on ARM Cortex-M core):
- Supports standard C language data types such as
<span>int</span>(typically 32 bits),<span>long</span>,<span>float</span>,<span>double</span>, etc. - Specific types like
<span>uint16_t</span>and<span>uint32_t</span>are used to explicitly specify unsigned short and 32-bit unsigned integers. - The exact bit size and range of data types may vary depending on the compiler and specific STM32 model.
C51 (8051 series microcontroller):
- Supports standard C language data types, but the lengths of
<span>int</span>,<span>short</span>, and<span>long</span>differ from STM32, where<span>int</span>and<span>short</span>are typically 16 bits (2 bytes), and<span>long</span>is 32 bits (4 bytes). - Provides support for 8051-specific data types such as bit scalars and special function registers (sfr).
<span>float</span>and<span>double</span>types in C51 may have different implementations or limitations compared to standard C, especially in some compiler versions where<span>double</span>may be the same as<span>float</span>.
In summary, the main differences in C language data types between STM32 and C51 lie in the bit size, range, and hardware-specific extended data types.
