With the rapid development of AI technology, the digital transformation across various industries is accelerating, leading to a growing demand for computing power and faster data communication. To meet this demand, Huabei Industrial Control has launched the embedded AI motherboard MITX-6156 based on the 12th/13th generation Intel Core series processors, which features high computing power, faster data transmission, and a rich configuration of interfaces, making it widely applicable in smart manufacturing, intelligent transportation, and smart healthcare.

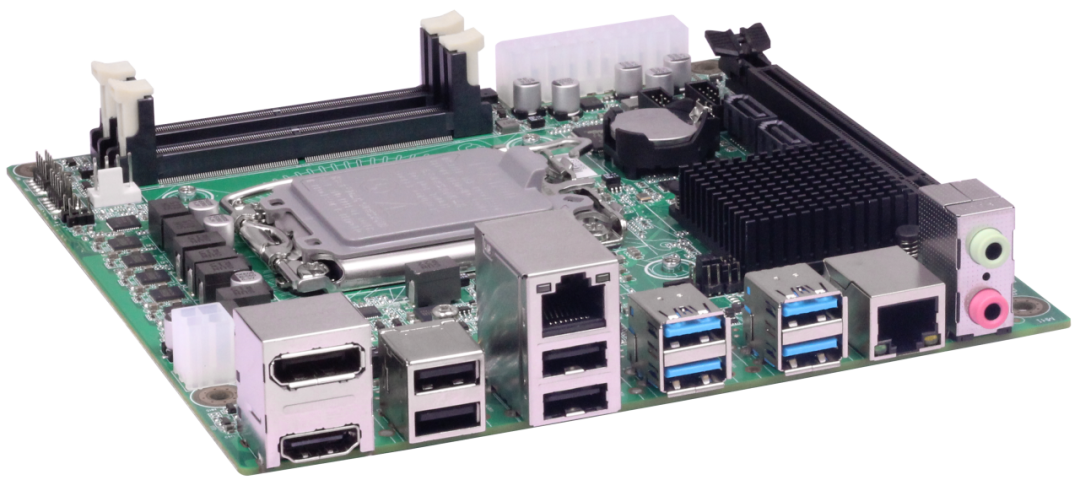

MITX-6156
The MITX-6156 provides more powerful data processing capabilities. It is based on the 12th/13th generation Intel Core i3/i5/i7 processors and Intel H610/Q670 chipsets, supporting up to i7 20 cores, 33MB high-speed cache, and TDP up to 65W. With Intel’s advanced hybrid architecture, it is suitable for intensive AI acceleration calculations in multitasking and parallel processing. It offers 2*SODIMM memory slots, supports DDR5, and can accommodate a maximum of 64GB of RAM, with a configuration of 1*PCIe x16 (16-lanes) GEN5 channels, providing significant advantages in scenarios requiring real-time processing.
To meet the needs for faster data communication and multiple expansion applications, the MITX-6156 is equipped with a rich set of communication and IO expansion interfaces, including multiple Gigabit RJ45 ports, USB 3.2 Gen 2×1 (10Gbps), USB 3.2 Gen 1×1, RS232/RS485/RS422 serial ports, as well as PCIe, M.2, GPIO, and JLPC expansion interfaces, making it easy for users to connect more peripherals and upgrade the performance of their device systems.
In terms of security and stability, the MITX-6156 also excels. It supports Intel AMT and Intel vPro Technology, which enhance security based on dedicated hardware. It is compatible with Windows 10/11 and Linux operating systems, supports watchdog functionality, and provides a more stable and developer-friendly system operating environment. It employs an active cooling design and supports standard ATX power supply, meeting a wide operating temperature range of -20℃ to 70℃, and features industrial-grade quality such as electromagnetic interference resistance, suitable for multiple scenarios.
Main Product Specifications of MITX-6156
-
Supports 12th/13th generation Intel Core i3/i5/i7 processors, Intel H610/Q670 chipsets, TDP up to 65W; -
Provides 2*SODIMM memory slots, supports DDR5 4800MHz, maximum support for 64GB of RAM, and supports 2*7PIN SATA, 1*M.2 M KEY 2280 (PCIEX4) interfaces for increased storage capacity; -
Supports 1 x16 PCIe Gen5 channel and installation of dual-slot thick graphics cards, supports 1*DP, 1*HDMI panel interfaces, meeting independent dual display and up to 4K resolution display requirements; -
With the Q670 chipset, it supports up to 5*LAN (optional), and 4*USB 3.2 Gen 2×1 (10Gbps), 6*USB2.0 interfaces, as well as 2*RS232/RS485/RS422 serial ports; -
With the H610 chipset, it supports 2*LAN (optional), and 2*USB 3.2 Gen 2×1 (10Gbps), 2*USB 3.2 Gen 1×1 (5Gbps), 6*USB2.0 interfaces; -
Supports 1*M.2 E-KEY 2230 interface for WIFI/BT connection; -
Supports 1*Headphone, 1*MIC-IN, 1*JAMP amplifier interface; -
Supports 1*JLPC with AFC-385C for serial port expansion; -
Supports 8*GPIO, 1*CPU_FAN (supports speed adjustment), 1*JFP interfaces; -
Supports Intel AMT and Intel vPro Technology based on dedicated hardware security enhancement features; -
Compatible with Windows 10/11 and Linux operating systems, supports watchdog; -
Adopts an active cooling design and supports standard ATX power supply; -
Meets a wide operating temperature range of -20℃ to 70℃; -
Dimensions are 170mm x 170mm.
