Dissecting a Digital Clamp Multimeter Design

Click👆Reserve the live broadcast to see the wonderful sharing from big company CEOs!

Previously, we disassembled two low-cost multimeters, and also disassembled a more standard multimeter. We can see that the design of multimeters is basically similar, with differences in some design details and materials. This time we will dissect a different type of multimeter – the clamp multimeter. This type of meter uses a CT current transformer to measure current non-contactly. Ordinary multimeters’ NCV function can only measure whether there is electricity, similar to an induction voltage pen.
Disassembly

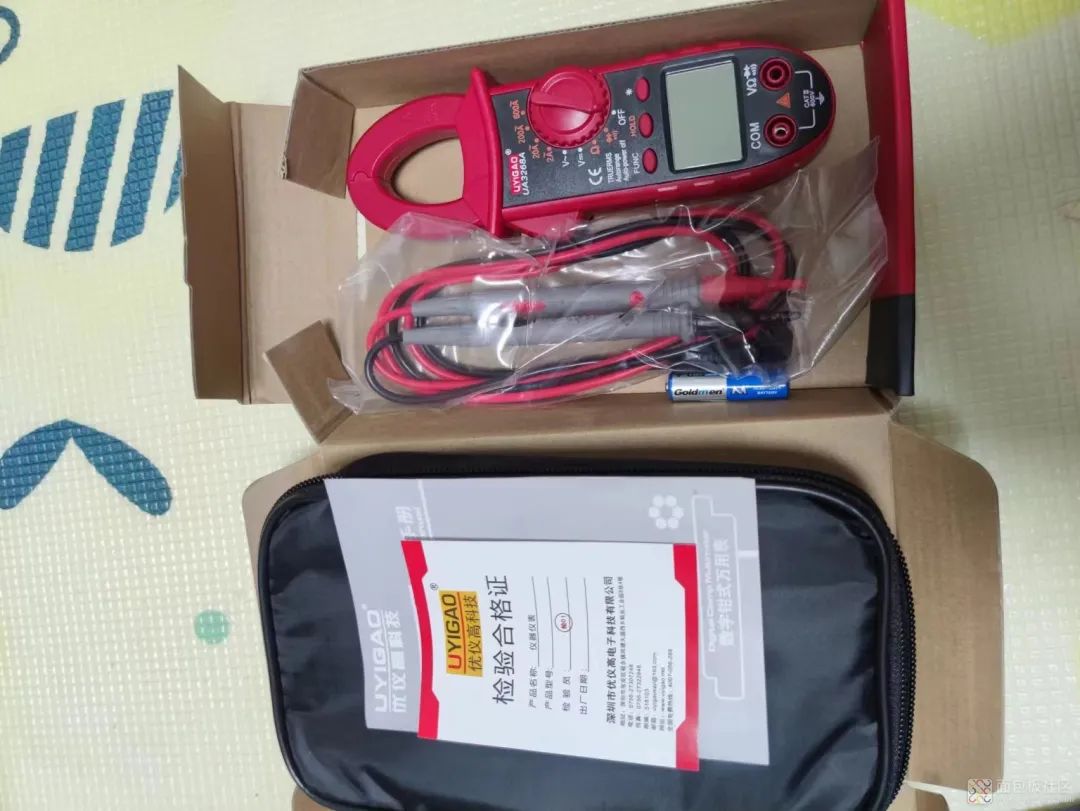

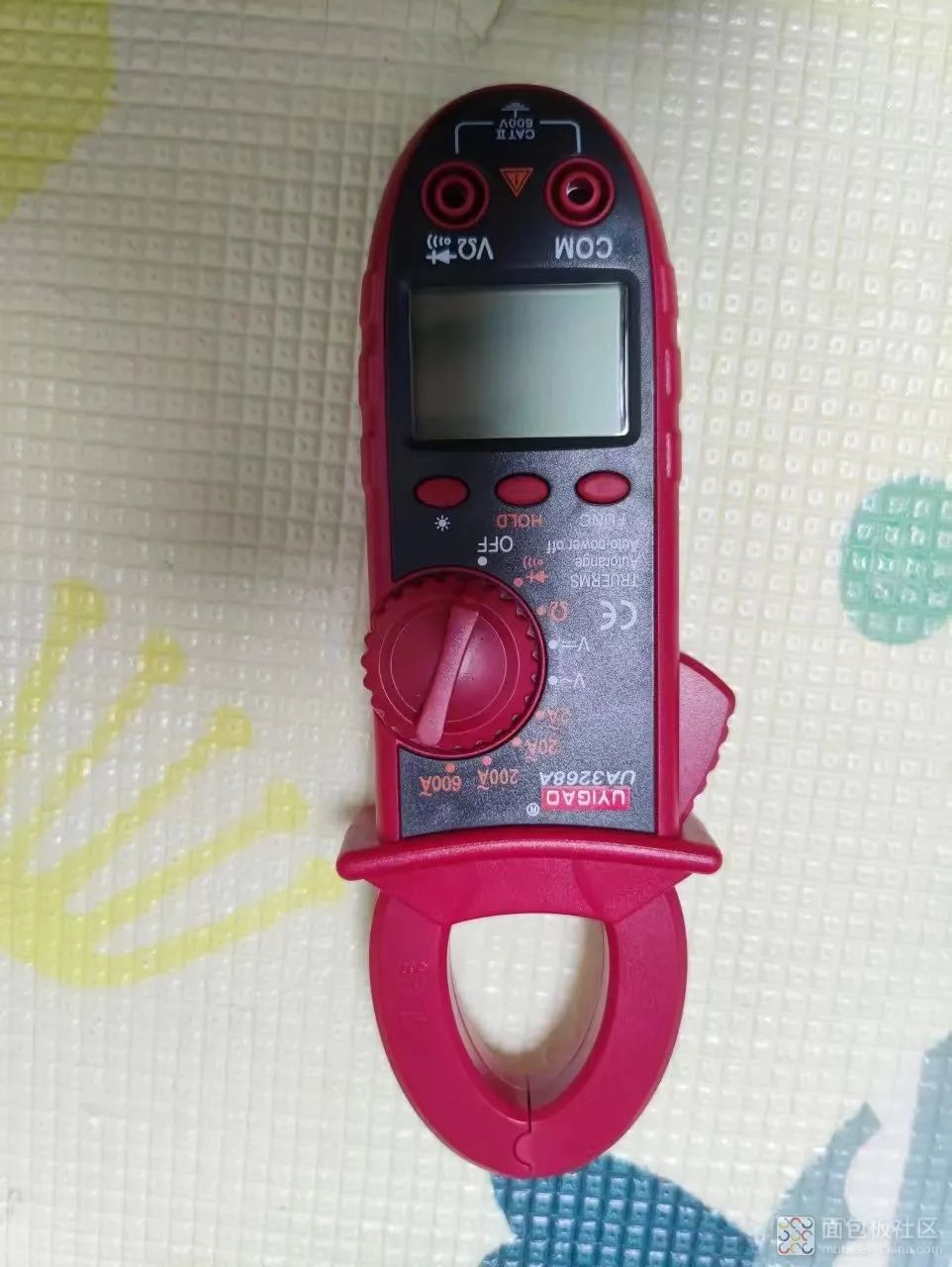

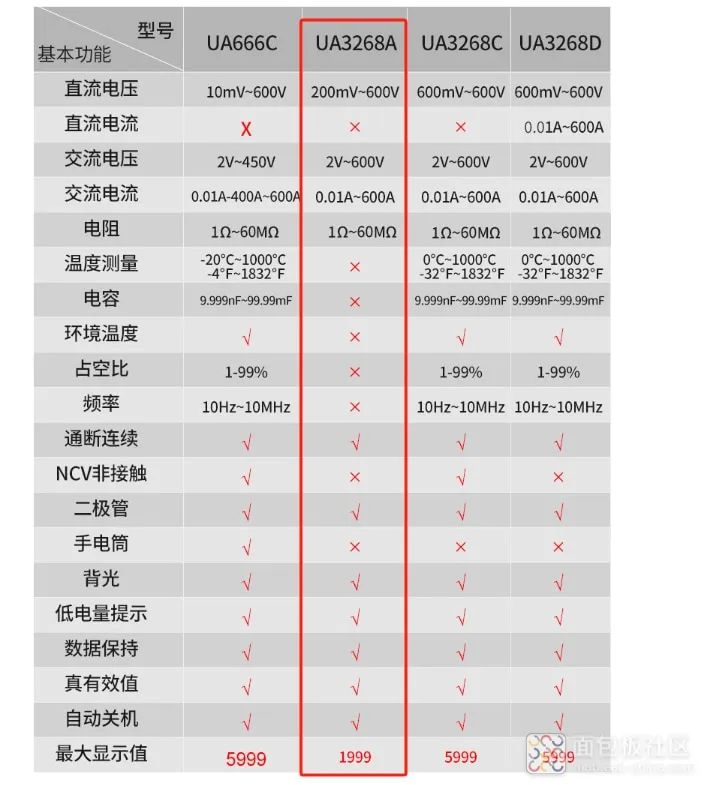

The model of this multimeter is UA3268A from Youyi High-Tech, basic parameters: 3.5 digits, 600A, backlight, 1999 display, TRMS effective value, automatic shutdown, AC.
Dissecting a Digital Clamp Multimeter Design
Dissecting a Digital Clamp Multimeter Design
This meter uses a 1.5V AAA battery, which is different from the usual 9V battery used in multimeters. This type of battery is more common and convenient, smaller, and also indicates lower power consumption.
Dissecting a Digital Clamp Multimeter Design
We can see that this multimeter indeed resembles a crab’s large claw.
Dissecting a Digital Clamp Multimeter Design
Dissecting a Digital Clamp Multimeter Design

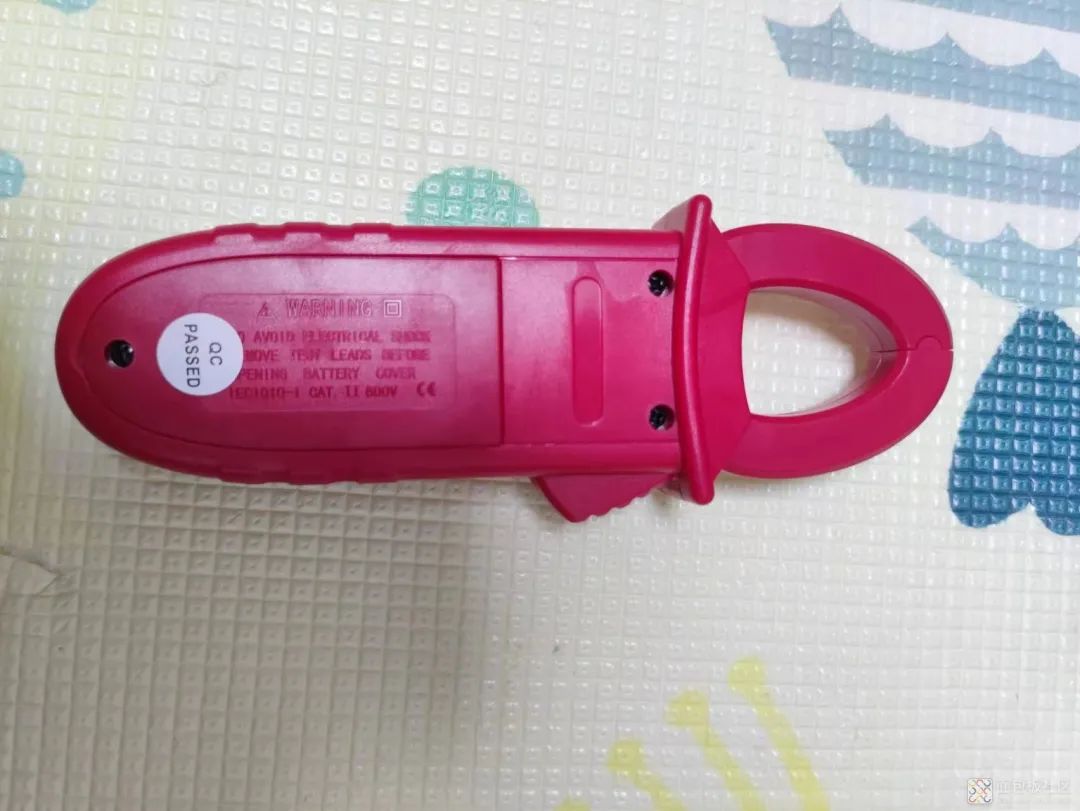

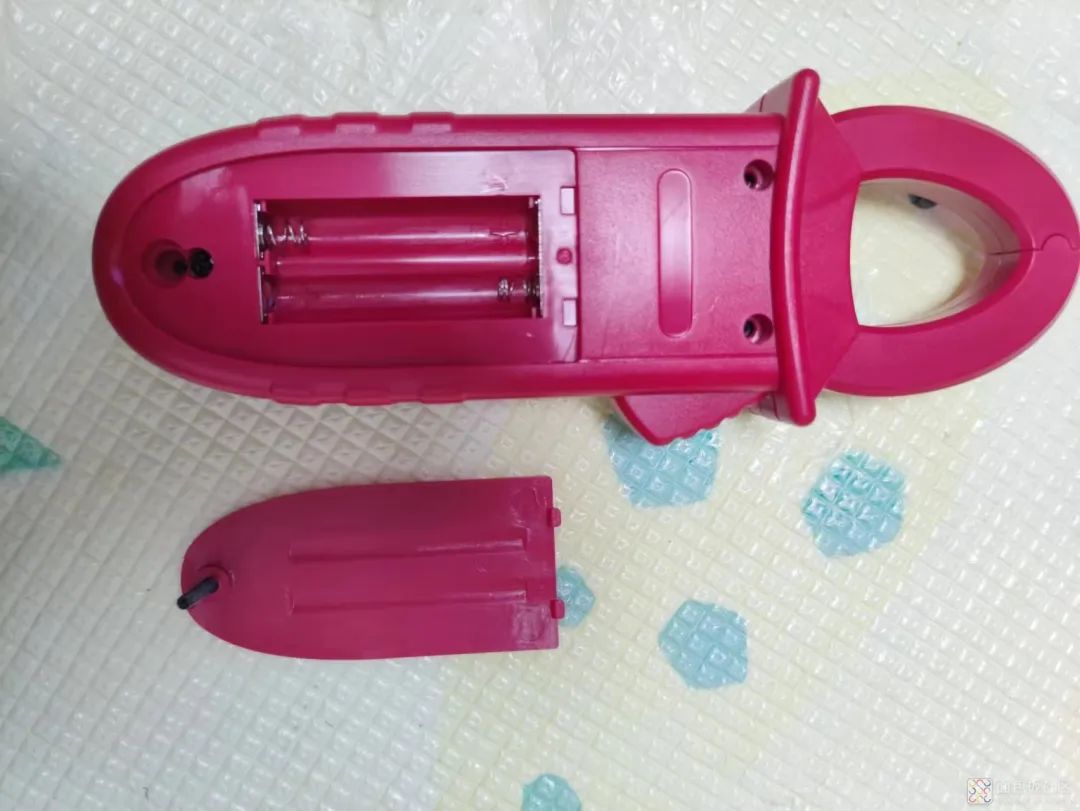

Back battery compartment, unscrew the screws.
Dissecting a Digital Clamp Multimeter Design

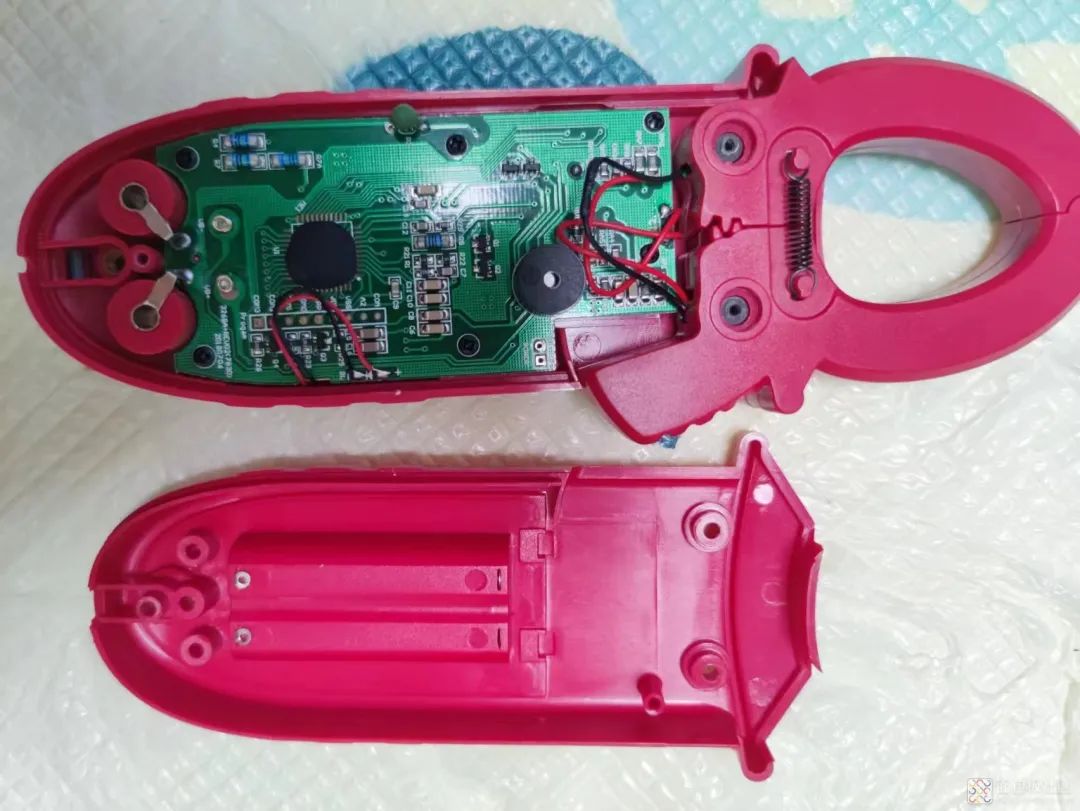

Unscrew the other 3 screws to remove the back cover.
Dissecting a Digital Clamp Multimeter Design

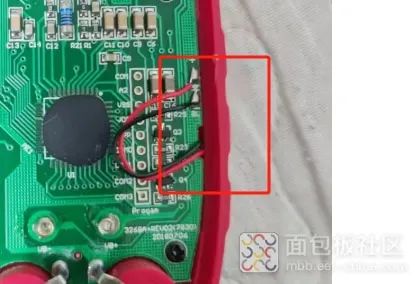

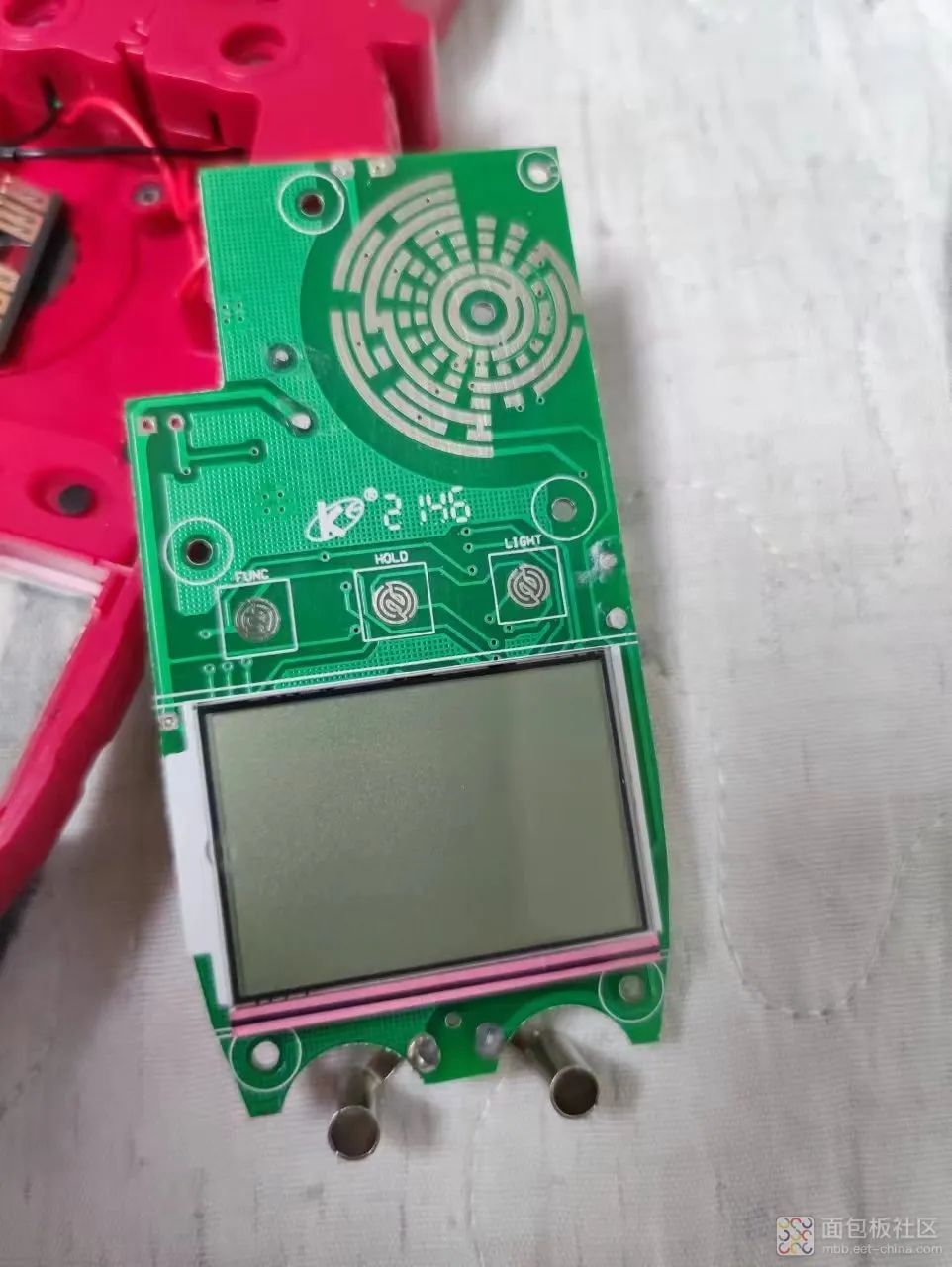

Let’s take a close-up of the PCB. We can see that the quality of the PCB is significantly better than the previous disassemblies.
Dissecting a Digital Clamp Multimeter Design

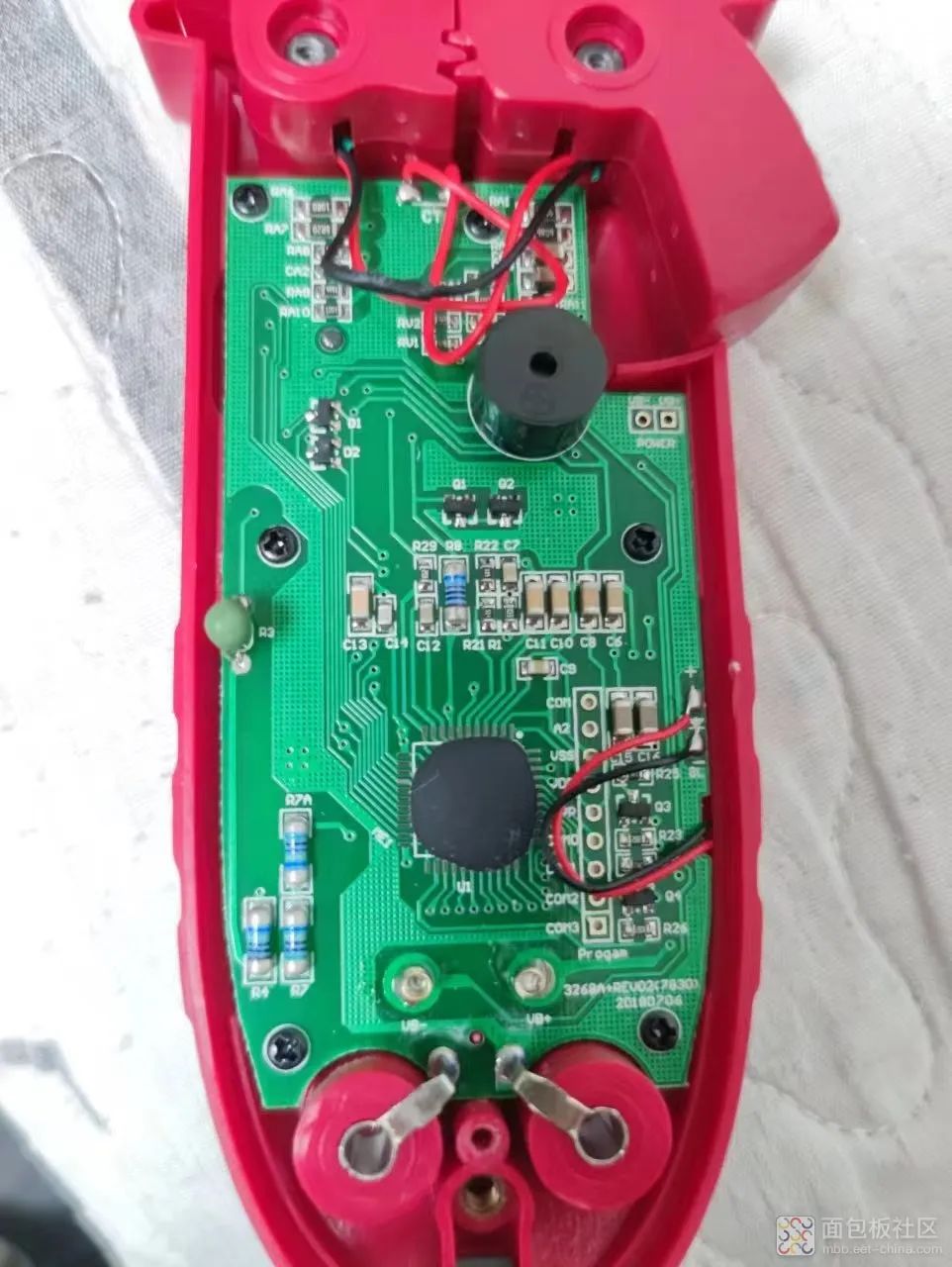

Unscrew 6 screws to remove the PCB.
Dissecting a Digital Clamp Multimeter Design
Dissecting a Digital Clamp Multimeter Design

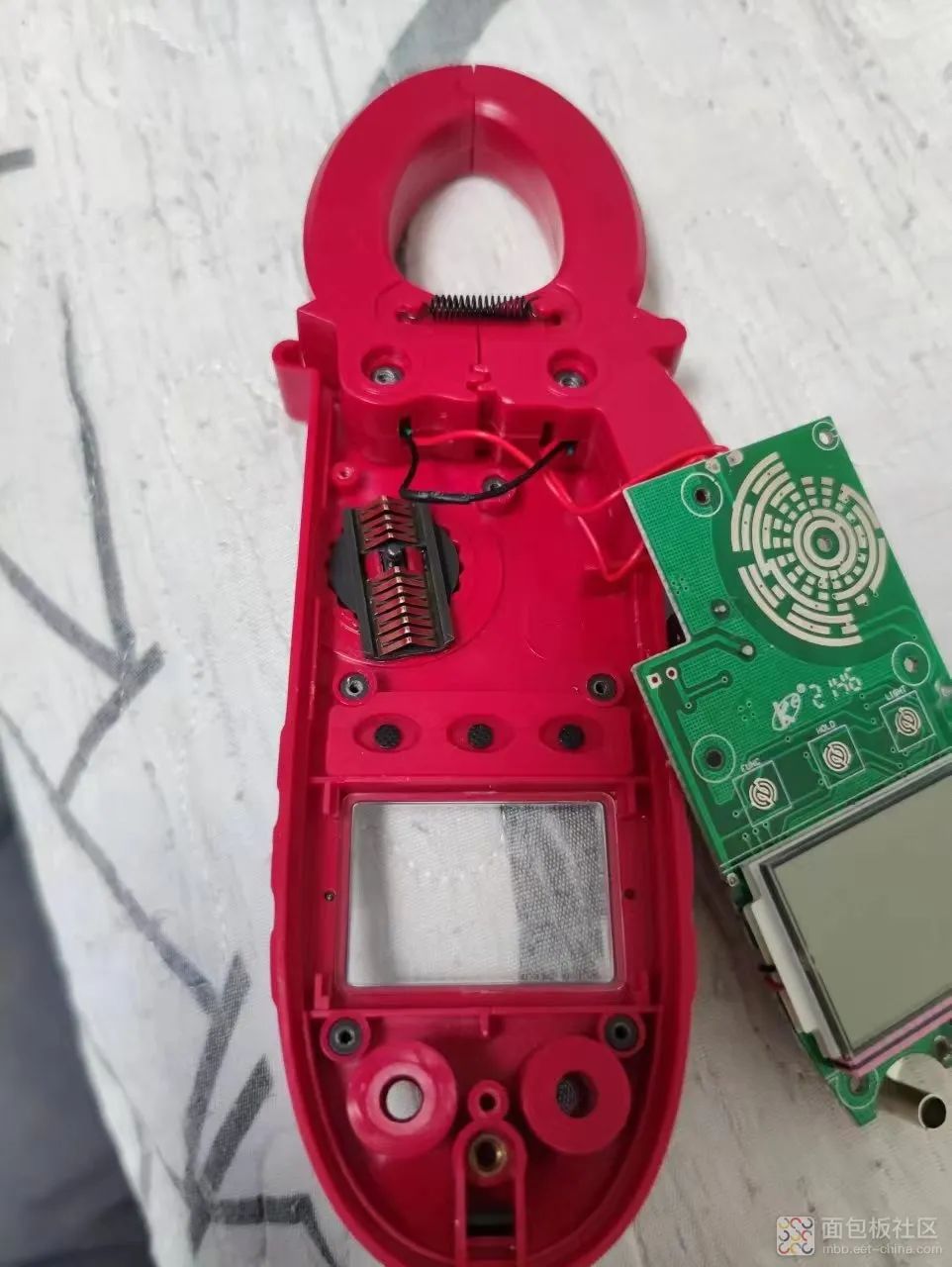

We can see that the main weight of the meter is in the CT, which is the claw part.
Dissecting a Digital Clamp Multimeter Design

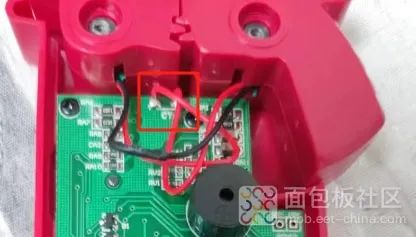

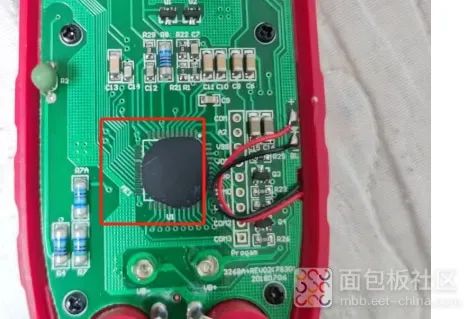

Main control chip
Dissecting a Digital Clamp Multimeter Design
Buzzer
Dissecting a Digital Clamp Multimeter Design
LCD backlight
Dissecting a Digital Clamp Multimeter Design

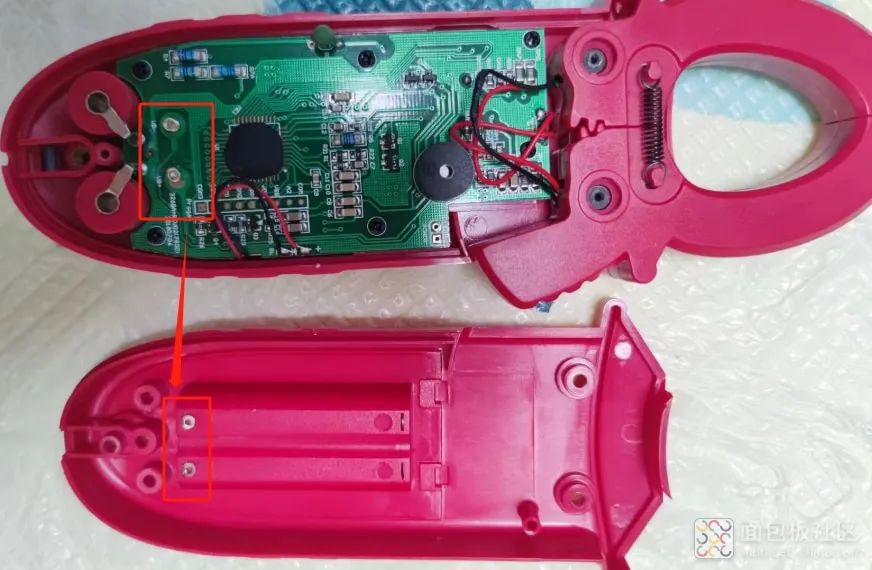

The battery uses a spring contact design, which is different from the usual wiring. This is the first time I have seen such a design, which can save wiring and connectors, making it much simpler and easier to assemble.
Dissecting a Digital Clamp Multimeter Design
Additionally, the component selection on the PCB is also standardized, such as the selection of power resistors.
Summary
1. The spring contact battery power supply is an innovative design worth referencing.
2. The overall structural design and hardware design quality are very good, making it the best in terms of design and quality among the ordinary multimeters in the price range of several dozen yuan that we have dissected so far.
3. This clamp multimeter combines the functions of ordinary multimeters and can also measure AC voltage and current non-contactly, making it more versatile, which is also an innovation in functional integration.
