Attention to all medical equipment maintenance professionals! The disassembly of the Baolait EMS module has many nuances, and making a mistake at any step may affect the normal operation of the device. Today, we will use a super simple illustration to guide you through the safe disassembly step by step, unlocking key operations quickly!
The Baolait EMS module performs excellently in the field of medical monitoring. It is a key component that integrates multi-parameter measurement and display functions. Functionally, it can accurately measure more than ten vital sign parameters, including ECG, blood oxygen, blood pressure, respiration, and body temperature. For instance, ECG measurement can capture subtle electrical activity changes in the heart, providing a basis for diagnosing heart diseases; blood oxygen measurement quickly reflects the body’s oxygen supply status.
It comes with a built-in display that clearly presents various monitoring data, allowing medical staff to obtain key information at a glance without additional operations. In terms of design, it features high flexibility and expandability, compatible with various Baolait monitoring host devices, allowing for module combinations to be adjusted freely.
Clinical departments can add or remove measurement parameter modules as needed, achieving functional upgrades and avoiding the need to purchase additional equipment, effectively reducing costs. Moreover, it supports dynamic hot-swapping, allowing new modules to be plugged in and used without restarting the monitor, quickly responding to changes in medical scenarios and ensuring continuous and effective monitoring of patients.
Below is the disassembly illustration for the Baolait EMS module:
Note:
Before disassembling the EMS, the built-in battery of the module must be removed first.
1. Open the EMS
Unscrew the 4 M3x6 round cap screws that secure the outer casing.
Open the module and disconnect the LCD cable and keyboard cable.

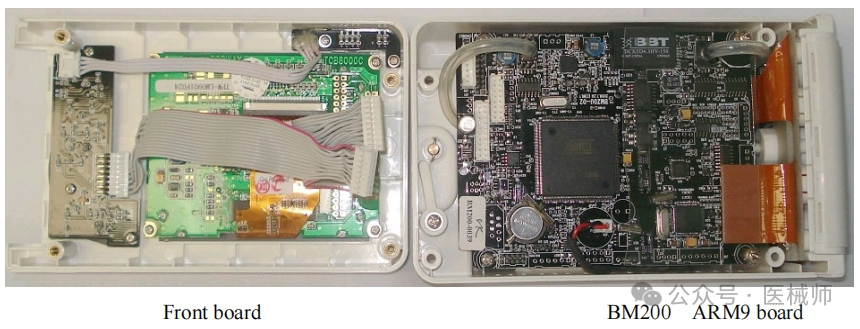

Internal structure of the EMS:
That’s it for the disassembly of the Baolait EMS module! I believe this illustration will make disassembly no longer a hassle. If you encounter any issues during the actual operation, feel free to leave a message in the comments for discussion. If you want to learn about the disassembly of other components of the Baolait monitor or have other medical equipment maintenance questions, don’t hesitate to reach out to us. Feel free to scan the QR code below to add us on WeChat, and let’s tackle the challenges together!
