[Field] Core Electronic Components
[Central Enterprise Name] China Electronics Corporation
[Technical Product Introduction] The Huada Semiconductor Microcontroller MCU features high reliability, making it particularly suitable for applications in harsh working environments. It is a core component for small system control in industrial, communication, transportation, and energy sectors.
This technical product has been widely used in important domestic infrastructure and key livelihood areas. It effectively supports the initiatives of becoming a strong network and manufacturing nation at a critical time when there is a shortage of related imported chip supplies and urgent production demands.
[Product Images]

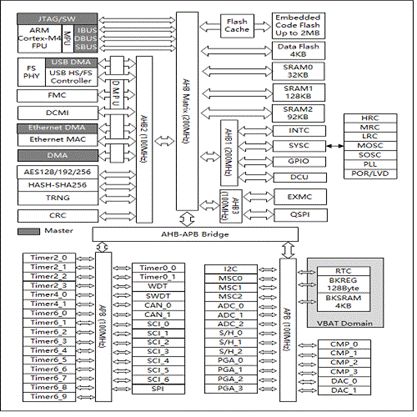

Figure 1

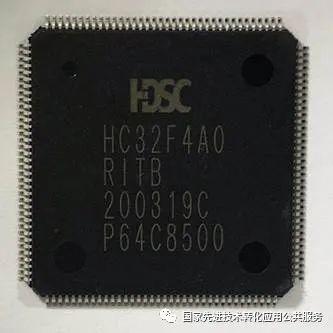

Figure 2 Appearance

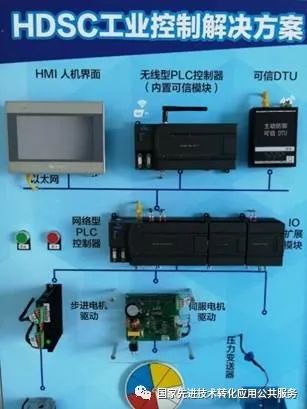

Figure 3 Application Scenario
[Comparison with Foreign Similar Technical Products]
Technical Comparison: Comparable
Price Comparison: Lower
Foreign Technical Product Manufacturer and Name: TI C2000 TMS320F28335
[Technical Specifications]
1. Main Frequency – MCU Operating Speed: 240MHz
2. ESD HBM – MCU Reliability Index, Human Discharge Model: ±8KV, Class 3B Top Class
3. EFT – MCU Reliability Index, Fast Electrical Pulse Group: ±4KV, Class 4 Top Class
4. Latch Up – MCU Reliability Index, Latch Effect Threshold: ±600mA, Class 2A Top Class
5. AEC-Q100 – Automotive Reliability Testing Standard: AEC-Q100
