Step 1:Install the corresponding video wall client (download the appropriate client 4200, smart wall, etc. based on the decoder)

Step 2:Add the decoder and the devices to be decoded (camera/recorder, etc.)

1. Open the installed client and set the username and password for the client

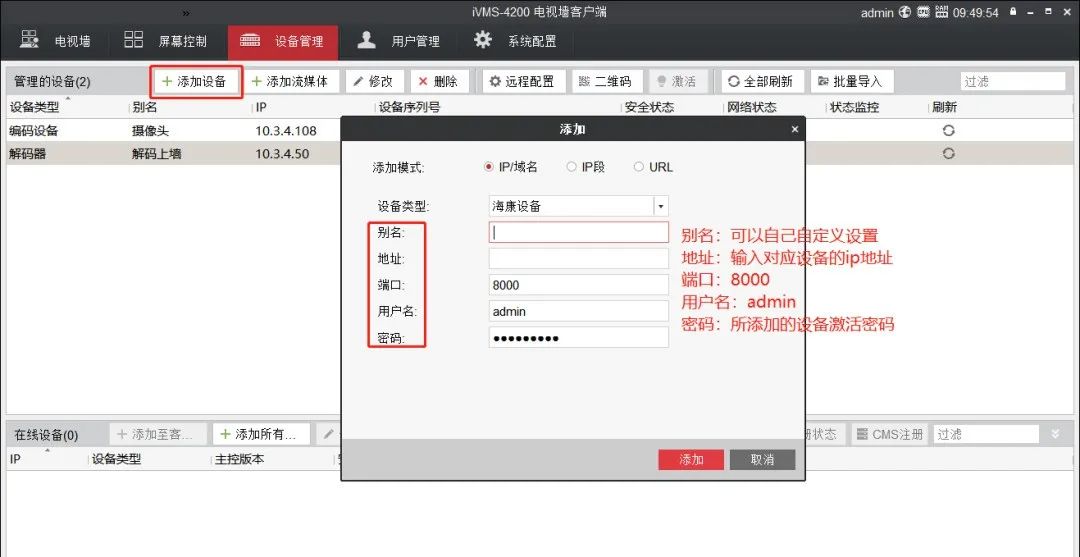

2. Click to add a device, Device type: Hikvision device

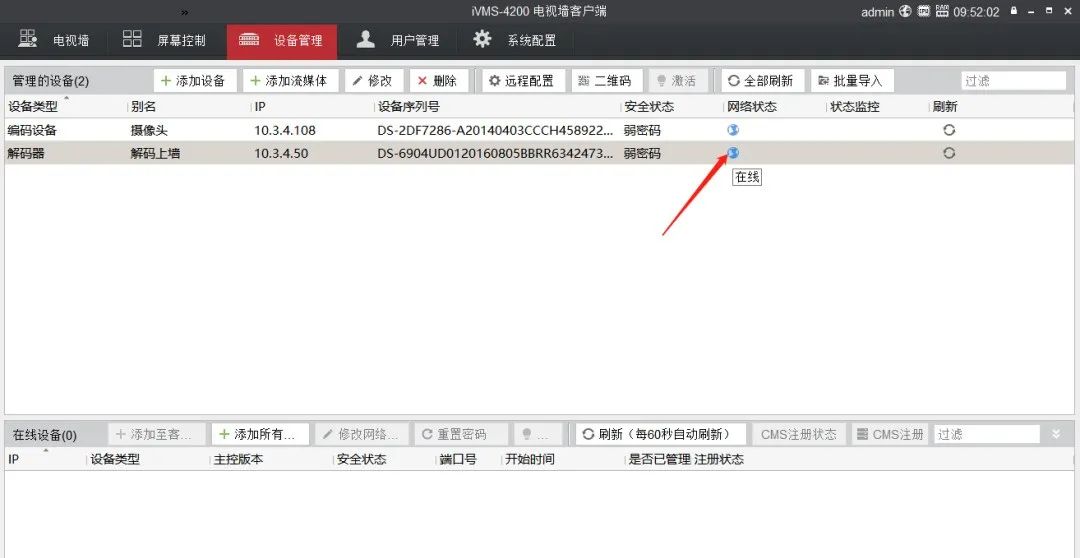

3. After adding, hover the mouse over the corresponding device’s network status to see if it is online

Online: Indicates successful addition, proceed to step three

Offline: Handle based on the corresponding error message

Step 3: Add the video wall

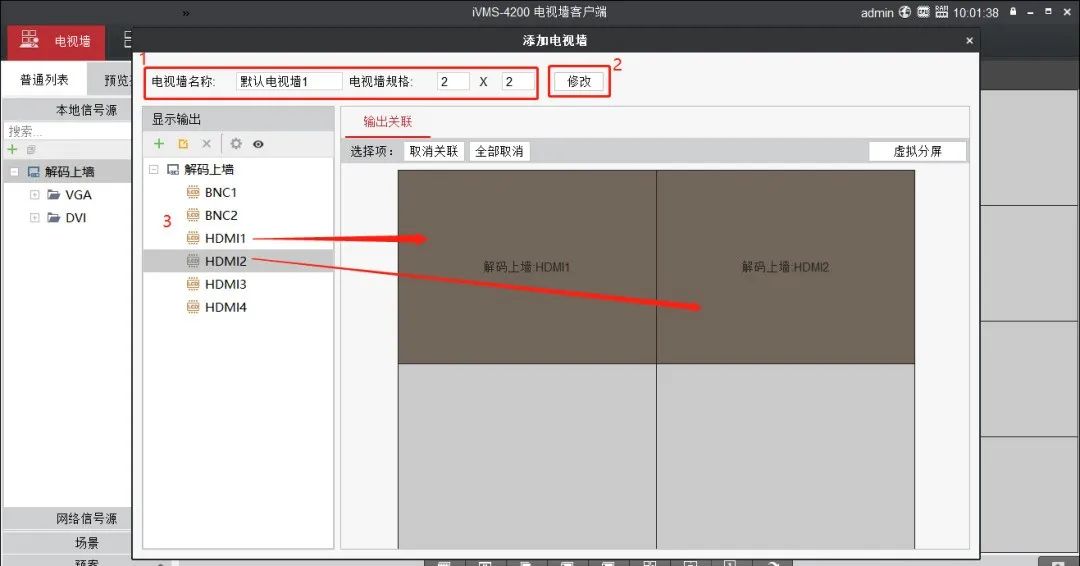

(1) Set the video wall name and specifications, click modify

(2) Drag the signal source from the left to the right video wall, click modify again, it will save successfully

Step 4: Decode to the wall

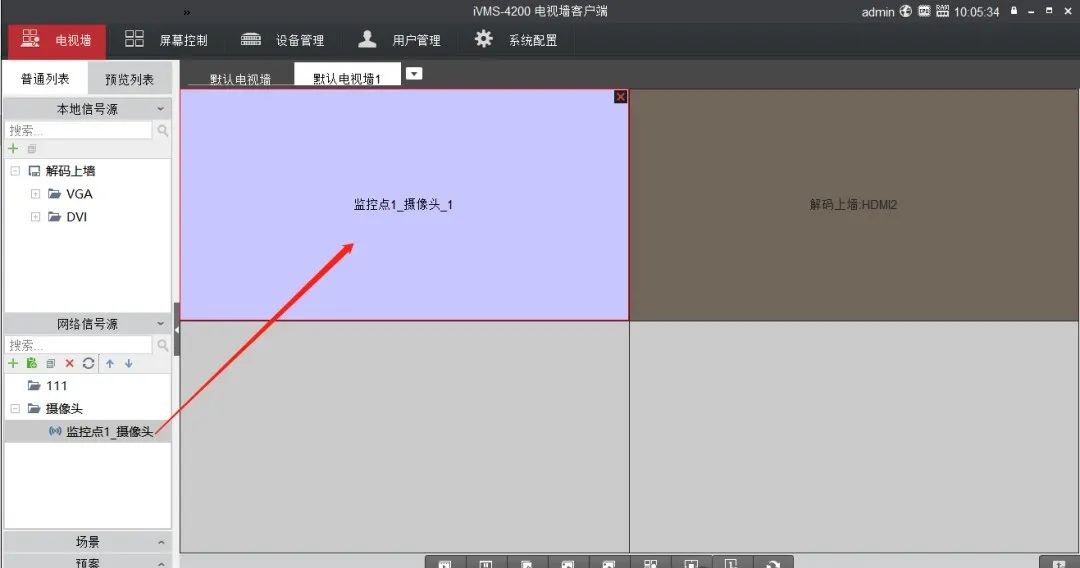

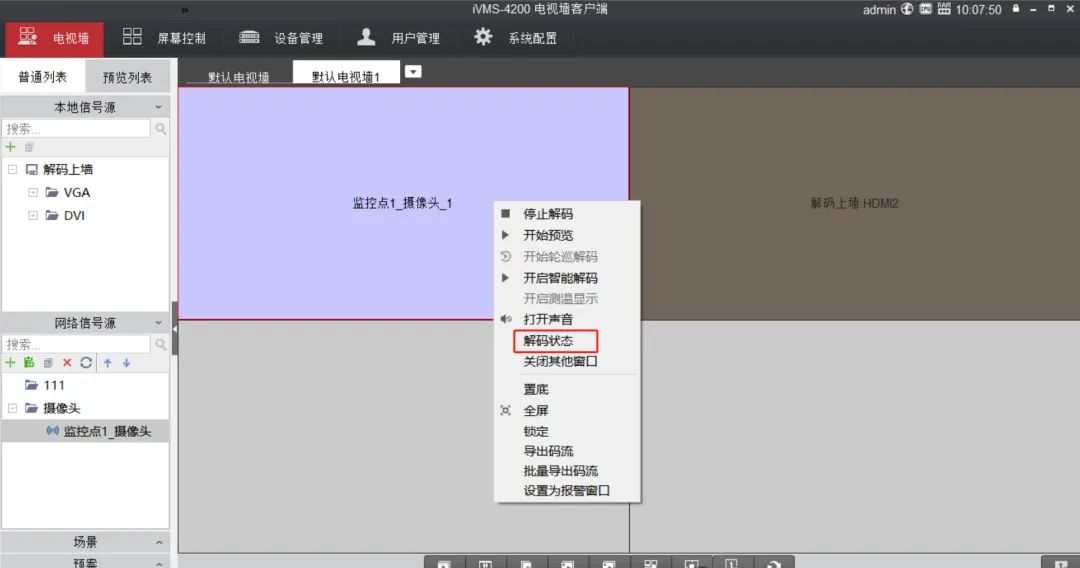

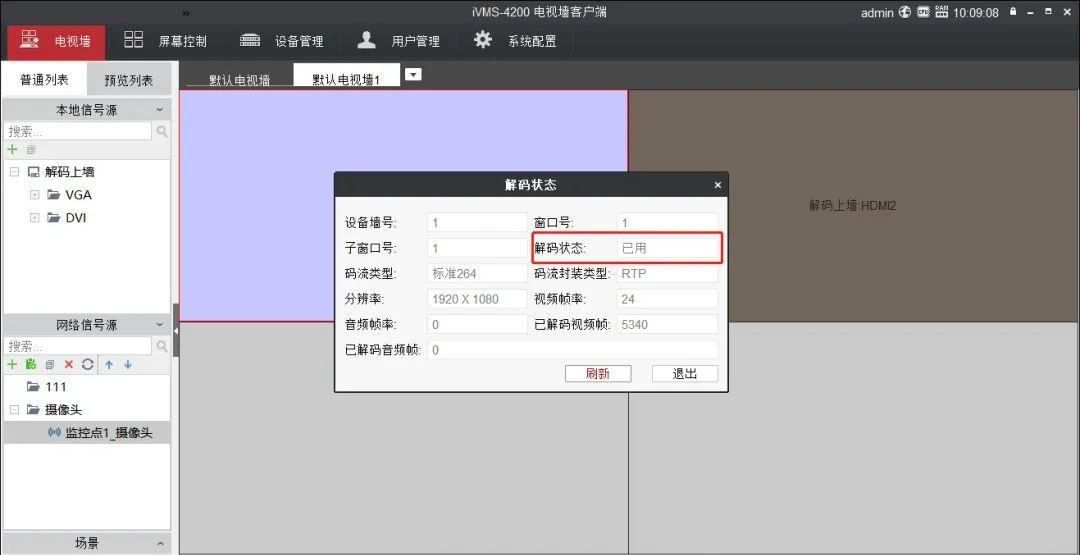

Drag the corresponding monitoring point from the left to the right video wall to view the large screen image, or right-click on the decoding status, if decoded, it indicates successful decoding to the wall
