What is Buildroot
Obtaining Buildroot Source Code
Buildroot Directory Structure
Buildroot Compilation

Configuration
Full Compilation
Individual Compilation

How to Add Custom Third-Party Projects
How to Patch Buildroot Source Code
Summary

In the previous article, we discussed how to build Lubuntu, creating a Lubuntu 20.04 system step by step. In this article, we will talk about the building and usage of Buildroot.

What is Buildroot

Buildroot is a framework for building embedded Linux systems on the Linux platform. The entire Buildroot consists of Makefile scripts and Kconfig configuration files. You can configure Buildroot just like compiling the Linux kernel using menuconfig, to compile a complete Linux system software that can be directly flashed onto the machine (including boot, kernel, rootfs, and various libraries and applications within rootfs).

Obtaining Buildroot Source Code

Download Buildroot from the official website. Buildroot is updated annually, with releases in February, May, August, and November each year.

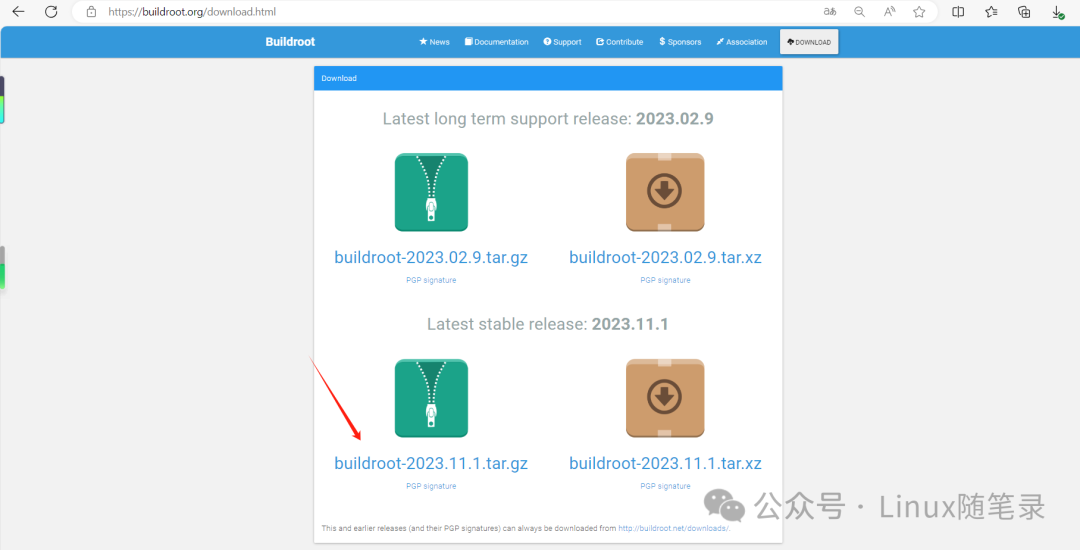

Buildroot source code download site: https://buildroot.org/download.html

Buildroot Directory Structure

Here is an introduction to the Buildroot directory structure:

$ tree -L 1
.
├── arch   # Architecture-related configuration scripts
├── board # Configuration patches for various development boards
├── boot # Various boot software
├── CHANGES
├── Config.in
├── Config.in.legacy
├── configs # Configuration files for various development boards
├── COPYING
├── DEVELOPERS
├── dl  # Directory for downloaded software packages
├── docs # Reference documents
├── fs  # Source code for various file systems
├── linux # Automatic build scripts for the Linux kernel
├── Makefile  # Build script
├── Makefile.legacy
├── output  # Directory for compiled output products
├── package # Directory for configuration files and build scripts for various software packages
├── README
├── support # Support software that may be used in the build
├── system   # Configuration and build scripts for the root directory, skeleton directory stores the root directory skeleton
├── toolchain  # Scripts for building the toolchain
└── utils      # Some utility software

Buildroot Compilation

Configuration

After downloading and extracting the Buildroot source package, it needs to be configured before it can be used on the board, such as configuring the processor architecture, toolchain, kernel source tree path, kernel version, and filesystem type, as well as the password for entering the system.

make menuconfig

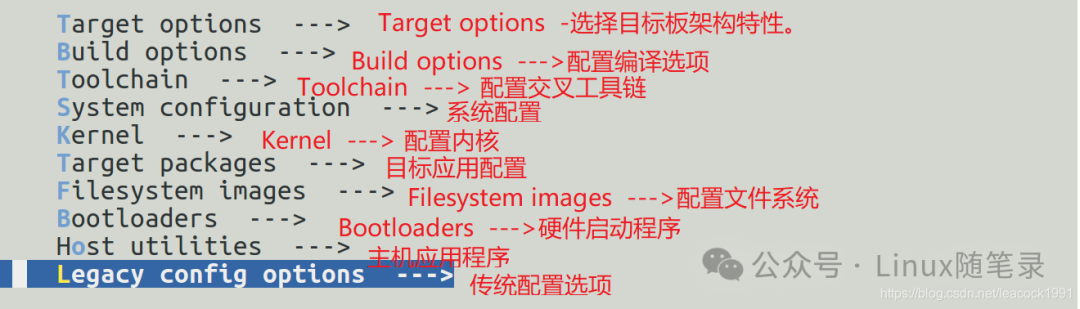

After executing, the following menu will pop up:

Generally, the relevant configurations to focus on are the following options:

Target option —>

    Target Architecture Variant (cortex-A53)

Toolchain —>

    Kernel Headers (Linux 5.10.x kernel headers)  --->

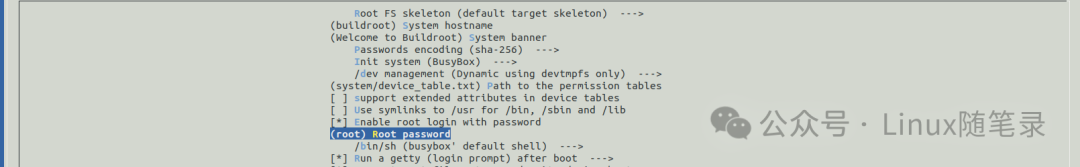

System configuration —> (root) Root password

Kernel —>

    (5.10.209) kernel version

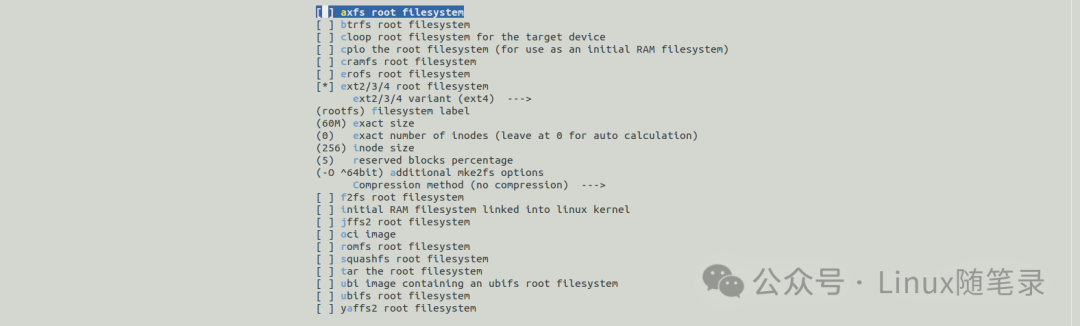

Filesystem images —>

   [*] ext2/3/4 root filesystem
        ext2/3/4 variant (ext4) --->

Other optional configurations include libraries such as gstreamer, bluez, bluealsa, and alsa.

Full Compilation

Full compilation refers to compiling uboot, kernel, and buildroot images.

make clean
make -j$(nproc)

-j(nproc) uses multiple cores for parallel compilation. Since this is the first compilation, many software packages need to be downloaded, which may take about two to four hours to complete. If the network conditions are poor, be prepared for a longer time.

The contents of the output directory out include:

.
├── build # Source code of various packages after extraction
├── host  # Toolchain, libraries, and header files
├── images # Contains Image, bootloader, and rootfs images
└── target # Complete rootfs content

Individual Compilation

Sometimes we only need to compile a single module. If the full compilation is too slow, we can compile just a specific module to improve work efficiency.

For example, if we need to compile the rkwifibt-app module, it can be found in buildroot under package/rkwifibt-app, or it can also be in an external directory external/rkwifibt-app.

First, delete the previously compiled version of rkwifibt-app in Buildroot:
rm buildroot/output/rockchip_rk3xxx/build/rkwifibt-app/

Next, clean the rkwifibt-app module content:
make rkwifibt-app-dirclean

Compile the rkwifibt-app-rebuild part:
make rkwifibt-app-rebuild

How to Add Custom Third-Party Projects

Method 1: Add External Package

You can integrate your C/C++ project into the company’s Buildroot project in the following way:

Create a directory package/yourapp for yourapp
Add Config.in and yourapp.mk files with the necessary content
Modify package/Config.in to include yourapp
Add the corresponding macros to buildroot_defconfig

Here is an example of the content rules for yourapp.mk, using qtdemo.mk as an example:

file:qtdemo.mk
################################################################################
#
# qtdemo
#
################################################################################

QTDEMO_SITE = $(TOPDIR)/../app/qt_demo/Apps/MotorCtrl
QTDEMO_SITE_METHOD = local                # Local source method

QTDEMO_DEPENDENCIES = qt5base             # Dependency on qt5base

define QTDEMO_CONFIGURE_CMDS              # Configure QTDEMO commands
    cd $(QTDEMO_SITE) && $(QT5_QMAKE)     # Use qmake to generate Makefile
endef

define QTDEMO_BUILD_CMDS                  # Build QTDEMO
    $(MAKE) -C $(QTDEMO_SITE)             # Build
endef

define QTDEMO_INSTALL_TARGET_CMDS         # Install to target directory
    $(INSTALL) -D -m 0755  $(QTDEMO_SITE)/../../bin/MotorCtrl $(TARGET_DIR)/
endef

define QTDEMO_INSTALL_INIT_SYSV          # Install initialization system script to /etc/init.d/
    $(INSTALL) -D -m 0755 $(QTDEMO_SITE)/S91qtdemoinit  $(TARGET_DIR)/etc/init.d/
endef

define QTDEMO_INSTALL_INIT_SYSTEMD       # Install system service

$(eval $(qmake-package))

Method 2: Add External Package

Using the BR2_EXTERNAL mechanism, you can centralize your C/C++ projects in the external directory, making it easier to maintain a shared package repository for multiple projects, which is recommended for company projects.

Create a directory external/yourapp for your application
Add Config.in and yourapp.mk files with the necessary content
Add the corresponding macros to buildroot_defconfig

How to Patch Buildroot Source Code

Buildroot has a third-party source in output/rockchip_rk3XXX/build/xxx where you can initialize a git repository
Add modifications to the third-party source
git generate a patch file
Place the patch file in the package/xxx/ directory

For example, here is how I added a patch for bluez in Buildroot:

cd  SDK/buildroot/output/rockchip_rk3XXX/build/bluez5_utils-5.77
git init . && git add . && git commit -m init
vi src/main.conf
BaBa......
git add src/main.conf
git commit -m "JustWorksRepairing = confirm"
git format-patch -n -1
cp 0001-JustWorksRepairing-confirm.patch ../../../../package/bluez5_utils/0008-JustWorksRepairing-confirm.patch

Summary

This is my summary of the usage and scenarios for Buildroot. If there are any shortcomings, please feel free to point them out. If you learned something, please support with a like! Feel free to follow the public account [Linux Notes] for periodic sharing of Linux tips.

end
