3D Measurement Technology
for Body Inspection in Automotive Manufacturing
Case Background ▼
Background of the Case
As the automotive industry progresses towards intelligent and precise development, body inspection, as a core quality control process, is undergoing a technological revolution from traditional manual inspection to digital and automated inspection. With consumers’ increasing demands for vehicle safety, comfort, and aesthetic quality, as well as the higher standards for lightweight and complex structures in new energy vehicles, traditional inspection methods can no longer meet the precision and efficiency requirements of modern automotive manufacturing. In this context, 3D measurement technology, with its advantages of non-contact, high precision, and full-size coverage, has become a key technological breakthrough in the field of body inspection in automotive manufacturing, driving the industry towards the goal of “zero defects”.
Traditional body inspection mainly relies on mechanical fixtures, coordinate measuring machines (CMM), and manual visual inspection. While mechanical fixtures can achieve positioning, they need to be customized for different vehicle models, which is costly and lacks flexibility; traditional CMMs can achieve micron-level precision, but their single-point measurement mode is inefficient and struggles to meet the inspection needs of complex surfaces and irregular structures; manual visual inspection is greatly influenced by subjective factors, making it easy to miss small defects.
With the improvement of AI algorithms and hardware performance, 3D measurement technology is evolving from static inspection to dynamic tracking, and from offline analysis to online control. For example, using Advantech solutions enables automotive factories to measure machines quickly, efficiently, and accurately, making artificial intelligence crucial for optimizing these attributes. Additionally, AI is used to automate complex measurement processes, involving 3D sensors and tracking cameras to achieve reliable and precise measurements. Furthermore, the integration of 5G and industrial internet allows 3D measurement data to be uploaded to the cloud in real-time, supporting collaborative analysis at global R&D centers and further shortening the new vehicle development cycle.
Case Sharing ▼
Scenario Application

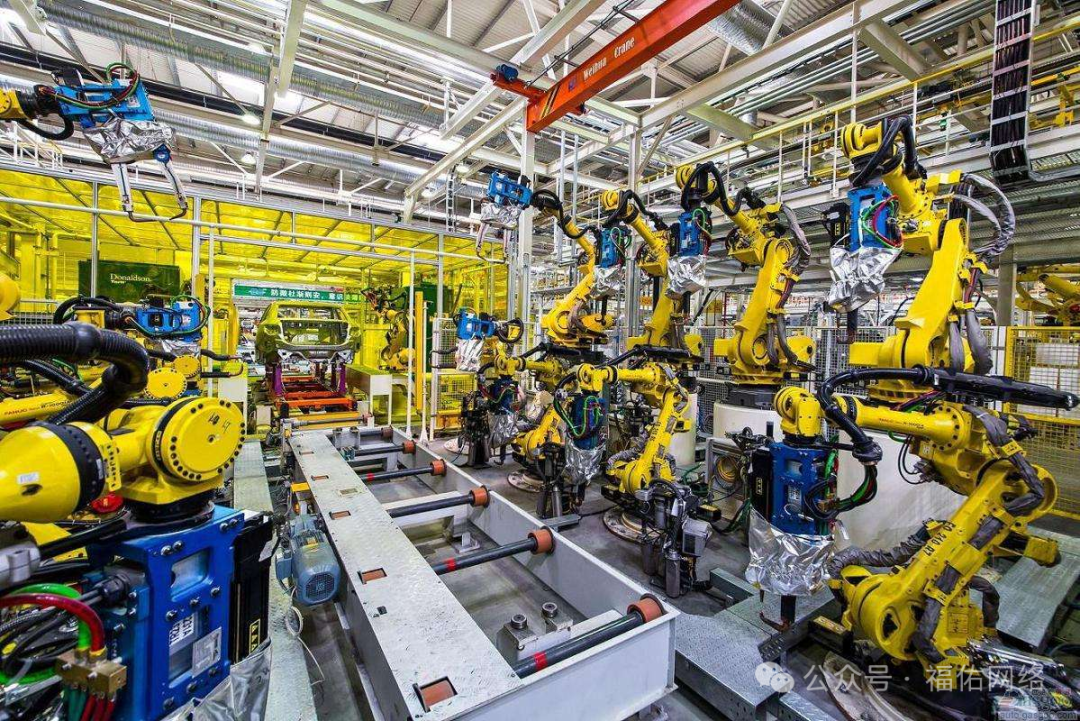

The automotive industry has adopted 3D measurement technology to achieve faster and more efficient production processes, resulting in higher profits for companies. The main goal of measurement is to ensure that high-quality standards are met while producing in large volumes. The company uses 3D coordinates in body construction to strictly measure part strength, safety, and design requirements, thereby enhancing production line efficiency.
Solution Architecture ▼

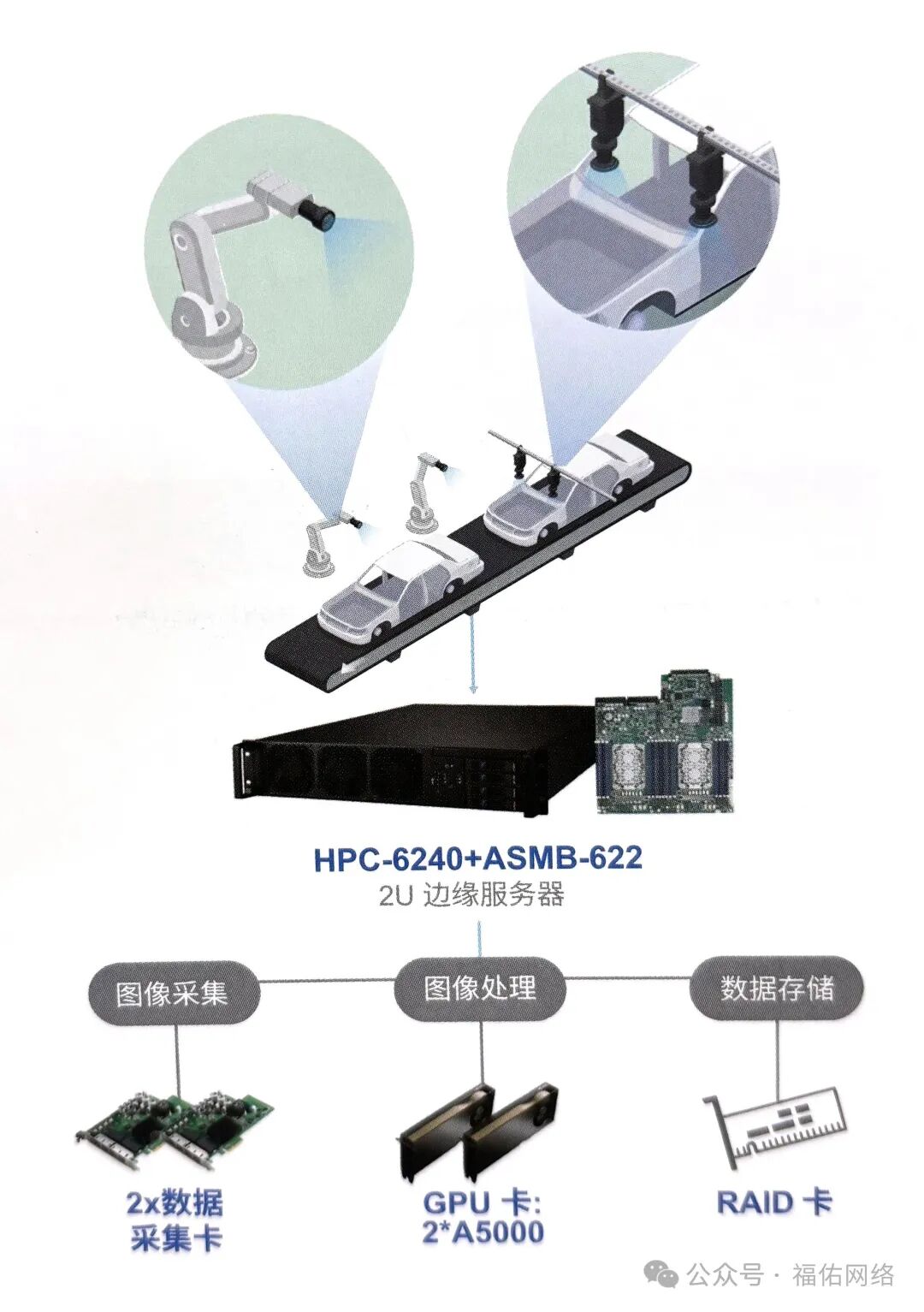

Schema Structure
Recommended Products for the Case
Advantech

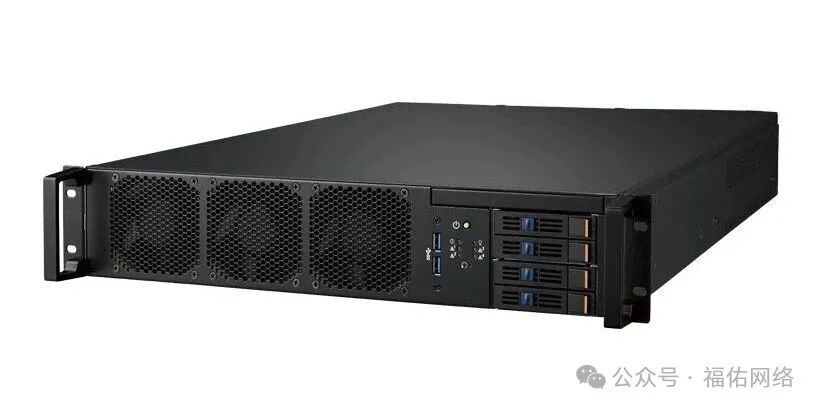

HPC-6240+ASMB-622V3
2U 20″ Short Depth Edge Server with Single Intel® 4th Gen Xeon® Scalable Processor, Supporting 8 Expansion Slots
-
Single Intel® 4th Gen Xeon® Scalable Processor
-
DDR5 4400/4000MHz RDIMM up to 4TB, supporting Intel Optane persistent memory
-
4 PCIe x16 slots supporting FH/10.5″ L cards
-
4 PCIe x8 Gen 5 slots
-
4 Hot-swappable 2.5″ SASII**/SATAIII drive bays (2 NVMe options)
-
2 Onboard M.2 2280/22110 (compatible with SATA/PCIe)
-
4 x GbE, 2 x USB3.2, 1 x Serial Port, 1 x VGA, 1 x IPMI
-
1200W 1+0 Platinum Non-redundant Power Supply
