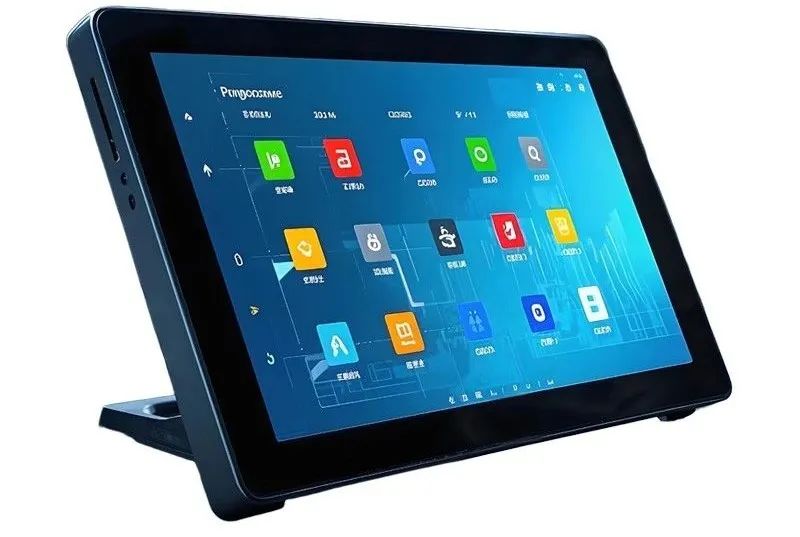

Utilizes high-quality industrial-grade LED LCD screens; the LCD screen features 360-degree shockproof fixation, suitable for applications in impact and vibration environments. Supports a wide temperature range from -40 degrees to 70 degrees Celsius, using MSTAR processing chips to resolve dynamic ghosting, with an average fault-free working time of 50,000 hours; equipped with standard VGA and high-definition DVI dual signal inputs. Features an industrial capacitive touchscreen. USB 2.0/3.0 communication protocol, automatic recognition and calibration functions. Widely used in industrial automation process control, intelligent power control, CNC equipment manufacturing, and other industrial site environments.
Structural Parameters
Front Panel: Aluminum-magnesium alloy die-cast front panel, high-temperature corrosion-resistant paint surface treatment, the entire unit meets NEMA IP65 protection level. Enclosure structure: Aluminum-magnesium alloy die-cast rear enclosure, high-temperature corrosion-resistant paint surface treatment.
Mounting Method: Embedded/wall-mounted/desktop/VESA 100mm standard mounting holes, meeting various installation needs.
Power Input: DC 12V power input, standard equipped with 100-240V power adapter.
Panel Color: Industrial metallic gray/black.
Overall Dimensions: 355 x 225 x 55 mm.
Cutout Dimensions: 343 x 213 mm.
Overall Power Consumption: 11 W.
Overall Weight: 4.2 Kg.
LCD Display
Size/Type: 13.3″ XGA TFT LCD.
Resolution: 1366*768 / 1920*1080.
Color: 16.7M.
Response Time: 8MS.
Backlight: WLED.
Backlight MTBF: 50,000 hours.
Brightness: 500 cd/㎡.
Contrast Ratio: 700:1.
Viewing Angle: (H)170/(V)160.
Touchscreen
Size/Type: 13.3-inch multi-touch capacitive touchscreen structure: G+F+F surface hardness: 50G steel ball dropped from 70cm impact three times without breaking.
Surface Strength: 7H.
Click Life: 50 million times.
Light Transmission Rate: Over 92%.
Environmental Parameters
Operating Temperature: -20~+60℃.
Storage Temperature: -30~+80℃.
Relative Humidity: 10~95%@40℃ (no condensation).
Vibration: 50~500Hz, 1.5G, 0.15mm peak-to-peak.
Shock: 10G/peak (11ms sec).
