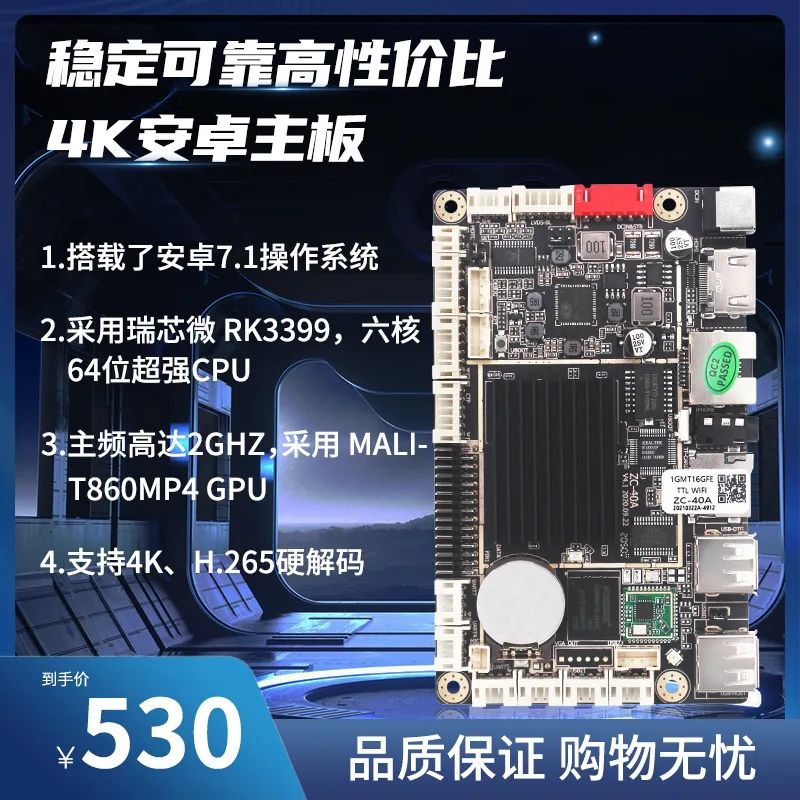

10 Cost-Effective Domestic Commercial Display Solutions PCBA
❤ ❤ ❤
Very suitable for Android motherboards for HD network playback boxes, video advertising machines, and frame advertising machines
Solution Introduction:
The ZC-339 uses the Rockchip RK3399 (dual Cortex-A72 big cores + four Cortex-A53 small cores) six-core 64-bit super powerful CPU, equipped with Android 7.1 system, with a main frequency of up to 2 GHz. It uses the Mali-T860MP4 GPU, supporting 4K and H.265 hardware decoding. The board integrates multimedia decoding, LCD driving, Ethernet, HDMI, WIFI, 3G, and Bluetooth, supporting most popular video and image format decoding, HDMI video output/input, dual 8 LVDS interfaces, and one EDP interface, capable of driving various TFT LCD displays, greatly simplifying the overall system design, with a TF card and a locked SIM card slot for stronger stability.
Application Scenarios:
Widely used in HD network playback boxes, video advertising machines, frame advertising machines, smart medical, face recognition, network security, elevator displays, commercial displays, self-service terminals, etc.
View Solution Details >>
❤ ❤ ❤

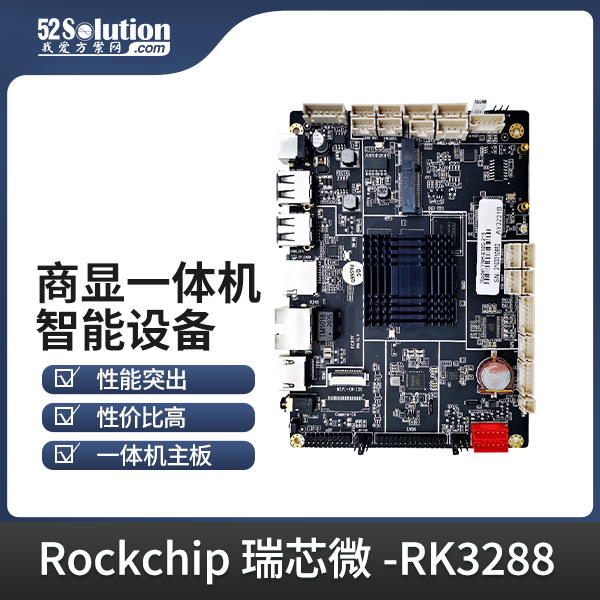

Commercial Display Smart Device Multimedia Advertising All-in-One RK3288 Motherboard
Solution Introduction:
The smart device motherboard YNH-930 is a commercial display motherboard that can provide reference designs and custom development solutions. The YNH-930 uses the Rockchip RK3288 quad-core processor, equipped with Android 5.1/8.1 system, with a main frequency of up to 1.8GHz, outstanding performance, and high cost-effectiveness. The GPU uses Mali-T764, supporting 1080P video decoding. With multiple video outputs and inputs, rich interfaces, and support for various peripheral expansions, it is your best choice in the advertising machine and digital signage industry. It supports various mainstream touch screens such as infrared, optical, capacitive, and resistive, and supports plug-and-play touch screens with HID configuration, requiring no debugging. It supports mainstream USB/serial devices and provides demo testing programs.
Application Scenarios:
Widely used in advertising machines, digital signage, self-service terminals, robots, industrial control motherboards, remote conference equipment, smart retail terminals, etc.
View Solution Details >>
❤ ❤ ❤

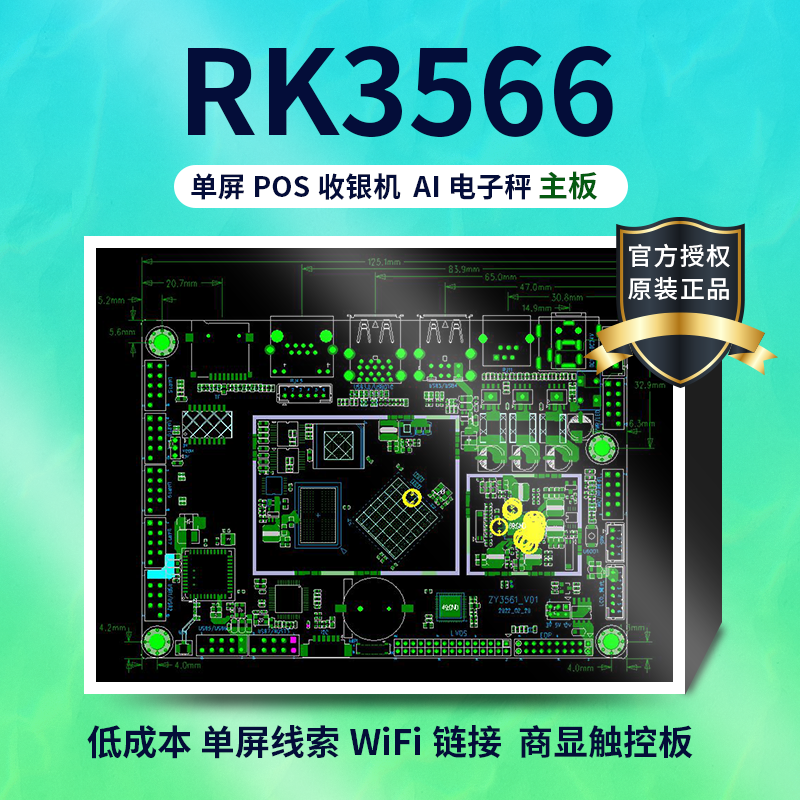

RK3566 Single-Screen POS Cash Register AI Electronic Scale Motherboard
Solution Introduction:
This motherboard uses the Rockchip RK3566 low-power quad-core 64-bit Cortex-A55, with a maximum frequency of 1.8GHz, providing 0.8T computing power. It features a smart power management circuit, supports common external devices, and has stable performance, supporting current popular video and image encoding and decoding formats, showcasing the powerful multimedia interfaces and rich peripheral interfaces of the Rockchip RV1126 chip. It also provides developers with hardware reference designs based on the Rockchip RV1126 chip, allowing developers to complete product hardware development without modification or with only simple modifications to the reference design module circuit. The RV1126 is a high-performance visual processing SoC with high compatibility.
Application Scenarios:
Widely used in AI electronic scales, cash register POS machines, vending machines, and touch all-in-one machines, etc.
View Solution Details >>
❤ ❤ ❤

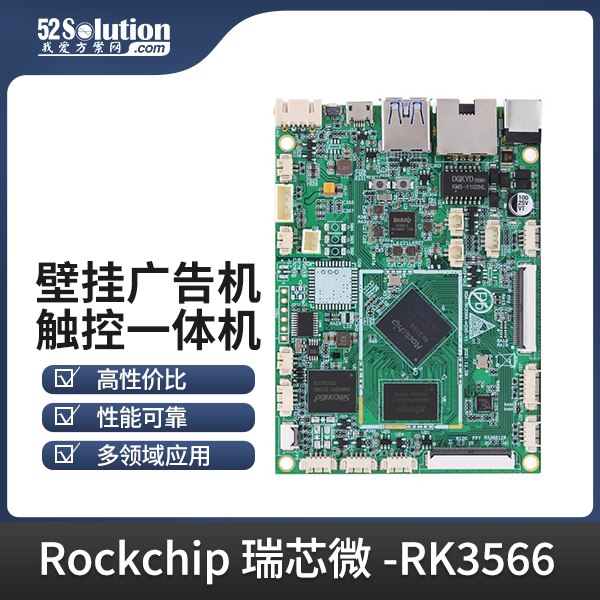

Suitable for Wall-Mounted Advertising Machine Touch All-in-One Multimedia Machine RK3566 Android Commercial Display Motherboard
Solution Introduction:
The industrial control advertising machine touch all-in-one motherboard uses the Rockchip RK3566 chip set, which is a highly cost-effective commercial display motherboard. This solution has reliable performance, with cumulative shipments exceeding 50k, helping consumer electronics manufacturers quickly introduce products. The RK3566 is a high cost-performance general-purpose SoC, with a CPU using a 4-core A55 architecture processor, integrated G52 graphics processor, and built-in independent NPU, with a computing power of 0.8 Tops, supporting Android 11 or Linux systems.
Application Scenarios:
Widely used in enterprise and educational terminals, smart home appliances, smart security devices, tablets, advertising machines, etc.
View Solution Details >>
❤ ❤ ❤

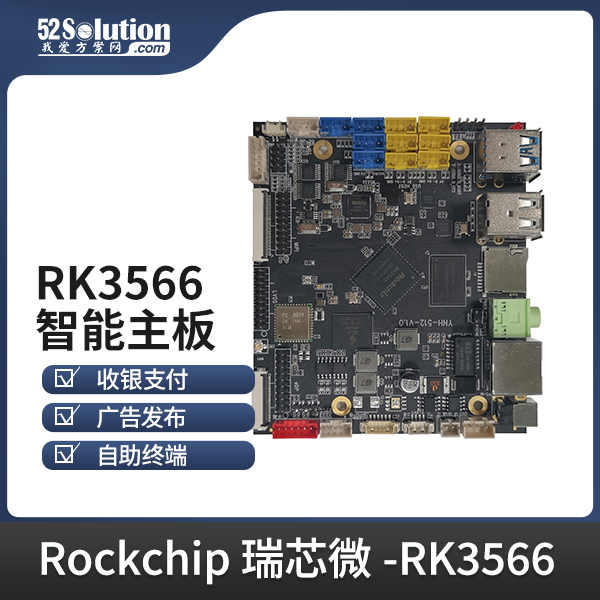

RK3566 High Cost-Performance Android Video Motherboard
Solution Introduction:
The high cost-performance video motherboard YNH-512 is an intelligent Android motherboard, using the Rockchip RK3566 quad-core 64-bit processor, equipped with Android 11.0 system, with a main frequency of up to 1.8GHz. The GPU uses Mali-G52, supporting 1080P video decoding. It supports multiple video outputs and inputs, has rich interfaces, supports various peripheral expansions, and comes with a WIFI-2.4G/5G module, BT-4.0, and wired network; the board also has a hardware watchdog.
Application Scenarios:
Widely applicable to cash registers, advertising machines, self-service terminals, etc.
View Solution Details >>
❤ ❤ ❤

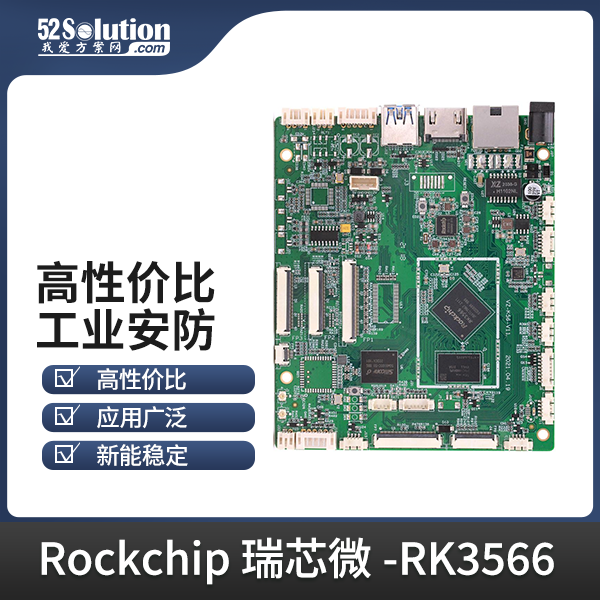

High Cost-Performance Industrial Security Device Advertising Machine Touch All-in-One RK3566 Motherboard
Solution Introduction:
The industrial security device advertising machine touch all-in-one motherboard (VZ-K56-V11) uses the Rockchip RK3566 chip set, which is a cost-effective display control motherboard. This product has stable performance, with quarterly shipments exceeding 20K, mainly supporting display control equipment manufacturers and supermarket system integrators to quickly introduce products. The RK3566 is a low-cost general-purpose SoC designed for display control applications, using a 4-core A55 architecture processor, integrated G52 graphics processor, and built-in independent NPU, with a computing power of 0.8 Tops, running Android 11 or Linux systems.
Application Scenarios:
Widely used in industrial equipment, security monitoring, new retail devices, mall navigation display boards, etc.
View Solution Details >>
❤ ❤ ❤

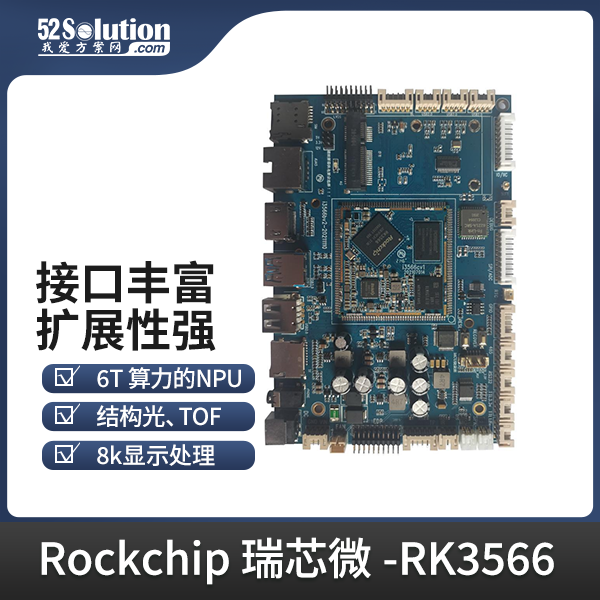

RK3566 8K HD Display Visual Processing Development Board
Solution Introduction:
The high-performance development board I3566 uses the new generation flagship high-end processor RK3566 from Rockchip. The RK3566 is designed with 8nm technology, equipped with an octa-core CPU (four-core A76 + four-core A55) and an Arm high-performance GPU, with a built-in NPU providing 6T computing power. It has powerful visual processing capabilities, supporting various fast face unlocking solutions such as structured light and TOF; it supports rich display interfaces, with up to 8K display processing capabilities; it has strong expandability, supporting high-speed interfaces such as PCIE3.0, SATA3.0, dual TypeC/USB3.1, and can be used for AI computing power, image data processing, etc.
Application Scenarios:
Widely used in ARM PCs, high-end tablets, edge computing servers, virtual reality, NVR, 8K TVs, etc.
View Solution Details >>
❤ ❤ ❤

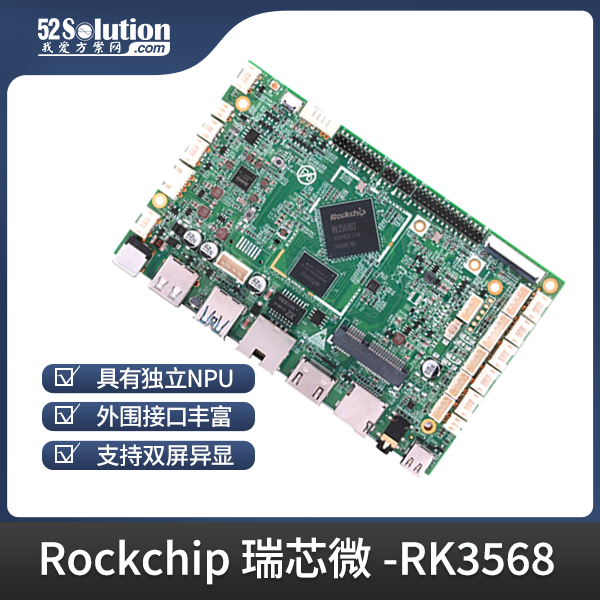

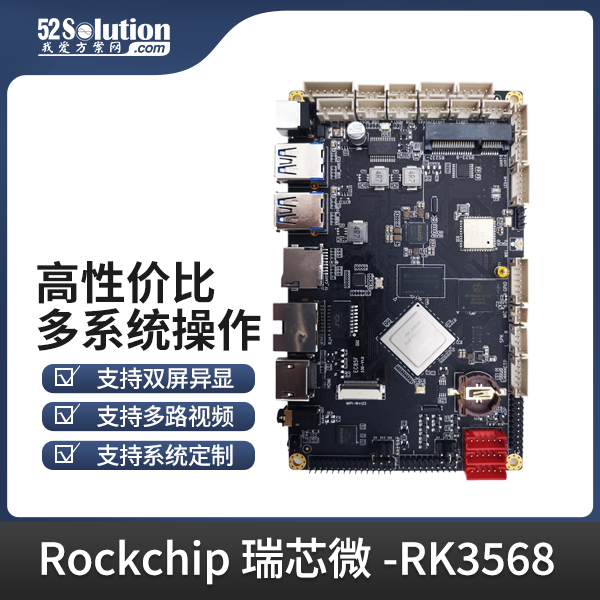

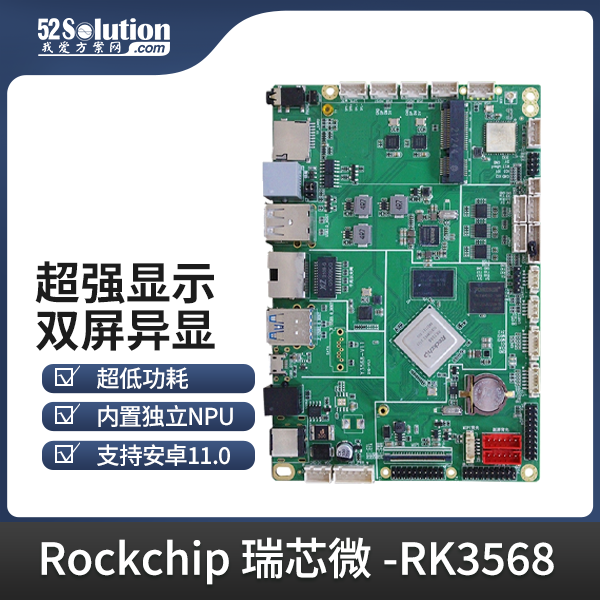

High Cost-Performance Industrial Control Motherboard Supporting Android and Linux Systems
Solution Introduction:
The high cost-performance industrial control motherboard VZ-DS-K58-V10 uses the Rockchip mid-to-high-end general-purpose SoC RK3568, manufactured with a 22nm process, integrating a 4-core ARM architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. It supports various peripheral interfaces such as SATA/PCIE/USB3.0, with a built-in independent Rockchip NPU, supporting Android 11 and Linux systems.
Application Scenarios:
Widely applicable to smart robots, tablets, advertising machines, industrial control display control boards, smart terminal development, etc.
View Solution Details >>
❤ ❤ ❤
Intelligent Android Display Motherboard Supporting Various Mainstream Touch Screens
Solution Introduction:
The Rockchip intelligent Android motherboard is a high cost-performance display motherboard with rich interfaces, supporting multiple video outputs and inputs, and various peripheral expansions. This motherboard can provide demo testing programs, has high integration, high clarity, supports various mainstream touch screens, supports plug-and-play touch screens with HID configuration without debugging, and supports mainstream USB/serial devices, printers, card readers, etc. It uses a 3566 quad-core 64-bit processor, equipped with Android 11.0 system, with a main frequency of up to 1.8GHz. The GPU uses Mali-G52, supporting 1080P video decoding. It supports multiple video outputs and inputs, has rich interfaces, supports various peripheral expansions, and comes with a WIFI-2.4G/5G module, BT-4.0, and wired network; the board also has a hardware watchdog.
Application Scenarios:
Widely applicable to cash registers, advertising machines, self-service terminals, etc.
View Solution Details >>
❤ ❤ ❤
High-Performance Low-Power Multi-System High-Definition Commercial Display Motherboard
Solution Introduction:
The Rockchip RK3566 intelligent commercial display motherboard is a high-integration, high-definition, cost-effective display board, with rich interface resources, supporting multiple video outputs and inputs, and having strong expandability. This motherboard perfectly supports various mainstream touch screens such as infrared, optical, capacitive, and resistive, supports plug-and-play touch screens with HID settings without debugging, and features a quad-core 64-bit processor, equipped with Android 11.0 system, with a main frequency of up to 1.8GHz. The GPU uses Mali-G52, supporting 1080P video decoding. It supports multiple video outputs and inputs, has rich interfaces, supports various peripheral expansions, and comes with a WIFI-2.4G/5G module, BT-4.0, and wired network; the board also has a hardware watchdog.
Application Scenarios:
Widely applicable to digital signage, cash registers, vending machines, smart communities, face recognition all-in-one machines, face verification, industrial control hosts, 3D face payment, etc., self-service terminals, etc.
View Solution Details >>
