UVC Development with Sigmastar PureLinux System: ADB Tool

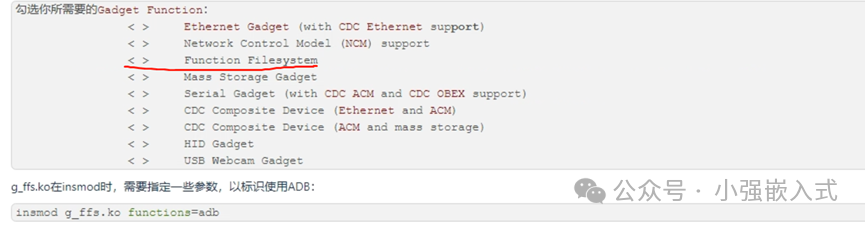

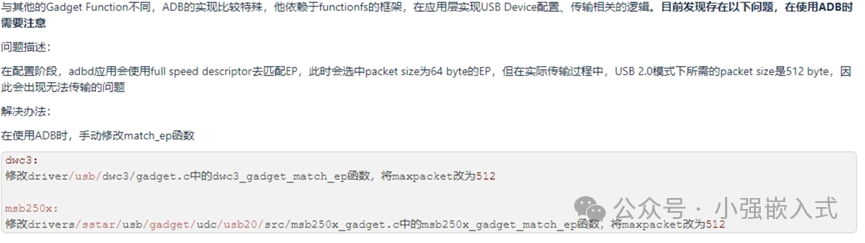

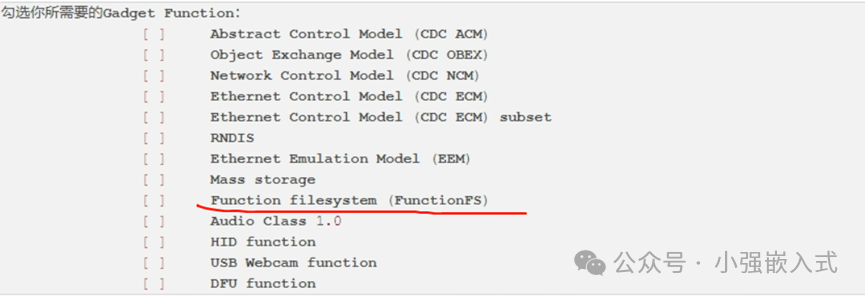

adb functionuses bulk transfer mode, requiring twoEP(in/out), and thepacket size required inusb2.0 mode is 512 bytes.1. Kernel ConfigurationSelect “function filesystem“, and after compilation, it will generate usb_f_fs.ko and g_ffs.koIf configured via configfs, please use the configuration below

How to Test

As mentioned earlier, ADB implements the logic for USB Device configuration and data transfer at the application layer, so after setting up the Legacy or Configfs environment, it is necessary to run the adbd application for the Host side to recognize the corresponding ADB device.

Method to execute on the Device side:

mkdir -p /dev/usb-ffs/adb

mount -o uid=2000,gid=2000 -t functionfs adb /dev/usb-ffs/adb

./adbd &

sleep 2

Method to execute on the Host side:

adb devices –> adb

adb connect –> adb

adb shell –> adbshell

For obtaining and compiling the source code of adb/adbd, refer to:

The service program on the adbd device, source reference: https://github.com/yoannsculo/adbd

Installation and usage of adb on Linux platform: apt-get install android-tools-adb3. Specific usage: refer to https://github.com/mzlogin/awesome-adb#usb-%E8%BF%9E%E6%8E%A5
