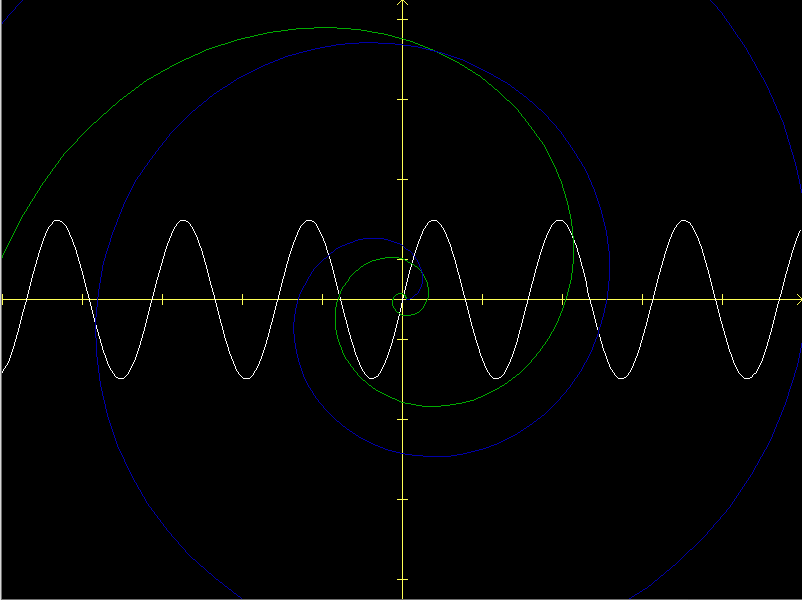

Task: Draw a sine wave, a logarithmic spiral, and an arithmetic spiral.First, draw the mathematical two-dimensional coordinate axes and mark the scales accordingly on the axes.Then, draw a sine wave in red, a logarithmic spiral in green, and an arithmetic spiral in blue.Effect
Source Code
#define _CRT_SECURE_NO_WARNINGS#include <graphics.h>#include <math.h>#include <stdio.h>#include <conio.h>#define PI 3.1415926535
int main() { initgraph(800, 600); setbkcolor(BLACK); cleardevice();
// Draw coordinate axes setlinecolor(YELLOW); // x-axis line(0, 300, 800, 300); // y-axis line(400, 0, 400, 600);
// Draw arrows line(795, 295, 800, 300); // x-axis arrow line(795, 305, 800, 300); line(395, 5, 400, 0); // y-axis arrow line(405, 5, 400, 0);
// Draw scales and labels settextcolor(BLACK); settextstyle(14, 0, _T("宋体"));
// x-axis scales (mathematical range -10 to 10, 40 pixels per unit) for (int x = -10; x <= 10; x += 2) { if (x == 0) continue; int screenX = 400 + x * 40; line(screenX, 295, screenX, 305); char text[10]; sprintf(text, "%d", x); if (x > 0) outtextxy(screenX - 5, 310, text); else outtextxy(screenX - 15, 310, text); }
// y-axis scales (mathematical range -7 to 7) for (int y = -7; y <= 7; y += 2) { if (y == 0) continue; int screenY = 300 - y * 40; line(395, screenY, 405, screenY); char text[10]; sprintf(text, "%d", y); outtextxy(410, screenY - 10, text); }
// Draw sine wave (red) setlinecolor(WHITE); for (double x = -10.0; x <= 10.0; x += 0.05) { double y = 2 * sin(x * 2); // Adjust parameters to make the waveform visible int screenX = 400 + (int)(x * 40); int screenY = 300 - (int)(y * 40); if (x == -10.0) moveto(screenX, screenY); else lineto(screenX, screenY); }
// Draw logarithmic spiral (green) setlinecolor(GREEN); double r = 0.1; double theta = 0.0; bool first = true; while (r < 15) { // Control the range of the spiral double x = r * cos(theta); double y = r * sin(theta); int screenX = 400 + (int)(x * 40); int screenY = 300 - (int)(y * 40); if (first) { moveto(screenX, screenY); first = false; } else { lineto(screenX, screenY); } r *= 1.03; // Geometric growth factor theta += 0.1; }
// Draw arithmetic spiral (blue) setlinecolor(BLUE); r = 0.1; theta = 0.0; first = true; while (r < 15) { // Control the range of the spiral double x = r * cos(theta); double y = r * sin(theta); int screenX = 400 + (int)(x * 40); int screenY = 300 - (int)(y * 40); if (first) { moveto(screenX, screenY); first = false; } else { lineto(screenX, screenY); } r += 0.08; // Arithmetic growth amount theta += 0.1; }
_getch(); closegraph(); return 0;}
