Summary of Various PLC Control Circuit Wiring Diagrams

Click↑↑Technical Training, follow and pin it to subscribe for free long-term

Over 180,000 industrial control professionals follow this WeChat platform: technical sharing, learning exchange, industrial control videos

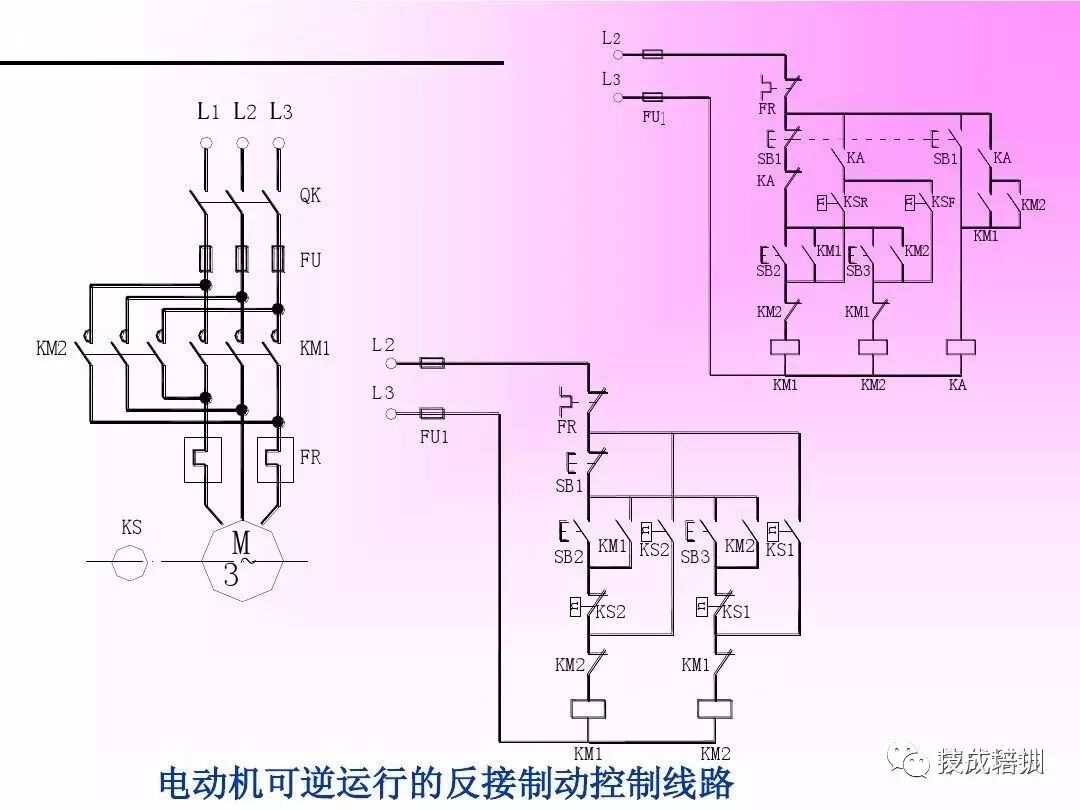

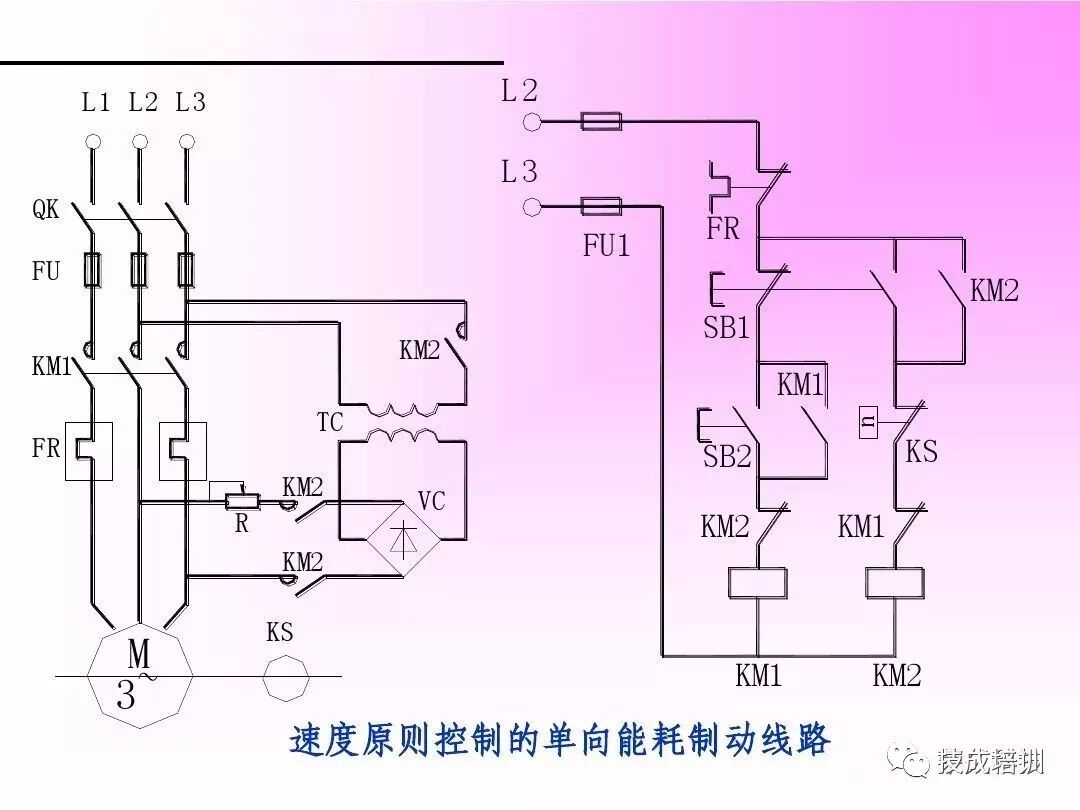

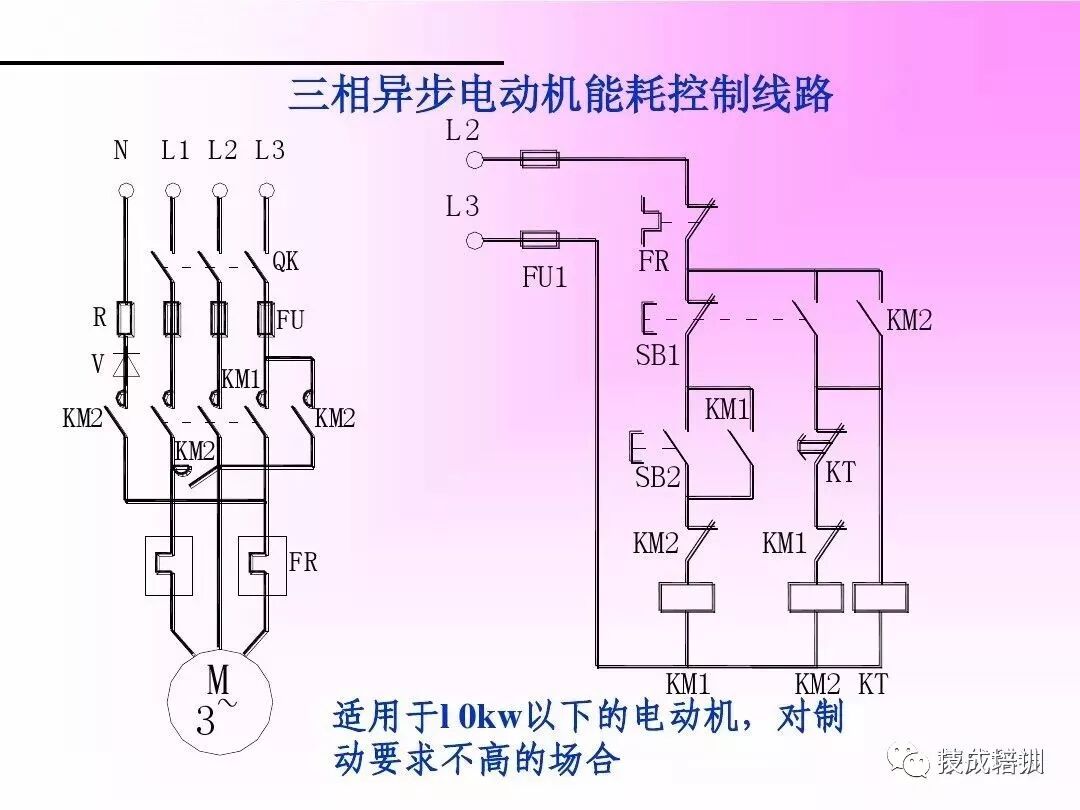

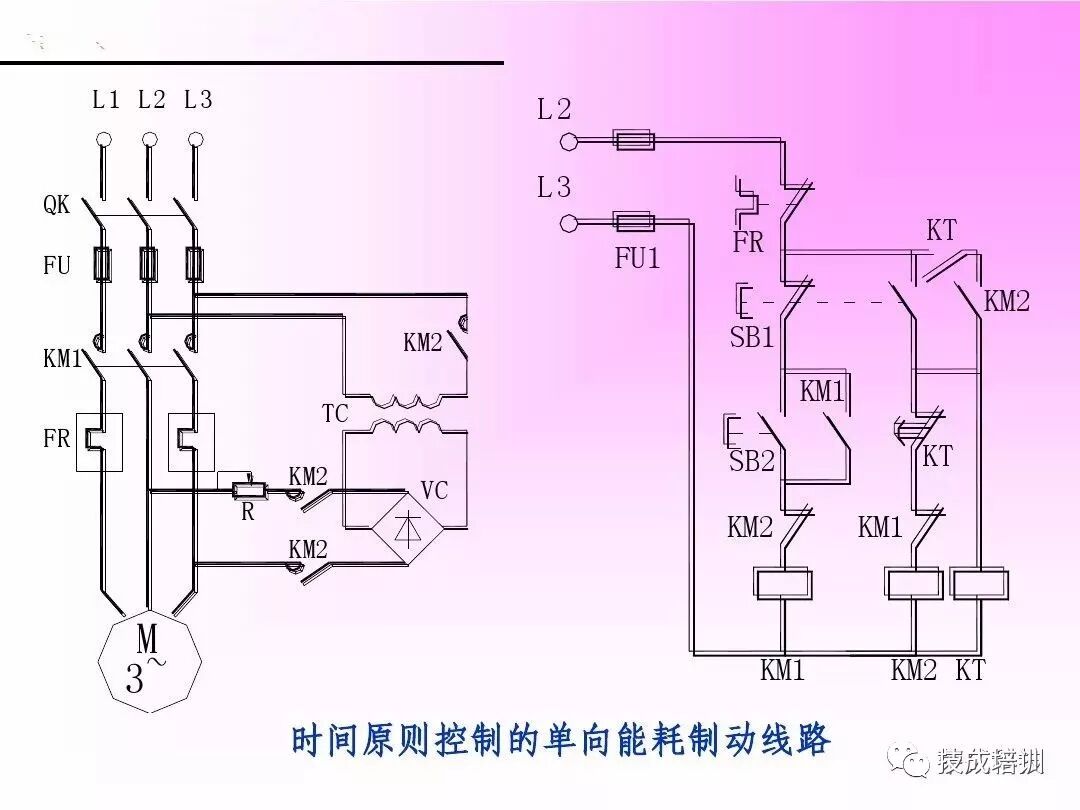

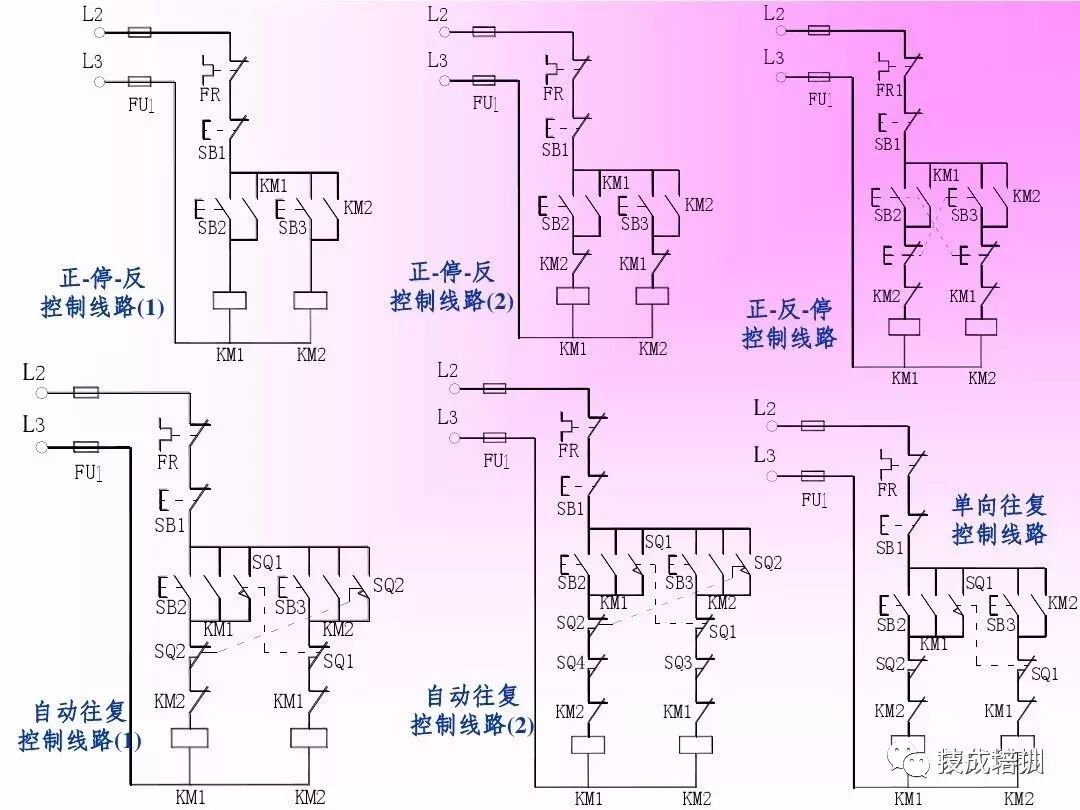

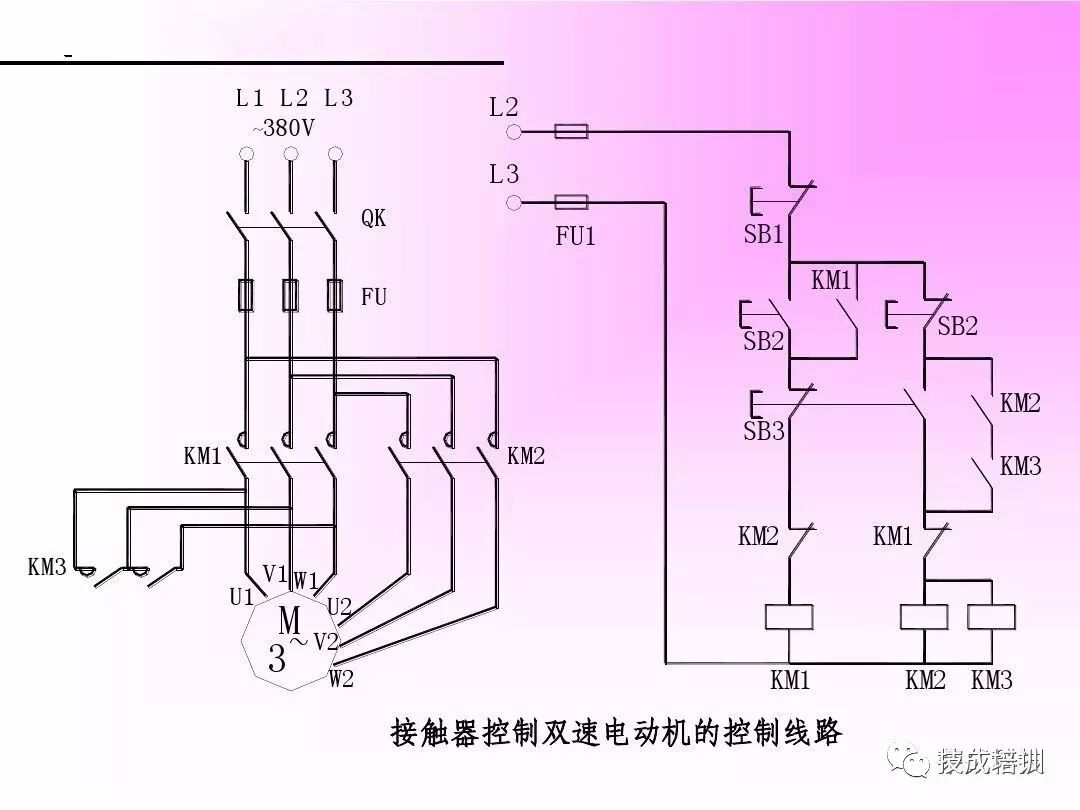

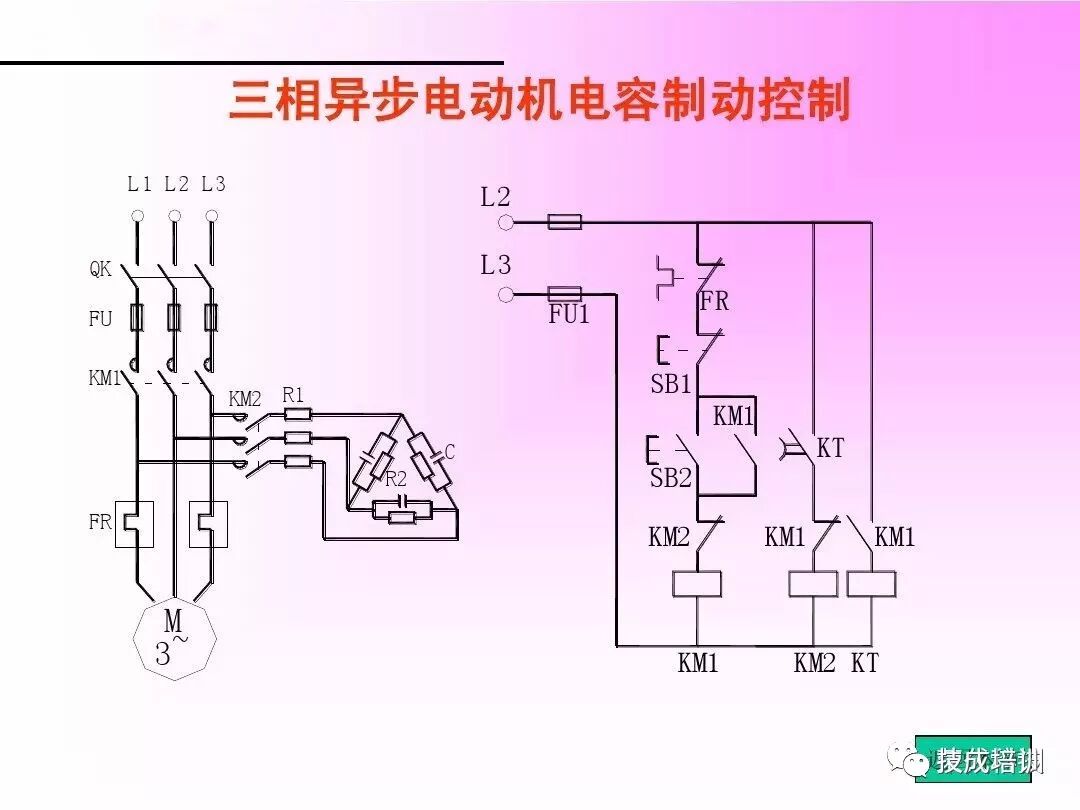

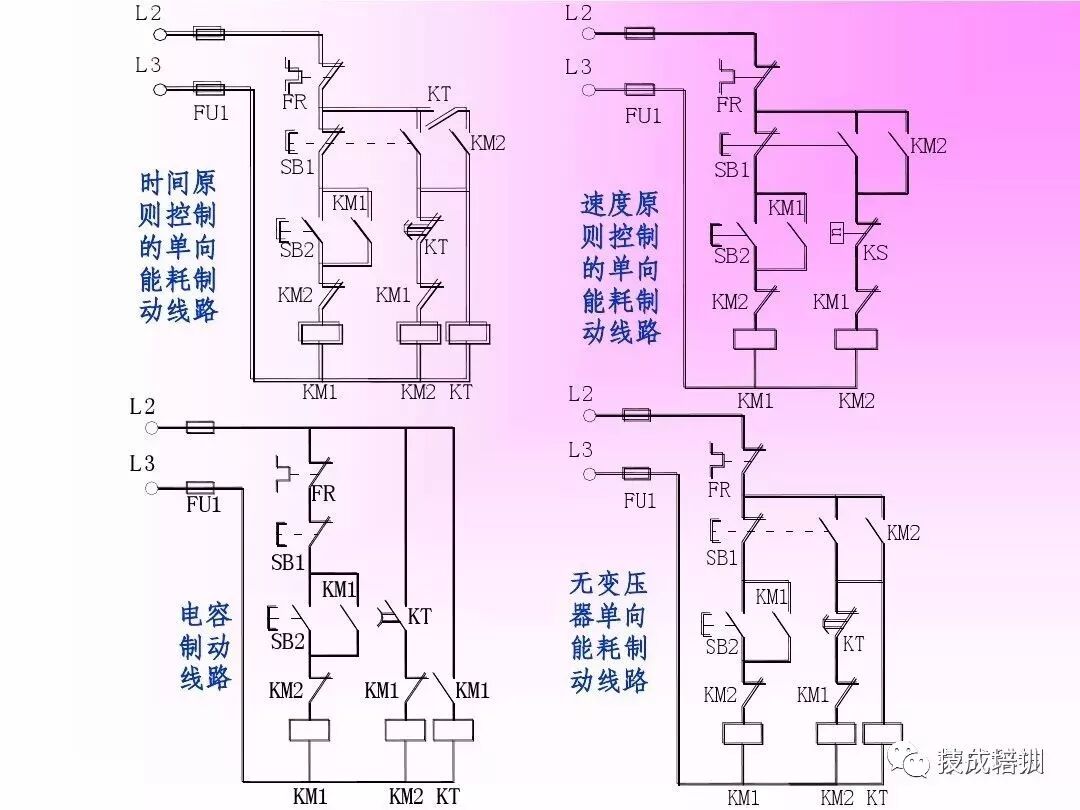

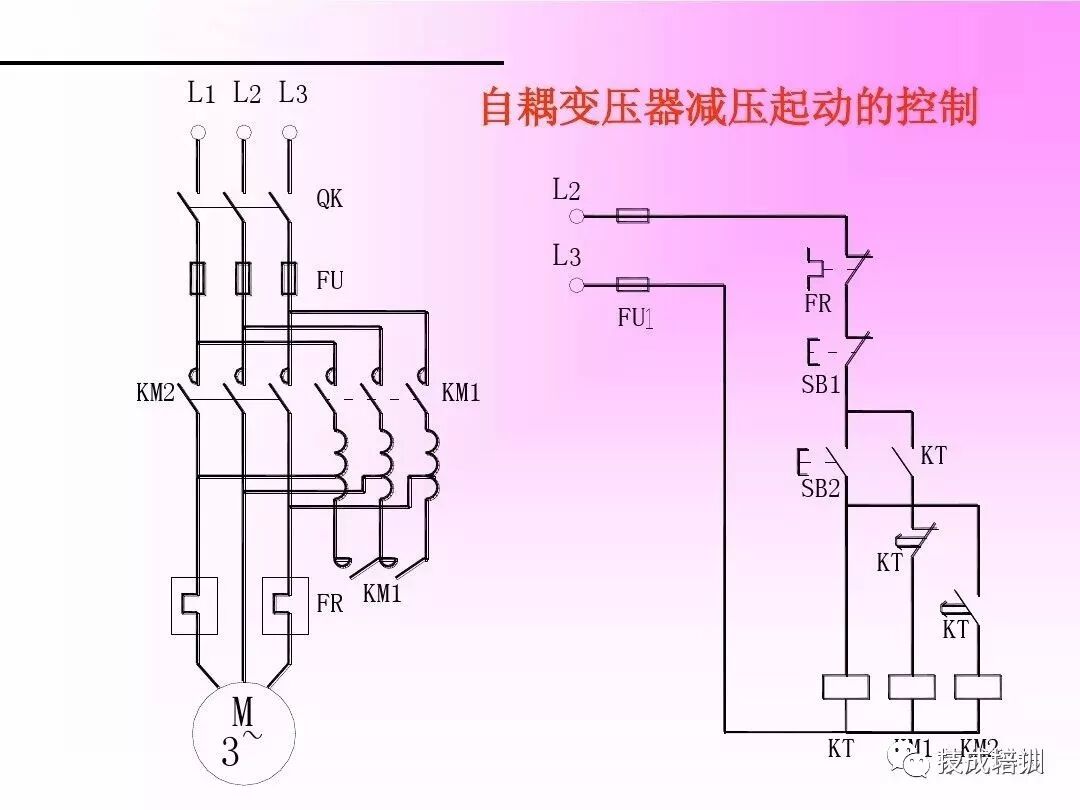

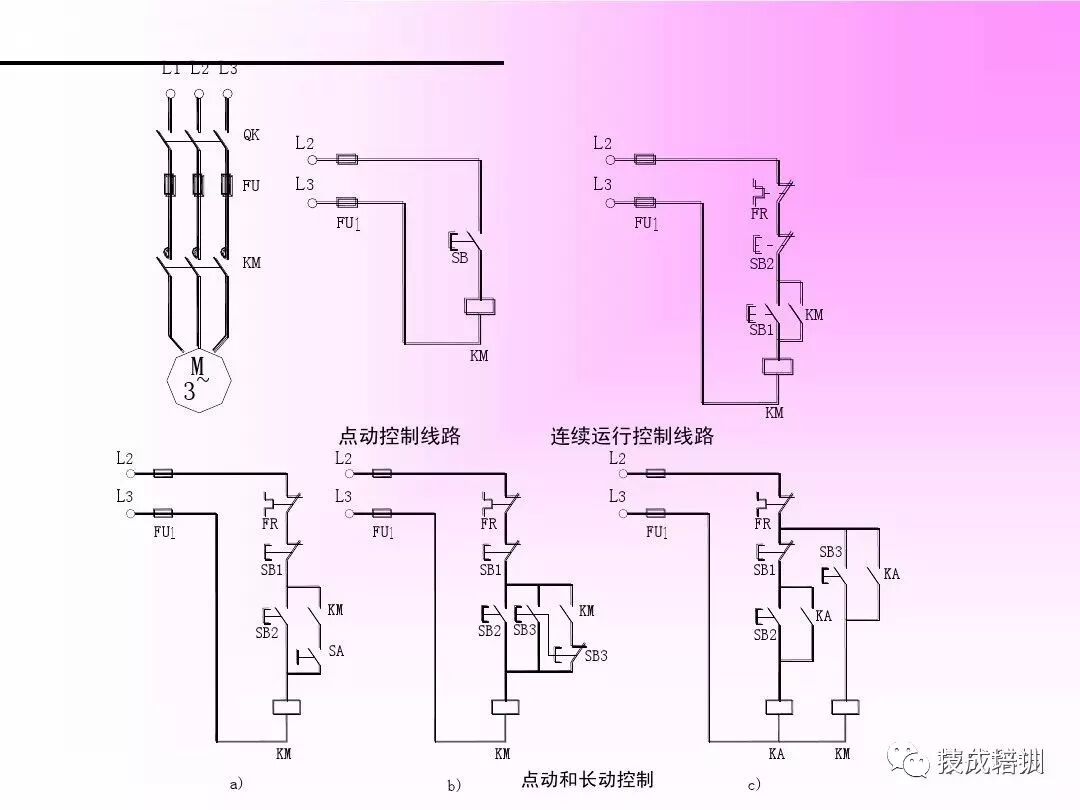

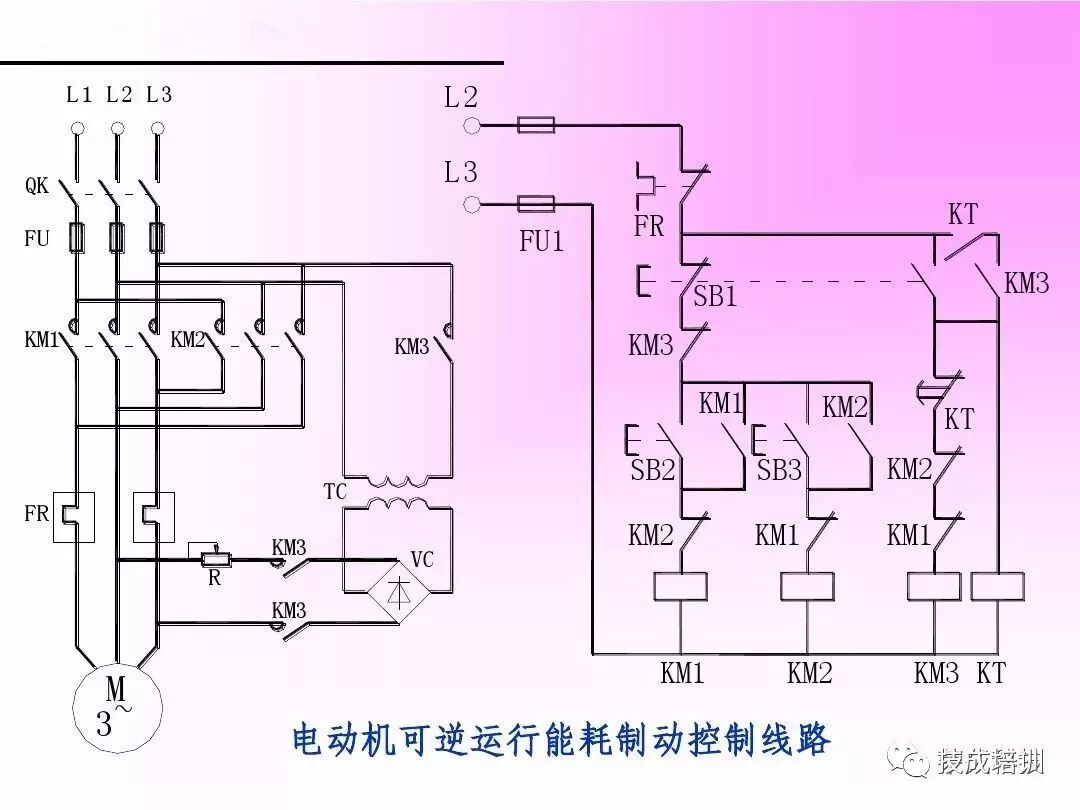

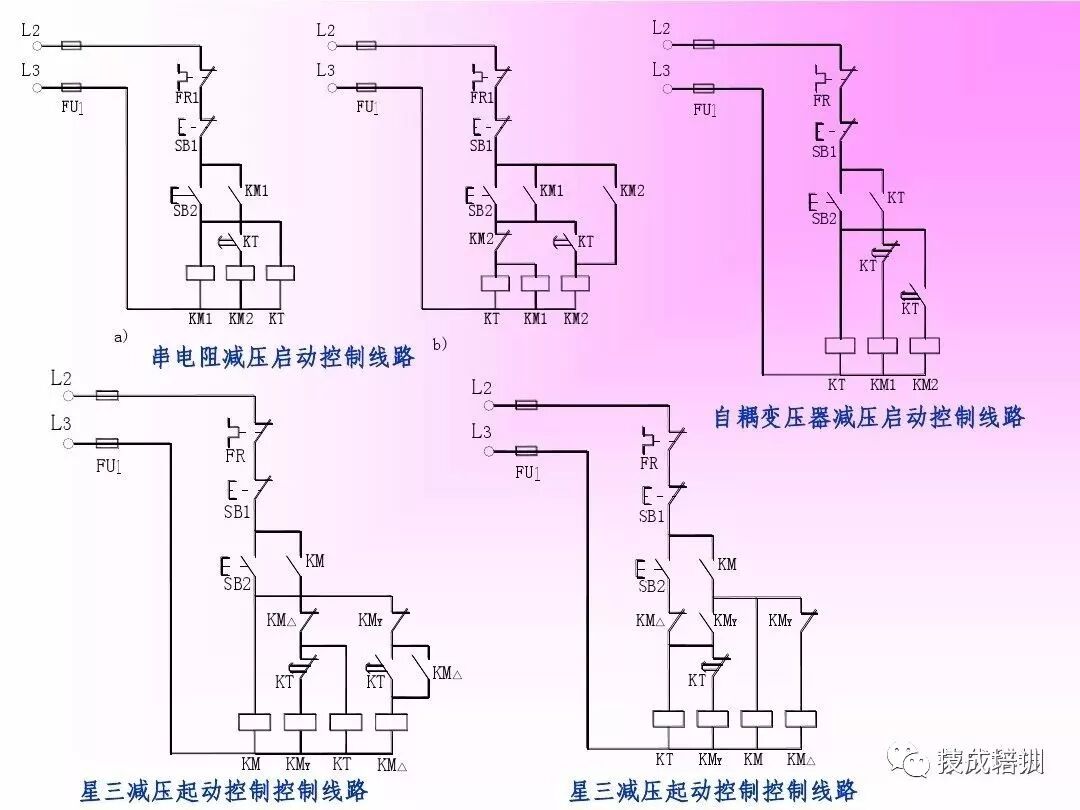

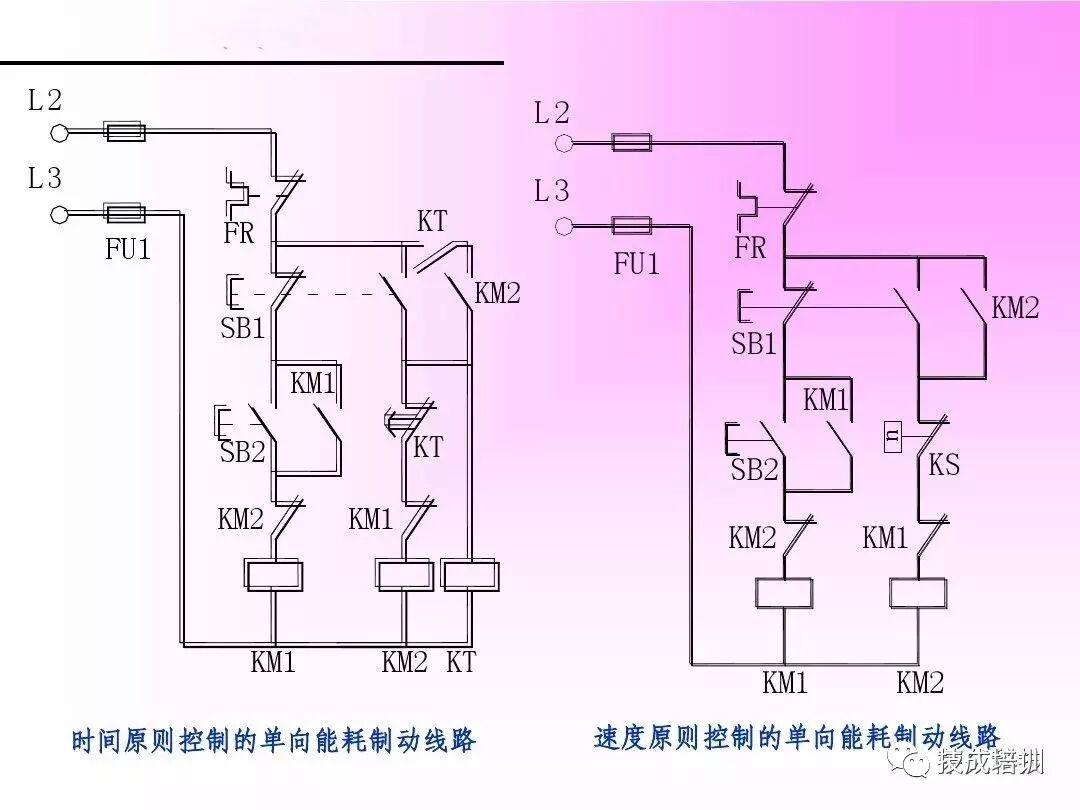

The PLC, a replacement for contactor distribution cabinets and relay control cabinets, has become widely popular in the development of automated production. To help everyone better understand PLC control circuits, we have specially compiled the following various PLC control circuits, as shown below:
